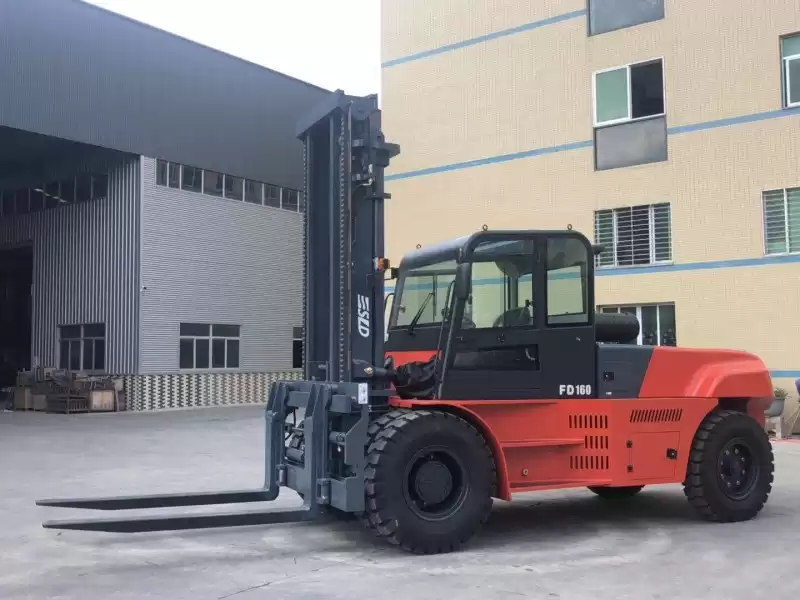

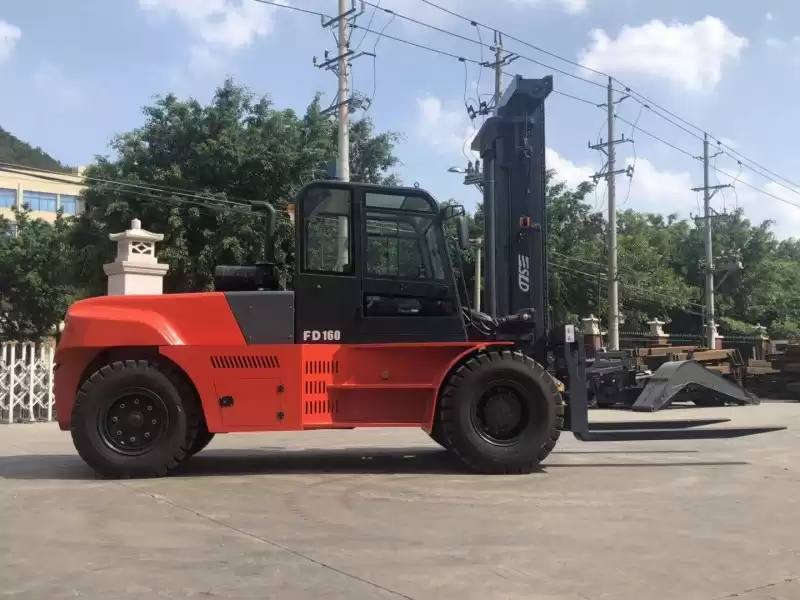

FD160 16 ton forklift
Q: What kind of engine do we use?
A: Yuchai Weichai CUMMINS engine, big power, low consumption, high quality.
Q: How about the steering system？
A: Full-hydraulic steering, flexible and light, reliable.
Q: How about Cooling system?
A: Equipped independent transmission oil and hydraulic oil cooling, increasing system stability.
Q: How about Fork?
A: Standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.

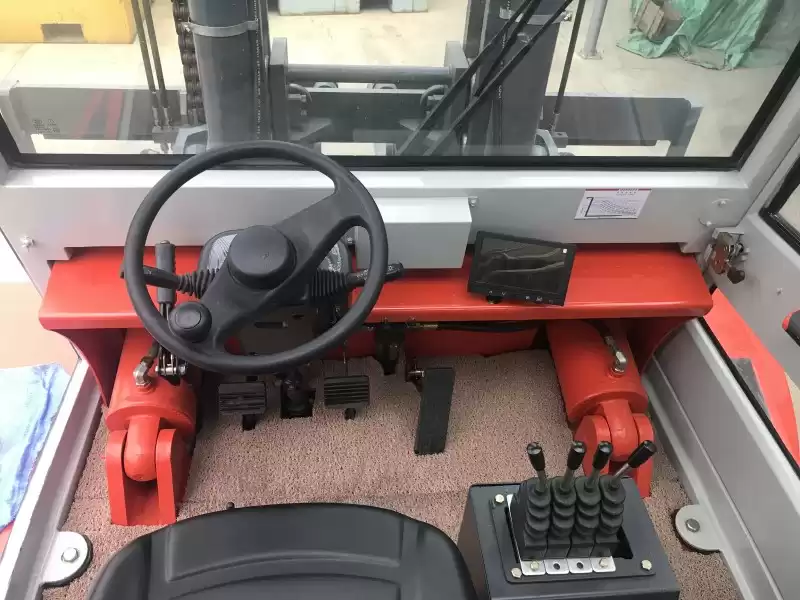

Q: How about Cab?
A: Good vision, with Air Conditioner.
Q: Do you accept customization?
A: OEM/ODM is available
|
Parameters:
|
Vehicle configuration
|
|
FD160
|
|
Performance
|
Rated load
|
|
16000
|
|
Load center
|
|
600
|
|
Mast tilt angle (front/rear)
|
º
|
6/12
|
|
Overall dimensions
|
Length
|
mm
|
7200
|
|
Width
|
mm
|
2550
|
|
Height
|
mm
|
3460
|
|
Mast lifting height
|
mm
|
3000
|
|
Fork size (L*W*H)
|
mm
|
1800X200X90
|
|
Min. turning radius
|
mm
|
5050
|
|
Max. travel speed (with load)
|
Km/h
|
22
|
|
Lifting speed (with load)
|
mm/s
|
240
|
|
Gradeability (with load)
|
%
|
20
|
|
Weight
|
Kg
|
18000
|
|
Tyre
|
Front
|
|
4X12.00-24/20PR
|
|
Rear
|
|
2X12.00-20/18PR
|
|
Wheel tread
|
Front
|
mm
|
1850
|
|
Rear
|
mm
|
2130
|
|
Wheelbase
|
mm
|
3600
|
|
Min. ground clearance
|
mm
|
270
|
|
Engine
|
Model
|
|
YC6J175-T302
|
|
Rated power
|
KW
|
129
|
|
Max. torque
|
N.m
|
710
|
Note: the above data are subject to change without prior notice.
