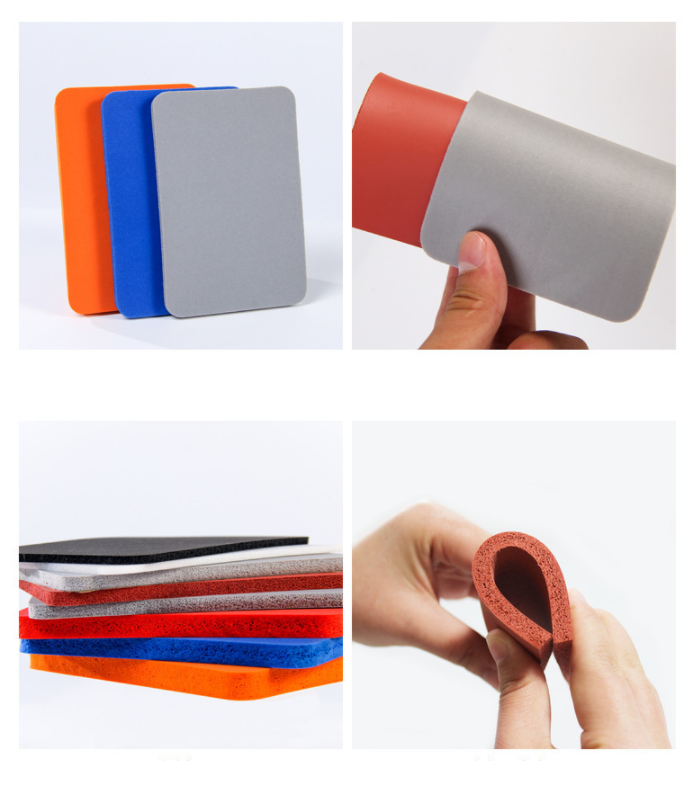

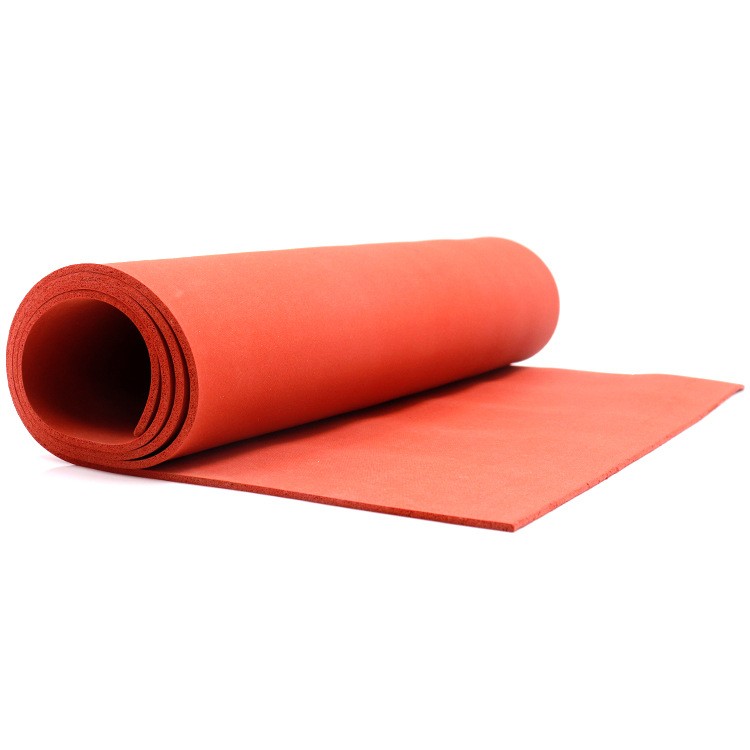

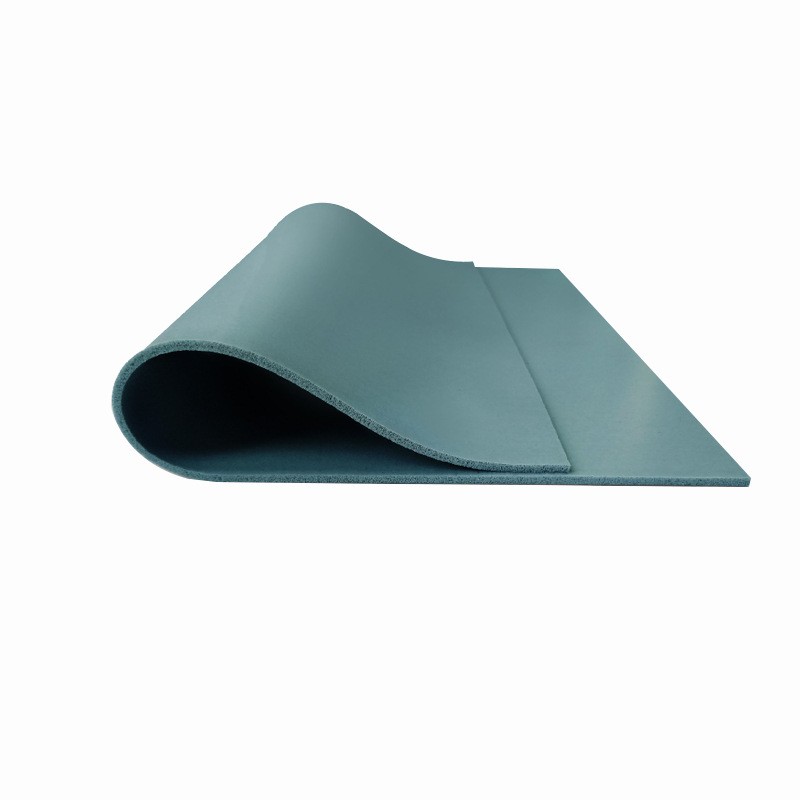

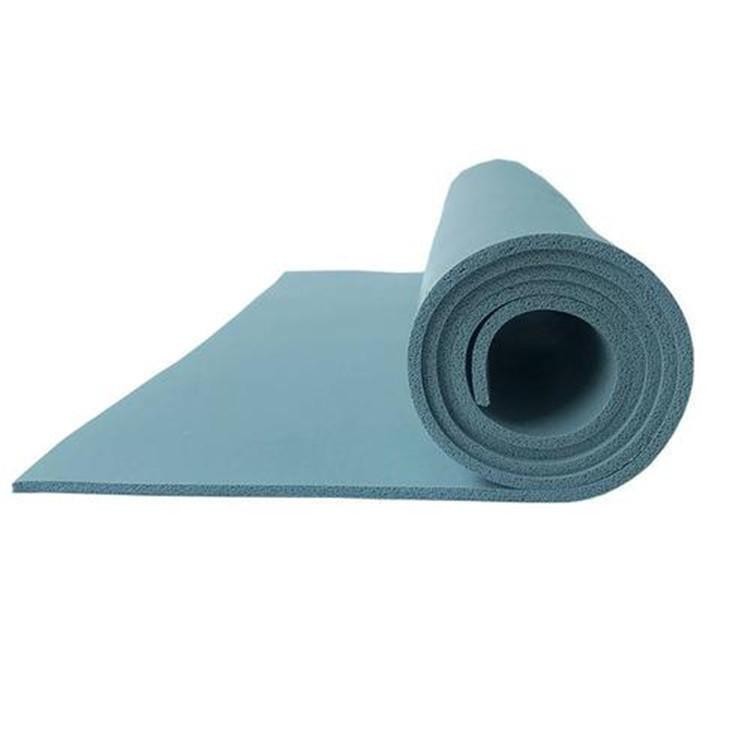

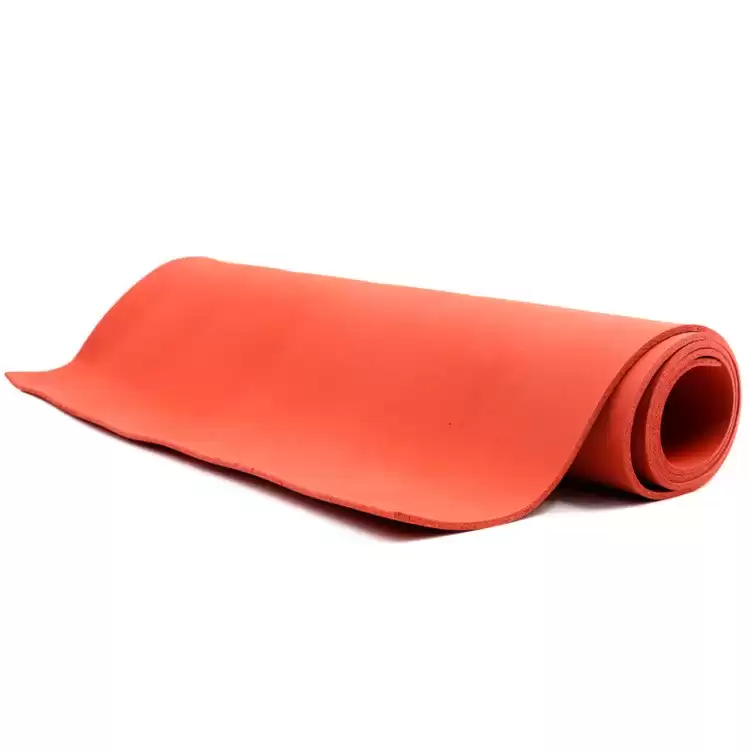

High Temperature Corrosion Resistant Foam Flame Retardant Fabric Silicone Foam Sheet
- Color: black grey red etc.
- Thickness: 1mm-30mm.
- Specifications: can be cut, stamped, vulcanized and formed according to customer requirements.

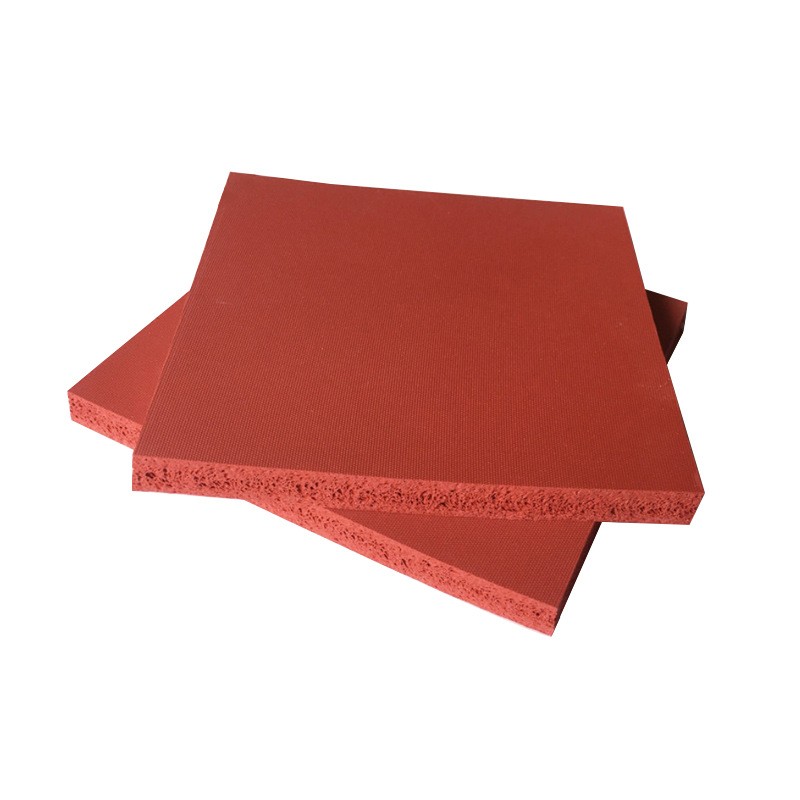

- The silicone foam board generates a large amount of air during the vulcanization of the silicone under a certain high temperature through a chemical foaming agent, resulting in a large number of small holes inside the silicone, which is called silicone foam.
Product Description
- 1. Using new silicone raw materials, with uniform thickness, small specific gravity and strong sealing
- 2. Good temperature resistance, can withstand high temperature of about 220 degrees, and low temperature resistance of -40-60 degrees
- 3. Soft texture, good elasticity, high tensile strength, bending resistance, not easy to age
Product Use
- It can make flexible silicone rubber products such as insoles, shoulder pads, patches, anti-skid pads, etc. It is suitable for heat transfer printing equipment, electronic appliances, mechanical seals and other industries
Physical Properties
| NO. |
Test Item |
Test Method |
Result |
Conclusion |
| 1 |
Compression Deflection |
ASTM D1056-14Section 17~23 |
12.7psi |
/ |
| 2 |
Compression Set |
With reference to ASTMD1056-14 Section50~56 and client's requirement |
4% |
/ |
| 3 |
Density |
With reference to ASTM D792-13 Method Band client's requirement |
0.385g/cm3 |
/ |
| 4 |
Dielectric Strength |
GB/T 1695-2005 |
5.51kV/mm |
/ |
| 5 |
Low TemperatureResistance Test |
Provided by client |
No damage |
/ |
| 6 |
Tensile Test |
With reference to ASTM D412-16 Method A and client's requirement |
| Tensile Test |
0.651MPa |
| Elongation at Break |
230% |
|
/ |
| 7 |
Volume Resistivity |
GB/T1692-2008 |
4.23x1016Ω·cm |
/ |
| 8 |
Water Absorption |
ASTMD570-98(2018) |
0.68% |
/ |
