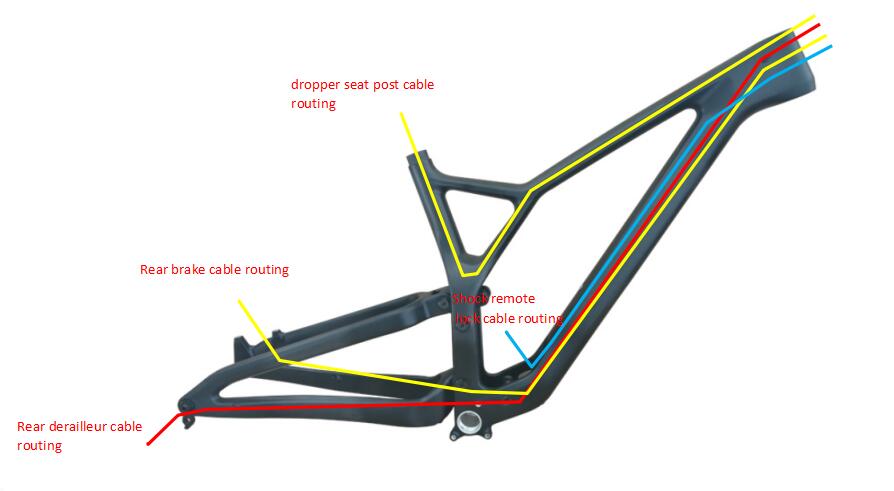

FS958 Trail mountain bike frame cable routing instruction
|
Frame
|

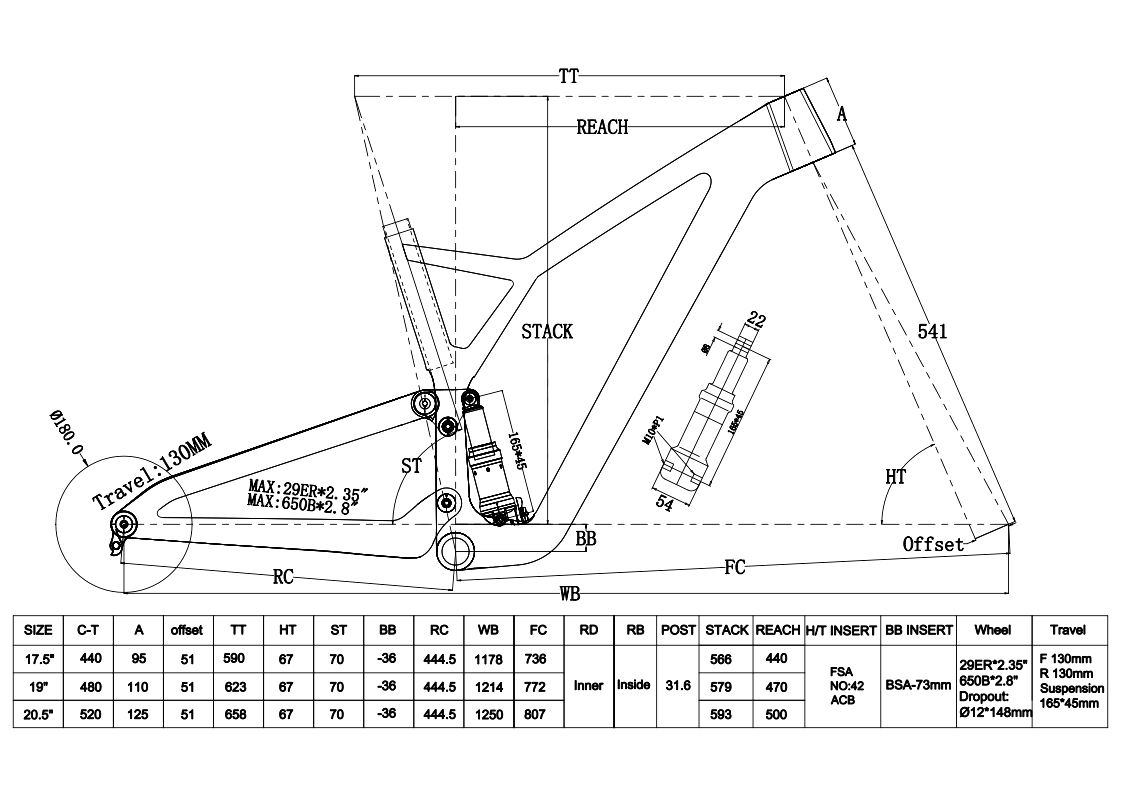

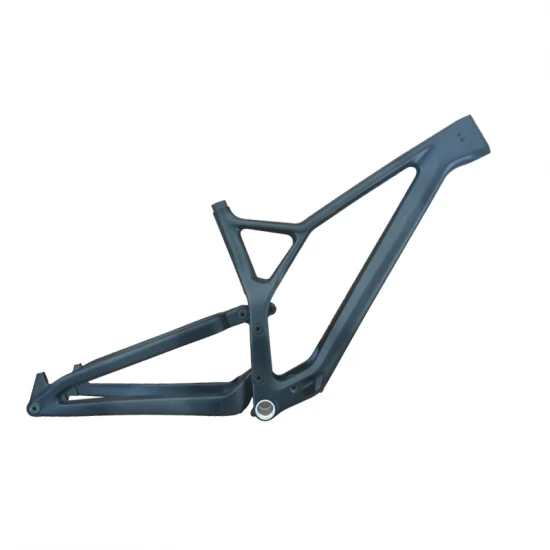

2019 New full suspension trail mountain bike frameset
|
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
17.5'', 19'',20.5'' (Medium, Large, Xlarge)
|
|
FrontTravel
|
130mm
|
|
Rear Travel
|
130mm
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
|
|
Weight
|
2080g/Medium
|
|
Seatpost Diameter
|
31.6mm(37mm clamp)-Dropper seatpost insert length 17.5''=170mm 19''=200mm
|
|
Bottom Bracket
|
BSA -73mm
|
|
Max Tire Clearance
|
29er*2.35'' and 27.5*2.8''
|
|
Max Compatible Chainring
|
34T
|
|
Rotor
|
180mm
|
|
Front Derailleur
|
Single chainring 1x drivetrain system
|
|
Rear Shock
|
165*45mm trunnion mount rear shocks(54*φ10mm - 22.2*φ8mm)
|
|
Dropout
|
12*148mm boost thru axle
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
