Specification
LIGHT SOURCE
Lamp: Philips/Osram 230W
CT:8000 K
Lifespan: 2,000H

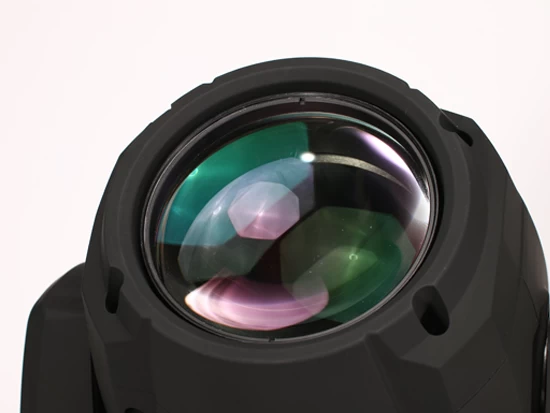

OPTICS
Beam angle: 3.8°
High precision glass optic system
Improved optics and flat beam field
COLORS
1 Color wheel: 14 color+open
Half-color effect, linear color change, bidirectional rotating
rainbow effect at variable speed
GOBOS
1 Static gobo wheel: 14 +open
Shakable and bi-directionally rotatable at variable speeds
MOVEMENT
Pan movement: 540° optional (16 bit )
Tilt movement: 270°(16 bit )
Advanced moving system: auto repositioning, fast, quiet and smooth
FEATURES
2 Prism: 8 facet+16 facet, bi-directionally rotatable at
variable speeds
Focus: motorized linear focus
Frost: 1 frost filter, soft and natural
wash effect
Strobe: mechanical shutter, variable from
1-13Hz or random
Dimming: mechanical dimmer 0-100% linearly adjustable
DISPLAY
2.8 inch full color touch LCD display,
show customer logo
15 second standby auto lock
SOFTWARE
Remote lamp control (on/off, ignited by
inverter, protect and lengthen the lifetime of the bulb)
Control mode: DMX512, master-slave, auto-run,
sound activate
Channel: 16/20 CH
Run
time of lamp and fixture record
OTHER SPEC
Fixture and lamp usage time display
Highly positioning precision
Adjustable fan speed
Built-in analyzer for easy fault finding,
error messages
Input signal isolating protection
Auto thermal protection circuit
Housing: high temperature UV resistant ABS
POWER
Voltage: AC100-240V, 50/60Hz
Power Consumption: 320W@220V
DIMENSIONS AND WEIGHT
Fixture dimension: 33*27*47cm
Packing dimension:
52x41x35cm(Carton)
74x35x62cm(2 in 1 flightcase)
Net Weight: 13.2kg
Gross Weight:
15kg(Carton)
46kg(2 in 1 flightcase)
