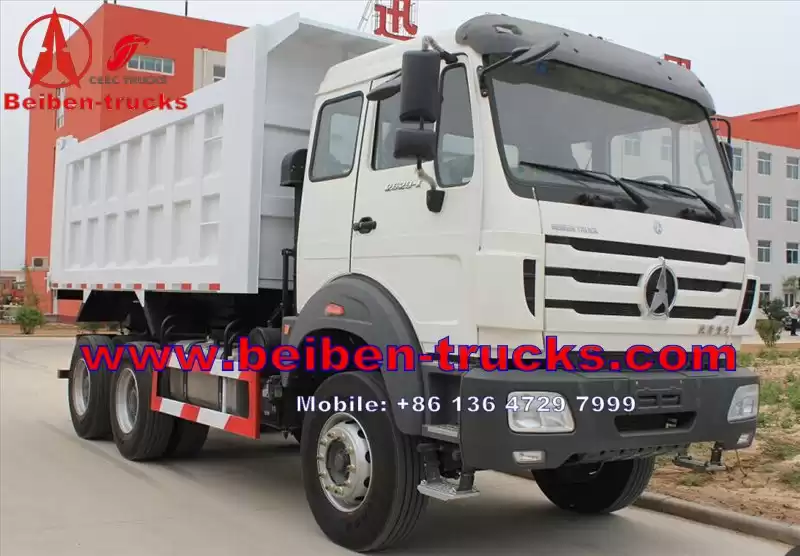

New North Benz BeiBen NG80 6x6 off road tipper dump truck For Sale
driver type: 6x6 off road
model: New North Benz BeiBen NG80 6x6 off road Tipper dump Truck For Sale
| Truck wheel base (mm) |
3450+1450 |
| Curb weight kg |
9700 |
| Engine |
Model |
WP10/WP12.290HP - 420HP (Based on Styre technology, made in China) |
| Power, max kw/rpm |
2200 |
| Max torque(Nm/rpm) |
1160/1100-1600 |
| Emission standard |
EUROIII(II) |
| Fuel tanker capacity L |
300 |
| Clutch |
Model |
GF420/430diaphragm, Single dry frictional disc,Hydraulic boosting |
| Gearbox |
Model |
RT11509C/9JS119/9JS180T/12JS160T ZFS6-90/ ZF5S-111GP/ 6T-90/ 6T-120 ZF 9S-109/ ZF 16S-1650/16S-221 |
| Transfer-case |
VG1400(Benz technical,made by BEIBEN AXLE) |
| Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake |
Engine exhaust brake |
| Park brake |
Potential springs pressing on middle and rear wheels |
| Steering system |
Model |
ZF8098/ TAS85 |
| Frame of vehicle |
Fish belly shape, variable width, variable section side beam structure |
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
| Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Tyre |
12.00R20/12.00-20/315/80R22.5 |
| cabin |
sleeper and A/C, Sun protection on cabin, Radio player(with MP3), Electric glass lifter |
| Electrical system |
Battery |
2X12V/135Ah |
| Generator |
28V-35A |
| Starter |
5.4Kw/24V |
