Introduction
Optical

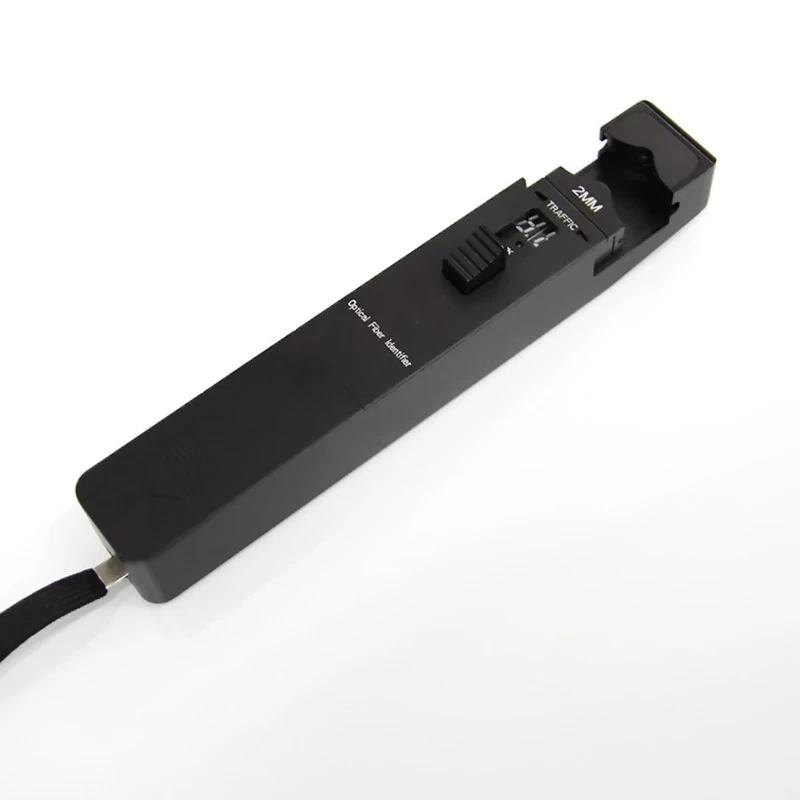

Fiber Identifier S505 can quickly identify the direction of transmitted fiber and
display the relative core power without interrupting the current service. The
fiber identifier recognizes modulation like, 270Hz,1KHz and 2KHz with
continuous audible tone. There are four adapter heads available: Ø0.25, Ø0.9,

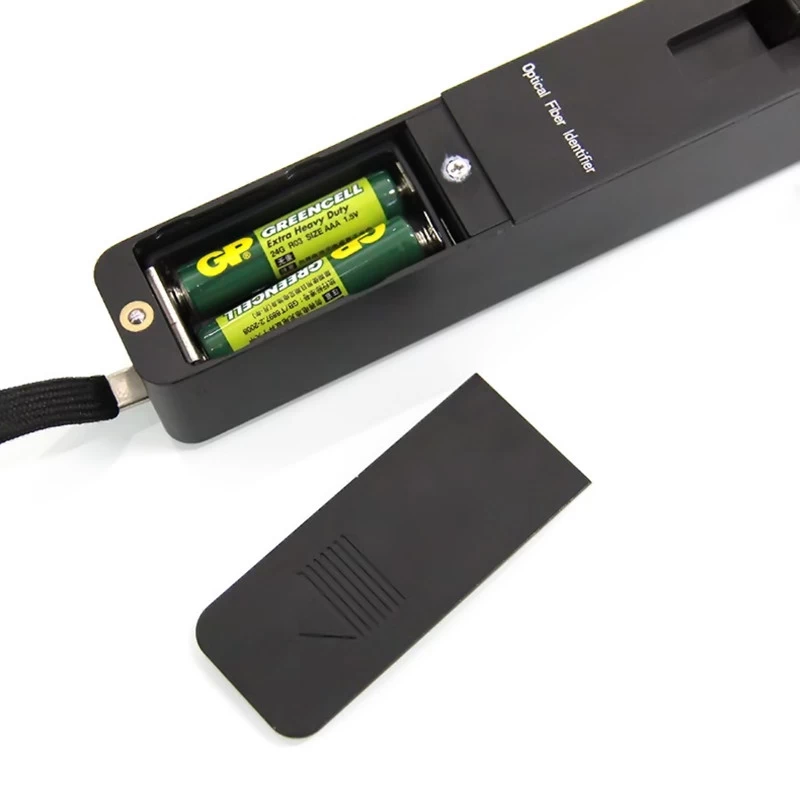

Ø2.0 and Ø3.0. This OFI is powered by 2pcs very normal AA batteries.
Features
-
Easy-to-use
with “ONE KEY” operation
-

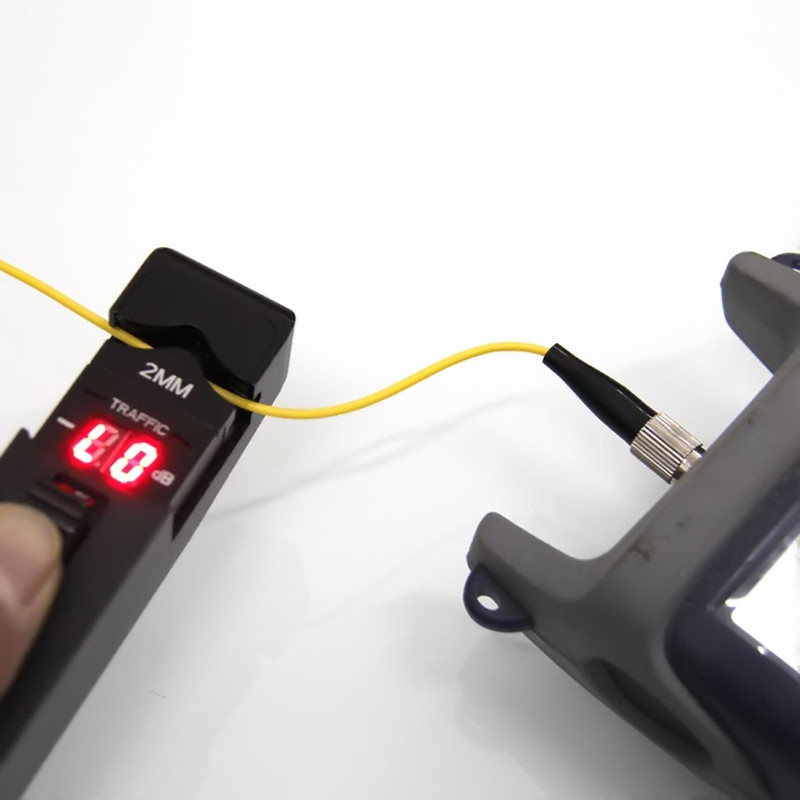

Efficiently
identifies the fiber transmission direction and frequency tone (270Hz, 1KHz,
2KHz) with audible warning
-

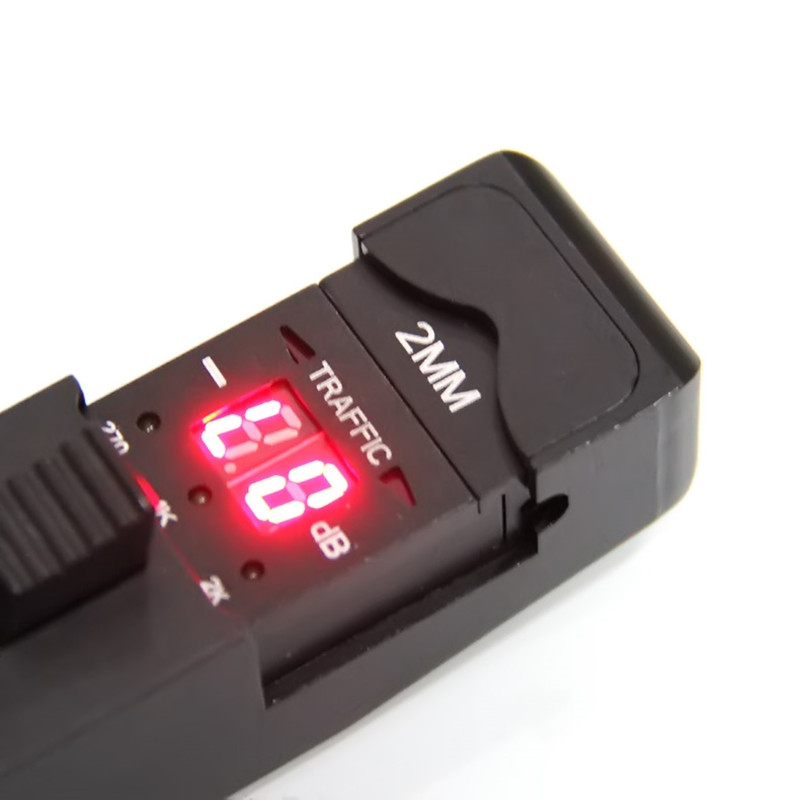

Displays
the relative core power
-
Easy-to-replace
adaptor
-
Durable
metal housing and quality construction
-
Lower
power indication
-
It's

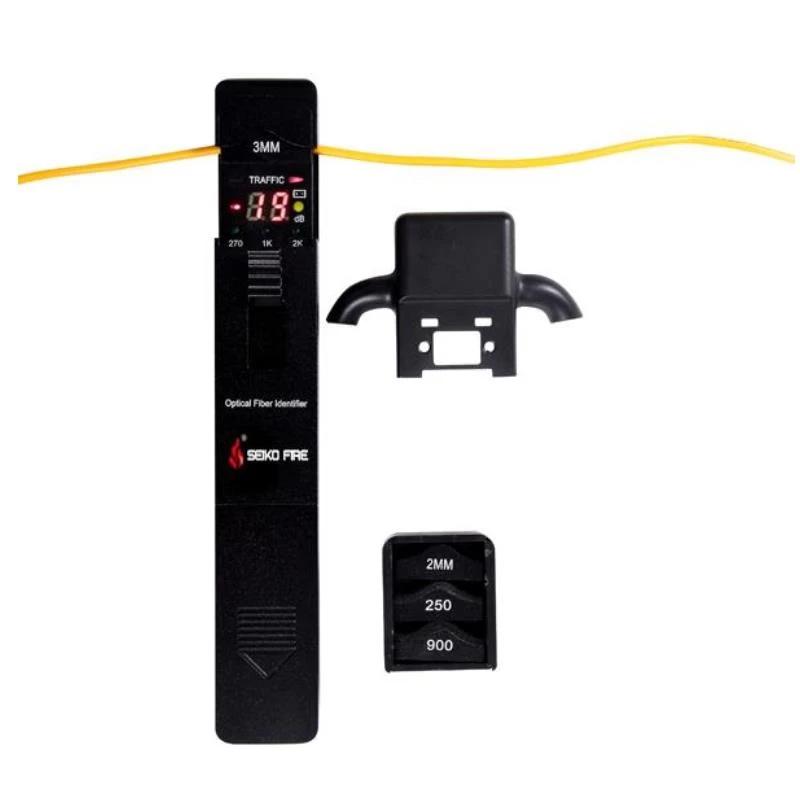

easy to carry and loss adaptor can be avoided with new adaptor box
Specifications
|
Identified
Wavelength Range
|
800-1700
nm
|
|
Identified
Signal Type
|
CW,
270Hz±5%，1kHz±5%，2kHz±5%
|
|
Detector
Type
|
Ø1mm
InGaAs 2pcs
|
|
Adapter
Type
|
Ø0.25,
Ø0.9, Ø2.0, Ø3.0
|
|
Signal
Direction
|
Left
& Right LED
|
|
Singe
Direction Test Range
(dBm,
CW/0.9mm bare fiber)
|
-46~10(1310nm)
|
|
-50~10(1550nm)
|
|
Signal
Power Test Range
(dBm,
CW/0.9mm bare fiber)
|
-50~+10
|
|
Signal
Frequency Display (Hz)
|
270,
1k, 2k
|
|
Frequency
Test Range
(dBm,
Average Value)
|
Ø0.9,
Ø2.0, Ø3.0
|
-30~0
(270Hz,1KHz)
|
|
-25~0
(2KHz)
|
|
Ø0.25
|
-25~0
(1KHz,2KHz)
|
|
-20~0
(2KHz)
|
|
Insertion
Loss (dB, Typical Value)
|
0.8
(1310nm)
|
|
2.5
(1550nm)
|
|
Alkaline
Battery(V)
|
2pcs
AAA batteries
|
|
Operating
Temperature (℃)
|
-10－+60
|
|
Storage
Temperature (℃)
|
-25－+70
|
|
Dimension(mm)
|
196x30.5x27
|
|
Weight(g)
|
195
|
