Model
|
DH-MTB2640
|
DH-MTB27.540
|
DH-MTB2940
|
|

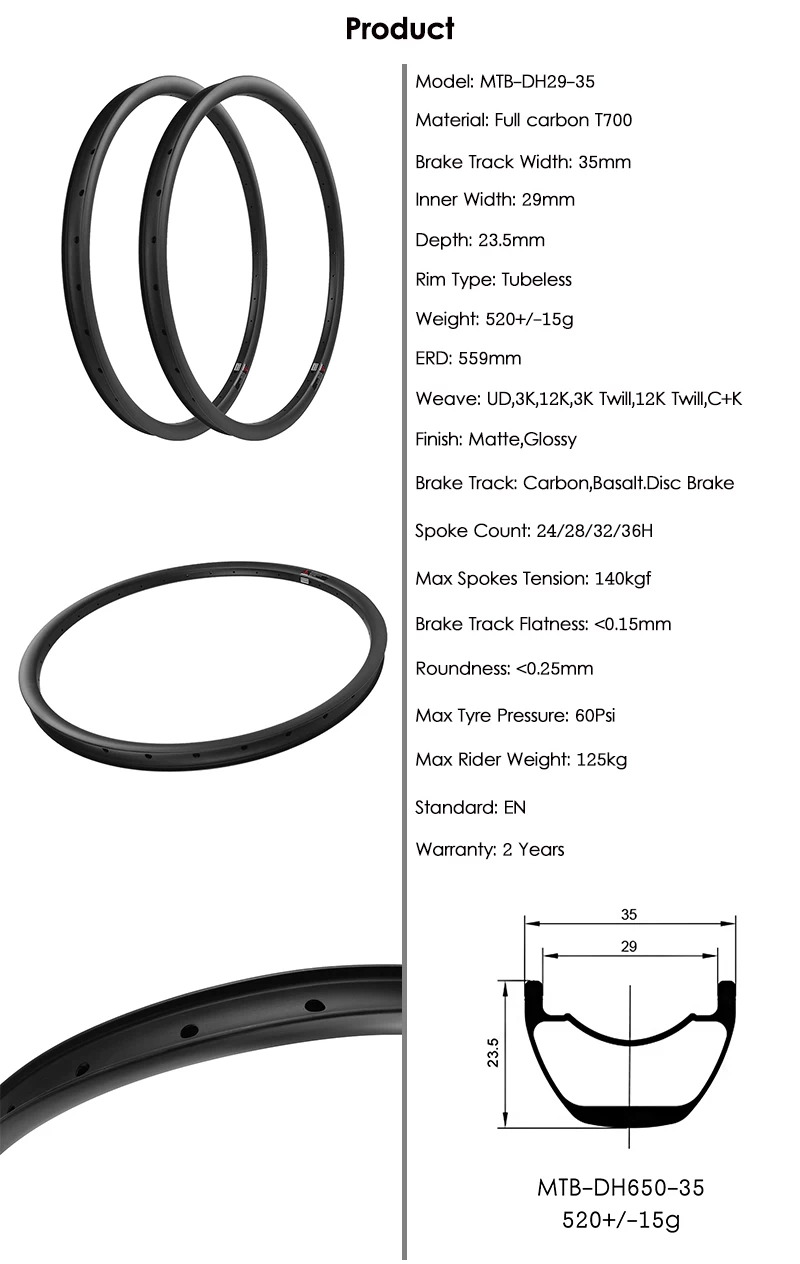

Sectional Drawing
|
|
|
|
|
Material
|
Toray T700
|
Toray T700
|
Toray T700
|
|
Inner/Out Width
|
31mm/40mm
|
31mm/40mm
|
31mm/40mm
|
|
Depth
|
32mm
|
32mm
|
32mm
|
|
Rim Type
|
Clincher
|
Clincher
|
Clincher
|
|
Brake System
|
Disc Brake
|
Disc Brake
|
Disc Brake
|
|
Weight
|
550+/-15g
|
570+/-15g
|
590+/-15g
|
|
ERD
|
545
|
545
|
545
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
|
Spoke Hole
|
16/18/20/21/24H
|
16/18/20/21/24H
|
16/18/20/21/24H
|
|
Max Spokes Tension
|
130 kgf
|
130 kgf
|
130 kgf
|
|
Max Tyre Pressure
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
|
Max Rider Weight
|
125 Kg
|
125 Kg
|
125 Kg
|
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
FAQ
1. What is the ERD?
ERD, short for Effective Rim Diameter, is the rim diameter measured at the nipple seats in the spoke holes, plus the thickness of the two nipple heads.as picture:It's used to calculate spoke length when preparing to build a wheel.
2. Production Of Carbon Rims
Carbon fiber material incoming——DSC Inspection——Storing—— Cut to angles and shapes——Layout—— Hot press molding——Drilling——Smoothening/painting——assembling——Product Inspection——Shipping.
3. Do you accept sponsorship requests?
We don’t need sponsorship requests currently.
