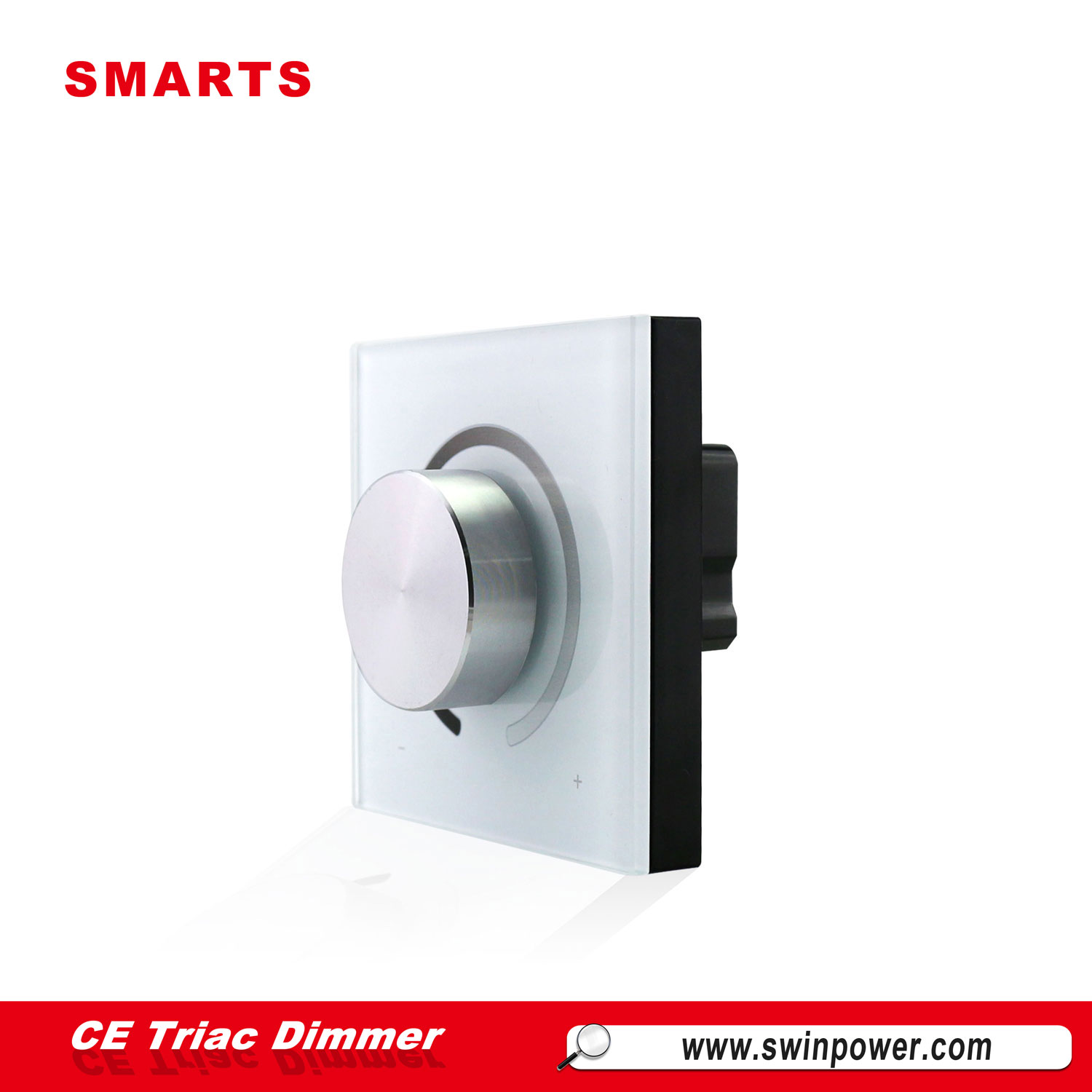

Newly Design European Standard LED Light Dimmer 220VAC trailing edge dimming.
SMT300-R-T2 is the best led dimmer switch which provides the best dimming performance for dimmable LED bulbs
Product description
Description:
|
Model
|
SMT300-R-T2
|
|
Input Voltage
|
220V/240V
|
|
Frequency
|
50/60Hz
|
|
Working temp.
|
-20-40℃
|
|
Load
|
12W-300W
|
|

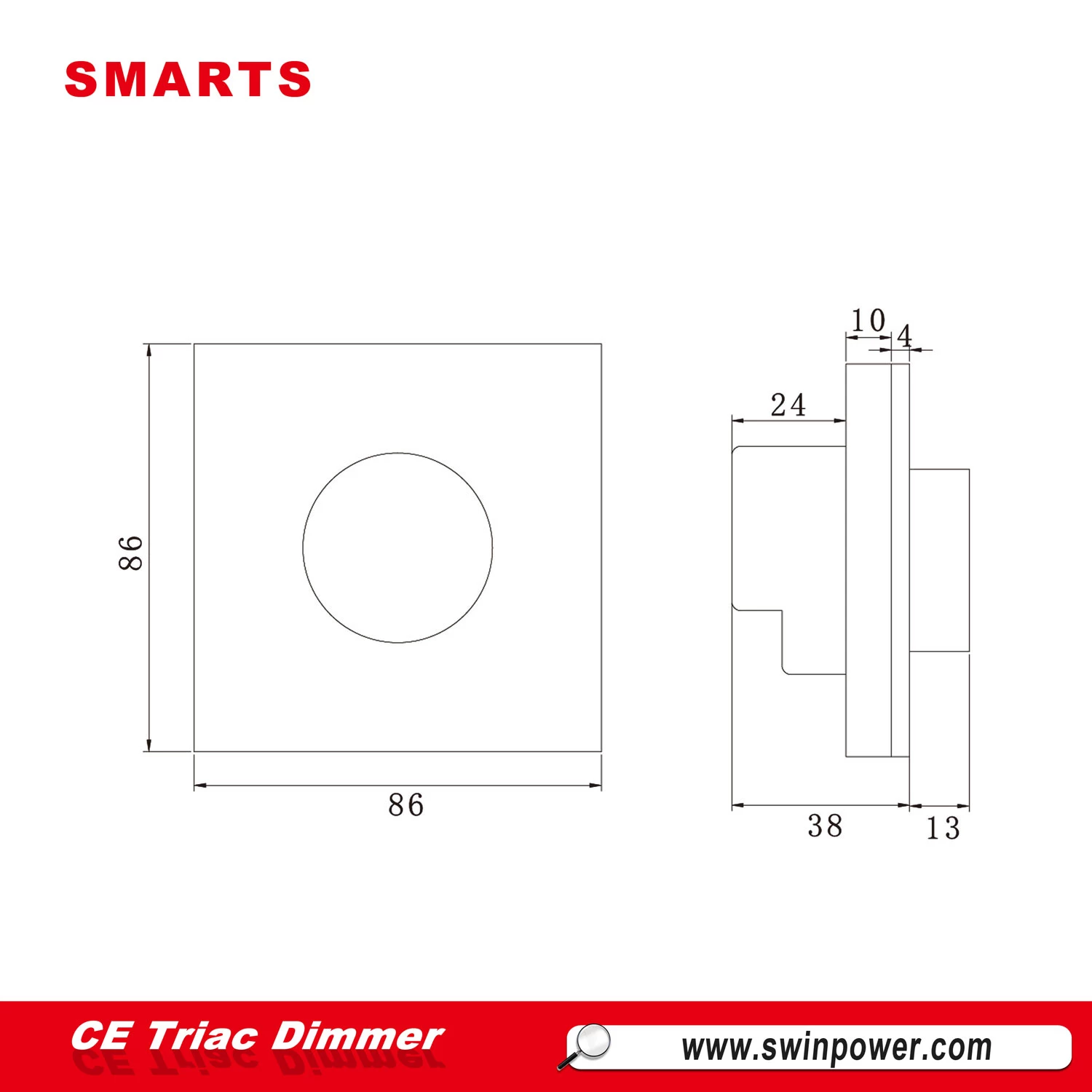

Size
|
86*86*51mm(L*W*H)
|
|
Weight
|
190G
|
Feture:
1) Soft locking.
2) Only connect L(LIVE).
3) Dimming operation: Knob pannel with a rotary.
4) Phase-cut model: trailing edge dimming.
5) Memory function: remember the last brightness when turn on
dimmer again.
6) Over current protection.

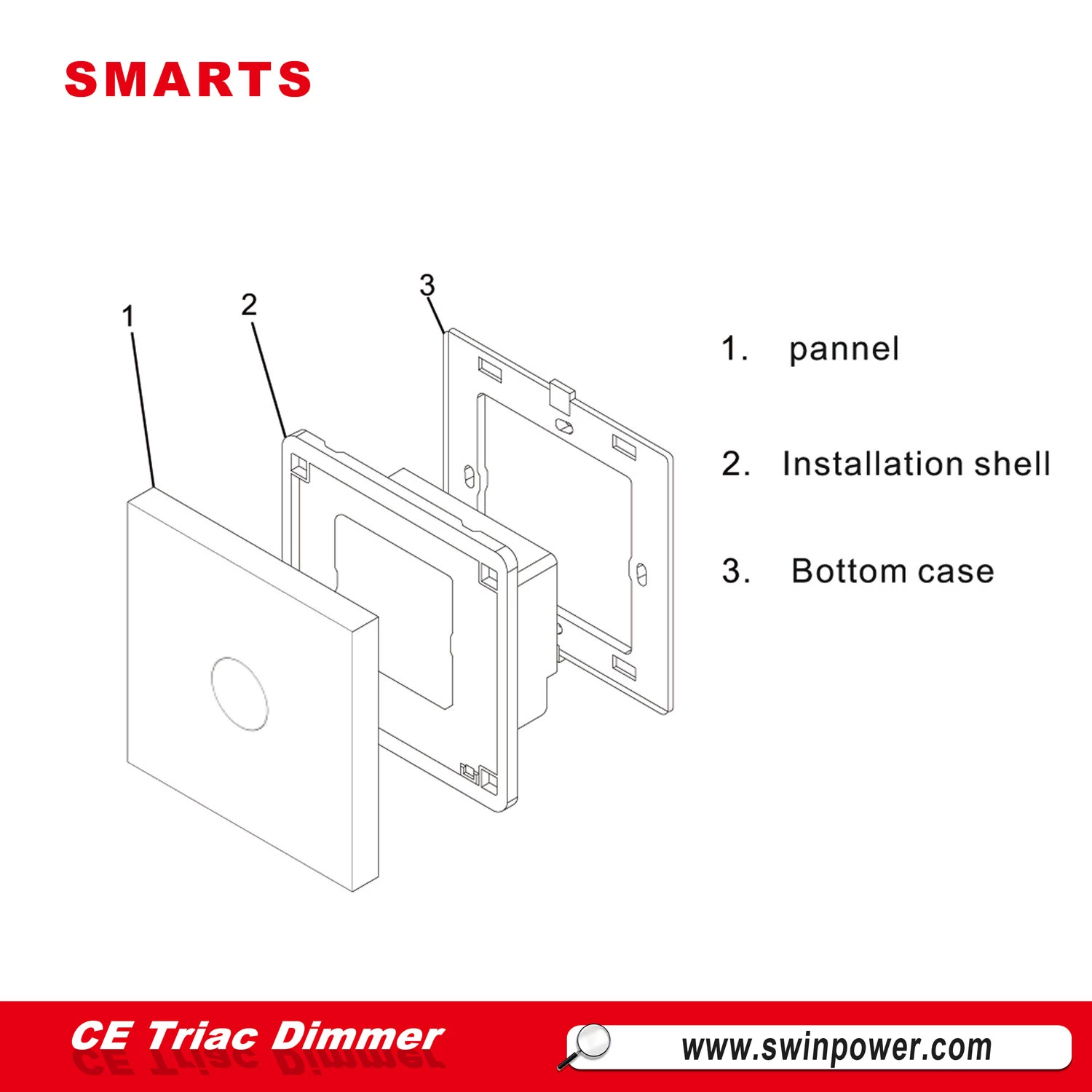

Part of device

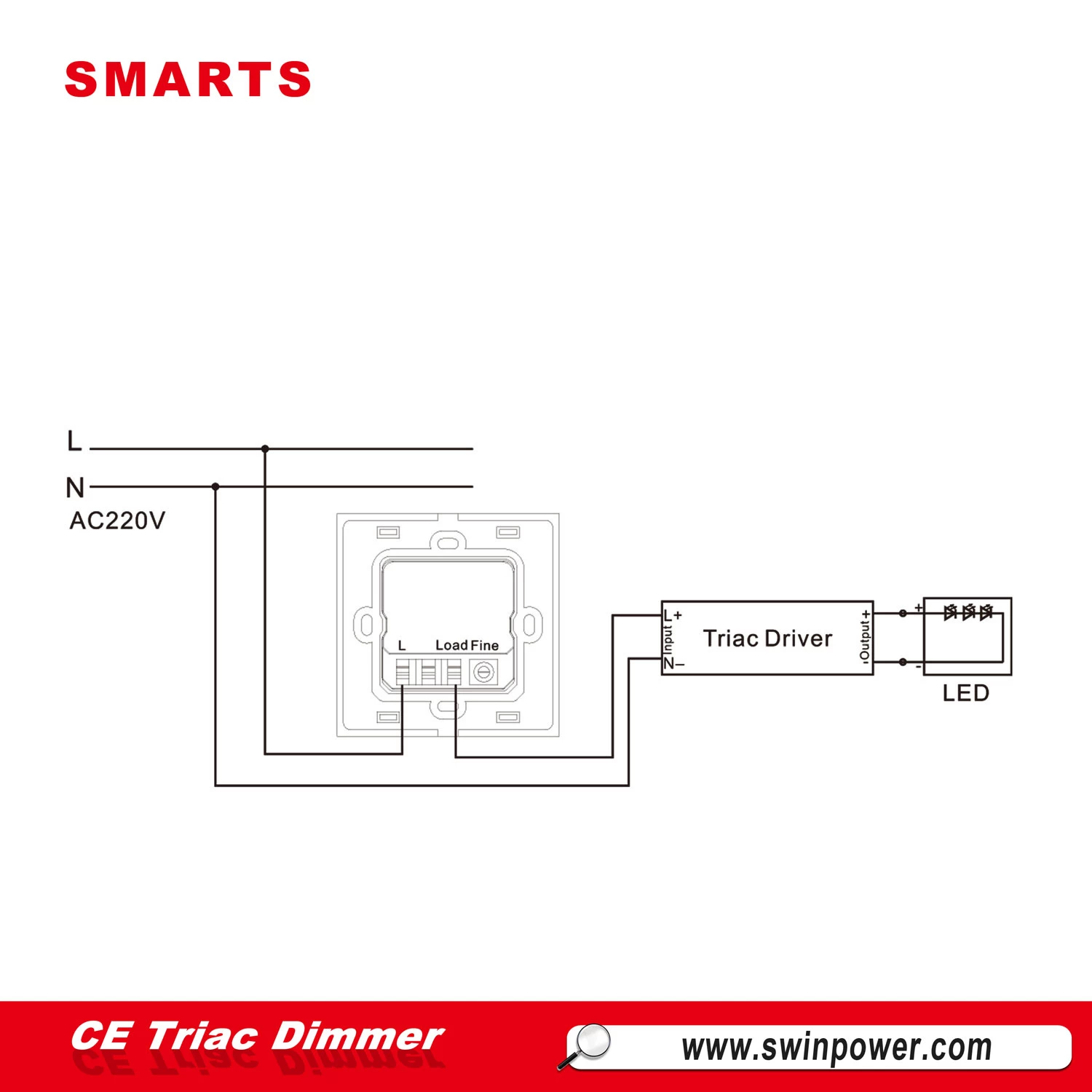

Wiring diagram
Operation:
-
Turn on/off dimmer by short press knob.
-
When dimmer is on, turn knob to dim brightness.
-
Turn off dimmer and then turn on again, dimmer will remember the last brightness.
Working principle:
1. Dimming pinciple: Phase-cut sine wave.
2. Control the driver to soft start to achieve continuous, soft dimming.
3. Over-current protection, pretend the driver and dimmer from the damage caused by huge current.
4. A fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

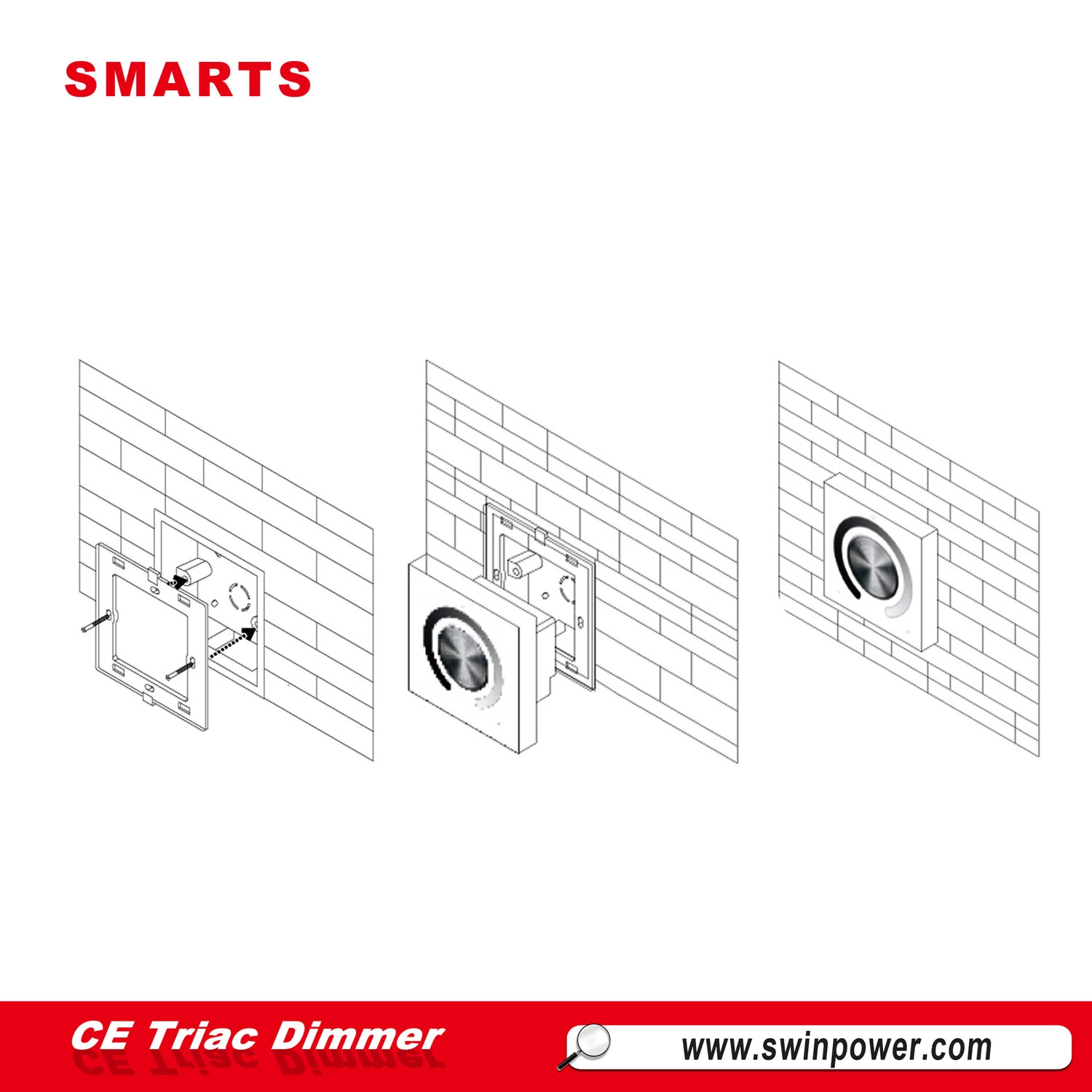

Instruction mannal
Packing & Shipping
inner box-white box + outer carton- standard exporting carton for packing
-
MOQ: 1 pcs
-
Delivery: 7 working days for sample order,12 working days for 500pcs.
-
Shipping freight are quoted under your requests.
-
Loading port: Xiamen
