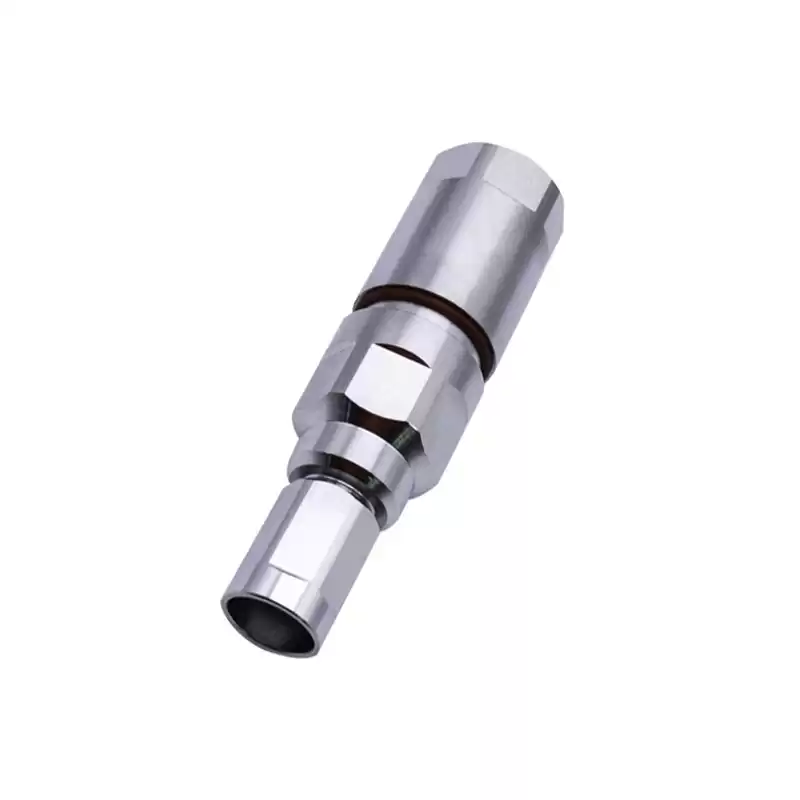

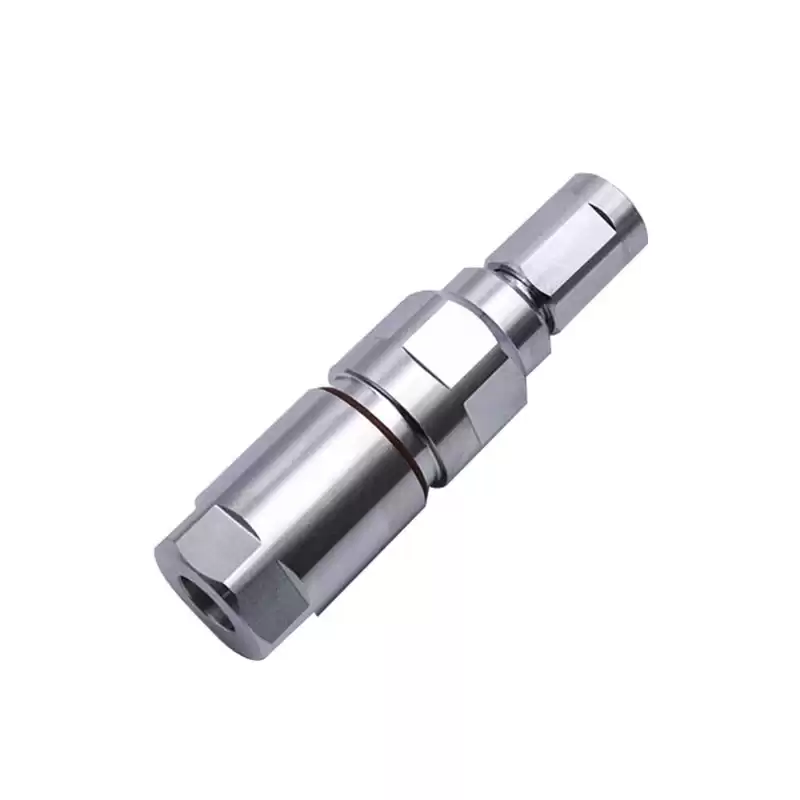

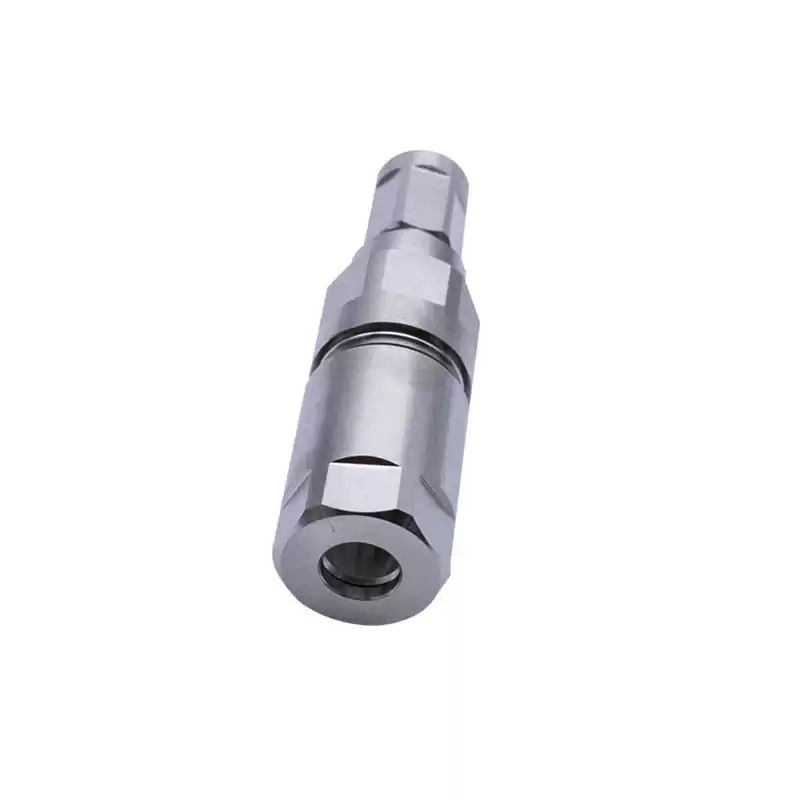

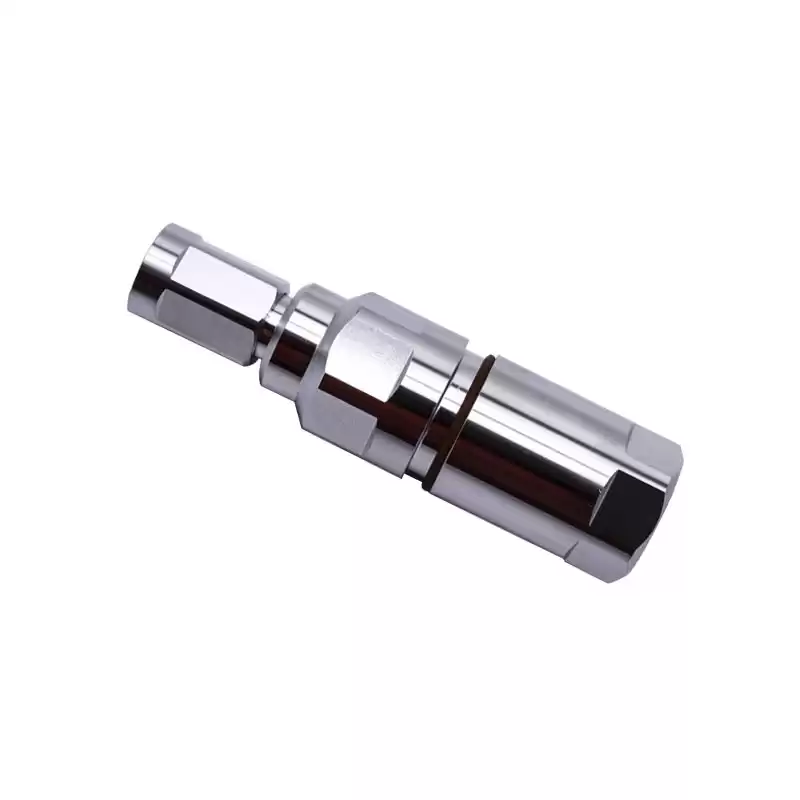

NEX10 Male RF Coaxial Connector 5G Network for 1/4 inch Coaxial Cable
The NEX10 connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20 GHz, the new robust and highly compact NEX10 interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation). Screw-type and a push-pull locking mechanism are available. The NEX10 connectivity solution is also available as a field installable Cold-Weld connector for 1/4" superflexible, 3/8" superflexible, 1/2" superflexible and 1/2" flexible cable types.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 Ohm |
| Frequency Range |
DC - 20GHZ |
| Voltage Rating |
335 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage |
500 VRMS Min |
| VSWR (Return Loss) |
|
| DC to 6 GHz |
DC ≥ 36 dB |
| 6 GHz to 10 GHz |
≥ 30 dB |
| 10 GHz to 20 GHz |
≥ 20 dB |
| PIM |
≥ 166 dBc @ 2x43dBm |
| Degree of Protection |
IP 68 (@1 m, 24 hours) |
| Environmental |
|
| Temperature Range |
−65°C to +165°C |
Applications
- Low-power base stations
- Small cell applications
- Designed to meet the demands of upcoming 5G networks
- In multi-operator/multiband DAS
- Blind mate for panel as well as test & measurement
