Processor
|
28nm ARM Qual-core cortex A53 @1.3-1.5GHz
|
|
GPU
|
Mali-T720
|
|
Memory RAM
|
1GB/2GB
|
|
Operating System
|
Android 6.0
|
|
Storage
|
eMMC 8G/16GB and Support SD card Max64GB
|
|
Display
|
4.0 inch 480*800 high resolution, full axis viewing IPS LCD With Industrial touch panel
|
|
Keypad
|
23 physical Keyboards
|
|
Camera
|
Front 2.0M and Real 5.0M AF camera
|
|
Battery
|
Internal 4000mAH rechargeable high-performance battery
|
|

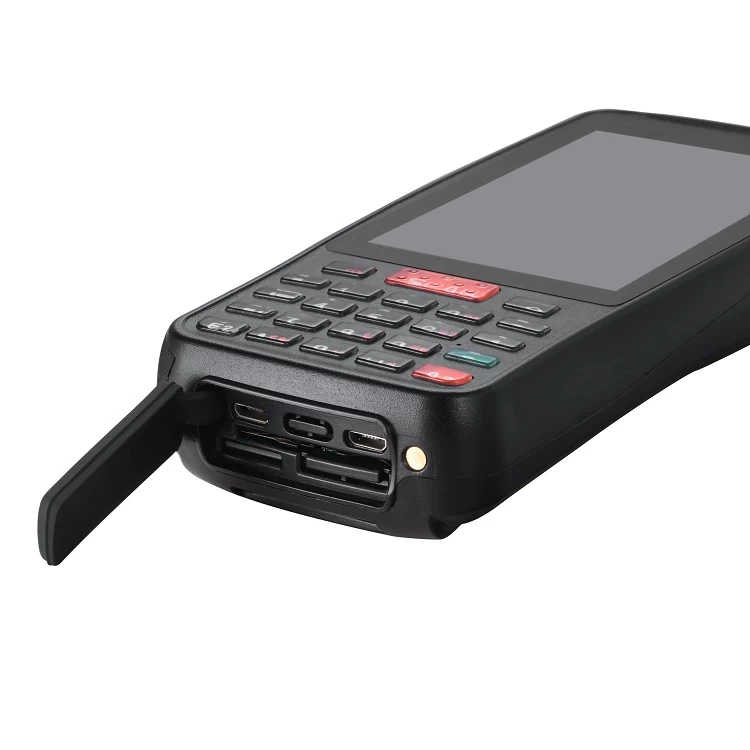

Interface
|
Micro SIM*1/PSAM*1/TF card *1/RS232*1/Type-c*1
|
|
Platform
|
Android 6.0
|
|
Communicate
|
|
GSM/GPRS/EDGE
|
850/900/1800/1900MHz
|
|
3G Network
|
CDMA/EVDO/WCDMA/TD-SCDMA
|
|
LTE 4G network
|
LTE-FDD:B1/ B3/ B7/B8/B28 and LTE-TDD:B38/B39/B40/B41
|
|
Wi-Fi
|
IEEE 802.11 b/g/n
|
|
Bluetooth
|
BT4.0
|
|
GPS
|
Integrated autonomous GPS receiver with built-in Assisted-GPS (A-GPS) services and software utilities
|
|

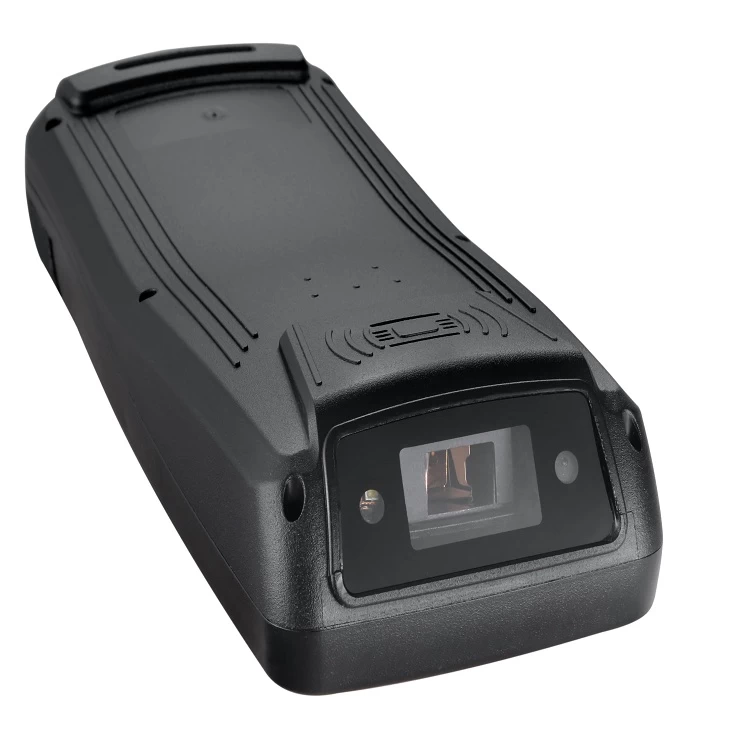

Data Collection
|
|
1D barcode
|
Symbol Technologies laser Scan Engine
UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5,
Discrete 2 of 5,, Codabar, MSI, RSS,etc
|
|
2D QR
|
Pro CCD Scan Mobile Engine
PDF417/ MicroPDF417/ Composite/ TLC-39/Datamatrix/ QR/ code/
Micro/ QR/ code/ Aztec/MaxiCode;/ Postal/ Codes:/ US/ PostNet/ US/
Planet/UK/Postal/Australian/Postal/Japan/Postal
|
|
NFC
|
|
Frequency
|
13.56MHz
|
|
W/R Tag
|
ISO/IEC 14443A/B,ISO15693,Mifare,Felica
|
|
Mechanical
|
|
Dimensions
|
162mm×70mm×31mm
|
|
Weight
|
345g without accessories
|
|
Environmental
|
|
Operating Temperature
|
-10° to 50°C (14° to 122°F)
|
|
Storage Temperature
|
-20° to 70°C (-13° to 158°F)
|
|
Humidity
|
0 to 95% relative humidity (non-condensing)
|
|
Tumble
|
Designed to withstand up to 1,600 (1m) tumbles per IEC 60068-2-32 specification
|
|
Environmental Sealing
|
Independently certified to meet IP64 standards for moisture and particle intrusion
|
