High Power NCSU034C 385nm UV LED Curing Light is used for UV flue curing, UV resin curing, with super concertrated, ultra-long life, instant curing.

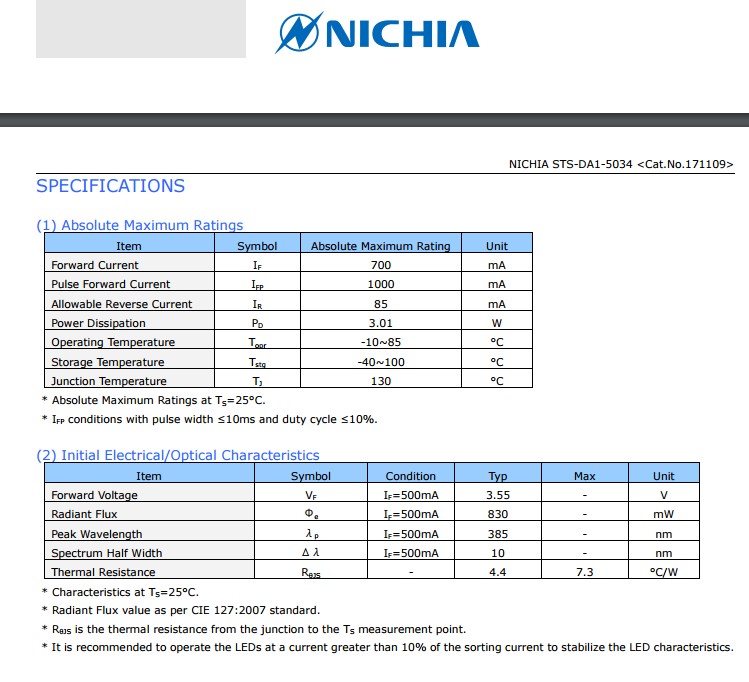

NCSU034C UV LED Parameters : (contact me for detailed specifications : uvcure@uvspacelight.com)
|
Lens
|
Hard quartz glass 120°angle of divergence
|
|
Forward Current
|
700mA
|
|
Forward Voltage
|
3.55V
|
|
Power Dissipation
|
3.01W
|
|
Radiant Flux
|
950mW/cm2
|
|

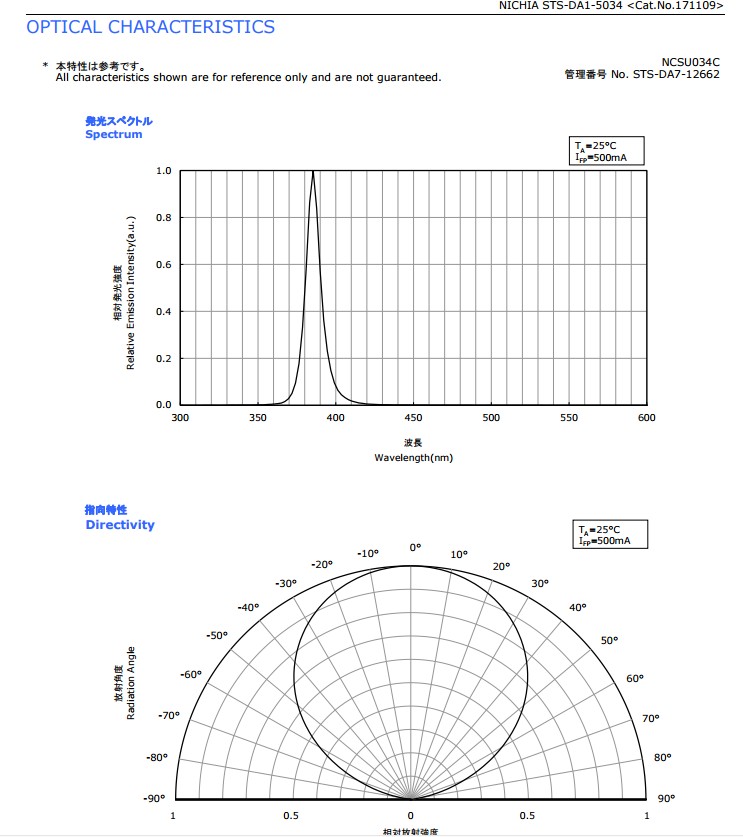

Peak Wavelength
|
385nm
|
|

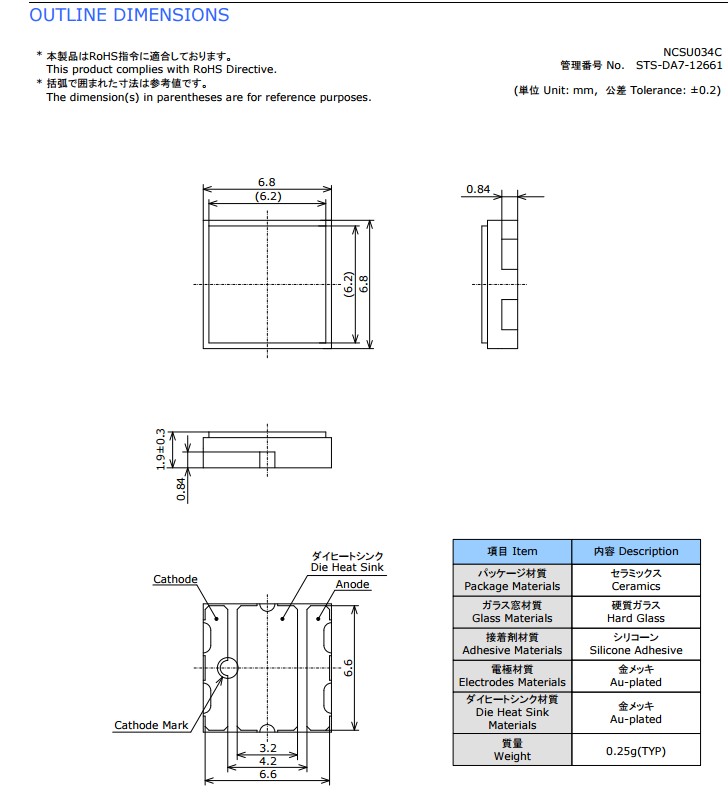

Encapsulation Dimension
|
6868
6.8*6.8*1.9 L*W*H(mm)
|
385nm UV Curing Light Application :
UV Resin Curing, 3D printing
About other wavelength UV LEDs please click : UV LED
