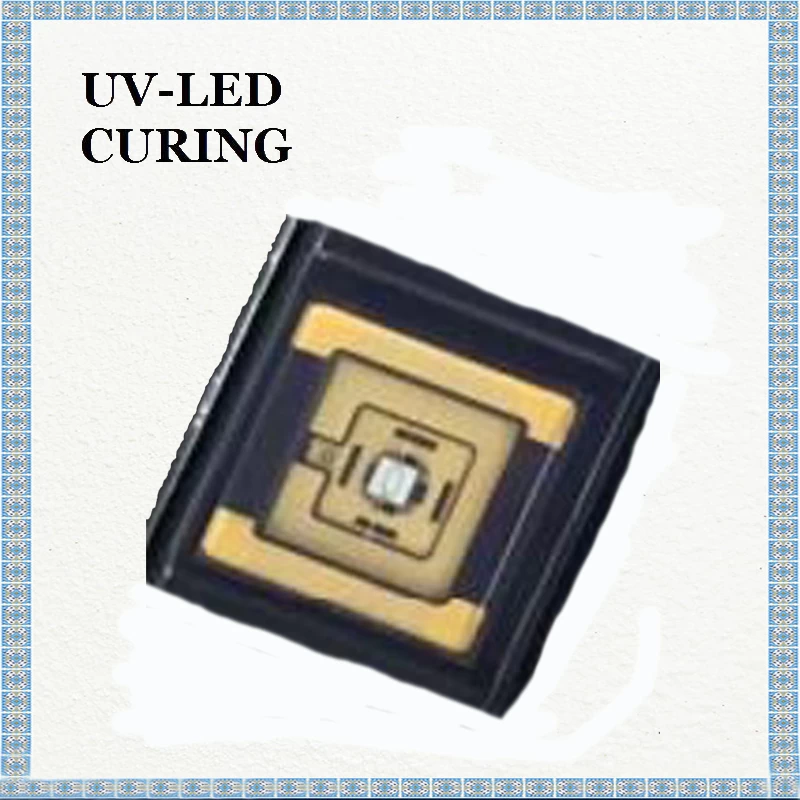

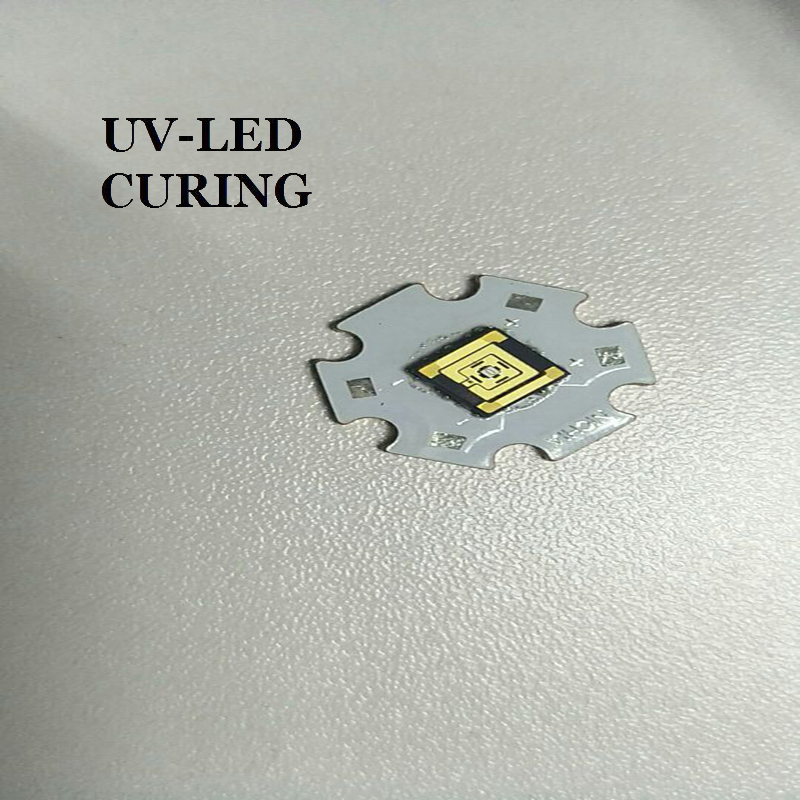

NICHIA UV LED NCSU033C U365nm

NICHIA UV LED NCSU033C U365nm is Pb-free reflow Soldering application, built-in EDS protection Device, RoHS compliant.



NICHIA UV LED NCSU033C U365nm plays a significant role in leak detection of air-conditioner refrigerant, engine lubricating ole, etc.. Also, it can fluorescence observation of mineral, fluorescence penetrant flaw detaction, etc..


SPECIFICATIONS

(1) Absolute Maximum Ratings

Item

Symbol

Absolute Maximum Rating

Unit

Forward Current

IF

700

mA

Pulse Forward Current

IFP

1000

mA

Allowable Reverse Current

IR

85

mA

Power Dissipation

PD

3.08

W

Operating Temperature

Topr

-10~85

°C

Storage Temperature

Tstg

-40~100

°C

Junction Temperature

TJ

130

°C

* Absolute Maximum Ratings at T S =25°C.

* I FP conditions with pulse width ≤10ms and duty cycle ≤10%.


(2) Initial Electrical/Optical Characteristics

Item

Symbol

Condition

Type

Max

Unit

Forward Voltage

VF

IF =500mA

3.8

-

V

Radiant Flux

Φe

IF =500mA

750

-

mW

Peak Wavelength

λp

IF =500mA

365

-

nm

Spectrum Half Width

Δλ

IF =500mA

9.0

-

nm

Thermal Resistance

RθJS

-

4.4

7.3

°C/W

* Characteristics at T S =25°C.
* Radiant Flux value as per CIE 127:2007 standard.
* R θJS is the thermal resistance from the junction to the T S measurement point.
* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.


RANKS

Item

Rank

Min

Max

Unit

Forward Voltage

H

4.0

4.4

V

M

3.6

4.0

L

3.2

3.6

Radiant Flux

P6d22

870

950

mW

P6d21

800

870

P5d22

730

800

P5d21

670

730

P4d22

610

670

P4d21

560

610

Peak Wavelength

U365

360

370

nm

* Ranking at T S =25°C.

* Forward Voltage Tolerance: ±0.05V

* Radiant Flux Tolerance: ±6%

* Peak Wavelength Tolerance: ±3nm

* LEDs from the above ranks will be shipped. The rank combination ratio per shipment will be decided by Nichia.

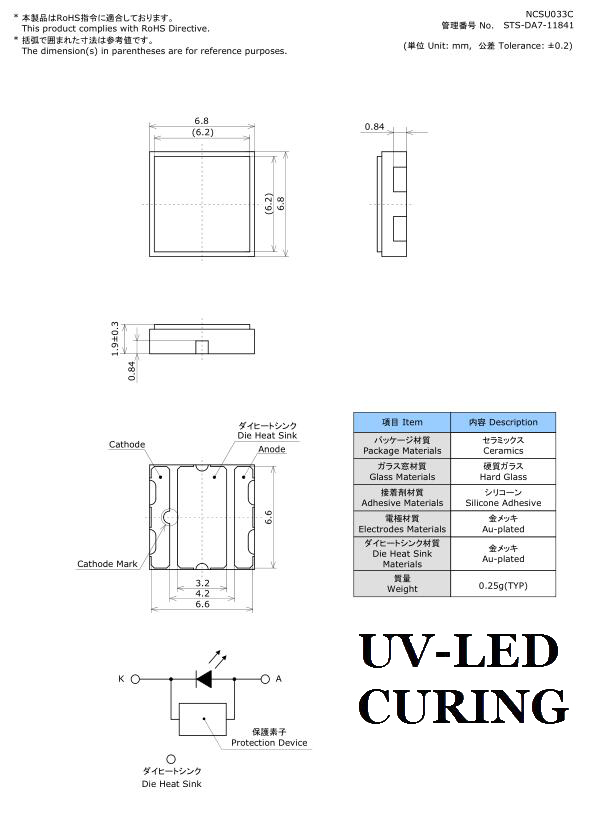

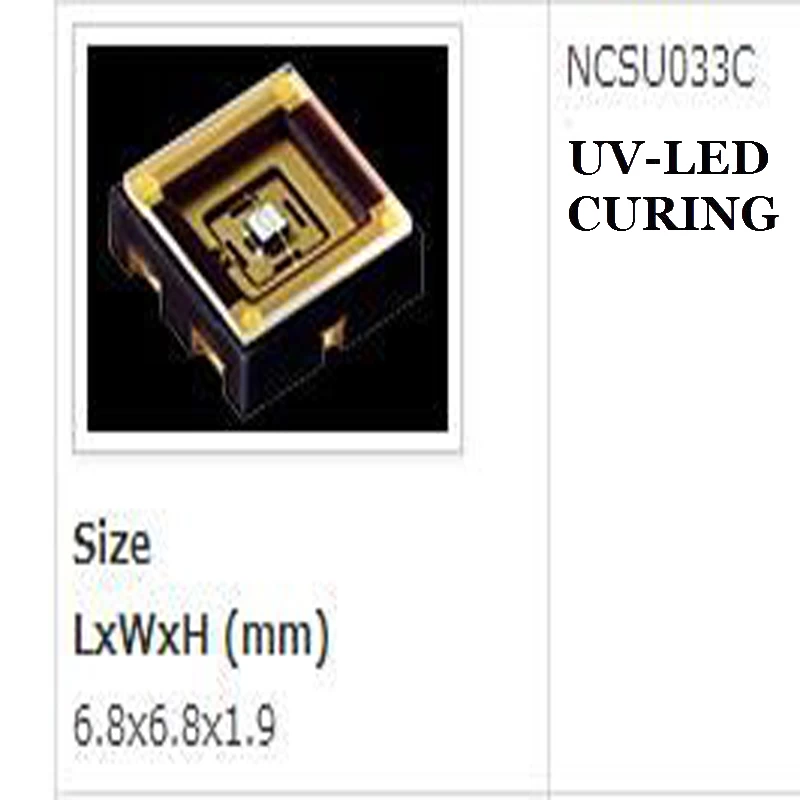

OUTLINE DIMENSIONS

NVSU033C U365nm


RELIABILITY

(1) Tests and Results

Test

Reference

Standard

Test Conditions

Test Duration

Failure Criteria #

Units Failed/Tested

Resistance to

Soldering Heat(Reflow Soldering)

JEITA ED-4701

300 301

T sld =260°C, 10sec, 2reflows,

Precondition: 30°C, 70%RH, 168hr

#1

0/10

Thermal Shock

-40°C to 100°C, 15min dwell

100cycles

#1

0/10

High Temperature

Storage

JEITA ED-4701

200 201

T A =100°C

1000hours

#1

0/10

Low Temperature

Storage

JEITA ED-4701

200 202

T A =-40°C

1000hours

#1

0/10

Room Temperature

Operating Life

T A =25°C, I F =700mA

1000hours

#1

0/10

High Temperature

Operating Life

T A =85°C, I F =300mA

1000hours

#1

0/10

Temperature Humidity

Operating Life

60°C, RH=90%, IF =450mA

500hours

#1

0/10

Low Temperature

Operating Life

T A =-10°C, I F =500mA

1000hours

#1

0/10

Vibration

JEITA ED-4701

400 403

200m/s 2 , 100~2000~100Hz,

4cycles, 4min, each X, Y, Z

48minutes

#1

0/10

Electrostatic Discharges

JEITA ED-4701

300 304

HBM, 2kV, 1.5kΩ, 100pF, 3pulses,

alternately positive or negative

#1

0/10

NOTES:

1) R θJA ≈35°C/W

2) Measurements are performed after allowing the LEDs to return to room temperature.


(2) Failure Criteria

Criteria #

Items

Conditions

Failure Criteria

#1

Forward Voltage(VF )

IF =500mA

>Initial value×1.1

Radiant Flux(ΦE )

IF =500mA

<Initial value×0.7


CAUTIONS

(1) Storage

Conditions

Temperature

Humidity

Time

Storage

Before Opening Aluminum Bag

≤30°C

≤90%RH

Within 1 Year from Delivery Date

After Opening Aluminum Bag

≤30°C

≤70%RH

≤168hours

Baking

65±5°C

-

≥24hours

● Product complies with JEDEC MSL 3 or equivalent. See IPC/JEDEC STD-020 for moisture-sensitivity details.

● Absorbed moisture in LED packages can vaporize and expand during soldering, which can cause interface delamination and result

in optical performance degradation. Products are packed in moisture-proof aluminum bags to minimize moisture absorption

during transportation and storage. Included silica gel desiccants change from blue to red if moisture had penetrated bags.

● After opening the moisture-proof aluminum bag, the products should go through the soldering process within the range of the

conditions stated above. Unused remaining LEDs should be stored with silica gel desiccants in a hermetically sealed container,

preferably the original moisture-proof bags for storage.

● After the “Period After Opening” storage time has been exceeded or silica gel desiccants are no longer blue, the products should

be baked. Baking should only be done once.

● Although the leads or electrode pads (anode and cathode) of the product are plated with gold, prolonged exposure to a corrosive

environment might cause the gold plated the leads or electrode pads to tarnish, and thus leading to difficulties in soldering. If

unused LEDs remain, they must be stored in a hermetically sealed container. Nichia recommends using the original

moisture-proof bag for storage.

● Do not use sulfur-containing materials in commercial products. Some materials, such as seals and adhesives, may contain sulfur.

The contaminated plating of LEDs might cause an open circuit. Silicone rubber is recommended as a material for seals. Bear in

mind, the use of silicones may lead to silicone contamination of electrical contacts inside the products, caused by low molecular

weight volatile siloxane.

● To prevent water condensation, please avoid large temperature and humidity fluctuations for the storage conditions.

● Do not store the LEDs in a dusty environment.

● Do not expose the LEDs to direct sunlight and/or an environment where the temperature is higher than normal room temperature.


(2) Directions for Use

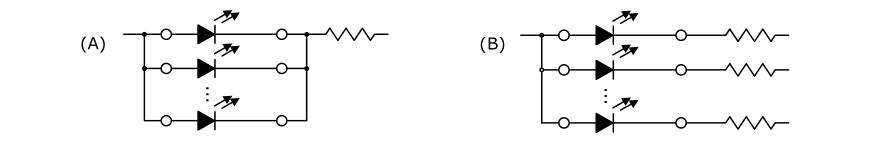

● When designing a circuit, the current through each LED must not exceed the Absolute Maximum Rating. Operating at a constant
current per LED is recommended. In case of operating at a constant voltage, Circuit B is recommended. If the LEDs are operated
with constant voltage using Circuit A, the current through the LEDs may vary due to the variation in Forward Voltage
characteristics of the LEDs.
NVSU033C



● This product should be operated using forward current. Ensure that the product is not subjected to either forward or reverse

voltage while it is not in use. In particular, subjecting it to continuous reverse voltage may cause migration, which may cause

damage to the LED die. When used in displays that are not used for a long time, the main power supply should be switched off

for safety.

● It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.

● Ensure that excessive voltages such as lightning surges are not applied to the LEDs.

● For outdoor use, necessary measures should be taken to prevent water, moisture and salt air damage.

● This product also emits visible light. If the LEDs are used as a light source in applications such as sensors, etc. take into

consideration the emission that is in the visible light spectrum.

● If this product is stored and/or used constantly under high humidity conditions, it may accelerate the deterioration of the die; this

may cause the radiant flux to decrease. If the LEDs are stored and/or used under these conditions, sufficient verification must be

done prior to use to ensure there are no issues for the chosen application.

● Do not design this LED into applications where condensation may occur. If the LEDs are stored/operated in these environments,

it may cause issues (e.g. current leaks that cause the radiant flux to decrease).


(3) Handling Precautions

● Do not handle the LEDs with bare hands as it will contaminate the LED surface and may affect the optical characteristics: it might

cause the LED to be deformed and/or the wire to break, which will cause the LED not to illuminate.

● When handling the product with tweezers, be careful not to apply excessive force to the glass. Otherwise, The glass can be cut,

chipped, delaminate or deformed, causing wire-bond breaks and catastrophic failures.

● Dropping the product may cause damage.

● Do not stack assembled PCBs together. Failure to comply can cause the glass portion of the product to be cut, chipped,

delaminated and/or deformed. It may cause wire to break, leading to catastrophic failures.


(4) Design Consideration

● PCB warpage after mounting the products onto a PCB can cause the package to break. The LED should be placed in a way to

minimize the stress on the LEDs due to PCB bow and twist.

● The position and orientation of the LEDs affect how much mechanical stress is exerted on the LEDs placed near the score lines.

The LED should be placed in a way to minimize the stress on the LEDs due to board flexing.

● Board separation must be performed using special jigs, not using hands.

● If an aluminum PCB is used, customer is advised to verify the PCB with the products before use. Thermal stress during use can

cause the solder joints to crack.


(5) Electrostatic Discharge (ESD)

● The products are sensitive to static electricity or surge voltage. ESD can damage a die and its reliability. When handling the

products, the following measures against electrostatic discharge are strongly recommended:

Eliminating the charge

Grounded wrist strap, ESD footwear, clothes, and floors

Grounded workstation equipment and tools

ESD table/shelf mat made of conductive materials

● Ensure that tools, jigs and machines that are being used are properly grounded and that proper grounding techniques are used

in work areas. For devices/equipment that mount the LEDs, protection against surge voltages should also be used.

● If tools or equipment contain insulating materials such as glass or plastic, the following measures against electrostatic discharge

are strongly recommended:

Dissipating static charge with conductive materials

Preventing charge generation with moisture

Neutralizing the charge with ionizers

● The customer is advised to check if the LEDs are damaged by ESD when performing the characteristics inspection of the LEDs in

the application. Damage can be detected with a forward voltage measurement at low current (≤1mA).

● ESD damaged LEDs may have current flow at a low voltage.

Failure Criteria: V F <2.0V at I F =0.5mA


(6) Thermal Management

● Proper thermal management is an important when designing products with LEDs. LED die temperature is affected by PCB thermal

resistance and LED spacing on the board. Please design products in a way that the LED die temperature does not exceed the

maximum Junction Temperature (T J ).

● Drive current should be determined for the surrounding ambient temperature (T A ) to dissipate the heat from the product.

● The following equations can be used to calculate the junction temperature of the products.

1) T J =T A +R θJA ・W 2) T J =T S +R θJS ・W

*T J =LED junction temperature: °C

T A =Ambient temperature: °C

T S =Soldering temperature (die heat sink): °C

R θJA =Thermal resistance from junction to ambient: °C/W

R θJS =Thermal resistance from junction to T S measurement point: °C/W

W=Input power(I F ×V F ): W

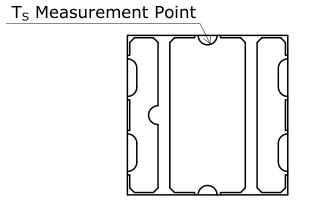

T S Measurement Point

U365nm


(7) Cleaning

● The LEDs should not be cleaned. Other cleaning agents except for Freon solvent should be tested prior to use whether they will

not affect the package and the glass. Please note that Freon solvent is prohibited worldwide.

● Ultrasonic cleaning is not recommended since it may have adverse effects on the LEDs depending on the ultrasonic power and how

LED is assembled. If ultrasonic cleaning must be used, the customer is advised to make sure the LEDs will not be damaged prior

to cleaning.


(8) Eye Safety

● In 2006, the International Electrical Commission (IEC) published IEC 62471:2006 Photobiological safety of lamps and lamp

systems, which added LEDs in its scope. On the other hand, the IEC 60825-1:2007 laser safety standard removed LEDs from its

scope. However, please be advised that some countries and regions have adopted standards based on the IEC laser safety

standard IEC 60825-1:20112001, which still includes LEDs in its scope. Most of Nichia's LEDs can be classified as belonging into

either the Exempt Group or Risk Group 1. High-power LEDs, that emit light containing blue wavelengths, may be classified as Risk

Group 2. Please proceed with caution when viewing directly any LEDs driven at high current, or viewing LEDs with optical

instruments which may greatly increase the damages to your eyes.

● Viewing a flashing light may cause eye discomfort. When incorporating the LED into your product, please be careful to avoid

adverse effects on the human body caused by light stimulation.

● The products are UV light LEDs, and radiate intense UV light during operation. Since UV light can be harmful to eyes, do NOT look

directly into the UV light, even through an optical instrument. In case of the light reflection, UV protective glasses are required to

use in order to avoid damage by the light.

● Ensure that appropriate warning signs/labels are provided both on each of the systems/applications using the UV LEDs, in all

necessary documents (e.g. specification, manual, catalogs, etc.), and on the packaging materials.


(9) Miscellaneous

● Nichia warrants that the discrete LEDs will meet the requirements/criteria as detailed in the Reliability section within this

specification. If the LEDs are used under conditions/environments deviating from or inconsistent with those described in this

specification, the resulting damage and/or injuries will not be covered by this warranty.

● Nichia warrants that the discrete LEDs manufactured and/or supplied by Nichia will meet the requirements/criteria as detailed in

the Reliability section within this specification; it is the customer’s responsibility to perform sufficient verification prior to use to

ensure that the lifetime and other quality characteristics required for the intended use are met.

● The applicable warranty period is one year from the date that the LED is delivered. In the case of any incident that appears to be

in breach of this warranty, the local Nichia sales representative should be notified to discuss instructions on how to proceed while

ensuring that the LED in question is not disassembled or removed from the PCB if it has been attached to the PCB. If a breach of

this warranty is proved, Nichia will provide the replacement for the non-conforming LED or an equivalent item at Nichia’s

discretion. FOREGOING ARE THE EXCLUSIVE REMEDIES AVAILABLE TO THE CUSTOMER IN RESPECT OF THE BREACH OF THE

WARRANTY CONTAINED HEREIN, AND IN NO EVENT SHALL NICHIA BE RESPONSIBLE FOR ANY INDRECT, INCIDENTAL OR

CONSEQUENTIAL LOSSES AND/OR EXPENSES (INCLUDING LOSS OF PROFIT) THAT MAY BE SUFFERED BY THE CUSTOMER

ARISING OUT OF A BREACH OF THE WARRANTY.

● NICHIA DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

● This LED is intended to be used for general lighting, household appliances, electronic devices (e.g. mobile communication

devices); it is not designed or manufactured for use in applications that require safety critical functions (e.g. aircraft, automobiles,

combustion equipment, life support systems, nuclear reactor control system, safety devices, spacecraft, submarine repeaters,

traffic control equipment, trains, vessels, etc.). If the LEDs are planned to be used for these applications, unless otherwise

detailed in the specification, Nichia will neither guarantee that the LED is fit for that purpose nor be responsible for any resulting

property damage, injuries and/or loss of life/health. This LED does not comply with ISO/TS 16949 and is not intended for

automotive applications.

● The customer will not reverse engineer, disassemble or otherwise attempt to extract knowledge/design information from the LED.

● All copyrights and other intellectual property rights in this specification in any form are reserved by Nichia or the right holders who

have granted Nichia permission to use the content. Without prior written permission from Nichia, no part of this specification may

be reproduced in any form or by any means.

● Both the customer and Nichia will agree on the official specifications for the supplied LEDs before any programs are officially

launched. Without this agreement in writing (i.e. Customer Specific Specification), changes to the content of this specification

may occur without notice (e.g. changes to the foregoing specifications and appearance, discontinuation of the LEDs, etc.).


Product Tags led uv 365nm          uv 365nm led          365nm uv led          uv led 365nm          uv led uv curing 365nm          365nm uv          uv 365nm          nichia uv led 365nm          uv 365nm led flashlight

INQUIRY

Contact us for all information about the product


click here to leave a message

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
