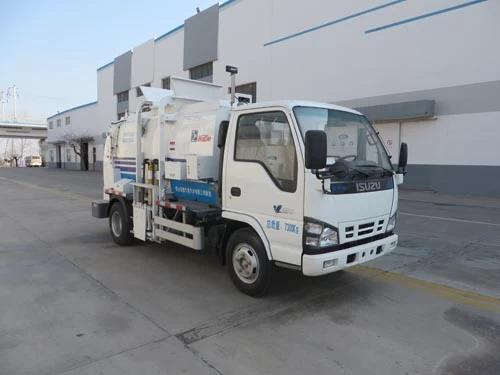

NKR77 ISUZU 4*2 kitchen garbage truck/food garbage truck
Specifications
Powerstar 3T kitchen garbage truck,Isuzu chassis, large payload, safe and comfortable.
1. Isuzu chassis, large payload, safe and comfortable;
2. manual and electric intergration multi-way valve, simple and reliable operation;
3. assemble high pressure washing device, high quality pump from Italy
4. folding gate set in the front of the compartment, easy maintenance;
5. assemble sewage collecting mouth both front and back, sewage easy discharge, and the inside of sewage tank easy cleaning up;
6. suitable for 120 and 240 garbage bins
ITEM
|
NAME
|
SPECIFICATION
|
1
|
Chassis mode
|
NKR77
|
2
|
Engine model
|
ISUZU 4KH1-TCG40
|
3
|
Engine power(Kw)
|
88
|
4
|
Emission standard
|
Europe 4
|
5
|
Wheel base(mm)
|
3360
|
6
|
Loading weight (kg)
|
3000
|
7
|
Curb weight(kg)
|
4180
|
8
|
Max speed(kg)
|
7300
|
9
|
Dimension (mm)
|
5790×1895×2665
|
10
|
Max speed(km/h)
|
100
|
11
|
Capacity of body(L)
|
5
|
12
|
Capacity of water tank(L)
|
500
|
13
|
Capacity of Sewage tank(L)
|
100
|
14
|
Max loading weight of lifting device(kg)
|
250
|
15
|
Cycle time (s)
|
18
|
16
|
Discharge time (s)
|
≤24
|
17
|
Pressure (Mpa)
|
16.2
|
