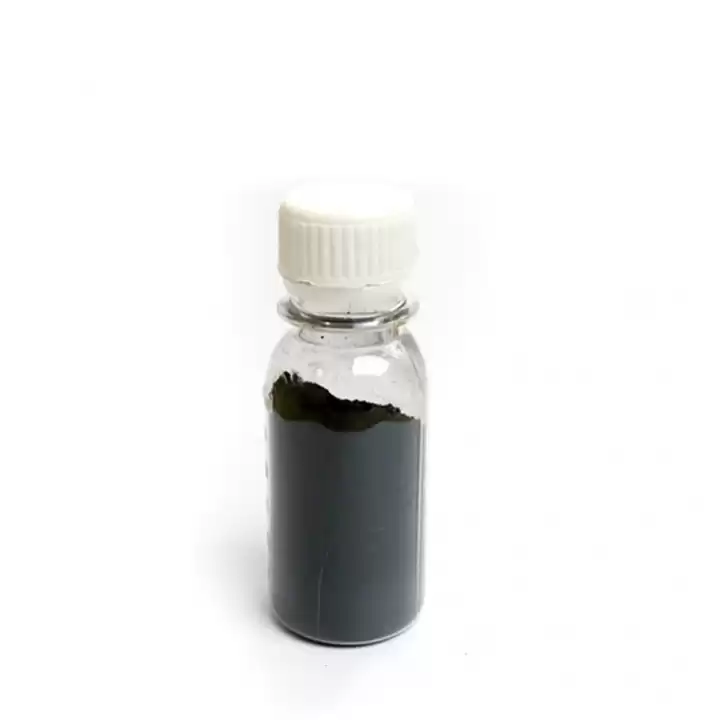

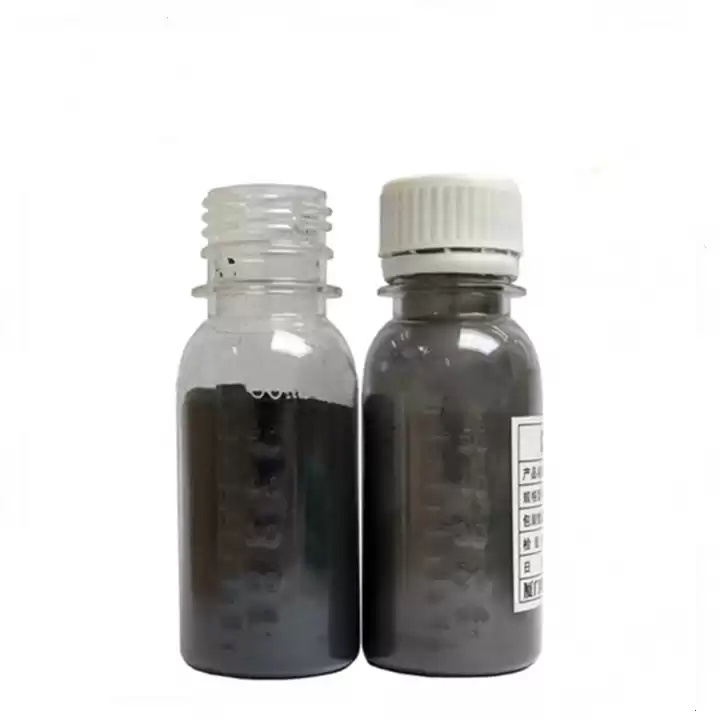

NMC=5:3:2 Powder High Capacity Battery Lithium Nickel Manganese Cobalt Oxide Powder
|
Product Name:
|
LiNiMnCoO2
|
Type:
|
TMAX-NMC-532
|
|
SPECIFICATIONS
|
|
Item
|
Standard
|
Test result
|
The analytical methods and instruments
|
|
Element content（wt%）
|
|
Ni+Mn+Co
|
≥58.0
|
58.31
|
ConsultGB/T15899-1995,HG/T4020
-2008,HG/T2631-2005;Volumetry
|
|
Li
|
7.0~8.0
|
7.52
|
Consult
JY/T 015-1996: Inductively coupled plasma atomic emission spectrometry
|
|
Na
|
≤0.03
|
0.0095
|
|
Fe
|
≤0.01
|
0.0029
|
|
Cu
|
≤0.005
|
0.0002
|
|
H2O
|
≤0.05
|
0.0144
|
Consult. GB/T 606-2003 C30;Carle Fischer coulometric instrument
|
|
Distribution of grain size（μm）
|
|
D(10)
|
≥5.0
|
6.8
|
Consult.GB/T19077.1-2008 Mastersizer2000 laser particle analyzer
|
|
D(50)
|
10~14.0
|
11.72
|
|
D(90)
|
≤25.0
|
20.076
|
|
Electrochemical performance
|
|
First discharge efficiency(%)
|
≥85
|
86.8
|
ConsultYS/T798-2012; Button half cell 0.2C,4.2V-2.7V
|
|
First discharge capacity(mAh/g)
|
≥153
|
154.1-155.1
|
|
Physical property
|
|
BET(m²/g)
|
0.2~0.4
|
0.29
|
Consult GBT 13390-2008;TriStarⅡspecific surface area
|
|
TD（g/cm³）
|
≥2.3
|
2.46
|
Consult GB/T5162-2006;FZS4-4B
Jolt density meter
|
|
PH
|
≤11.5
|
10.81
|
Consult GB/T1717-1986;DELTA320PH
|
