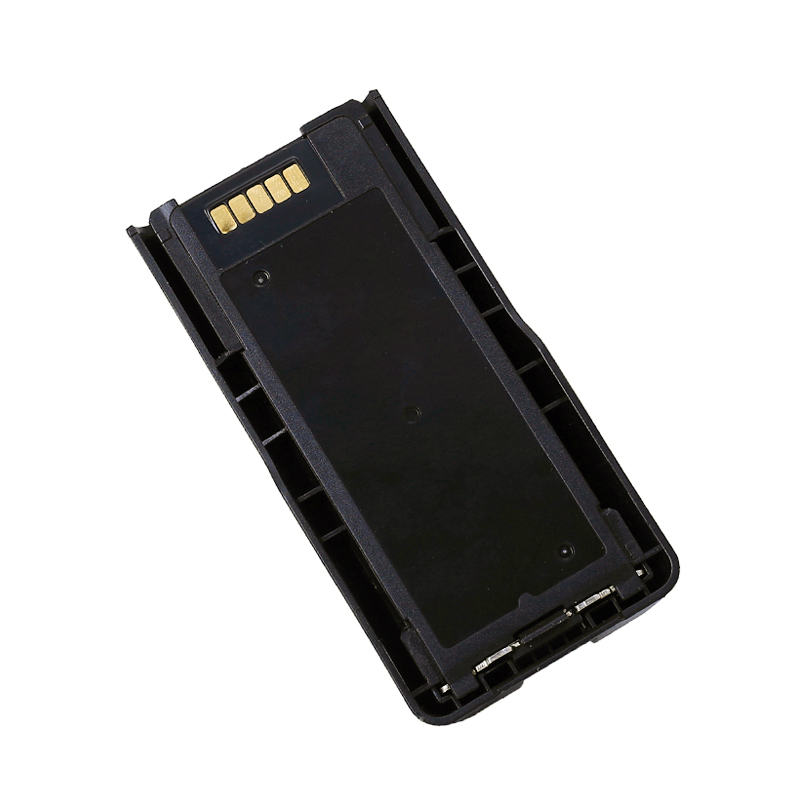

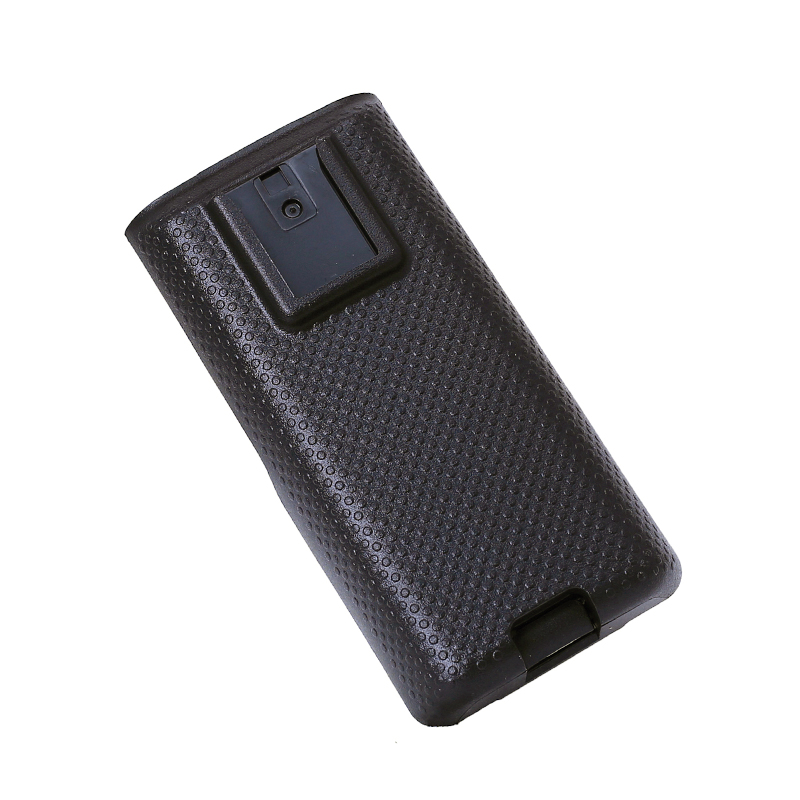

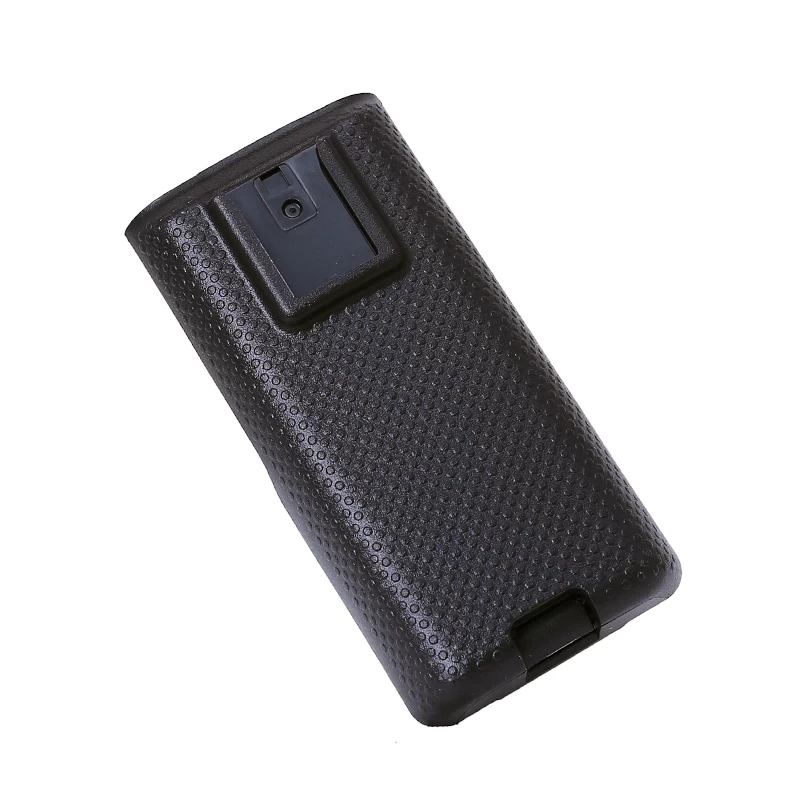

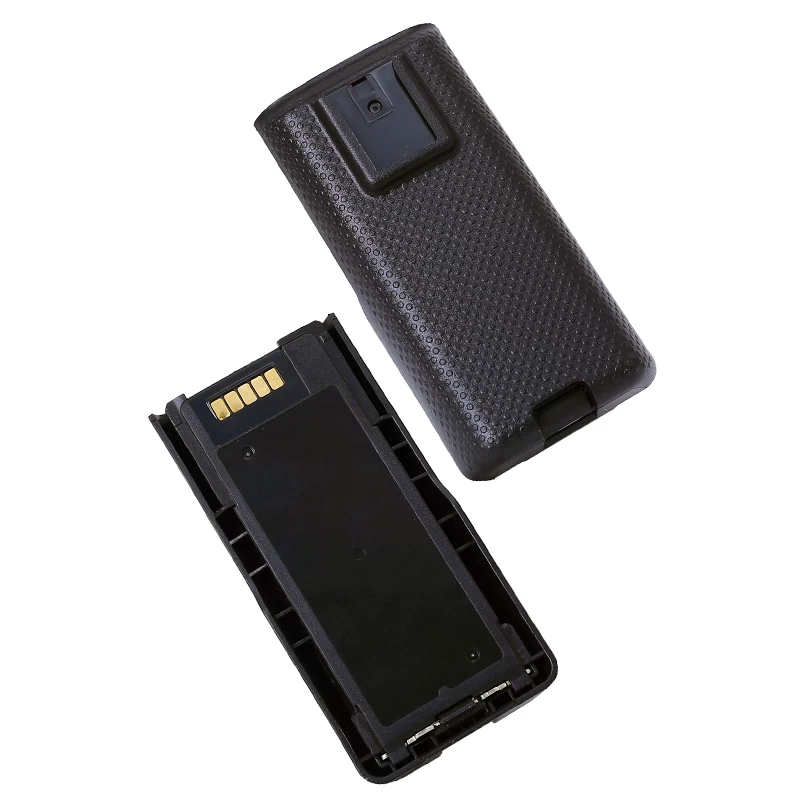

NNTN8023AC 3.7V LI-ION battery 2500/2900mAh for Motorola MTP3100 MTP3150 MTP3250 MTP3200 MTP3500 MTP3550 MTP6550 MTP6750 series radio.
Similar product recommendation:
NNTN8020AC 3.7 LI-ION 1650mAh.
|
General Specifications
|
|
Original Model No.
|
NNTN8023AC
|
|
Compatible Radio Models
|
MTP3100 MTP3150 MTP3250 MTP3200 MTP3500 MTP3550 MTP6550 MTP6750
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
3.7V LI-ION
|
|
Capacity
|
2500/2900mAh
|
|
Dimensions (mm)
|
105(W)*51(D)*17(H)
|
|
Compatible Charger Models
|
2500-Charger
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japanese cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
Gold-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into 34*34*34cm carton, 100PCS each carton
|
