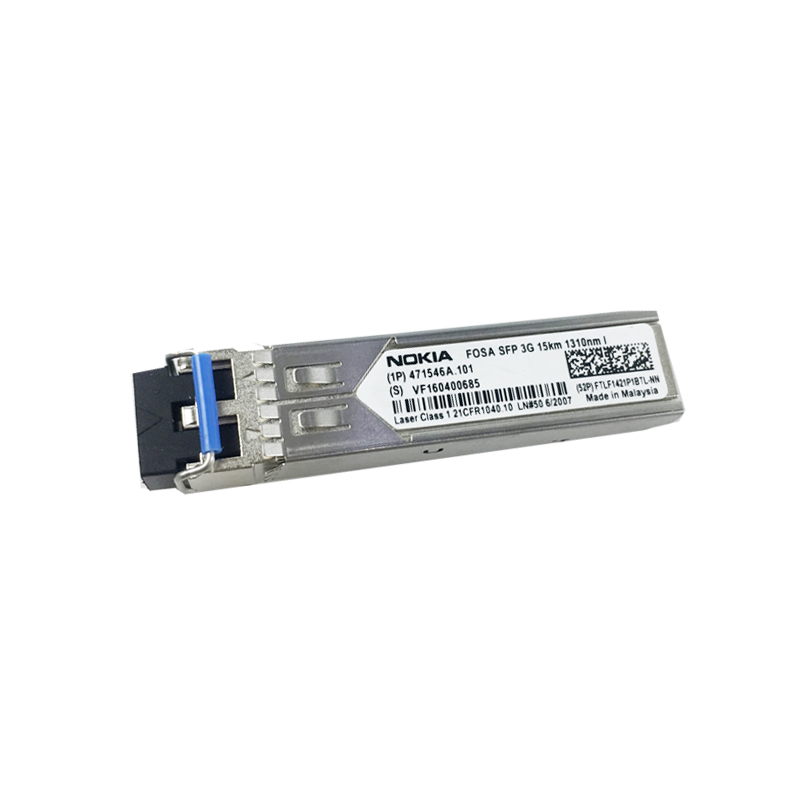

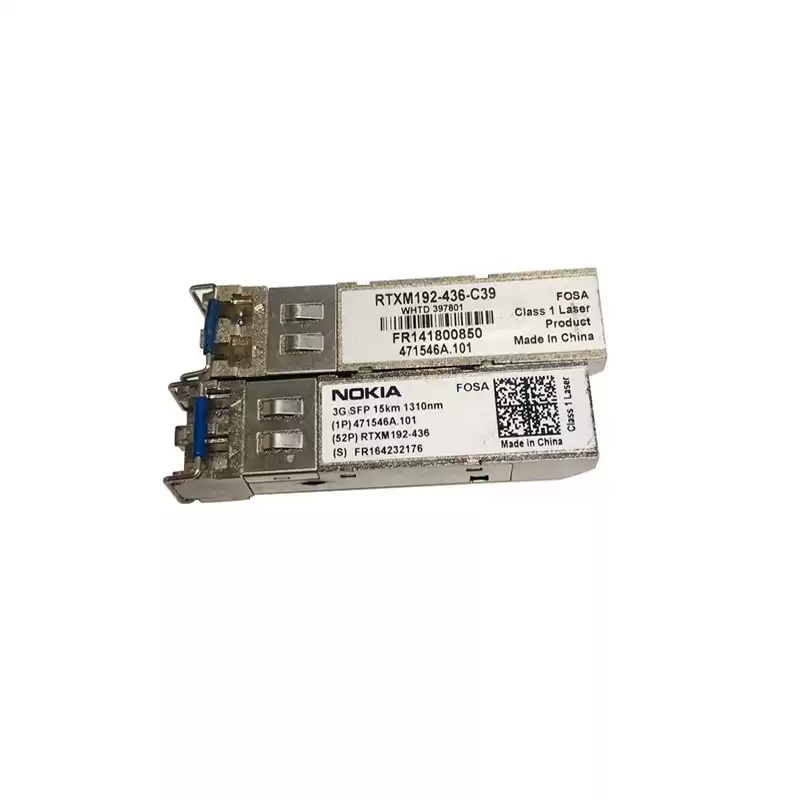

Nokia compatible FOSA Flexi Optical SFP 1310 nm 3 Gb 15 km SM transceiver

Product Description

FTLF1421P1BTL-3G Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They comply with Gigabit Ethernet as specified in IEEE Standard 802.3, Fibre Channel FC-PI 13.0, CPRI Rev 4.1 and OBSAI Rev V4.1. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Genuine Nokia 471546A.101

Up to 3.07 Gb/s bi-directional data links

Hot-pluggable SFP footprint

Built-in digital diagnostic functions

Uncooled DFB 1310nm laser transmitter

Duplex LC connector

RoHS compliant

Metal enclosure, for lower EMI

FEC Support

Single 3.3V power supply

Low power dissipation <700mW typical

Industrial operating temperature range: -40°C to 85°C

Applications

2.45 Gb/s CPRI

3.07 Gb/s CPRI

3.07 Gb/s OBSAI

Gigabit Ethernet / 1x/2x Fibre Channel

Specifications

Part Number: 471546A.101

MPN: RTXM192-436, FTLF1421P1BTL-NN

Form Factor: SFP

Data Rate (max): 3.07 Gb/s

Connector: Dual LC

Wavelength: 1310nm Band

Distance: 15 km

Transmitter: DFB Laser

Receiver: PIN

Diagnostics: Digital

Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compatible

Voltage Supply: 3.3

Operating Temperature: -40°~ 85°C

Product Details

Our Advantages

We have NOKIA FOSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

NOKIA FOSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

NOKIA FOSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
