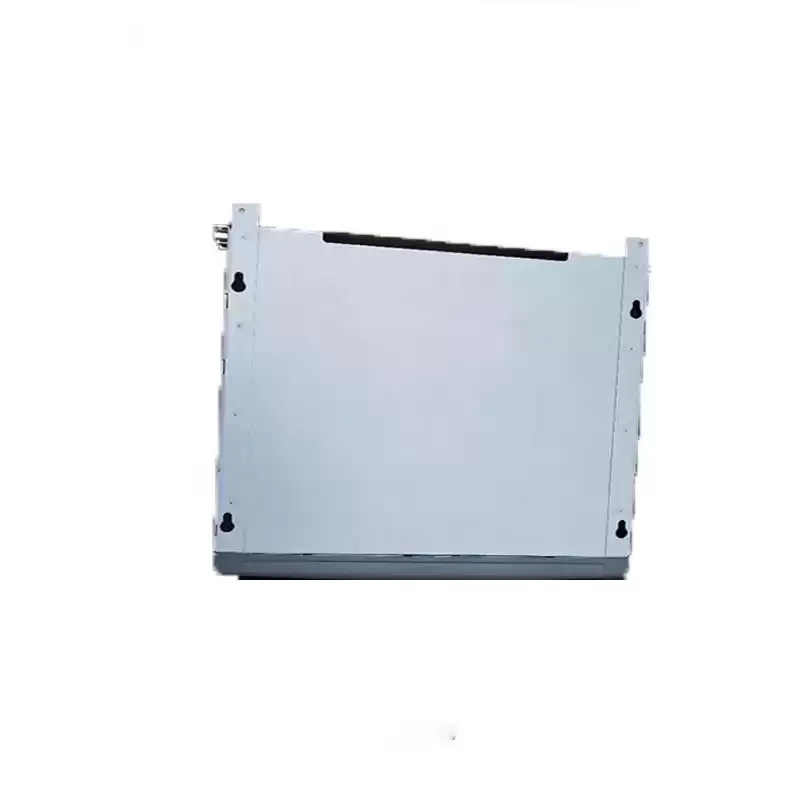

Nokia EMHA 470316A Flexi Edge Mechanical 3u Unit

Product Description

Flexi RF Module Triple

The Flexi Multiradio RF module or RF module is a 3-branch multi carrier, multi standard transceiver module The module is composed of three independent branches, which can simultaneously send and receive signals of various radio technologies:

Depends on the 6 GSM operator 400 KHz minimum carrier spacing

Depends on 4 WCDMA operators 4.6 MHz minimum carrier spacing

Multicarrier LTE signals 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz, and 35 MHz carrier bandwidths

Combined with GSM for multi RAT operation, wireless code division multiple access, and LTE

RF modules FXDA, FXDJ, FXEA, Fuhui, and FXFA/FXFB are called 70W RF module variants RF modules FXEB and FXDB are called 90 W RF module variants Each branch consists of a transmitter chain and two receiver chains and FXFB  variants have front-end software tunable filters (reed) The 90 W RF module variant has a fixed full band filter  is a 3U high module with an integrated, replaceable three fan assembly for module cooling The supported functions are:

Use OBSAI RP3_ 01 Link up to three RF modules

2 - The way to receive diversity in the receiver chain

Integrated antenna line monitoring

MHA, antenna jump, EGPRS2, and VAMOS support

Digital and control circuits, optical interfaces, DC/DC power conversion, and other necessary functions

Integrated DC line OVP, Class II rated for 5kA pulses (Exchange Fund, FXDB/FXEB)

Remote electrical tilt (correct) support (Exchange Fund, FXDB/FXEB)

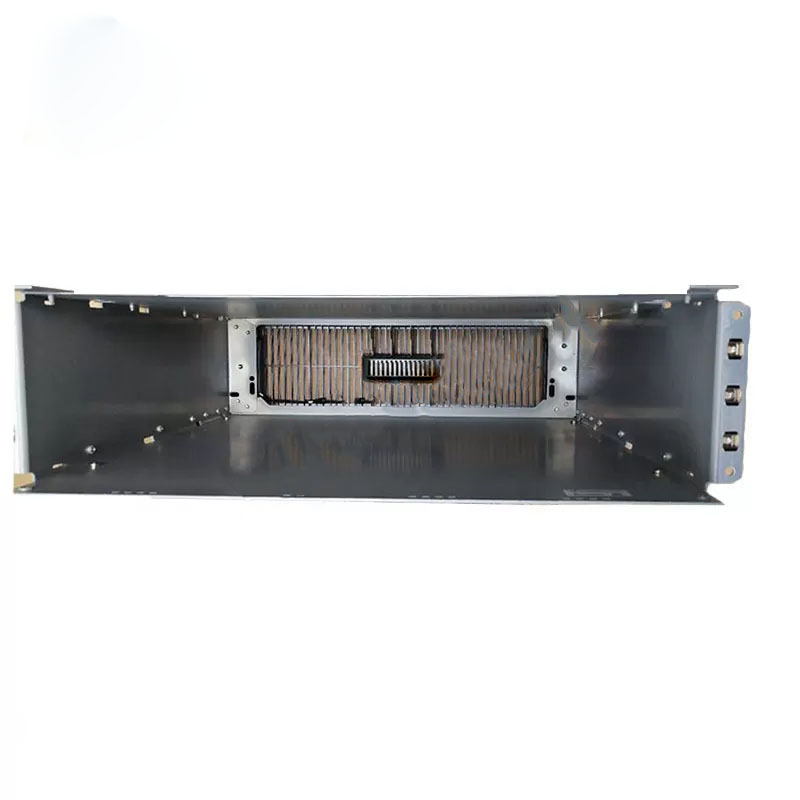

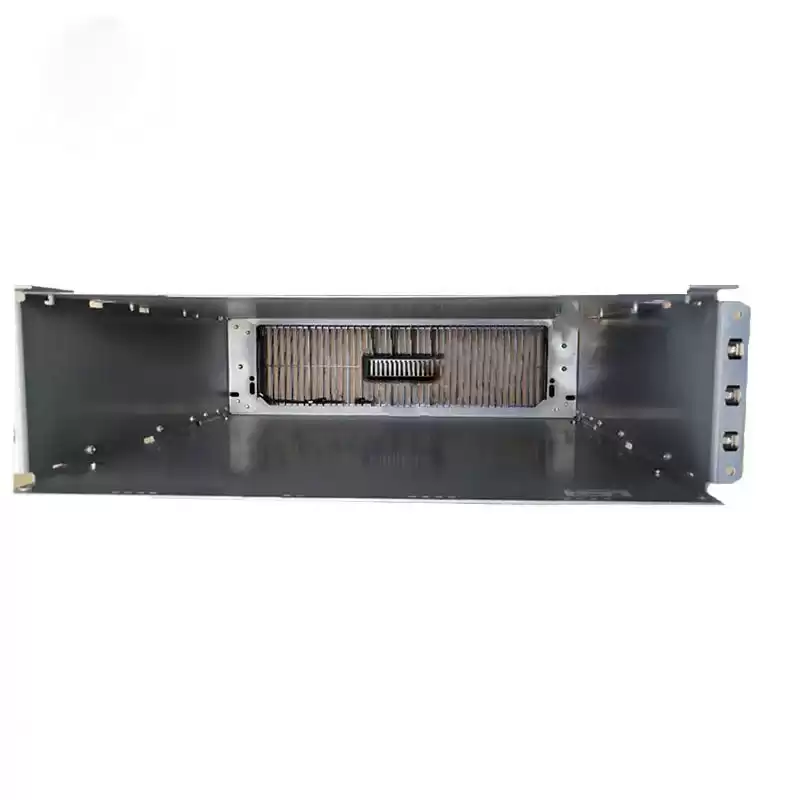

The Flexi Multiradio BTS GSM/EDGE module is equipped with an integrated air deflector that provides full thermal compliance without a housing This allows the module to be installed in the 19 "rack in the Flexi cabinet and enclosed cabinet in the module without housing It is recommended to use 19 "shelves (without cabinets) in separate enclosures and covers for safety reasons The enclosure is not part of the FXxx delivery package If the configuration requires a housing, the Flex BTS module housing (Emha) kit must be ordered

Product Details

Our Advantages

We have Nokia EMHA 470316A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Nokia EMHA 470316A, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Nokia EMHA 470316A represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
