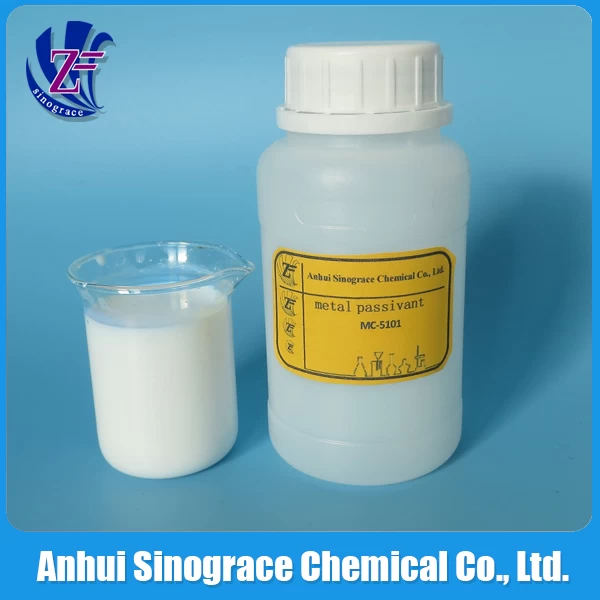

Non chromium steel sheet corrosion inhibitor MC-P5101



Feature

Improve the machining performance (molding and tensile property)

Non chromium corrosion inhibitor and it is environmentally friendly product

Can increase the adhesion for coating and excellent anti-corrosion performance

Forming a colorless film on the surface of SUPER GALUM and galvanized sheet


Typical properties

Appearance: White emulsion

Composition: Silicon colloid and Acrylic resin

Recommended dosage: 5-10%

Solid content: ~10%

Solvent: ~10%

pH: 3.5-5.5

Brix value (50% v/v) 5-7


Technical process

①Chemical degreasing---②Electrolytic degreasing---③Water wash---④Water wash---⑤Air dry---⑥MC-P5101 roll coating ---⑦dry

  • Recommended dosage: 100%
  • Temperature: Below 40℃
  • Drying temperature: 80-100℃
  • Processing way: Roller coating
  • Recommended dry film weight: 0.6~1.0 g/m2 (X-ray fluorescence spectrometer detection)

The using dosage is depends on the storage time, material and other environmental indexes. Our technical engineer will recommend the optimal using dosage according to the customers’ request. Normally the using dosage is larger while used in high humidity region or need the long storage time. You need supplement the MC-P5101 with the using process due to its consumption. Especially, after roller coating, it needs to be dried under 80-100℃ to ensure the water evaporate completely.


Application

-SUPER GALUM and galvanized sheet surface etc.


Storage and handling

Available in 200 kg/ barrel or 25 kg/ barrel

Storage period: 6-12 months in closed containers, shady and dry place
