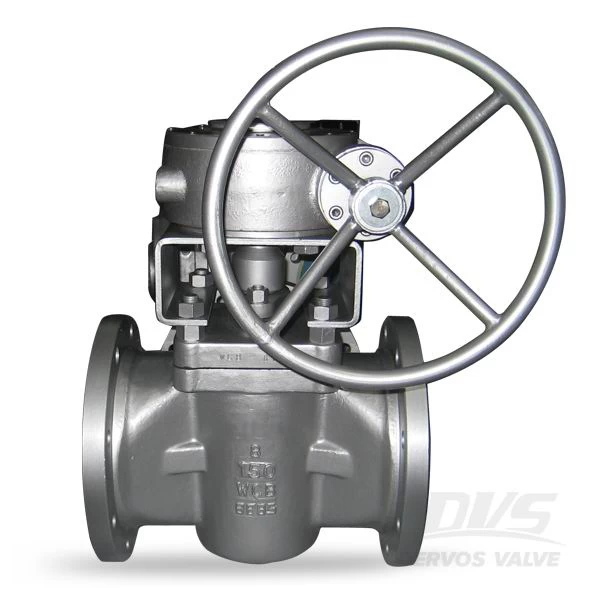

The 6 inch sleeved plug valve features in non lubricated design and soft seat. The full port plug valve is made of carbon steel body and PTFE seat as per API 6D, with Class 150 flange connection.
Quick Detail
|
Type
|
Plug
Valve
|
|
Size
|
6''
|
|
Design Pressure
|
150LB
|
|
Construction
|
Self-Lubricated
Type, Sleeved Type, Soft Seat
|
|
Connection Type
|
RF
Flange
|
|
Operation
|
Gearbox
Operation
|
|
Design Code
|
API 599
|
|
Face to Face
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.5
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
A216
WCB
|
|
Temperature Range
|
-29℃~+425℃
|
|
Application
|
Water,
Oil, Gas
|

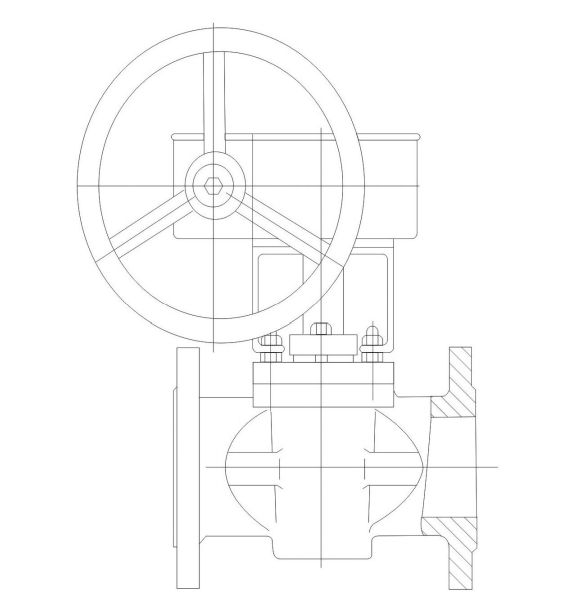

Material & Dimension
|
No
|
Part Name
|
Carbon
steel to ASTM
|
Stainless
steel to ASTM
|
|
WCB
|
LCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
Body
|
A216 WCB
|
A350 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
2
|
Bonnet
|
A216 WCB
|
A350 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
3
|
Plug
|
A105
|
A182 F304
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
4
|
Stem
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
5
|
Seat Ring
|
PTFE
|
|
6
|
Gasket
|
PTFE or Stainless Steel and Graphite
|
|
7
|
Stem Seat
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
|
8
|
Small spring
|
17-17PH
|
|
9
|
Small ball
|
A182 F304 or A182 F316
|
|
10
|
Gland
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
11
|
Gland Flange
|
A216 WCB
|
A350 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
12
|
Stem packing
|
PTFE or Graphite
|
|
13
|
Bonnet bolt
|
A193 B7 or A320 L7 or A320
B8 or A193 B8M
|
|
14
|
Bonnet nut
|
A194 2H or A194 4 or A194 8
|
|
Class 150
|
|
DN
|
mm
|
15
|
20
|
25
|
40
|
50
|
65
|
80
|
100
|
150
|
200
|
250
|
300
|
|
NPS
|
in
|
1/2
|
3/4
|
1
|
1 1/2
|
2
|
2 1/2
|
3
|
4
|
6
|
8
|
10
|
12
|
|
L(RF)
|
mm
|
108
|
117
|
127
|
165
|
178
|
191
|
203
|
229
|
394
|
457
|
533
|
610
|
|
in
|
4.25
|
4.6
|
5
|
6.5
|
7
|
7.5
|
8
|
9
|
15.5
|
18
|
21
|
24
|
|
L1(BW)
|
mm
|
140
|
152
|
165
|
190
|
216
|
241
|
283
|
305
|
457
|
521
|
559
|
635
|
|
in
|
5.5
|
6
|
6.5
|
7.48
|
8.5
|
9.5
|
11.13
|
12
|
18
|
20.5
|
22
|
25
|
|
L2(RTJ)
|
mm
|
119
|
129.7
|
139.7
|
178
|
191
|
203
|
216
|
241
|
406
|
470
|
546
|
622
|
|
in
|
4.69
|
5.11
|
5.5
|
6.9
|
7.5
|
8
|
8.5
|
905
|
16
|
18.5
|
21.5
|
24.5
|
|
H
|
mm
|
59
|
63
|
75
|
92
|
153
|
165
|
195
|
213
|
272
|
342
|
495
|
580
|
|
in
|
2.3
|
2.5
|
2.95
|
3.74
|
6.02
|
6.5
|
7.68
|
8.39
|
10.7
|
13.5
|
19.5
|
22.85
|
|
D(W)
|
mm
|
130
|
130
|
160
|
230
|
400
|
400
|
600
|
850
|
1100
|
1500
|
350*
|
350*
|
|
in
|
5.1
|
5.1
|
6.3
|
9
|
15.74
|
15.74
|
23.62
|
33.46
|
43.3
|
59
|
13.8
|
13.8
|
|
Weight (Kg)
|
RF
|
2.3
|
3
|
4.5
|
7
|
15
|
20
|
25
|
40
|
97
|
160
|
240
|
390
|
|
BW
|
2.0
|
2.5
|
3.8
|
5.8
|
12
|
17
|
21
|
36
|
92.8
|
154
|
227
|
365
|
