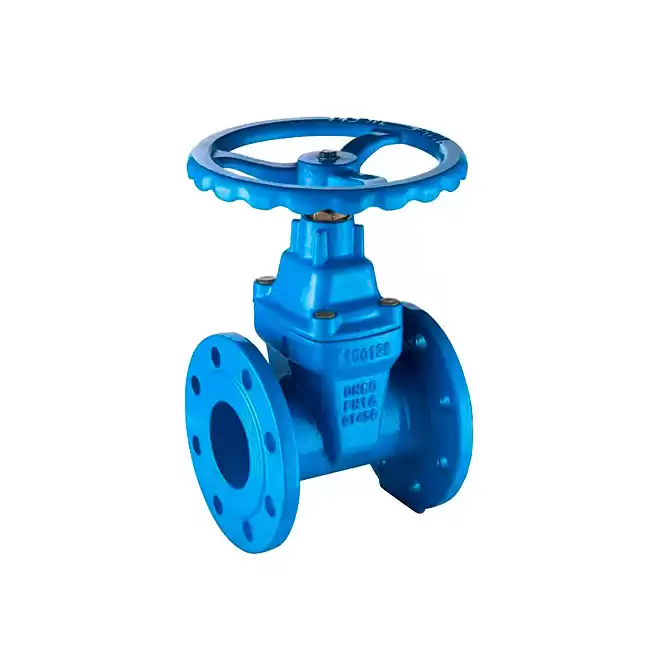

Non Rising Stem Gate Valve DN80 PN16 GGG50(QT450)

DIN3352 Non Rising Resilent Gate Valve

DN80,PN16,GGG50,GGG50+EPDM,Handwheel

Manufacture STAVAL Factory Offer.


  • End ConnectionFlange
  • BoreFull Bore, Reduce Bore
  • ConstructionRising Stem, Non Rising Stem, Resilent Wedge
  • Material RangeCast Iron, Ductile Iron, A216 GS C25
  • Pressure Range150LB ~ 300LB (PN10 ~ PN25)
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1200)
  • SeatSoft Seat, Metal Seat

Key Specification
Type

Gate Valve

Size

DN100

Pressure

PN16

Construction

Non Rising Stem, Bolt Bonnet, Full Bore, Reslient Wedge

Connection

RF End

Body/Bonnet Material

GGG50 (QT450)

Wedge Material

GGG50+EPDM

Stem Material

2Cr13

Seat Material

EPDM

Bolt/Nut

Carbon Steel

Design Standard

DIN3352

Face to Face Dimension

DIN3202-F4

End Connection

DIN2532 /DIN2533/ EN1092-2

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
