Non Slip Ground Reinforcement Paddock Soil Stabilization Grid

Paddock soil stabilization grid is the ultimate ground protection and reinforcement system, using 100% recycled plastic grid to provide tough and sturdy surfaces for horse riding arena, pathways,access roads, construction sites,sporting venues,lawn reinforcement,holiday parks and much more.



NON SLIP GROUND REINFORCEMENT PADDOCK SOIL STABILIZATION GRID

Paddock soil stabilization grid is the ultimate ground protection and reinforcement system, using 100% recycled plastic grid to provide tough and sturdy surfaces for horse riding arena, pathways,access roads, construction sites,sporting venues,lawn reinforcement,holiday parks and much more.



SOIL STABILIZATION GRID LY950 SPECIFICATION

 MATERIAL  HDPE(100% Recycled High Density Polyethylene)
 COLOR  BLACK, DARK GREEN
 SIZE  336*336*50MM
 CELL WALL THICKNESS  2MM
 WEIGHT  0.65KG/PC, 5.85KG/M2

Non Slip Soil Stabilization Grid

TECHNICAL DATA

 LOADING BEARING CAPACITY  More than 250tons/m2 after filled
 OPEN CELL PERCENTAGE   92% top; 75% base
 ANTI HCL   According to GB4218-1984, 30% x 24h, no visible change
 ANTI NAOH   According to GB4218-1984, 30% x 24h, no visible change
 THERMAL AGING   According to GB/T 7141-1999, 70IC x24h, no visible change
 UV RESISTANCE   According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY  Non Toxic
 DURABILITY  At least 10 years in neutral ground of 4<pH<9
 PACKING  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m2 in one go.
 PACKING  570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC



WHY WE ARE SPECIAL AND BETTER?


  • After studied the European Standard design, we made a revision on interlocking part, which is able to interlock tightly and ensure the interlocking parts no broken during horses running.

  • 9 individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1 m² in one go.
  • Ground Reinforcement Soil Stabilization Grid

    Paddock Soil Stabilization Grid


    APPLICATION

    Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.


    FEATURE

    Non-slip

    Elastic and robust

    Crack-proof

    Weatherproof

    Environmentally friendly, 100% recyclable

    High load capacity

    Ammonia resistant

    Withstands frost and UV light

    Does not rot



    ADVANTAGES

    No mud

    Equal load on all joints

    The tread layer remains separate from the substructure

    Minimal maintenance

    High degree of elasticity

    Load capacity of up to 250tons/m2

    Outstanding drainage

    More than 200 elastic elements per m2

    Quick and easy to install

    Environmentally friendly

    Minimal hoof impact marks

    Patented safety locking system

    Permanent drainage

    Robust surface with good grip

    All-weather areas, the ideal surface all year round

    Open stables keep free from mud and puddles.


    PACKING & LOADING

    570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ

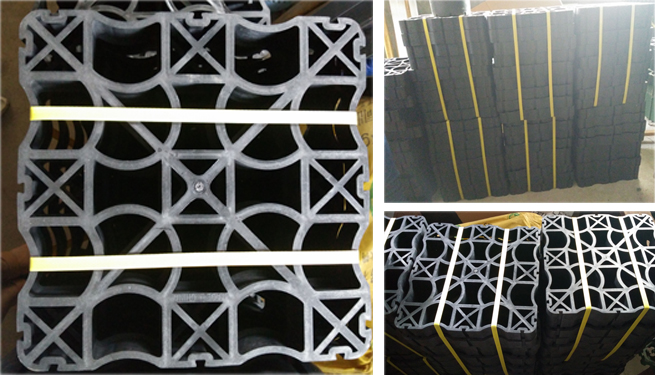

    Paddock Soil Stabilization Grid Packing View
