Beiben trucks 16 Ton mounte crane , also call as beiben 16 Ton crane trucks, north benz trucks 16 Ton mounted crane. As the most professinal beiben crane trucks manufacturer in
china, we can produce the beiben 5 T trucks mounted crane, beiben 6.3 T
truck mounted crane, beiben 8 T trucks mounted crane , and beiben 16 T
trucks mounted crane.
The
north benz trucks mounted can be on north benz 4*2 trucks chassis, 6*4
and 8*4 trucks chassis. Customer can choose XCMG, UNIC,HIAB crane
system to install on these north benz trucks chassis
We can supply beiben 5 T 4*2 drive truck mounted crane, beiben 6*4 drive
truck mounted crane, beiben 8*4 drive truck mounted crane.

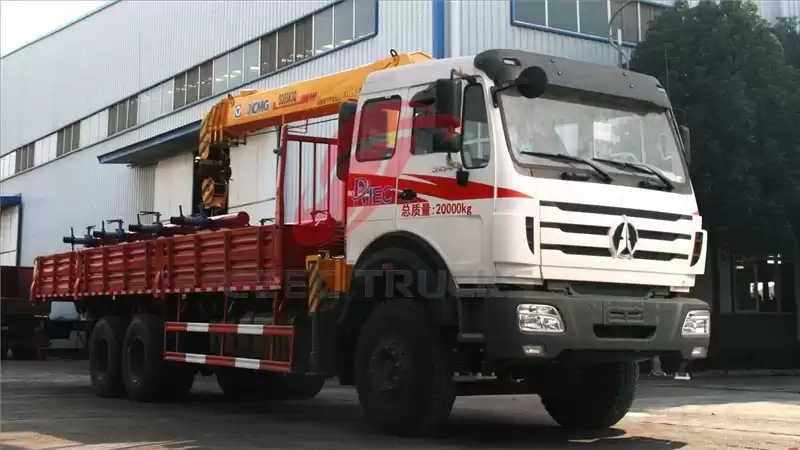

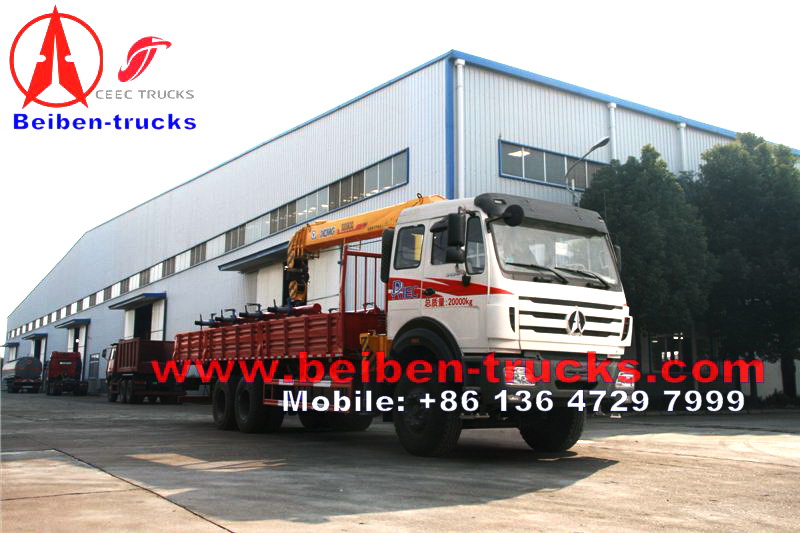

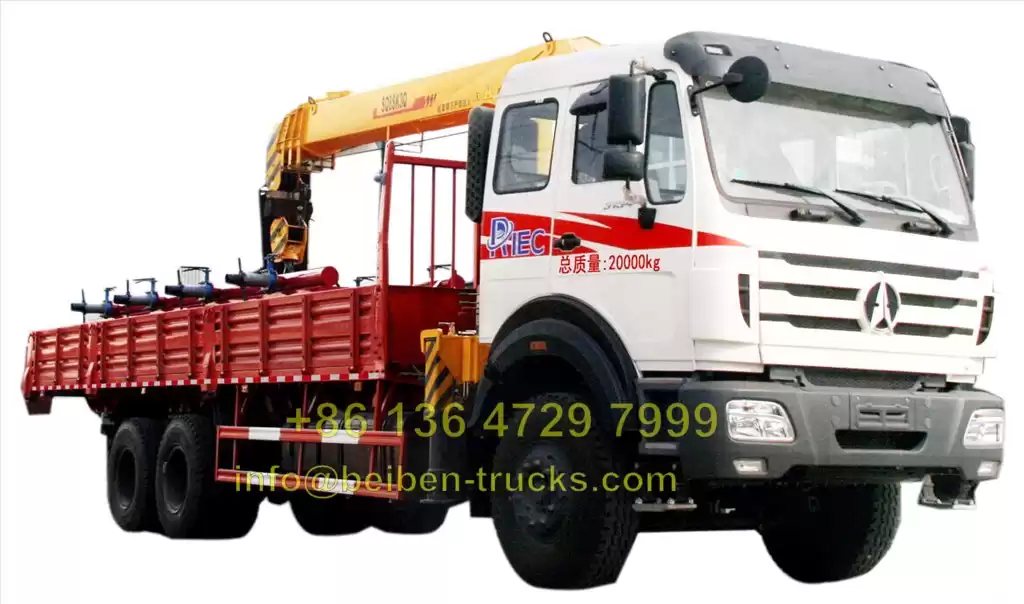

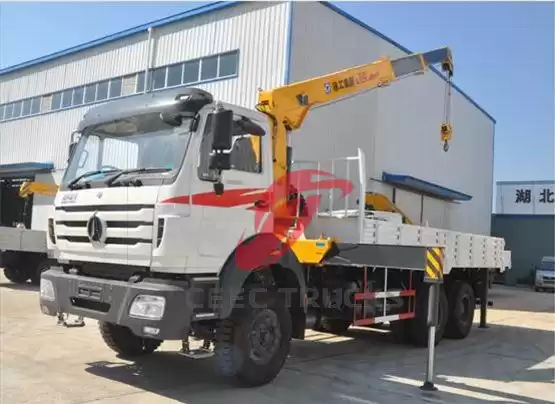

China Bei Ben new NG80B truck mounted crane for
africa congo customer using, with Excellent quality Mercedez benz
technology, We can supply beiben 5T, 8 T, 10 T, 12 T, 16 T, 25 T crane truck in knuckle boom and telescophic type .
China beiben china north benz 16 T truck
manufacturer.
|
Beiben 16 T crane trucks Sales No.
|
2630P
|
|
Dimension（mm)
|
Long
|
10126
|
|
Wide
|
2500
|
|
High
|
3500
|
|
Wheel base（mm）
|
5050+1450
|
|
Drive
|
6×4
|
|
Engine
|
Model
|
WP10.320E32/WP10.336N
|
|
Cabin
|
NG80B/ Long Cab
|
|
Clutch（mm）
|
Φ430
|
|
Front Axle
|
7.5T
|
|
Rear/Mid Axle
|
Model/speed radio
|
Double Reduction Driving Axle /5.263
|
|
Steering System
|
ZF8098
|
|
Braking System
|
Dual Circulation Air Brake System
|
|
Fuel Tank（L）
|
400L
|
|
Frame/mm
|
317×70×8.5+7
|
|
Tire
|
12.00R20
|
|
Front/Rear Overhang
|
1410/2055
|
|
Transmission
|
Fuller 9JS150A
|
|
Curb Weight（kg)
|
11300
|
|
Max loading Weight(kg)
|
13970
|
|
Max Speed（km/h)
|
85
|
