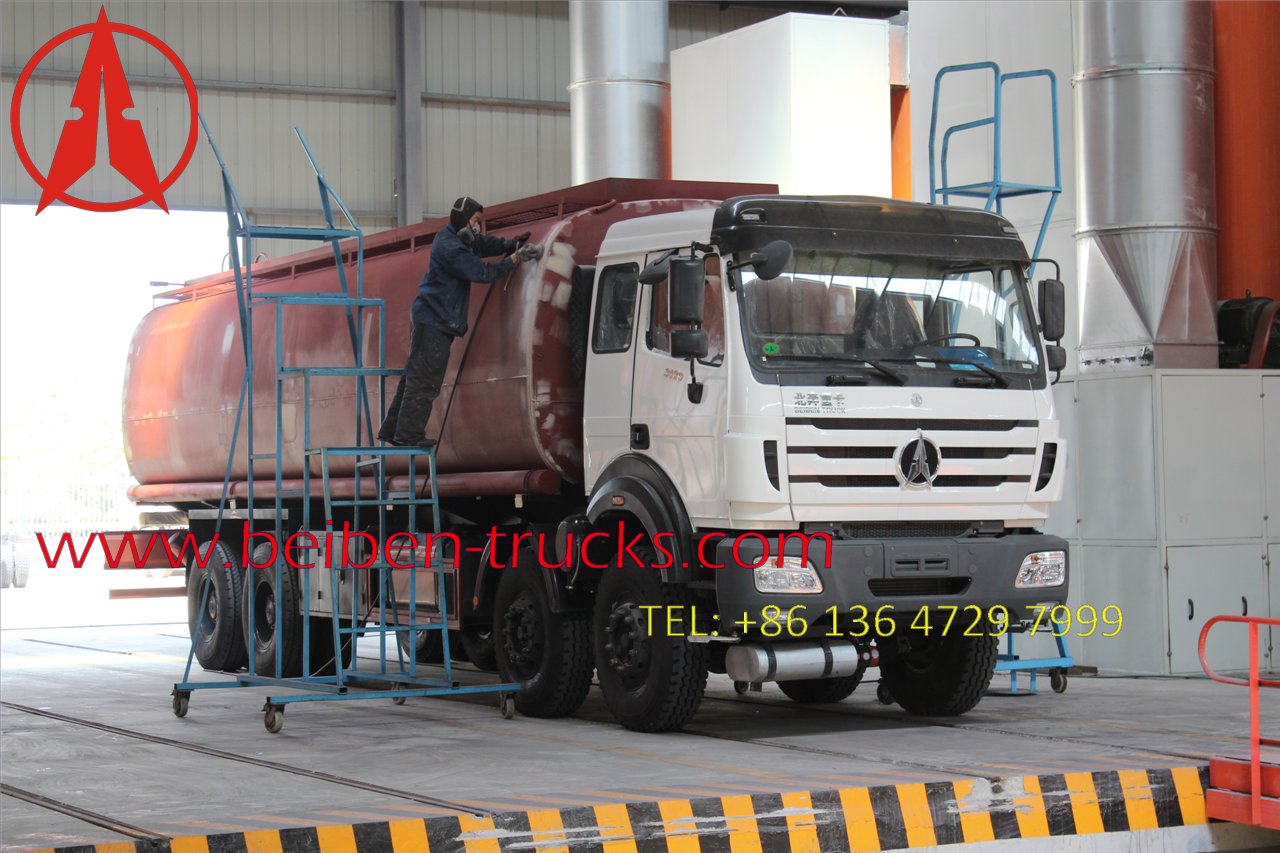

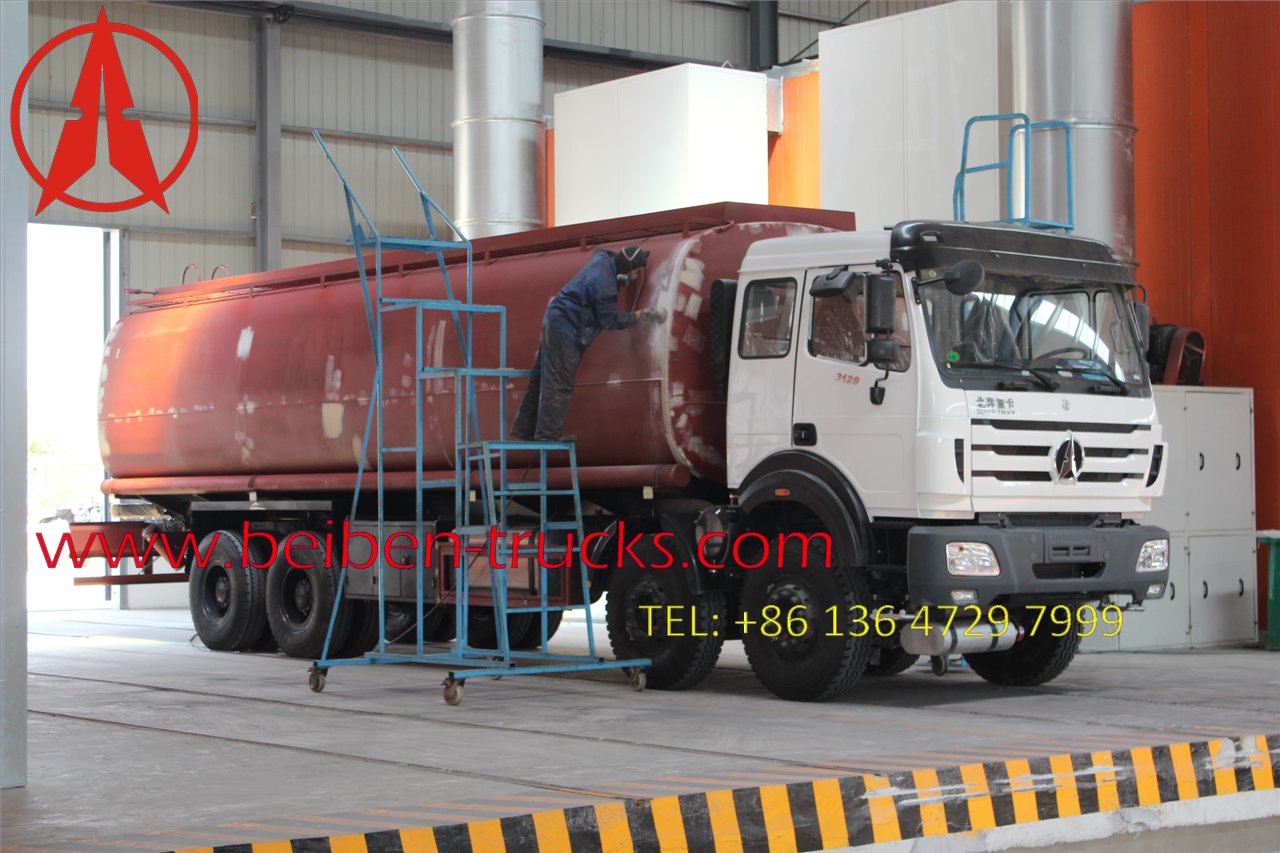

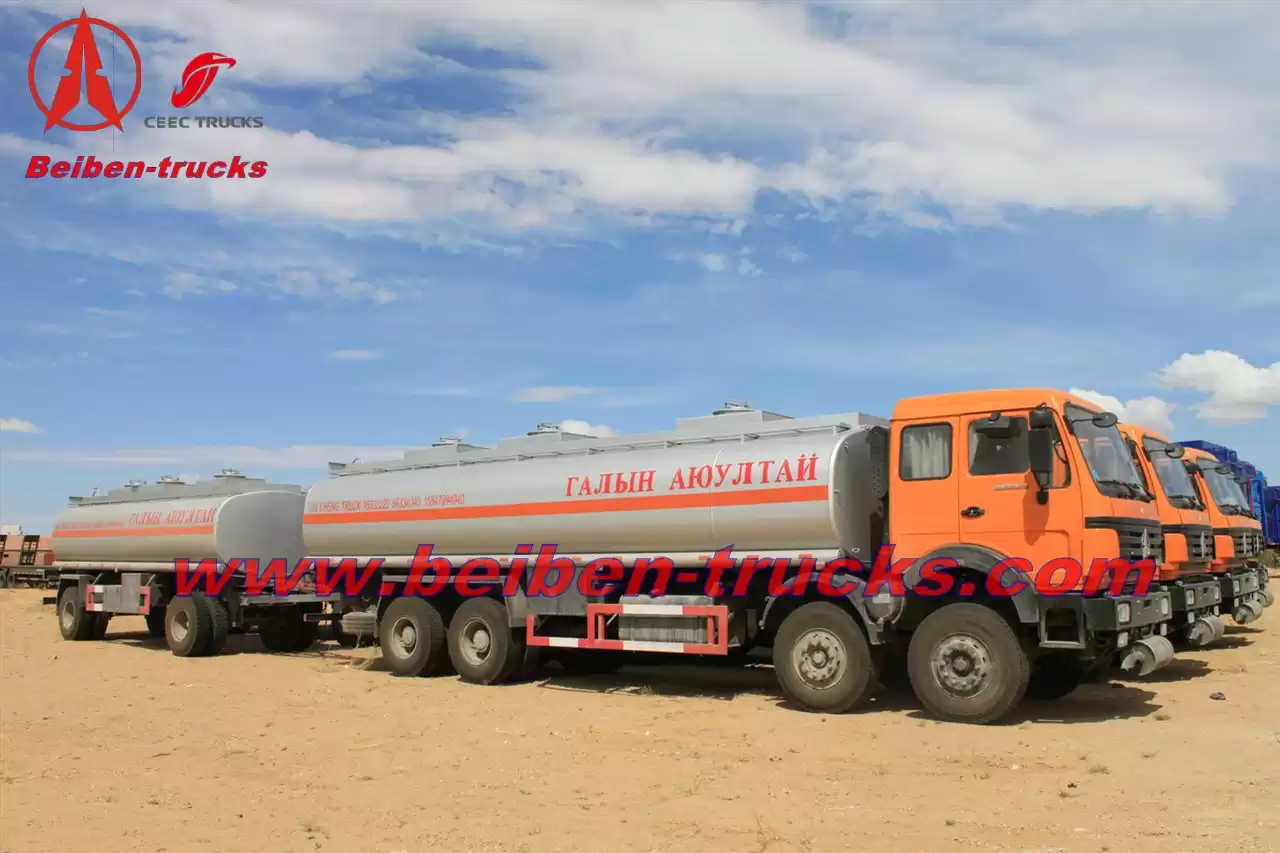

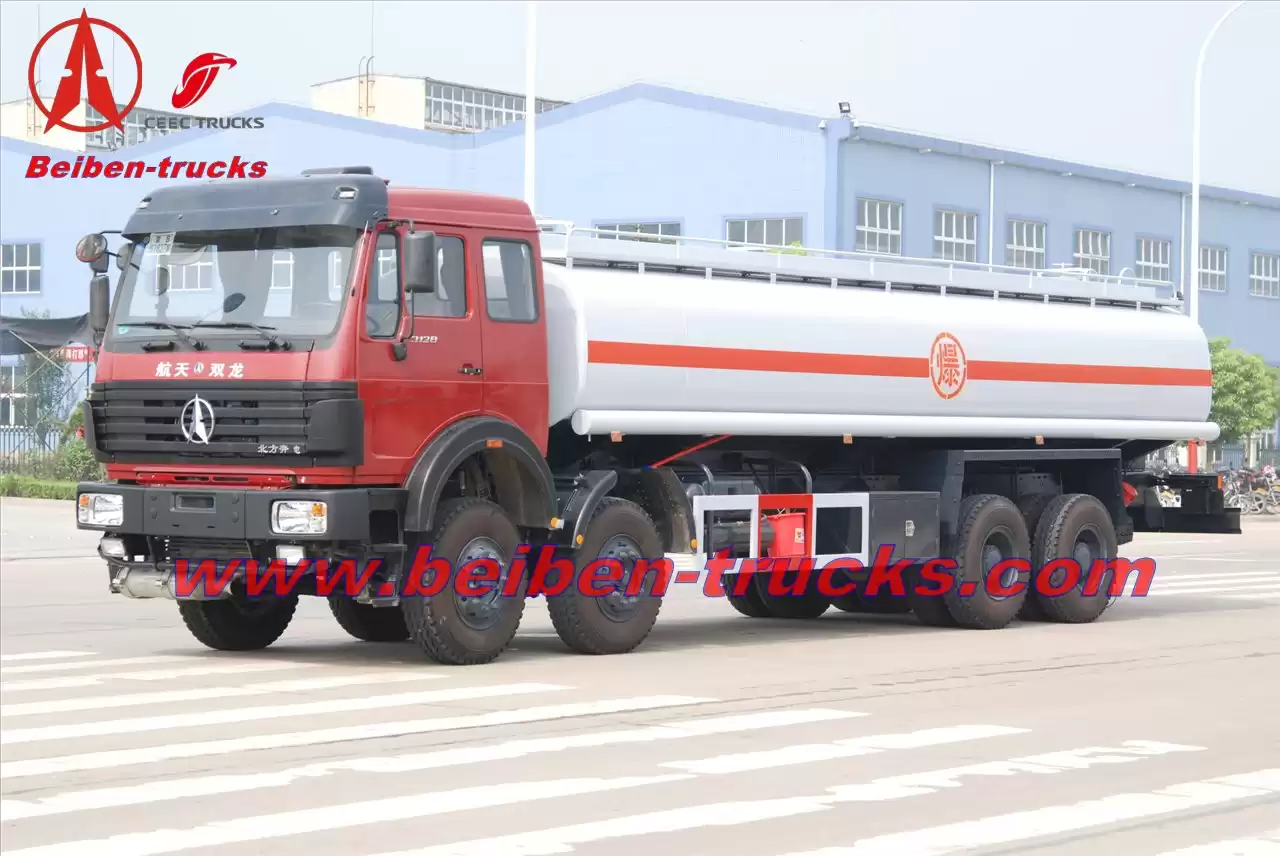

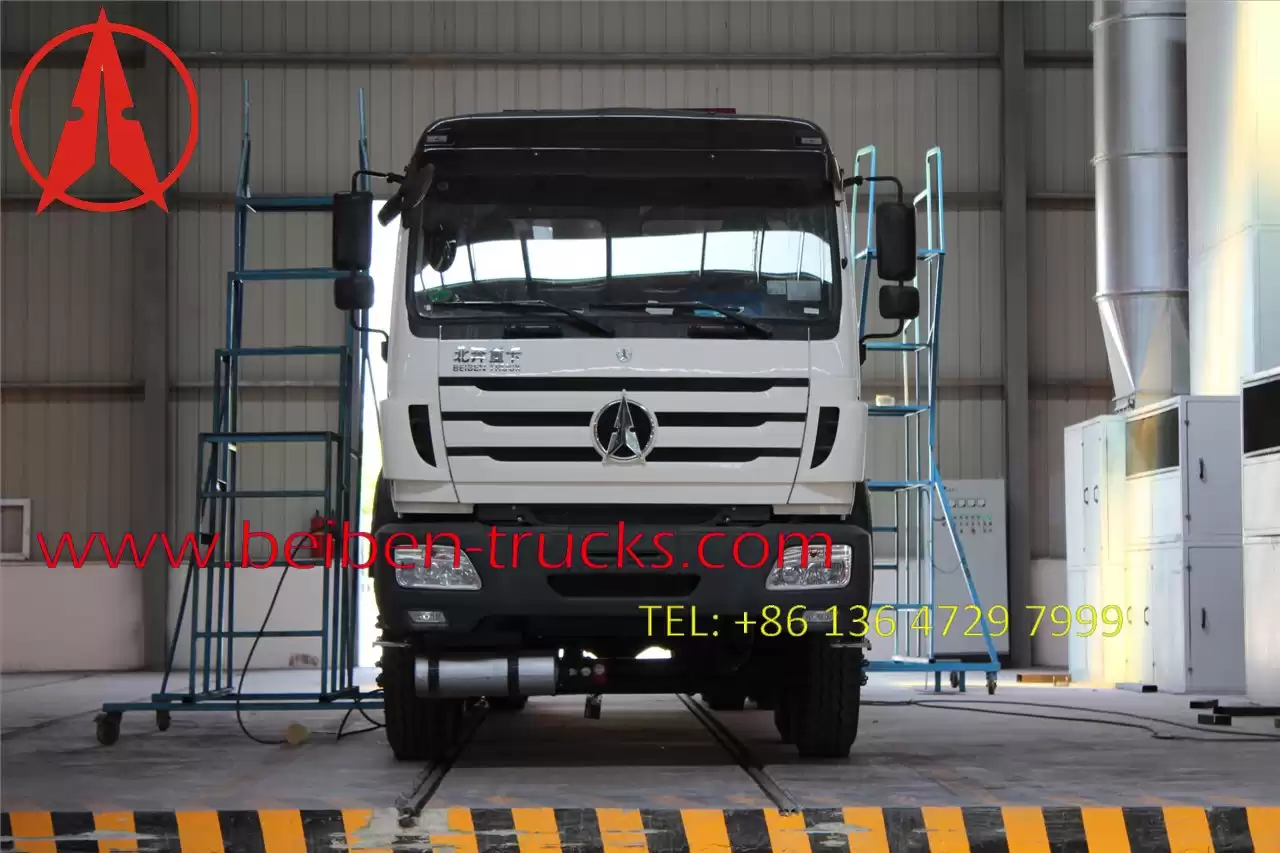

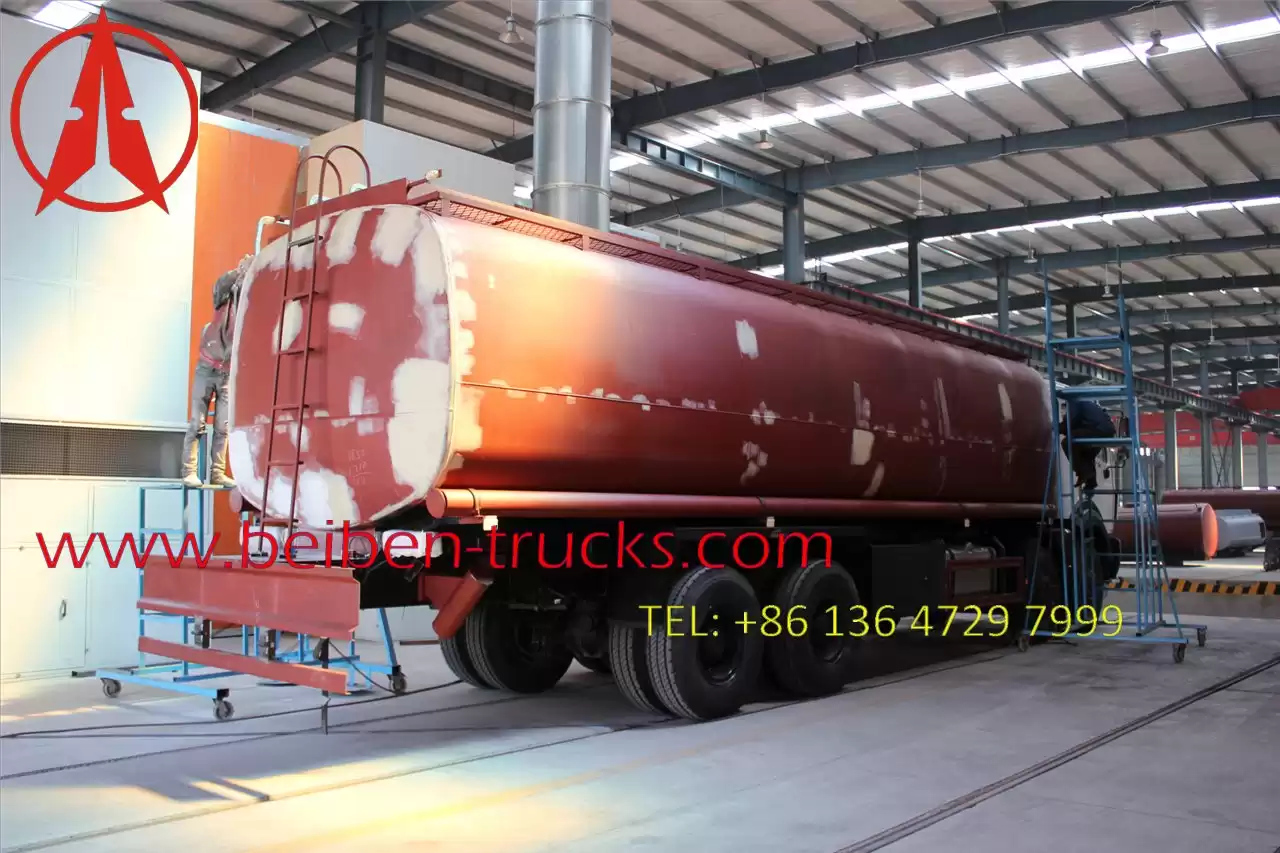

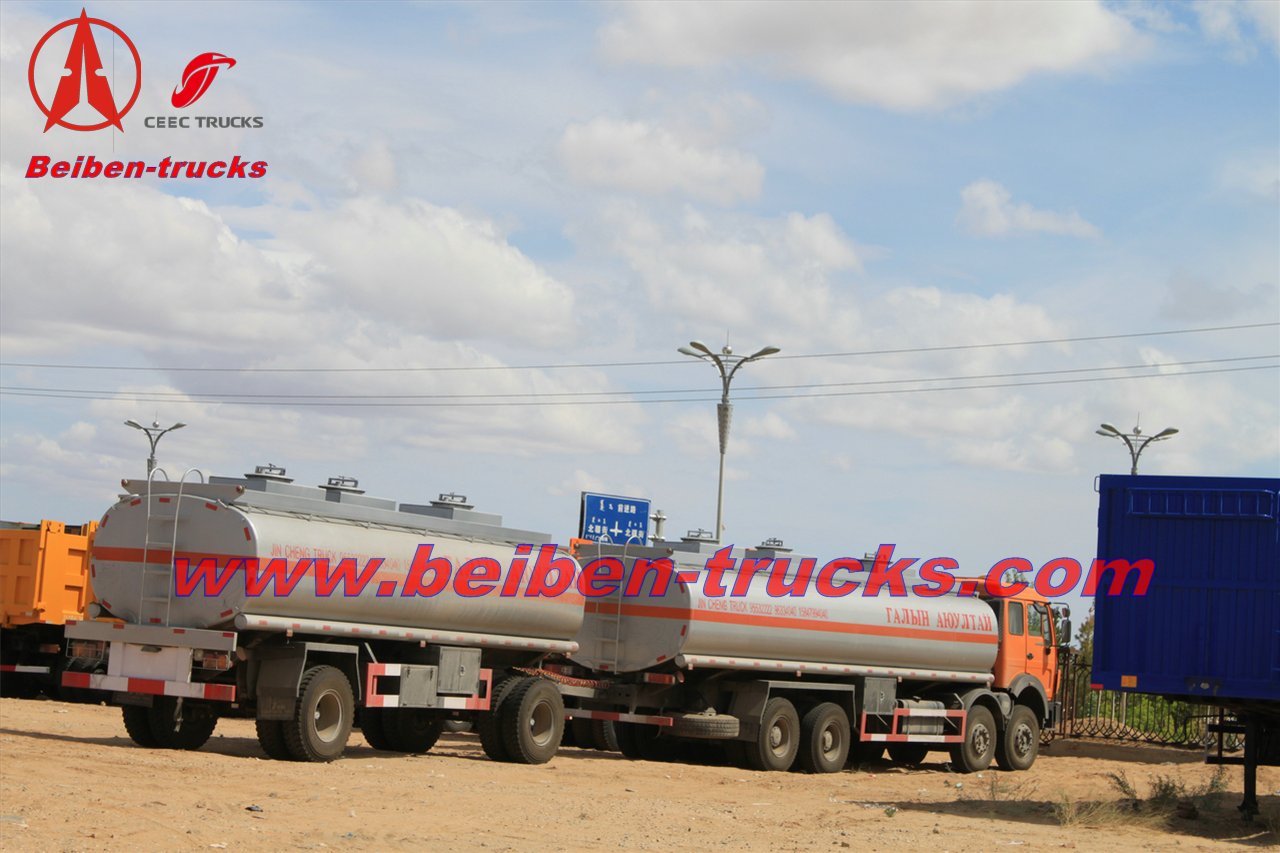

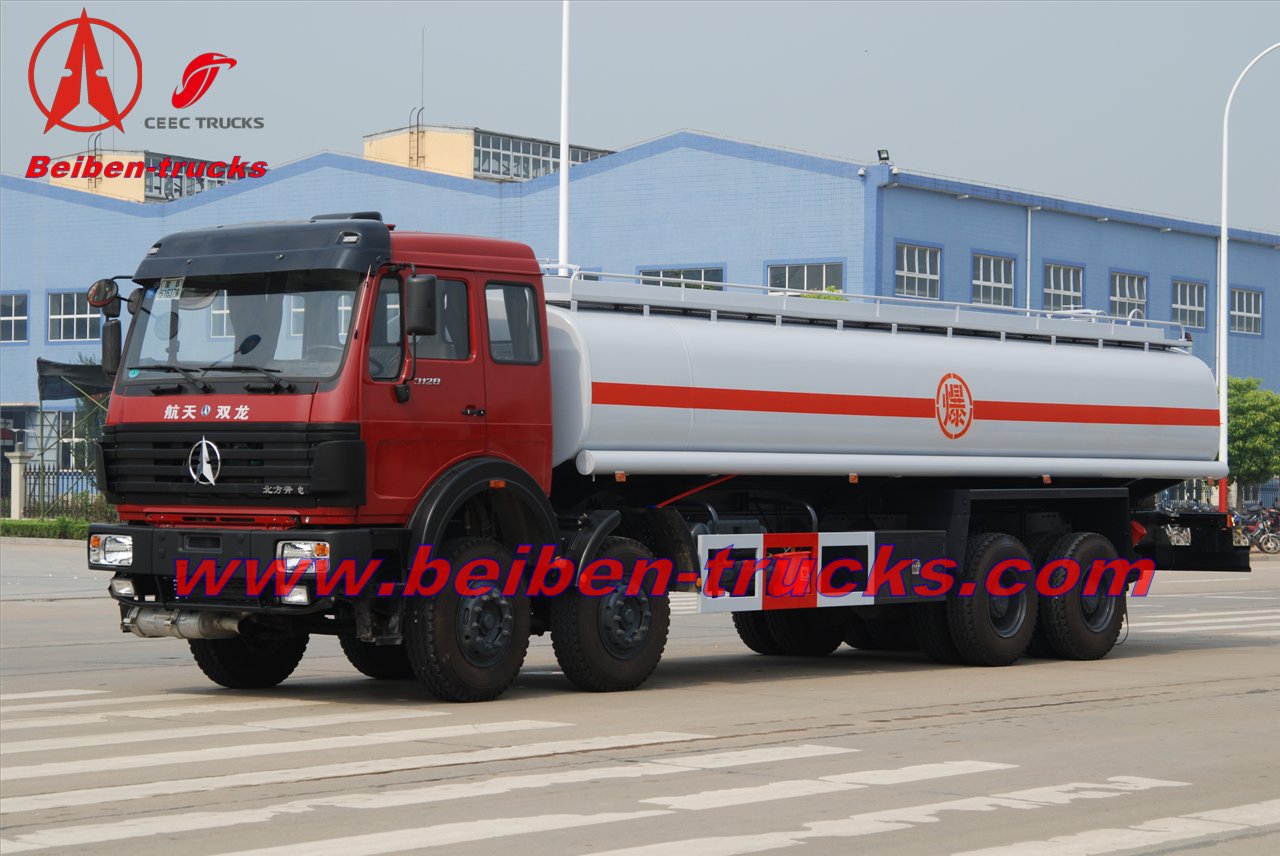

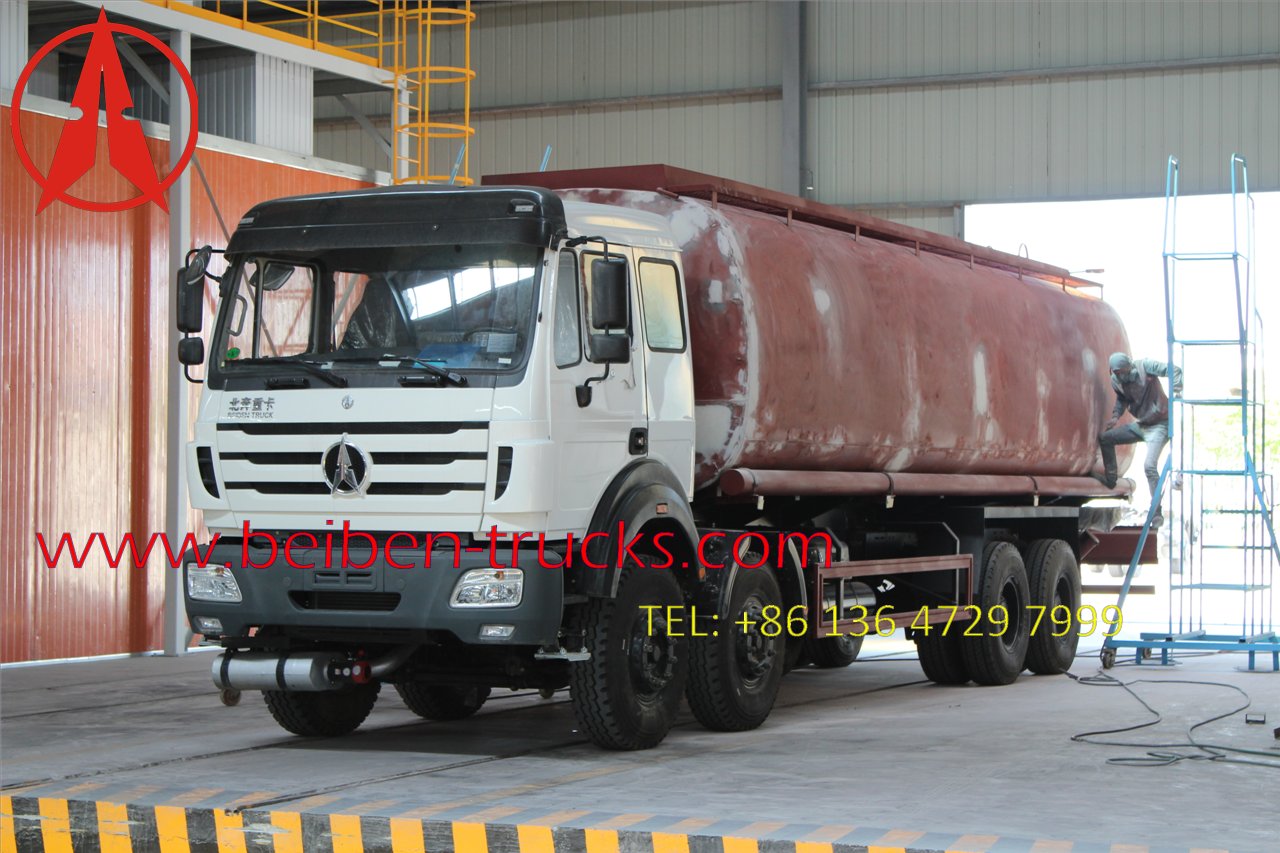

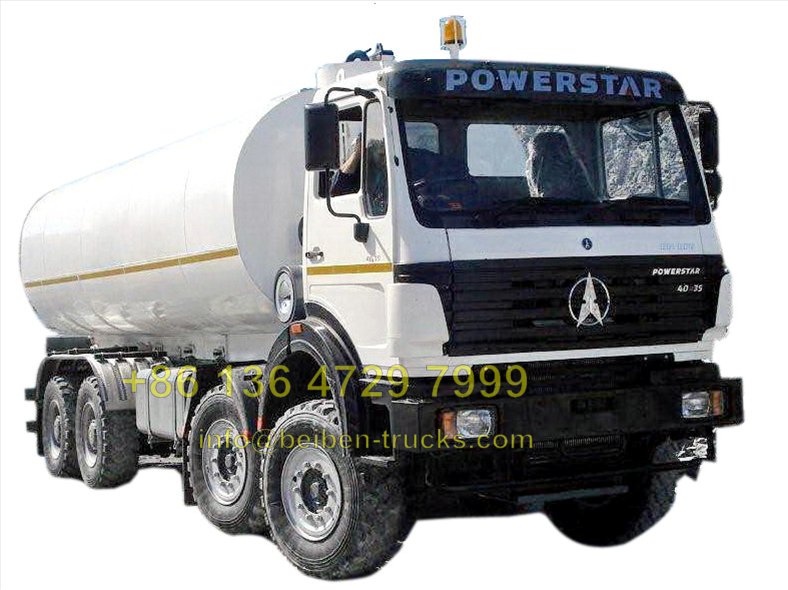

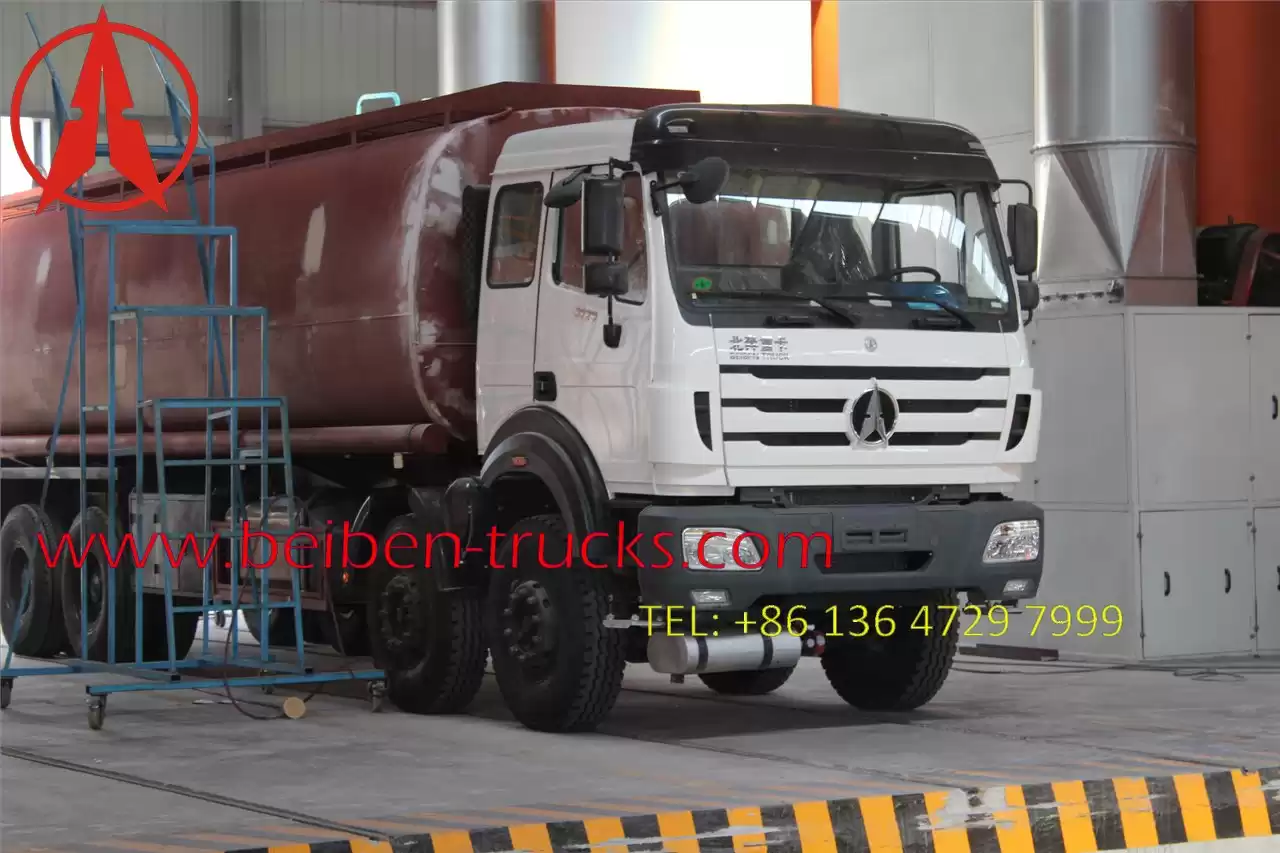

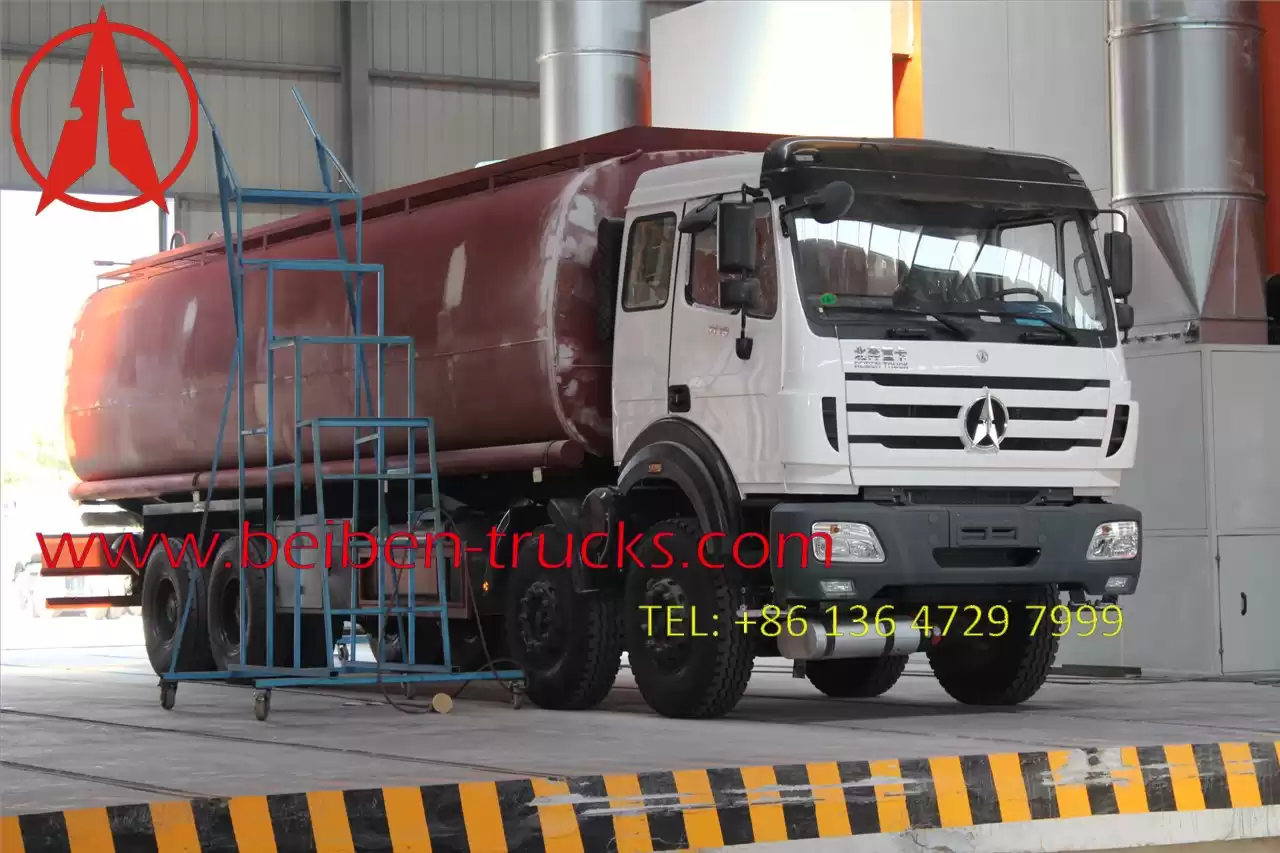

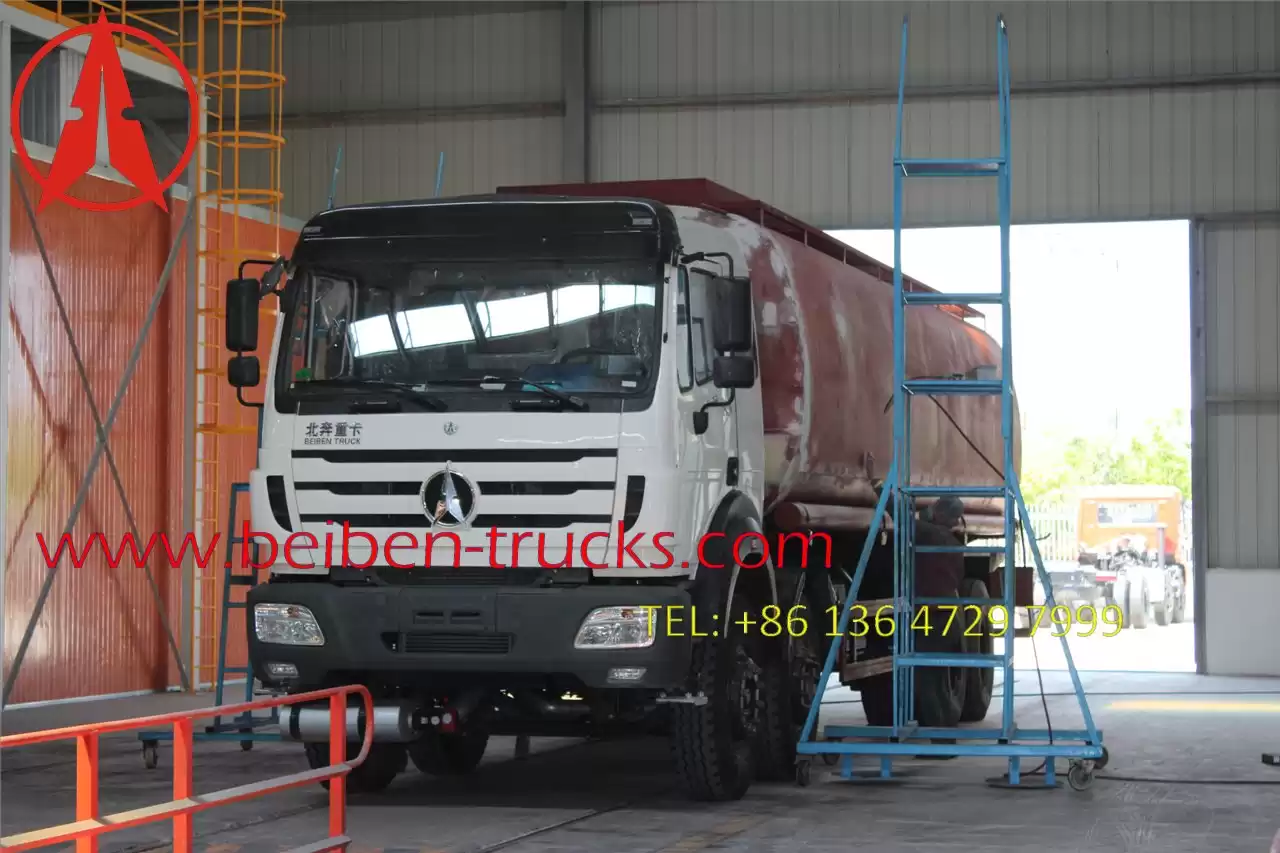

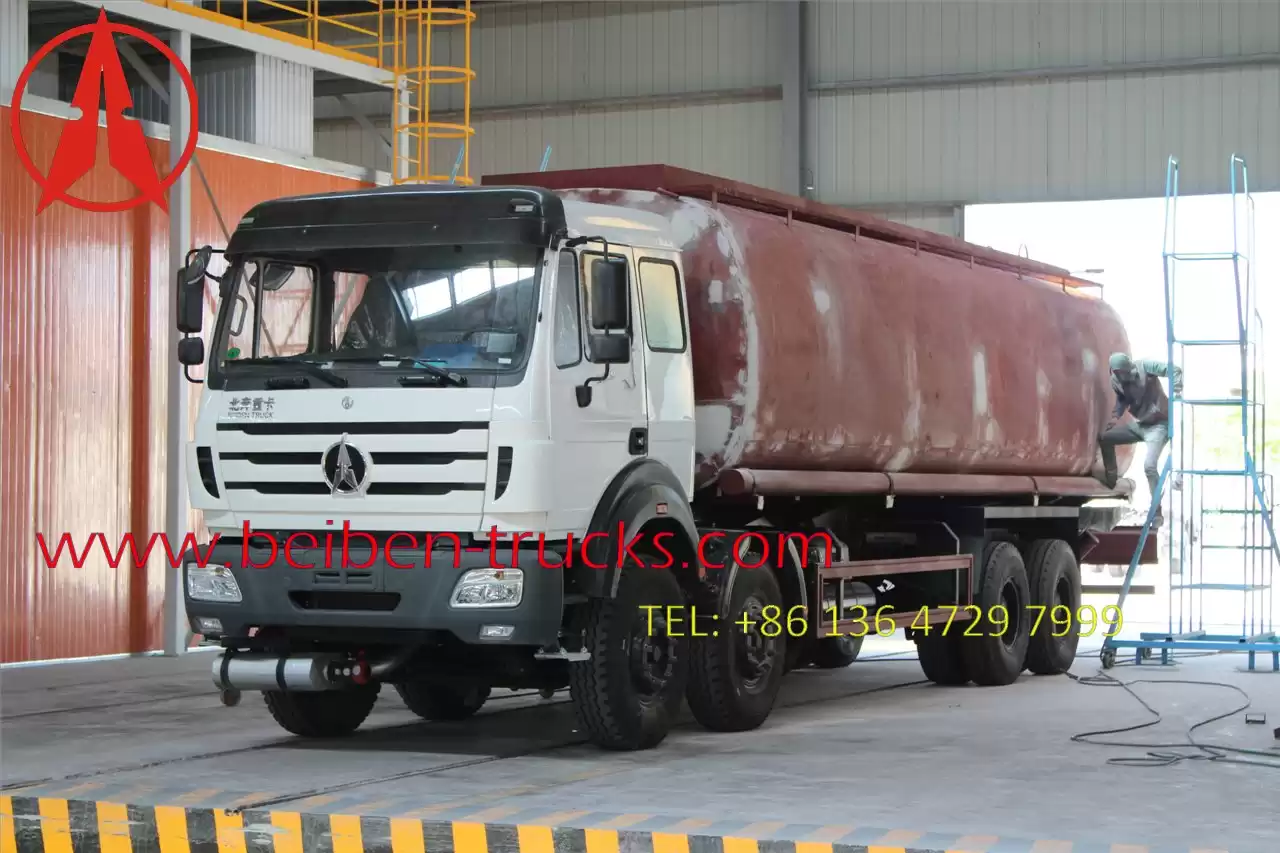

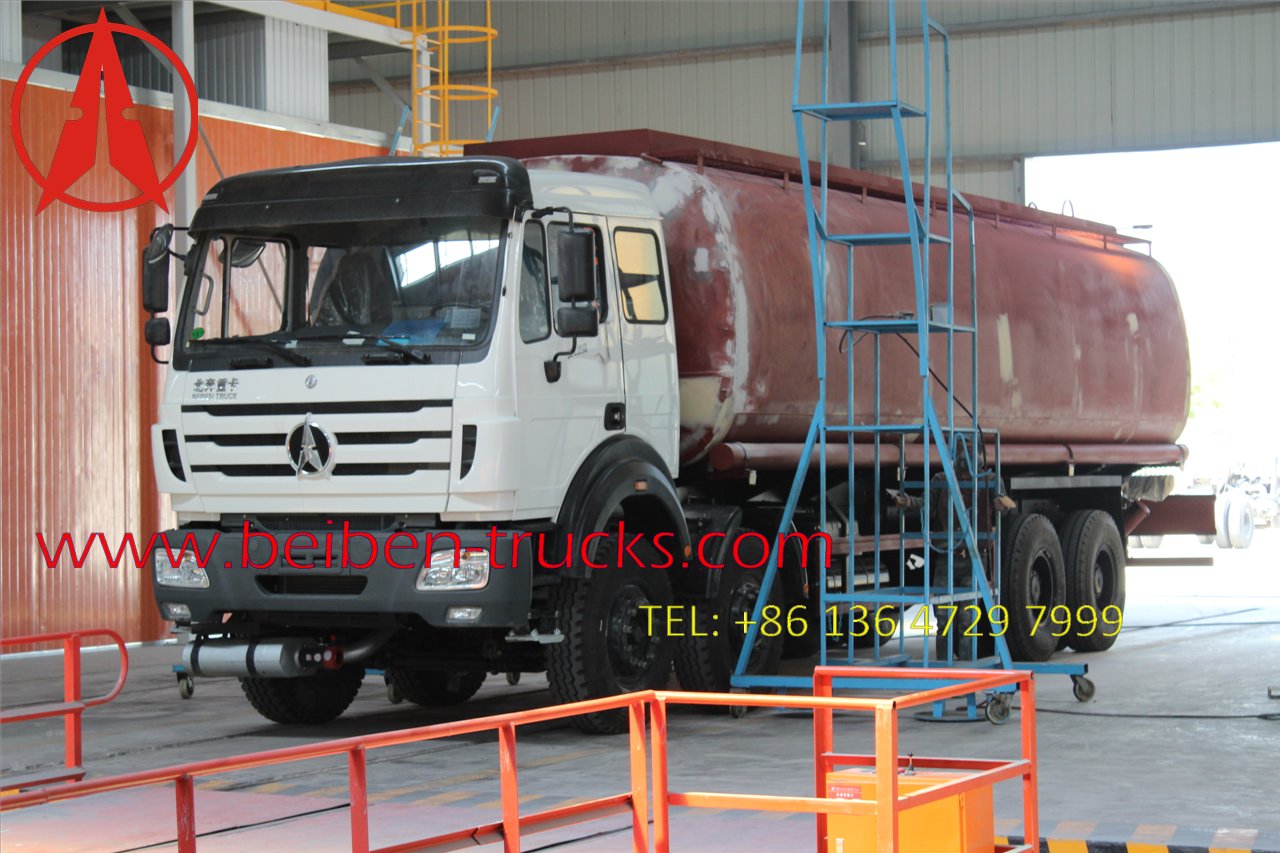

North benz 30 CBM oil tanker truck
The
beiben 8*4 Fuel oil Tank Truck Series is normally transport the gasoline, diesel,
kerosene etc. and some other liquid fuel materials which do not corrode the oil
pump and fiscal ECR.
North benz 12 wheeler oil tanker is produced upon on beiben 8*4 drive fuel tanker truck chassis, we can produce beiben 8*4 drive 3129,3134,3138 oil fuel trucks. model results the equipment with few positive points as: good performance, good
structure, also operates simply.
Areas of Application and Use:
◆ Gasoline transport and
delivery
◆ Diesel
transport and delivery
◆ Kerosene transport and
delivery
◆ Other liquid fuel
material
◆ Mobile refueling
vehicle of Filling stations
Key Features:
◆ Carbon Steel, Stainless Steel, and
Aluminum Tanks Available
◆ Tanks can be Mounted to Any Customer
Desired Truck Chassis
◆ We use OEM fittings, makes the tanker solid and durable, and reduce the
cost to operate and maintain.
◆ Effective
tank volume from 3m3, 5m3, 10m3 to 30m3, to suit customers varied demands.
◆ Mobile refueling suit
for such remote area, also convenient supply for those heavy duty construction
equipment.
Technical Parameters:
1.0 Main Chassis Spec:
|
Name
|
Standard configuration
|
|
♦ Model:
|
CEEC5350GJY
|
|
♦ Chassis
|
BEIBEN 8*4 truck
|
|
♦ Drive type:
|
8x4 left hand drive
|
|

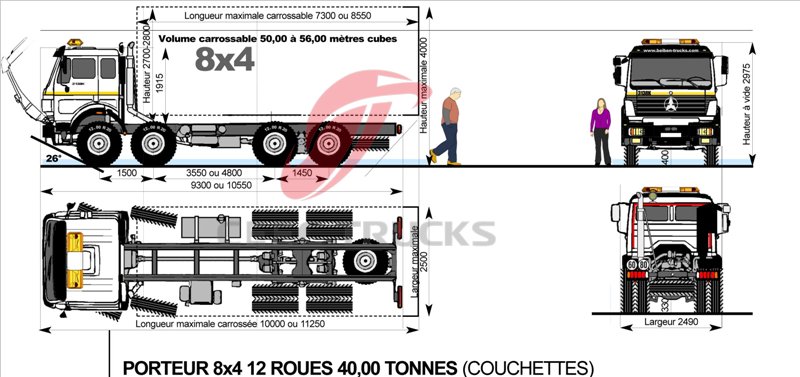

♦ Wheel base
|
1350+4450+1450 mm
|
|
♦ Dimension size (LxWxH)
|
11105×2480×3465mm
|
|
♦ Cabin Structure:
|
The all-steel stamping parts welded structure, install
double-row seat to rollover the double-cab hydraulic oil tanks overturned,
can be moved overturned forward
|
|
♦ Inside cabin equipment
|
automatic temperature control air conditioning system of
environmental protection (R134A refrigerant, without Freon), Radio + MP3. In
addition to the car equipment, the installation of P.O.T. controlled
switches, siren, alarms lights, indicator lights, sign lights, profile signal
controlled switches
|
|
♦ Number Of Seats
|
3+4 seats with Four-door
|
|
♦ Air condition
|
Yes
|
|
♦ Engine
|
Model
|
WP10.340E30
|
|
Power
|
280 Kw (340Ps)
|
|
Torque
|
1600/1450 N.m/r/min
|
|
Advantage
|
Beiben brand new engine,4
stork,6 cylinder, New
ultra high pressure common rail fuel injection system, strength of
electronically controlled cooled EGR system, electronically controlled
variable geometry turbocharger systems (VGS)
|
|
Fuel
|
Diesel
|
|
Displacement
|
9760 ml
|
|
♦ Transmission gear:
|
Fast 9-speed gearbox, suitable to all kinds of
roads, more fuel-efficient
|
|
♦ Front axle:
|
Reverse Elliot, I-Beam, Benz Technology
|
|
♦ Rear axle:
|
Single Reduction Banjo Design Full Floating, Benz technology
|
|
♦ Clutch
|
Single-plate dry coil-spring clutch, hydraulically
operating with air assistance
|
|
♦ Fuel tank
|
400 L
|
|
♦ Tyres:
|
12.00R20
|
|
♦ Curb Weight
|
11305 kg
|
|
♦ Brakes
|
Service brake:
dual circuit compressed air brake
Parking brake:
Spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
|
|
♦ Electrics
|
Operating voltage: 24V 120 AH Battery, negative
grounded
|
|
♦ Maximum Speed:
|
95 km/h
|
|
♦ Maximum gradeability:
|
37 %
|
