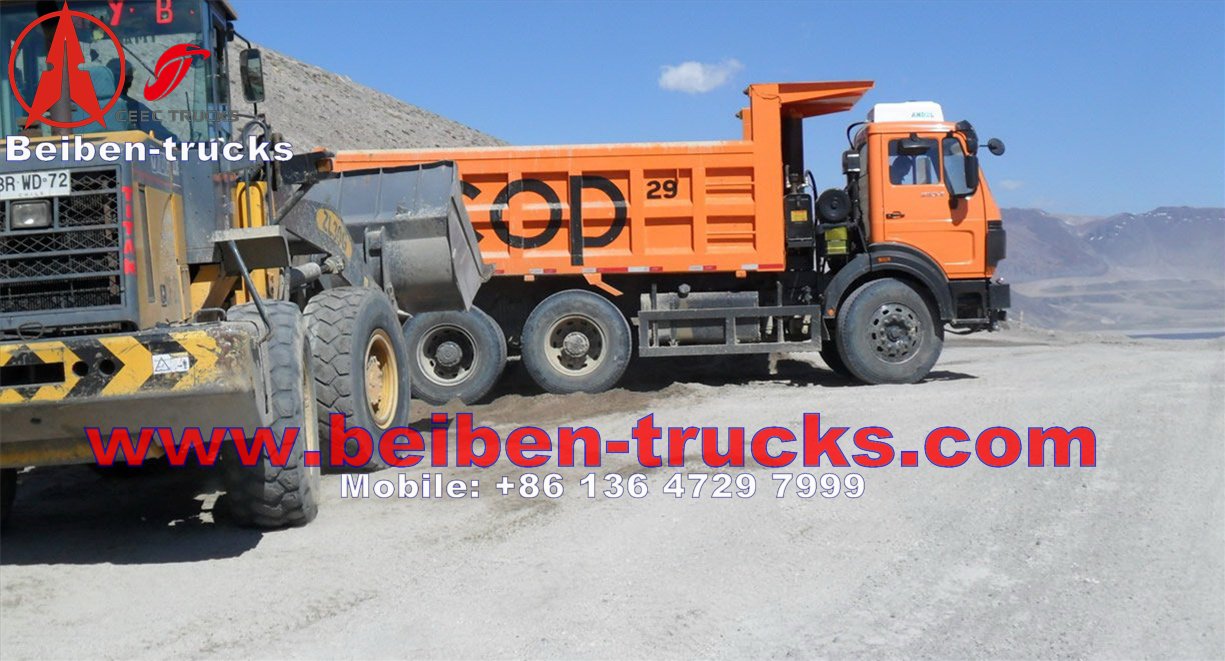

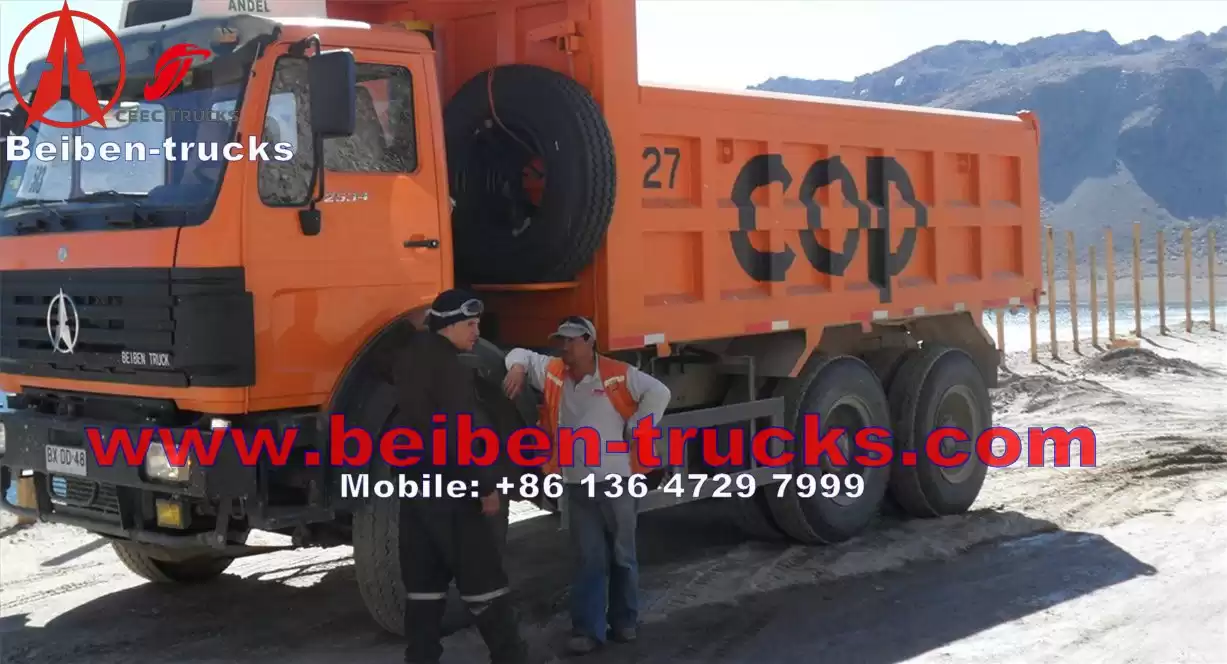

NORTH BENZ BEIBEN DUMP TRUCK FOR CONSTRUCTION AND MINING
Wheel base (mm)
|
3800+1450
|
Curb weight kg
|
12400
|
Engine
|
Model
|
WP10.340E32(Wei Chai engine. Based on Styre technology, made in China)
|
Power, max kw/rpm
|
206/2200
|
Max torque(Nm/rpm)
|
1160/1100-1600
|
Emission standard
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
ZF 5S-111GP(ZF technical, mechanism, 9 forward gears, 1 reverse gear, manual, made in China, produed by Bei Ben Transmission)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
|
