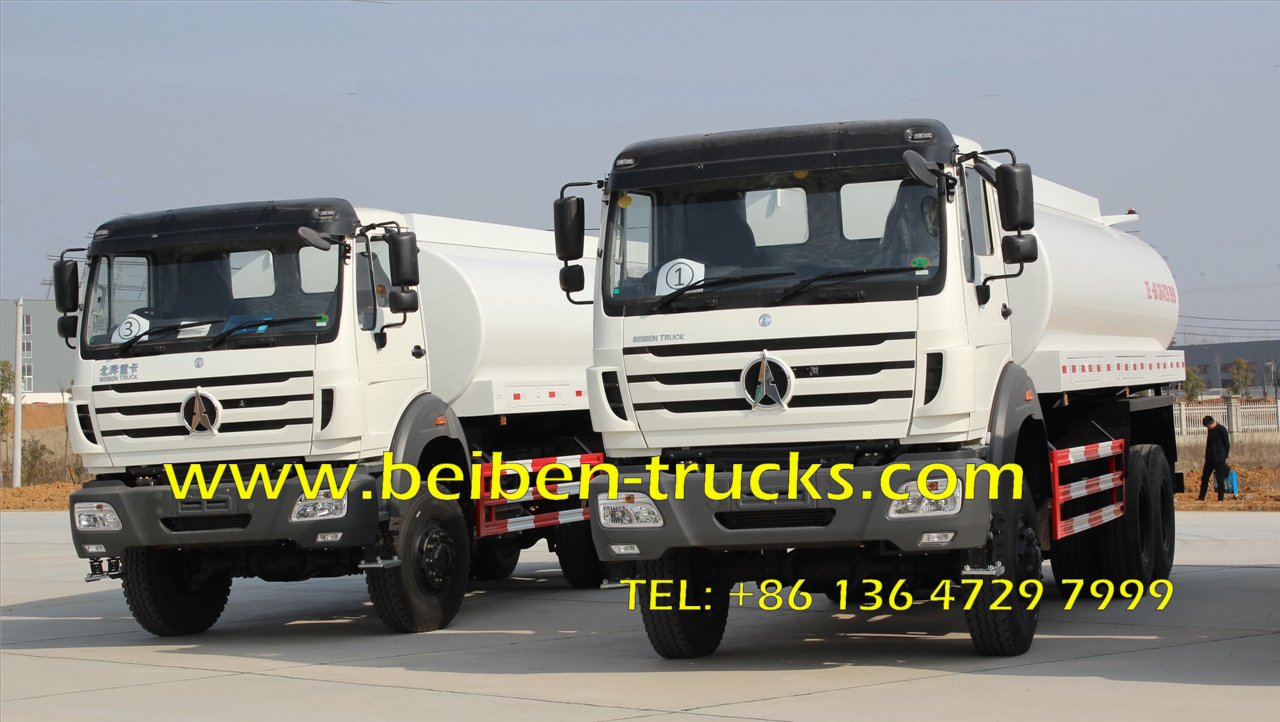

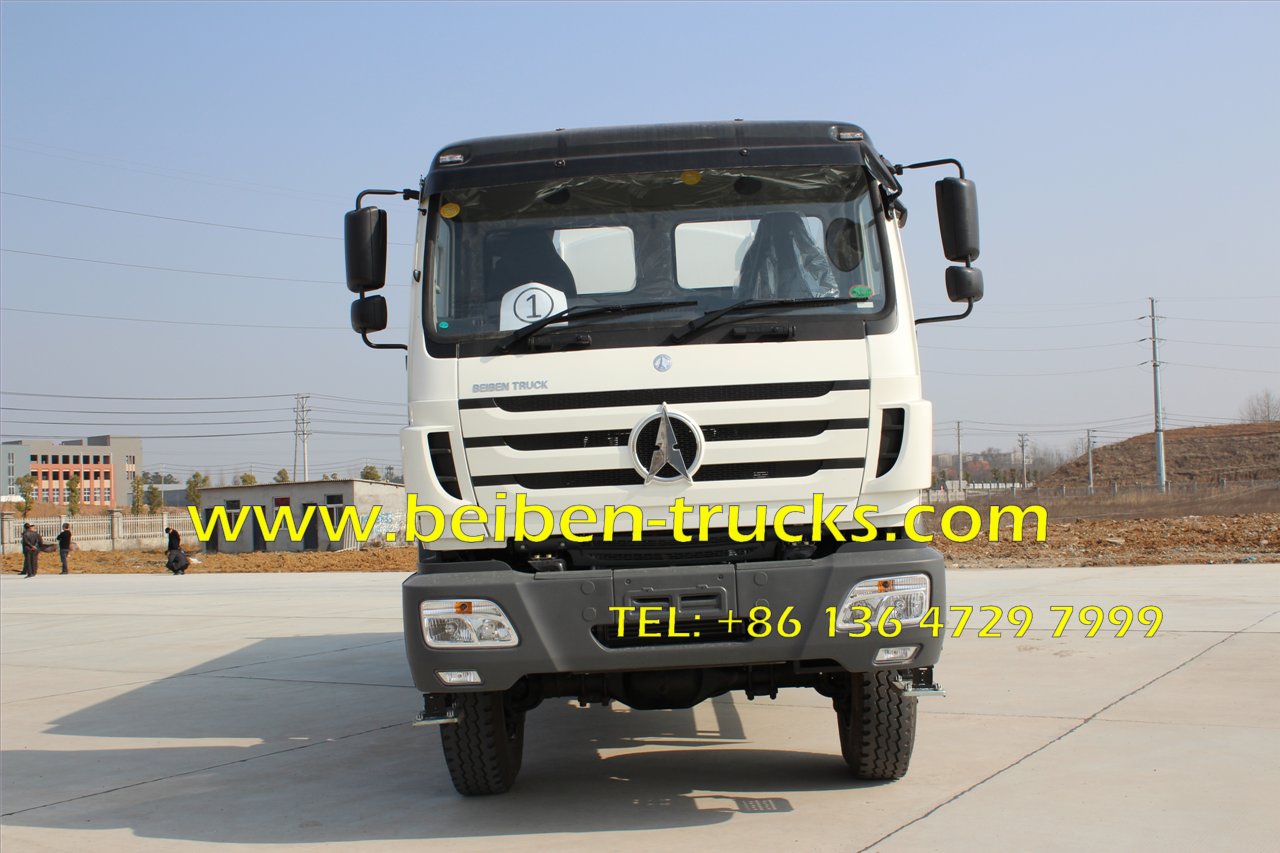

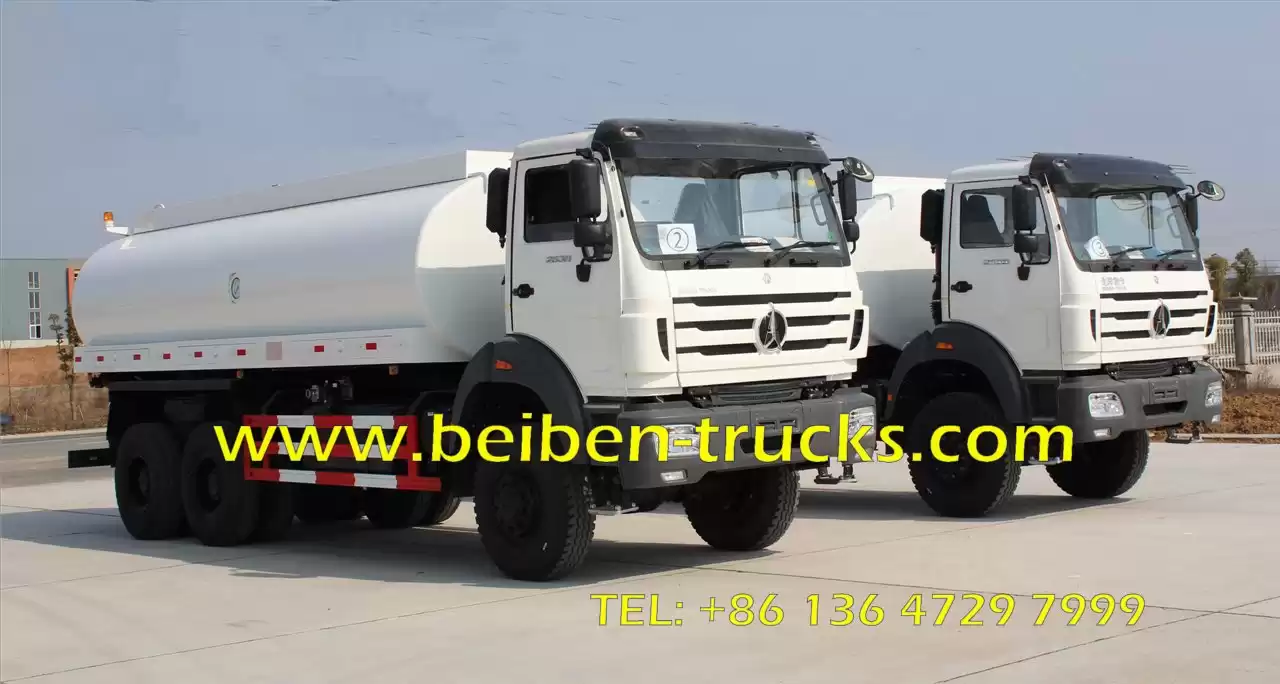

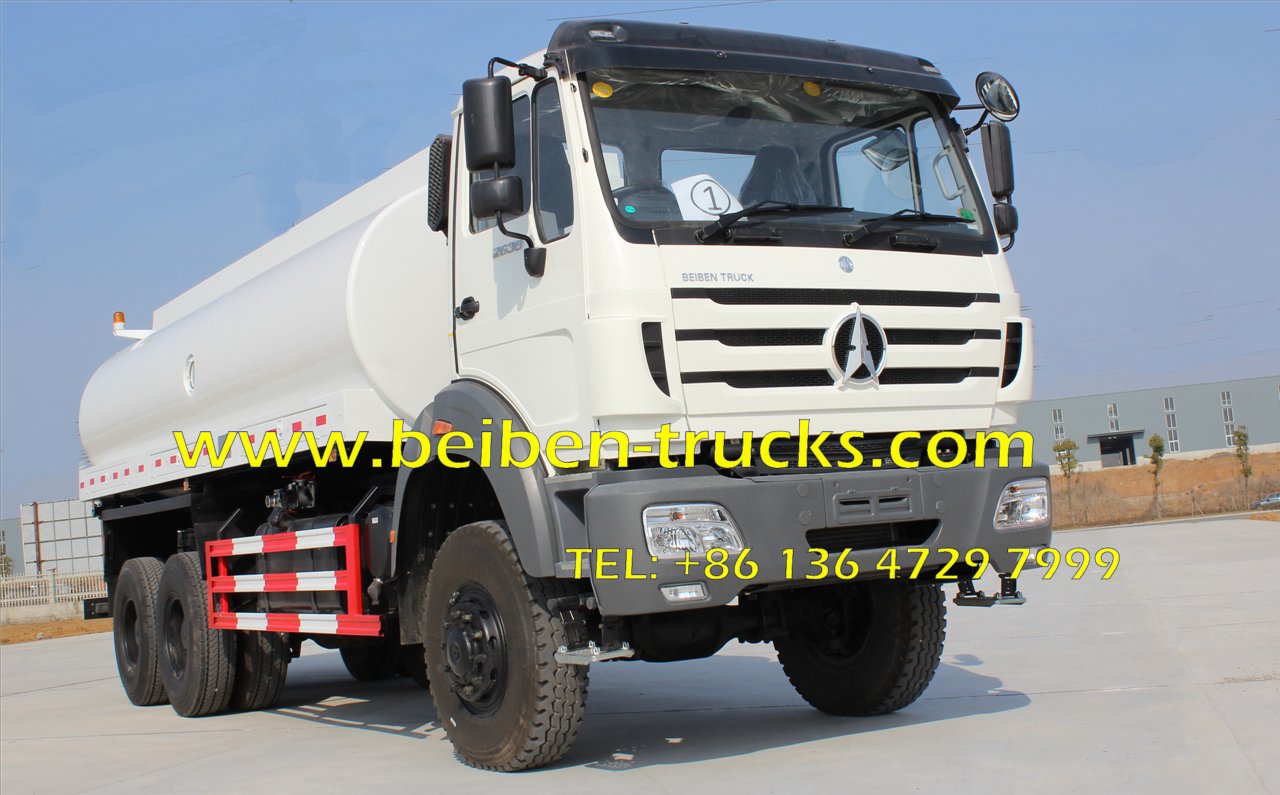

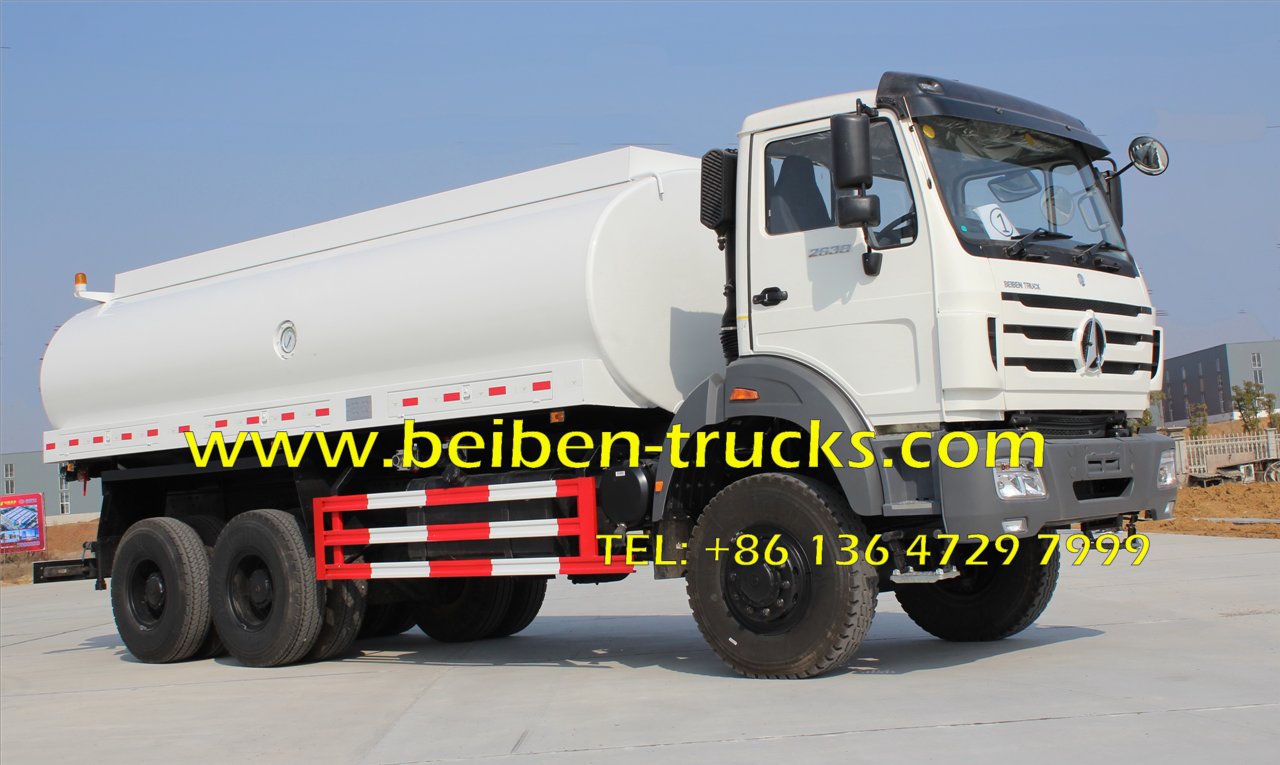

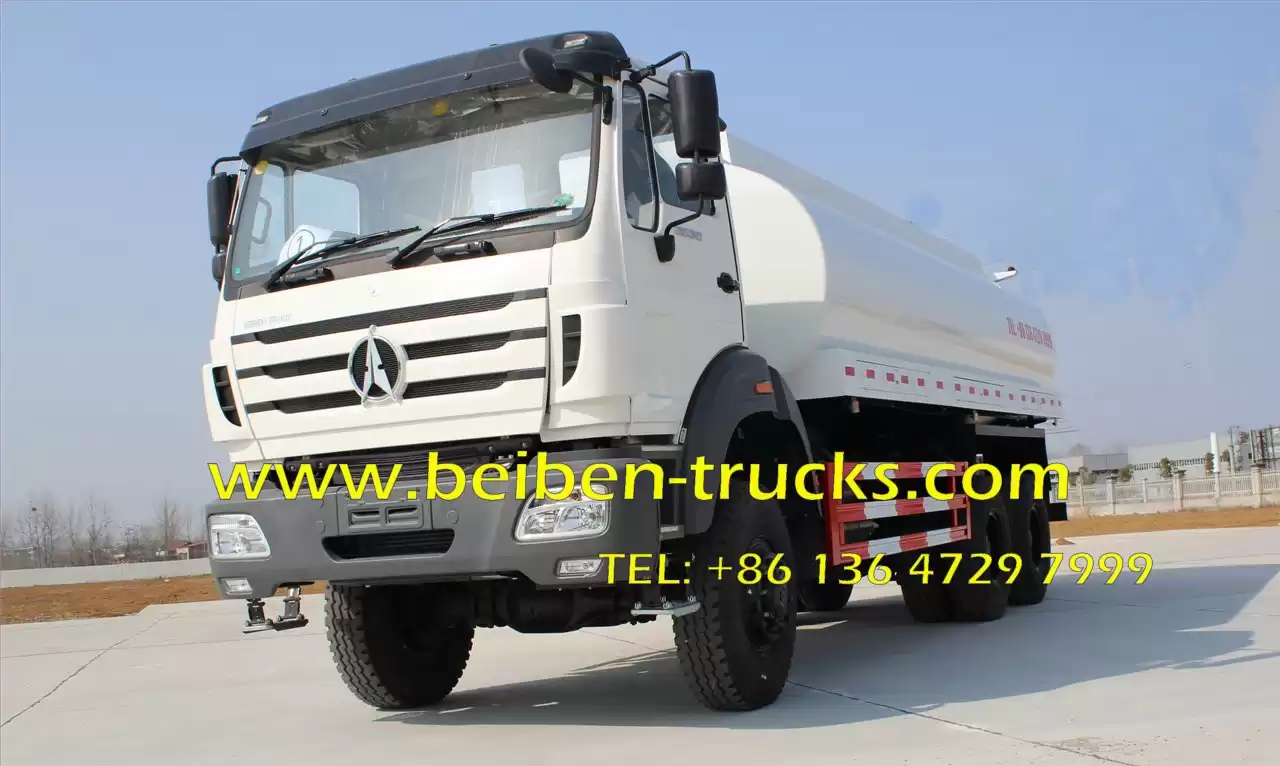

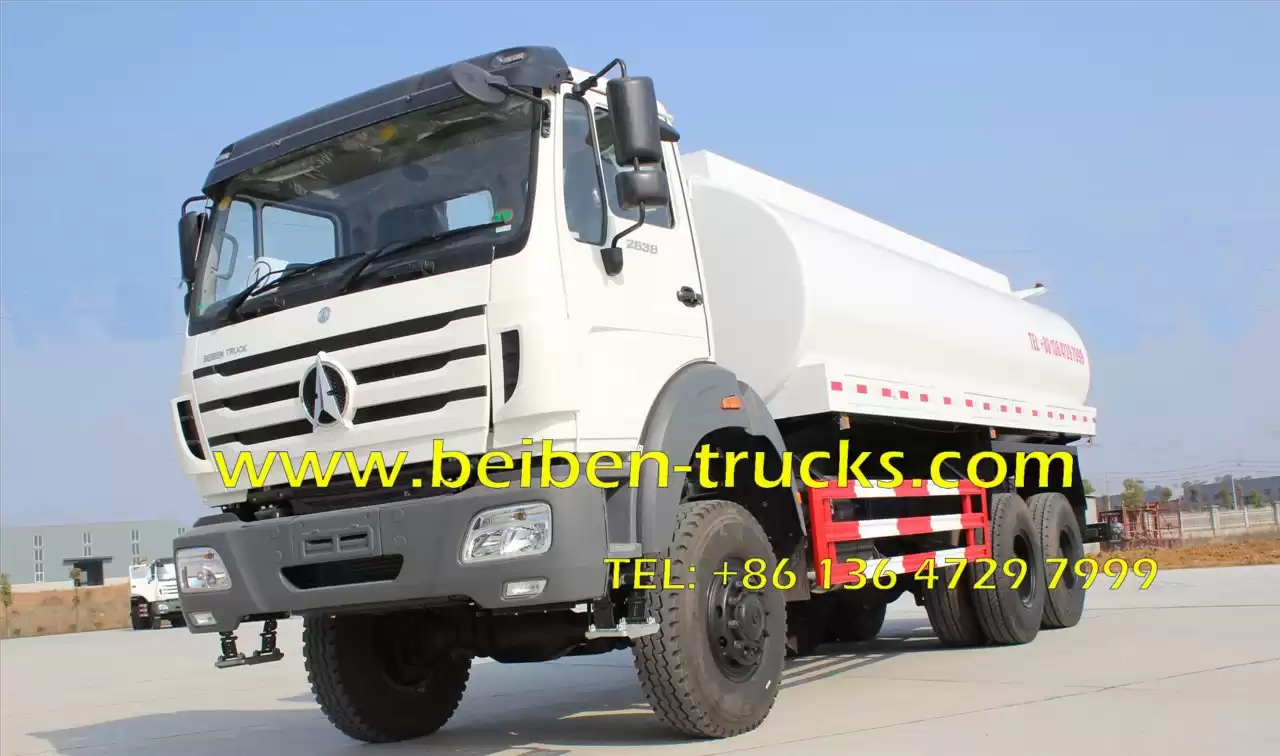

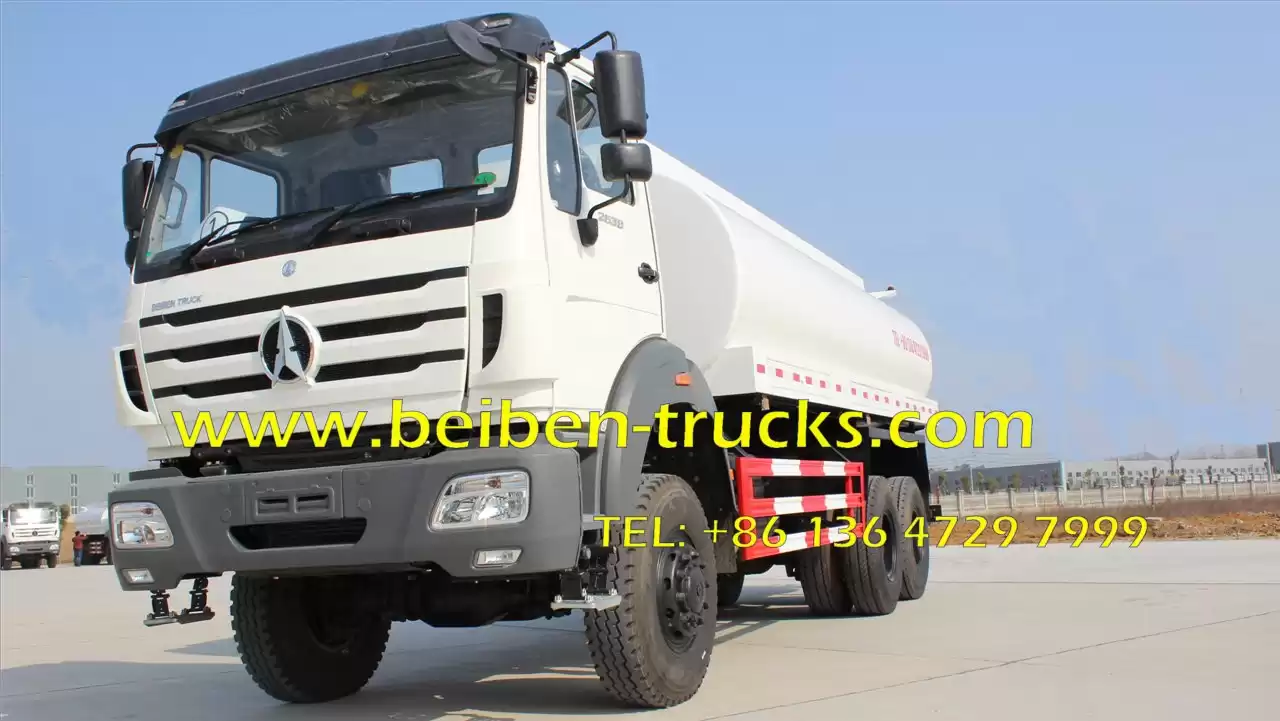

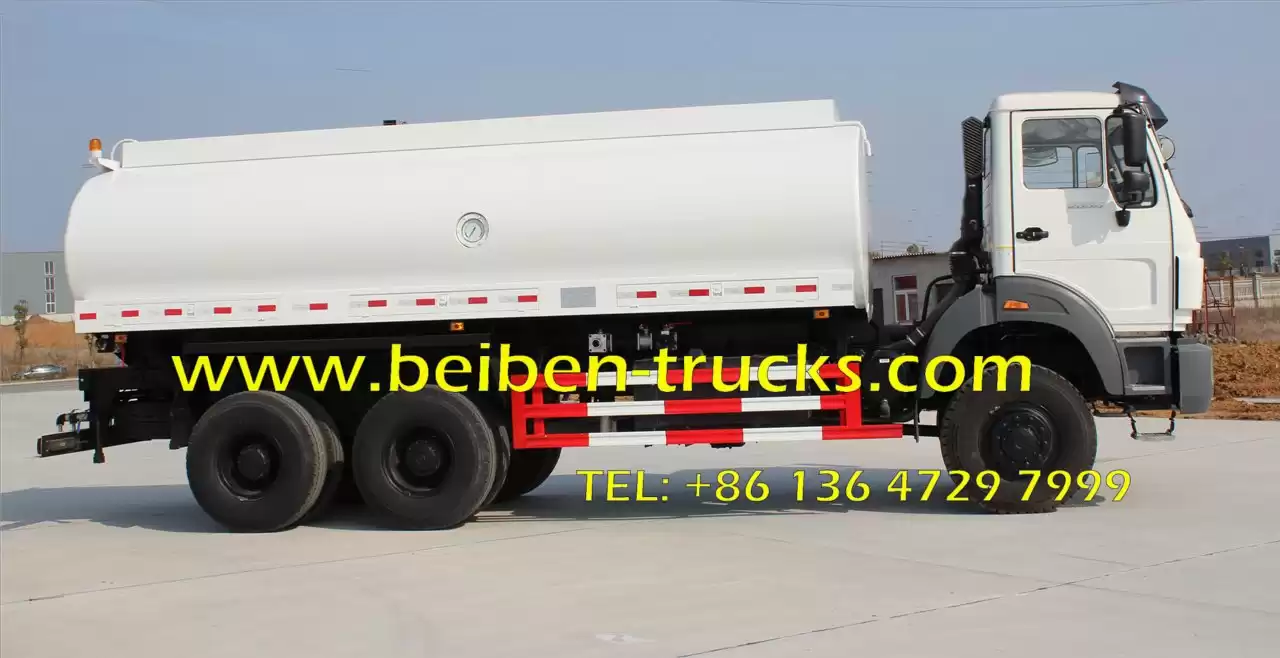

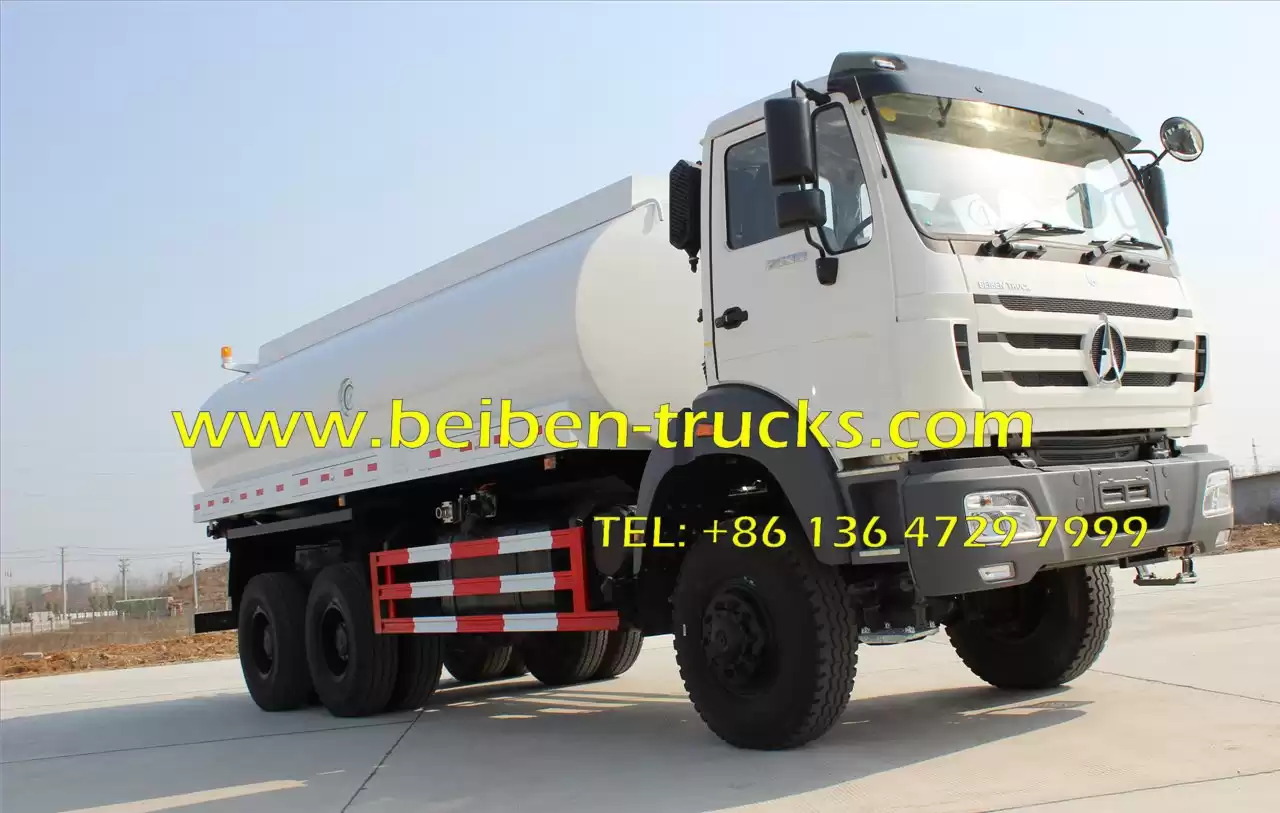

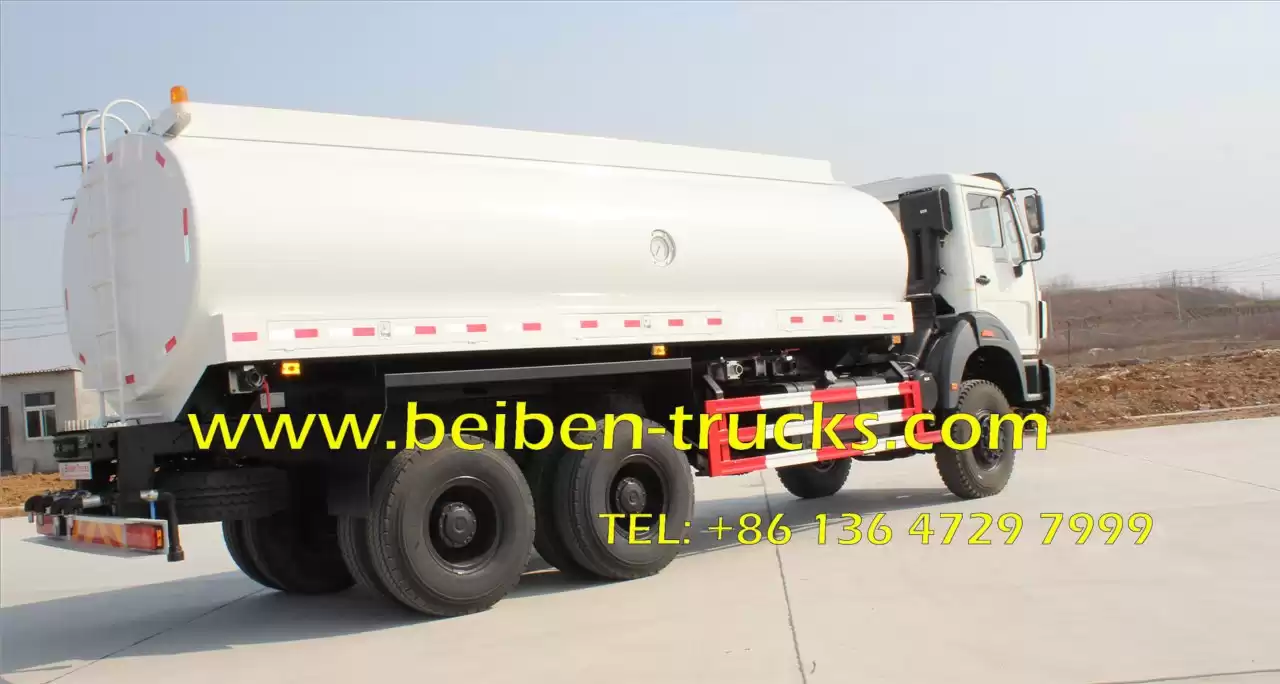

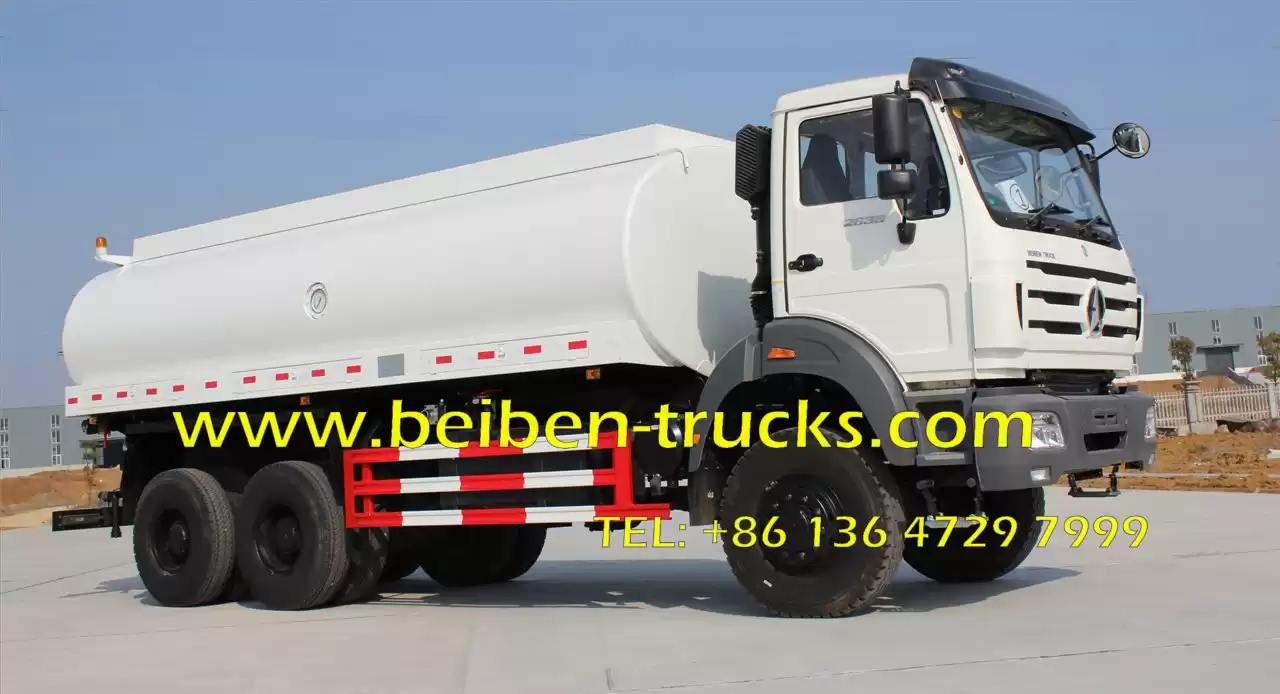

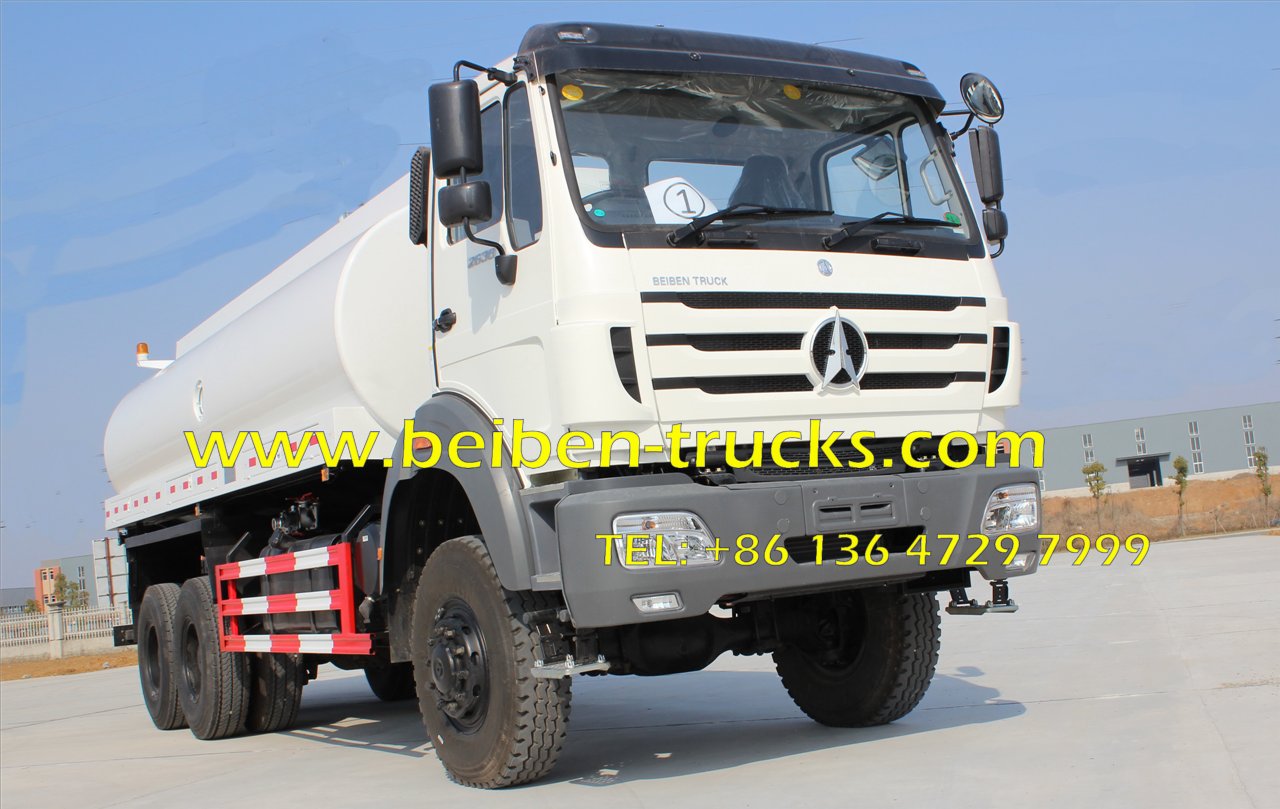

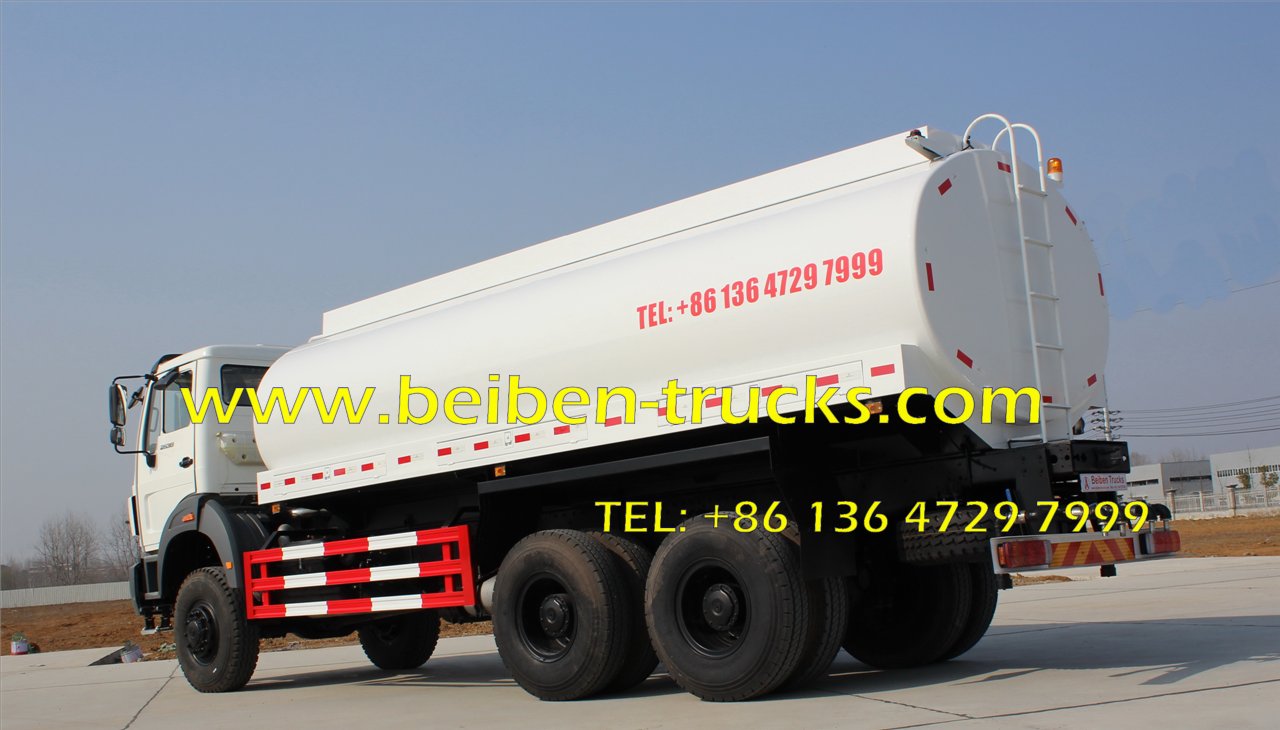

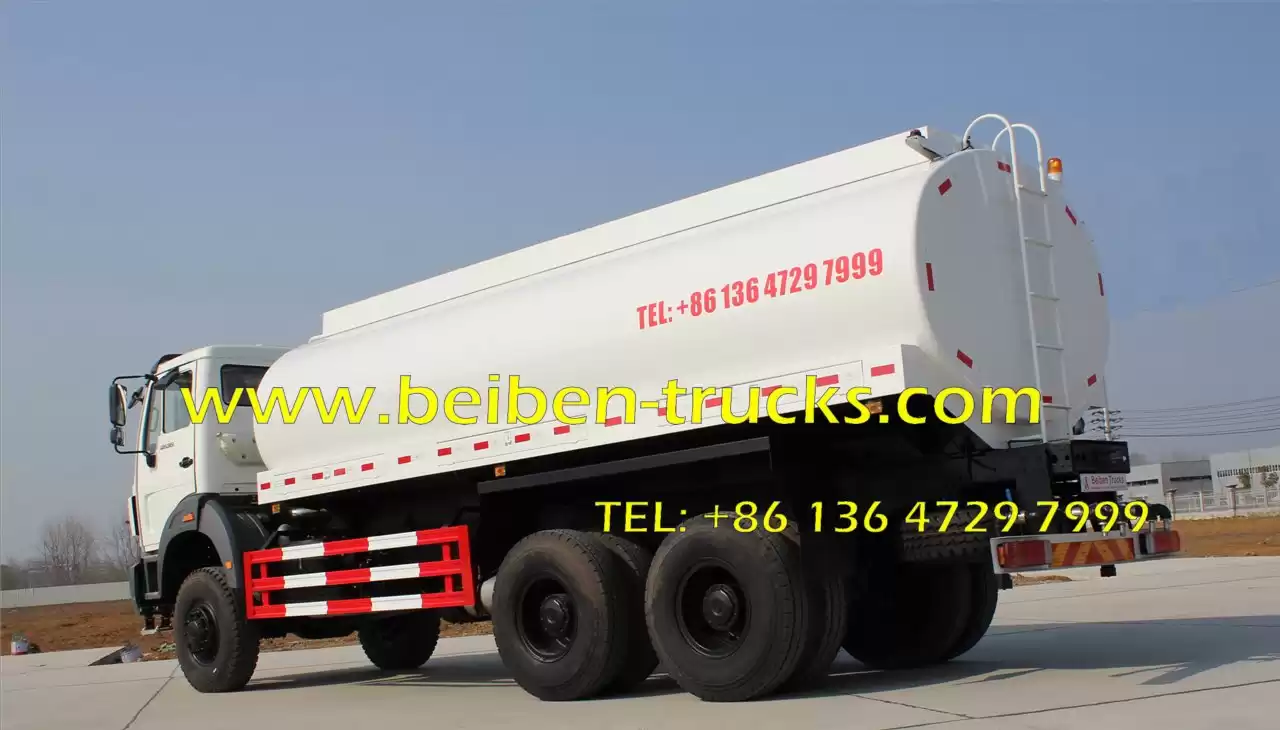

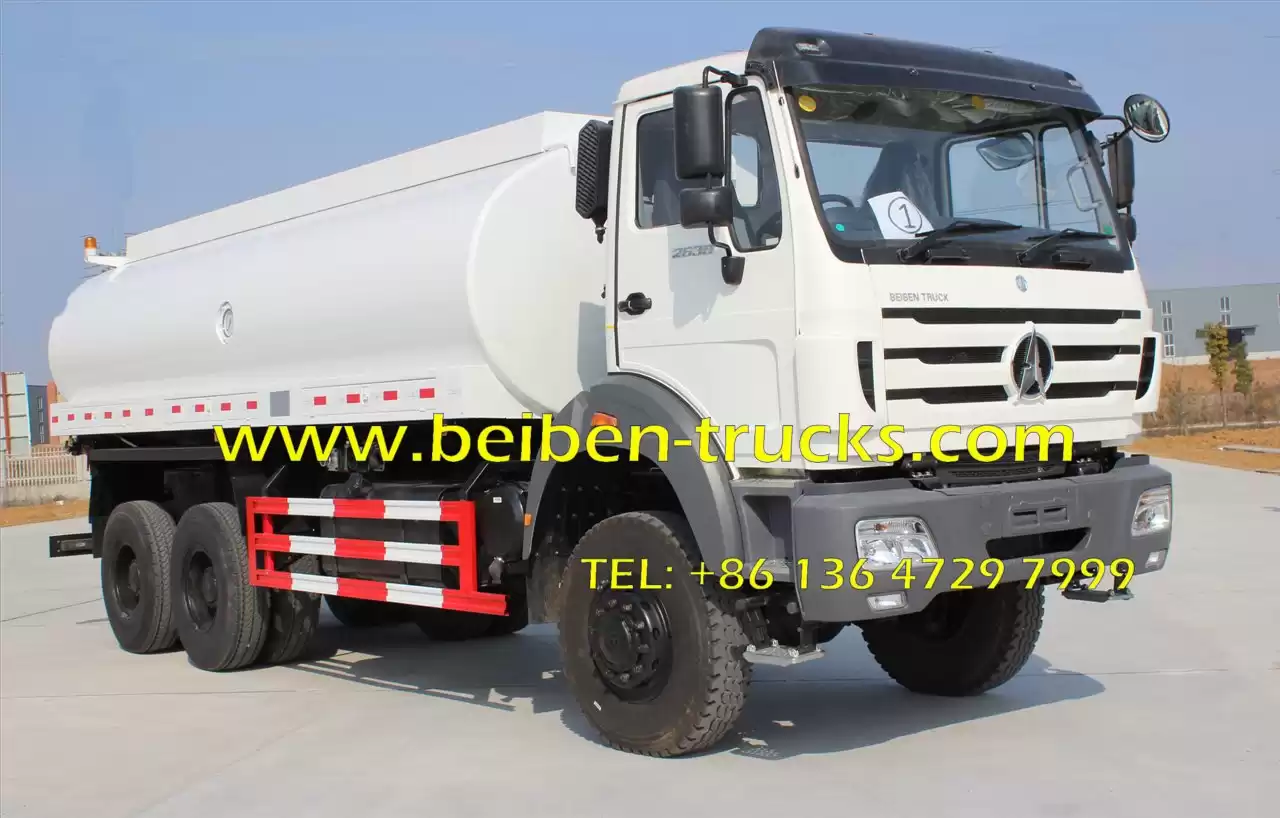

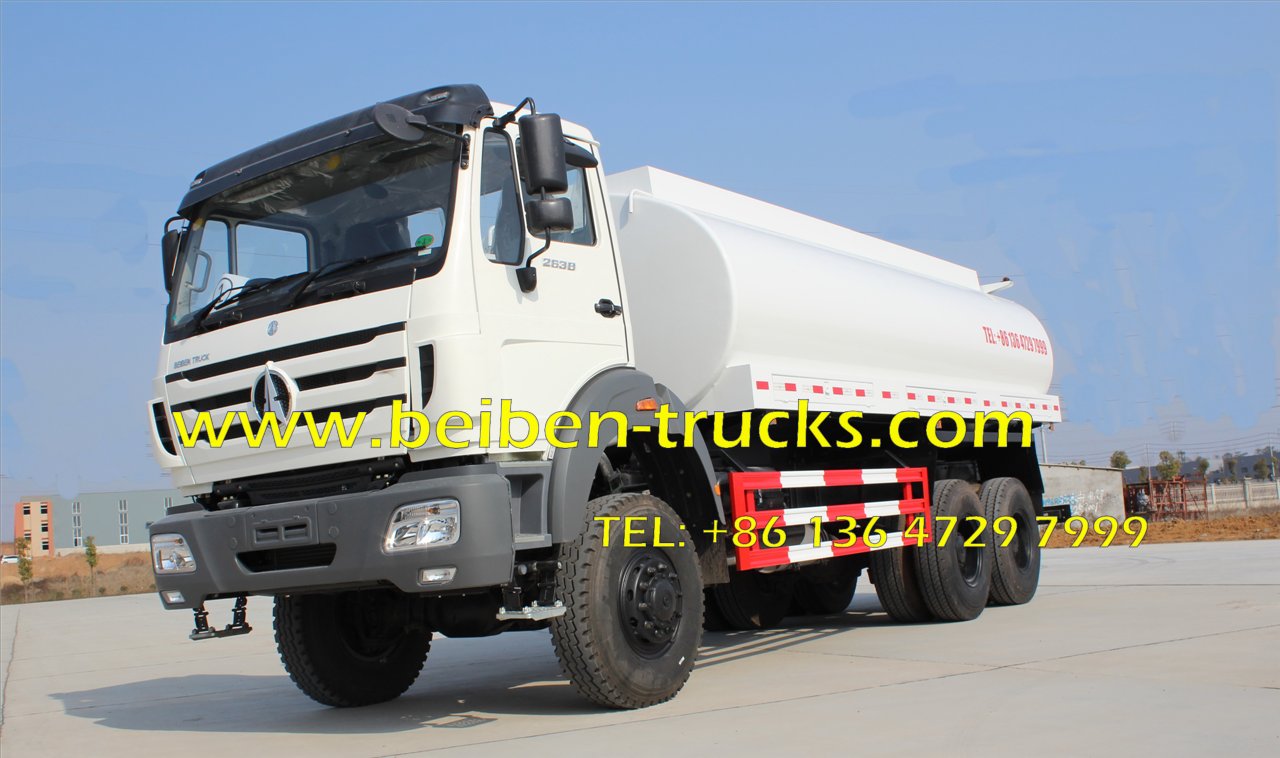

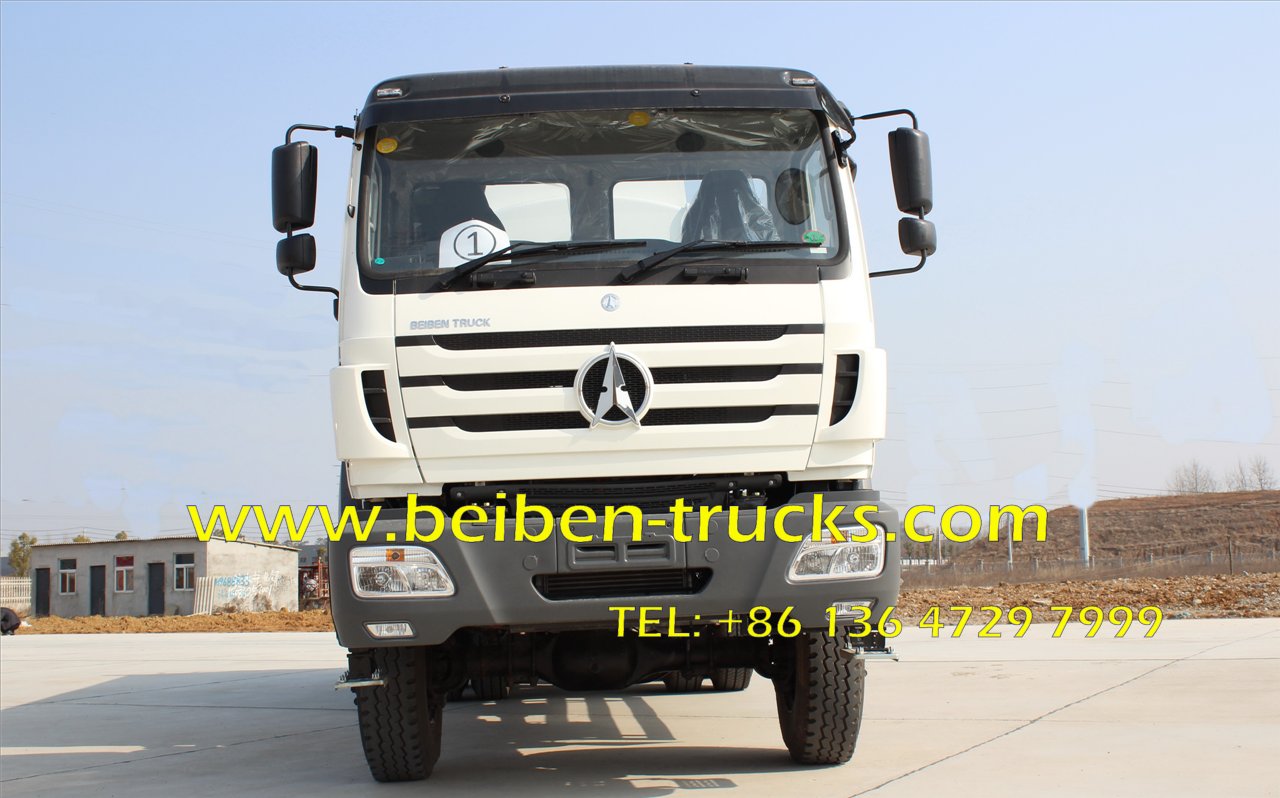

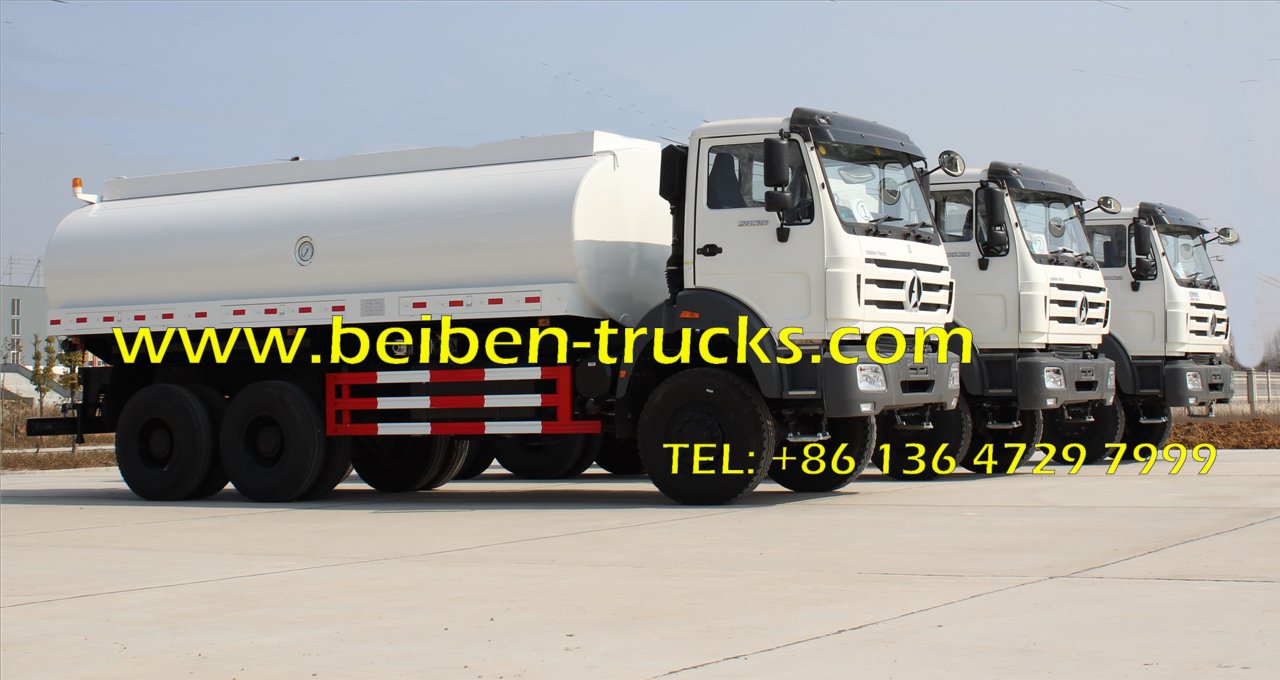

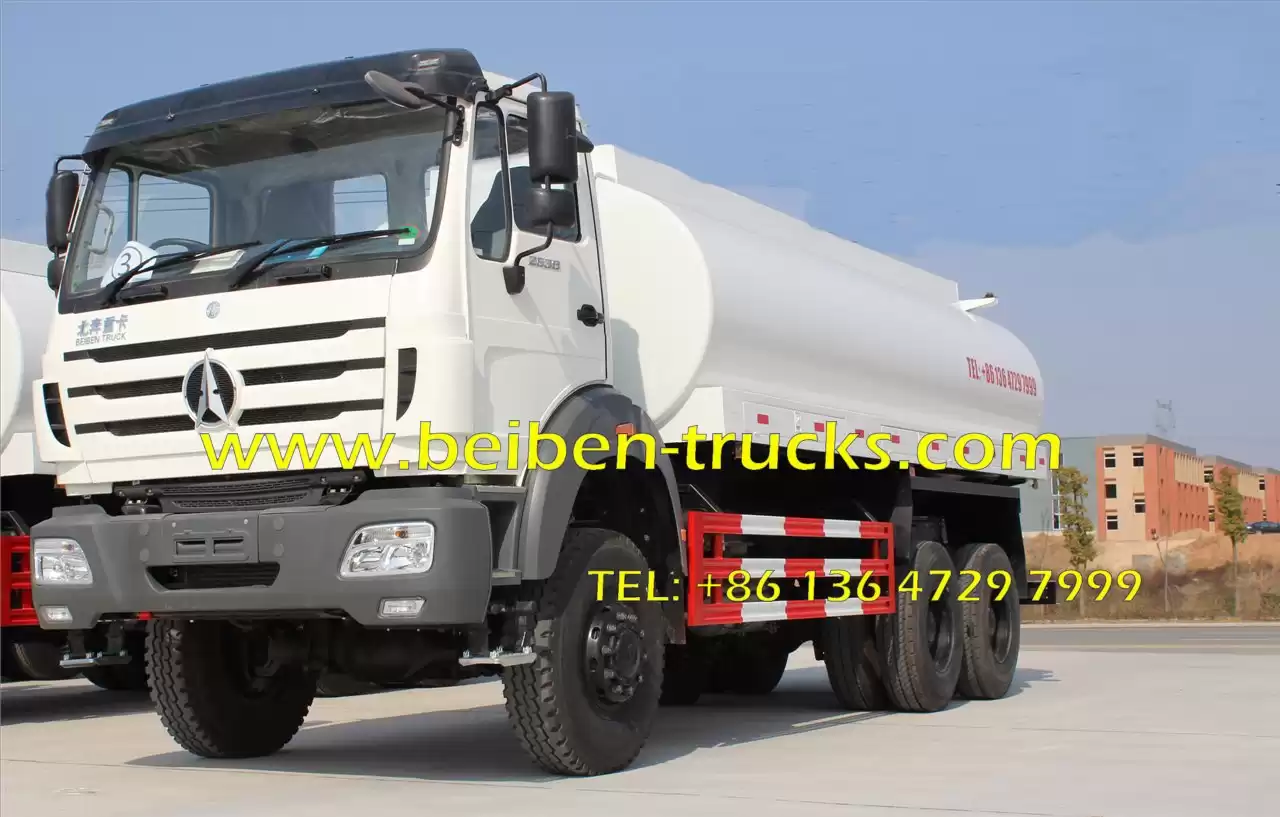

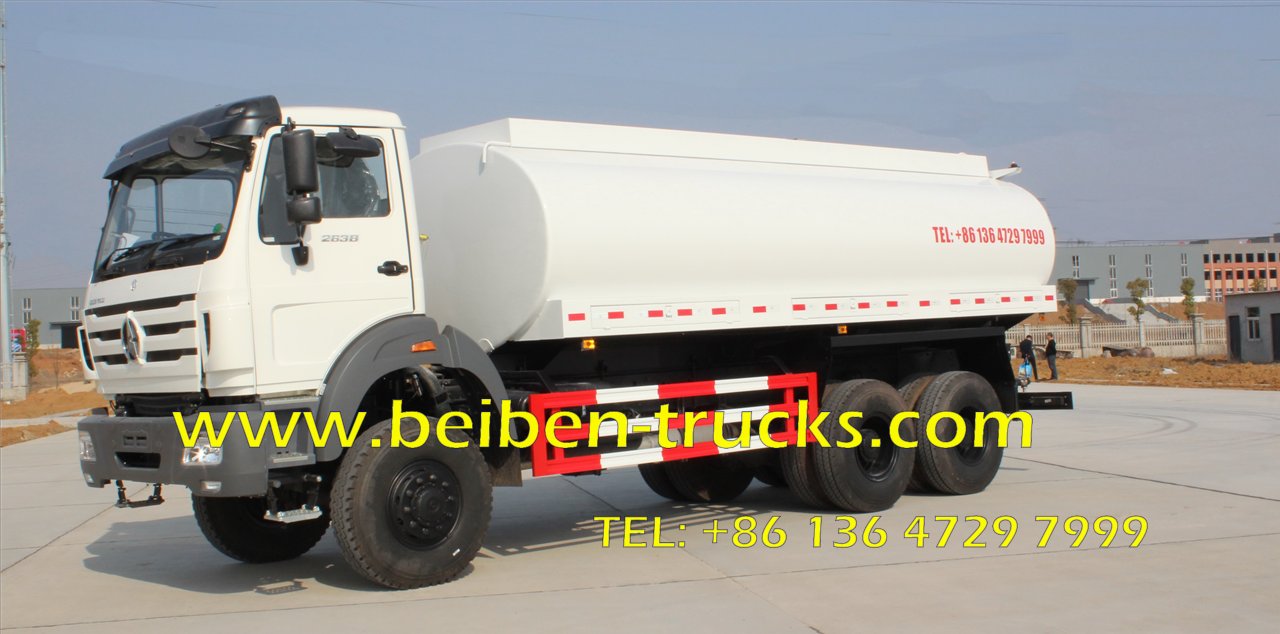

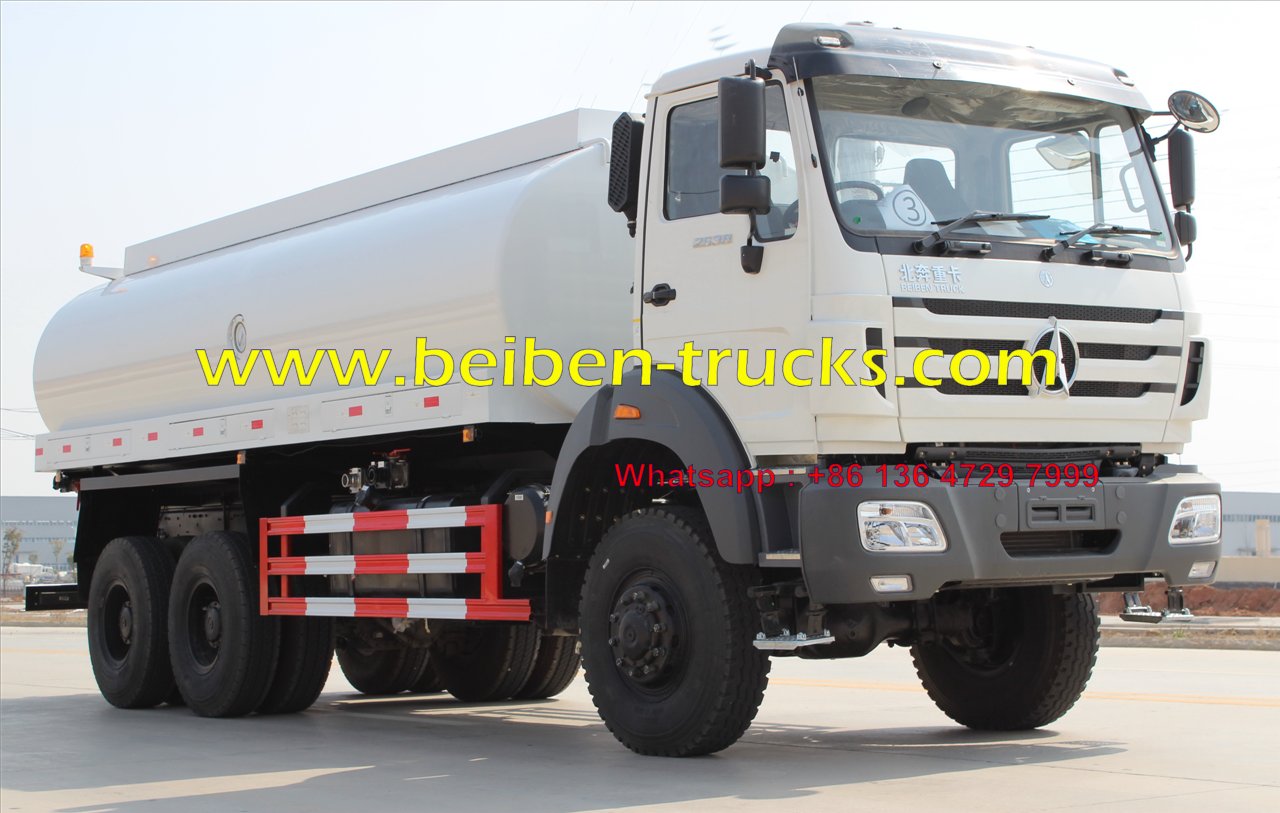

North benz 20 CBM water carrier truck
Beiben water carrier truck is applicable for city roads, trees, green belts, green lawns,
factories, mines and tall buildings .Has sprinkling water, dust fall,
high-low spraying, agriculture chemical spraying, fence washing and
other functions, also can carrying water, drainage, firefighting, and
water supply for government agencies.
SPECIFICATIONS FOR WATER TANK TRUCK
|
Vehicle Specifications
|
Model
|
18CBM
2638GFZ
|
Chassis model
|
|
Traction 4X2,6X4
|
6X4
|
Power
|
380HP
|
Weight Parameter
|
Complete Vehicle Kerb Mass(kg)
|
10900
|
Load weight(kg)
|
13970
|
Total mass (kg)
|
|
Dimension Parameter
|
External Dimensions(mm)
|
Length (mm)
|
9566
|
Width(mm)
|
2500
|
Height(mm)
|
2975
|
wheelbase(mm)
|
4450+1450
|
Tank-style
|
oval
|
Sprinkling Performance Parameter
|
Sprinklers way
|
rear spraying
back sprinkling
Side spray
|
Watering amount(L/m2 )
|
0.2-2
|
Sprinkler / flushing pressure (Kpa)
|
250-450
|
Sprinkler width (m)
|
≥14
|
The maximum height of self-absorption (m)
|
6.5
|
Sprinkling Area (m)
|
≥45
|
Recommended Configuration
|
Engine
|
Engine Type
|
6x4
|
Rated power(kW)/Rev(r/min)
|
280/2200
|
Horse power
|
380HP
|
Torque(N*m)/Rev(r/min)
|
1460/1400-1600
|
Transmission
|
9JS180
|
gearbox
|
9 forward,
1 backward
|
Clutch(mm)
|
430
|
Axle
|
Front Axle
|
BENZ-7.5
|
Rear Axle
|
BENZ-17
|
Axle load-bearing
|
Front axle
|
7.5ton
|
Rear axle
|
17ton X2
|
Fuel Tank(L)
|
400
|
The maximum speed(km/h)
|
85
|
Tire
|
12.00R20
|
PTO
|
No
|
Cabin
|
Sleeper
|
NO
|
Steering
|
standard configuration doesn’ t, you can choose
|
OTHER
|
Pediment valve
|
266,290,336,370hp is optional
|
Engine horse power
|
nylon, radial and tubeless is optional
|
Tire
|
nylon, radial and tubeless is optional
|
ABS
|
optional
|
COLOR
|
optional
|
