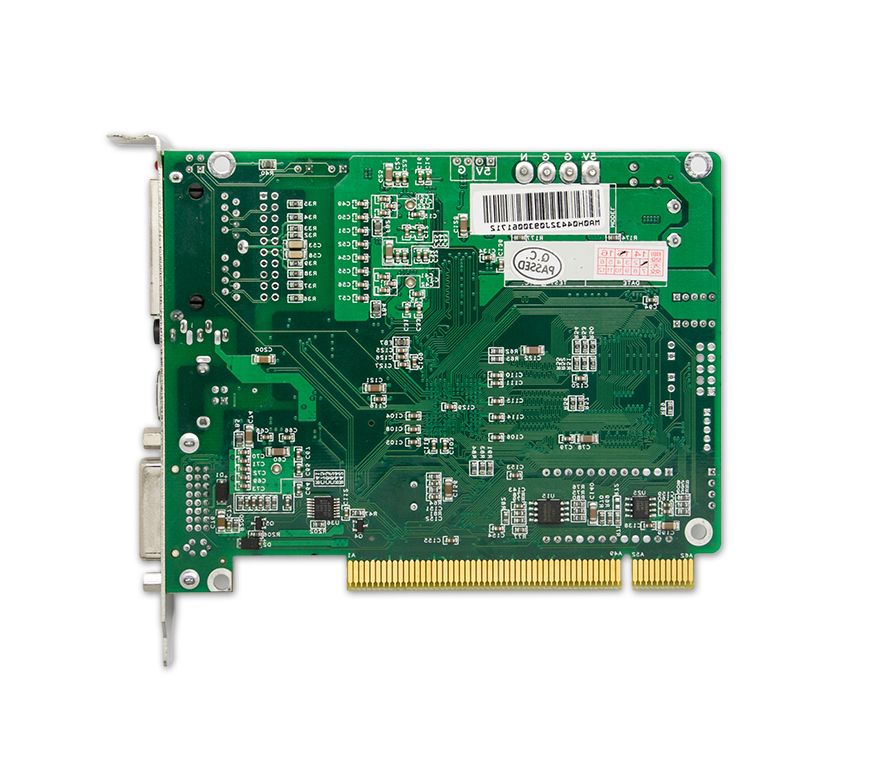

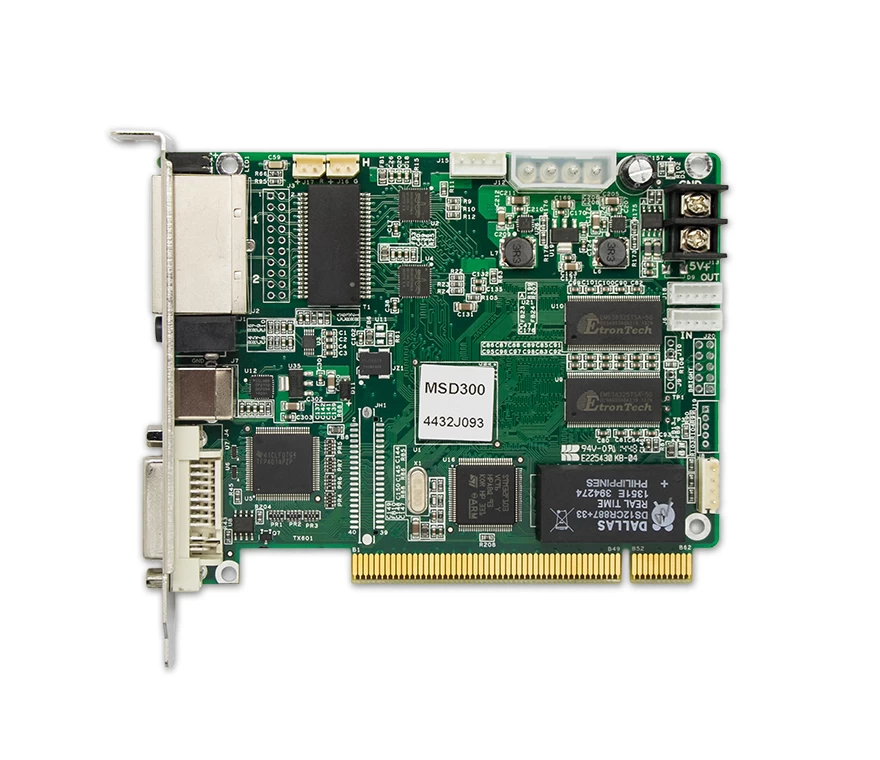

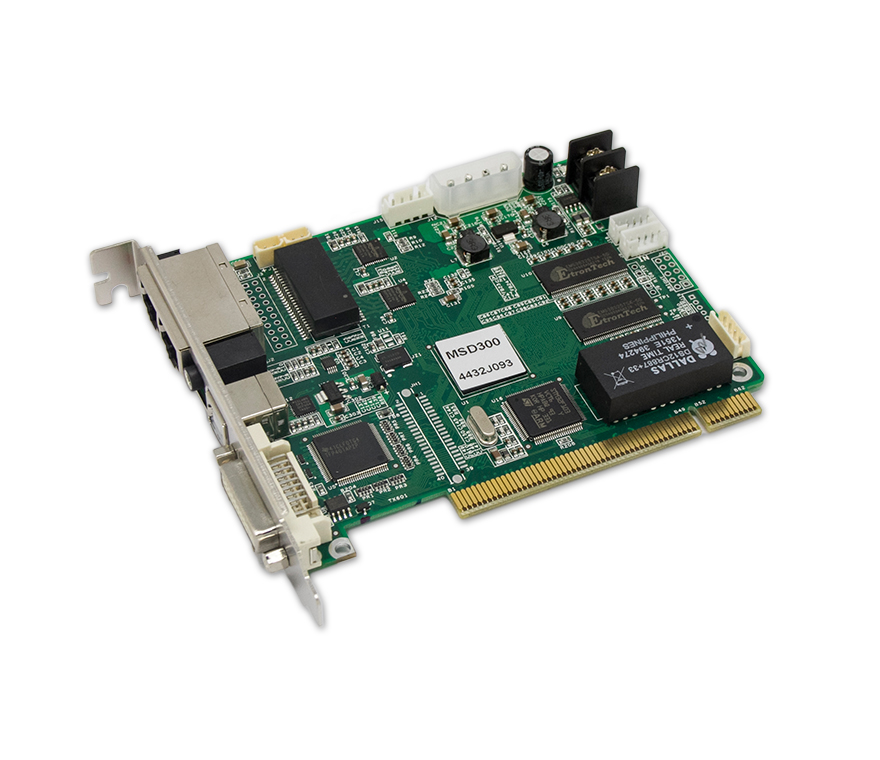

Novastar Sending Card MSD300 LED Display Decoder Controller
Product features:
1. 1 DVI interface for video input.
2. USB interface for instruction communication.
3. Audio input interface integrated.
4. Resolutions supported: 1024×1200, 1280×1024, 1600×848, 1920×712, 2048×640.
What is Included:
1 x MSD300 sending card
1 x DVI cable
1 x USB cable
Product Type : Sending Card
Input resolution: up to 1280×1024, 1024×1200, 1600×848, 1920×712, 2048×668 (wide and high customizable)
Load capacity: 1.3 million pixels
Supply voltage : 5V
Control method : USB interface control
Video interface : DVI
Audio interface : 3.5mm audio interface
Video format : RGB
Output interface : Dual network port
Video source bit depth : 8bit
Light detector: 1 way
Certification: CE, RoHS

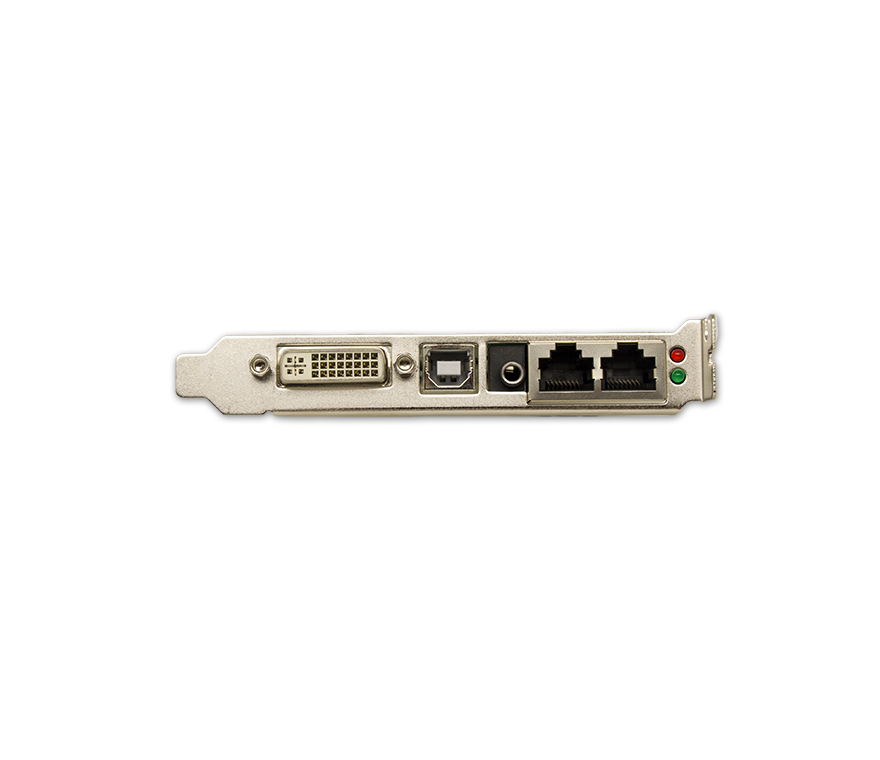

Nova M3 MSD300 is a standard model of Nova's sending card. It has
the following features:
1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port outputs;
4) USB control interface which is able to be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface.
LED Indicator
Red
It is steady on when the equipment runs normally and blinks during authorization
Green
It blinks slowly when no video source is available. (The light keeps on for 2 seconds and then off for 2 seconds.).
It blinks normally when the video source is available. (It blinks about twice per second.).
It blinks quickly when start-up screen is displayed. when the redundancy works, the indicator fades gradually.
