NS-HNK500-SV Waist Band Laminated Diaper Production line

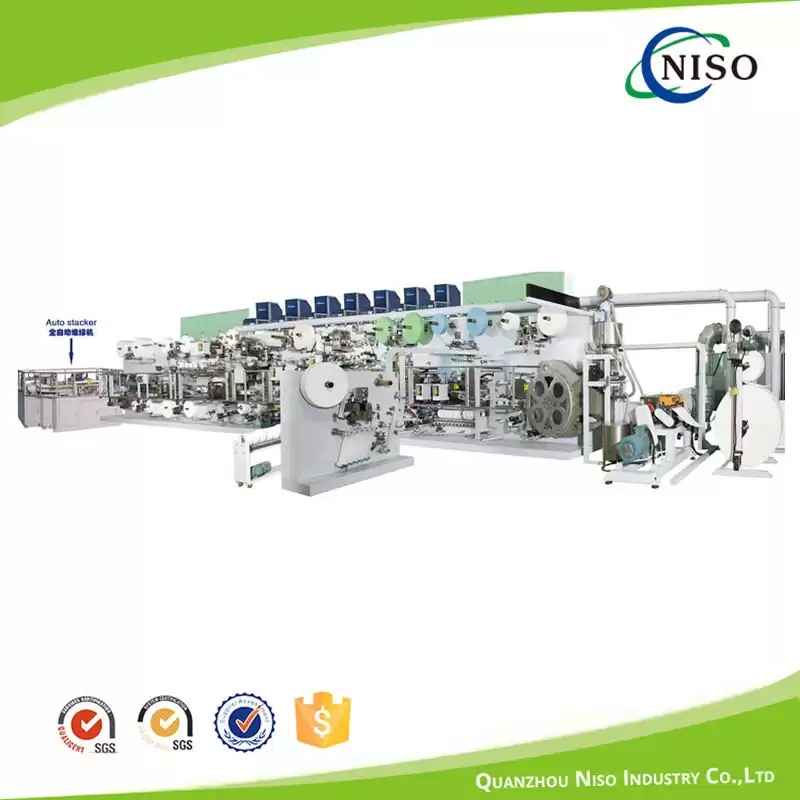

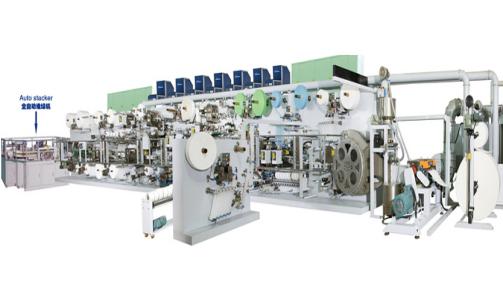

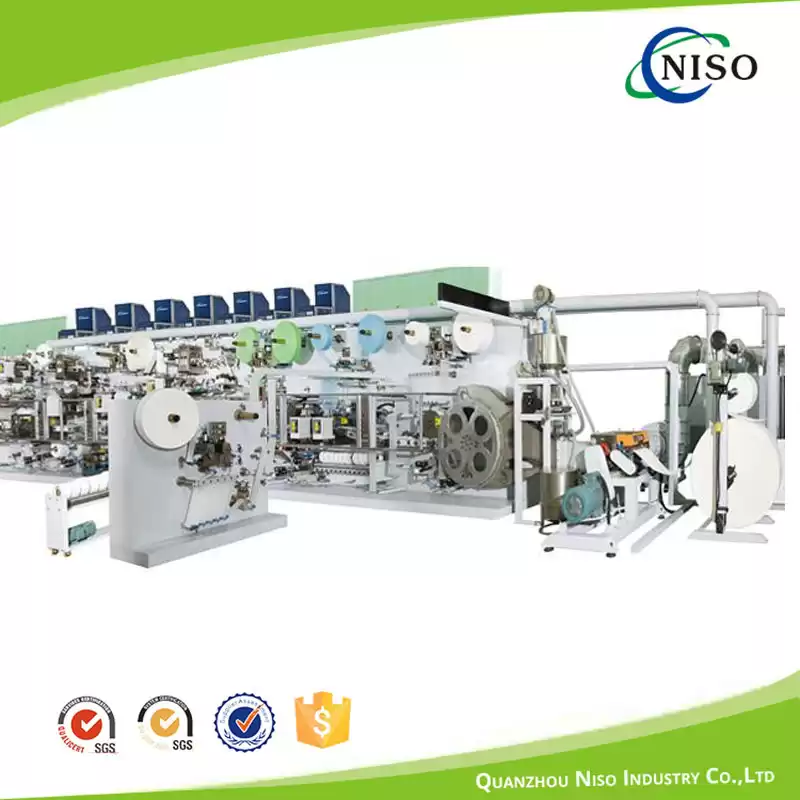

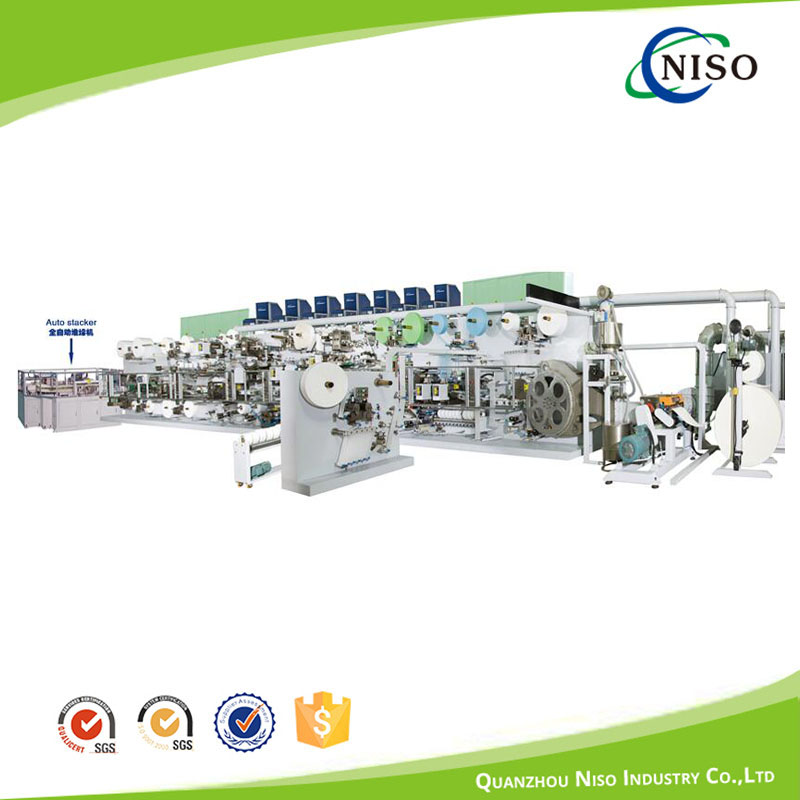

NS-HNK500-SV big waist band lamination online diaper production line is a full-servo machine.It can do 4 sizes.




NS-HNK500-SV Waist Band Lamination Online Diaper Production line

Waist Band Lamination Online Diaper Production line




Machine description


Machinery Total

1. Pulp crusher system

2. SAP feeding system

3. Drum forming system

4. Lower tissue paper feeding system

5. Upper tissue paper feeding system

6. Core wrapping system

7. Smooth roller compacting system

8. Web roller compacting system

9. ADL feeding & cut system

10. Core cutting system

11. Hydrophobic non woven feeding system

12. Hydrophilic non woven feeding system

13. Waist band non woven feeding system

14. Normal Wasit band feeding & cut system

15. Waist spandex feeding system

16. Waist band 90 degree transfer system

17. S cut side tape feeding system

18. Normal side tape feeding system

19. PE film feeding system

20. Back non woven feeding system

21. Frontal tape feeding system

22. Leg Spandex feeding system

23. Arc cutting system

24. Edge scrap collecting system

25. Vertical folding system

26. Product compacting system & final cutting

27. NO.1 rejection output

28. Bi & Tri folding system

29. NO.2 rejection output

30. Out put system

31. Machine frame

32. Dust collecting unit



Machine parameters


1. Design speed: 600pcs/min

2. Production speed : 450-500pcs/min  (Normal)   350-400 pcs/min ( Full waist band)

3. Efficiancy : ≥ 88%

4. Finished Product :  ≥ 98%

5. Machine Weight : About 60 tons

6. Machine Size :  25*3*3  (L*W*H)

7. Operating Size: 31*7*5  (L*W*H)

8. Machine capacity : about 250 KW

9. Power source : 380V, 50HZ three phase five wire

10. Air pressure : 0.6-0.8MPA (37KW pump, 5.8cube/h)

11. Machine color : customlized

12. Machine direction : customlized

13. Finished products: S, M, L, XL



Main electric parts


Main electric parts  Brand Country
PLC Mitsubishi Japan
Touch screen
Servo motor
Inverter
Timing belts Gates USA
Sensors SUNX/OMRON Japan
Tempature controller OMRON Japan
Flat belts Lida Switzerland
Web guider FIFE USA
Penumatic cylinder SMC Japan
Rotary Jointer Mercotac USA
Low electric parts Schneider Germany
Mill bearing SKF Sweden
Other bearing NTN/NSK Japan
Arc cutter  PNV 10 million pcs/shape
