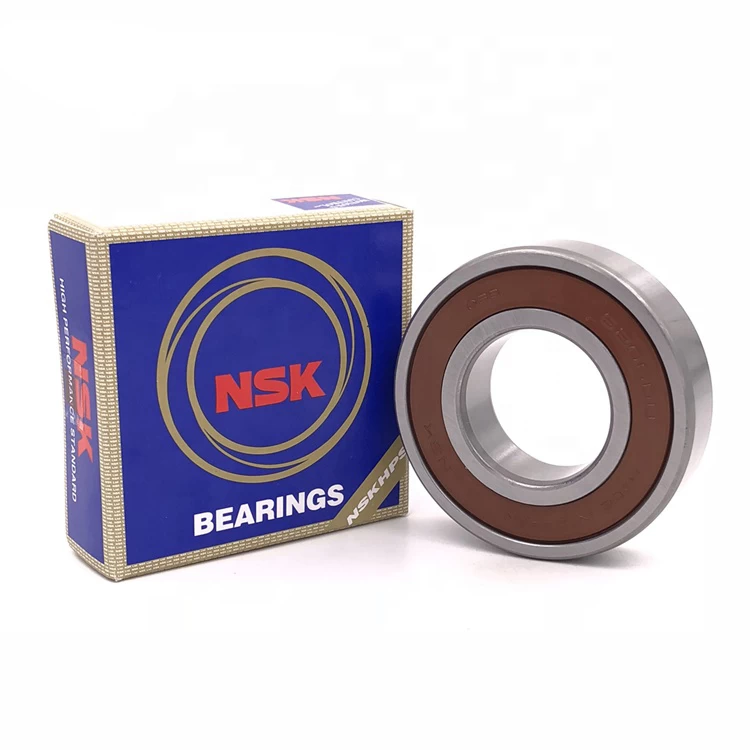

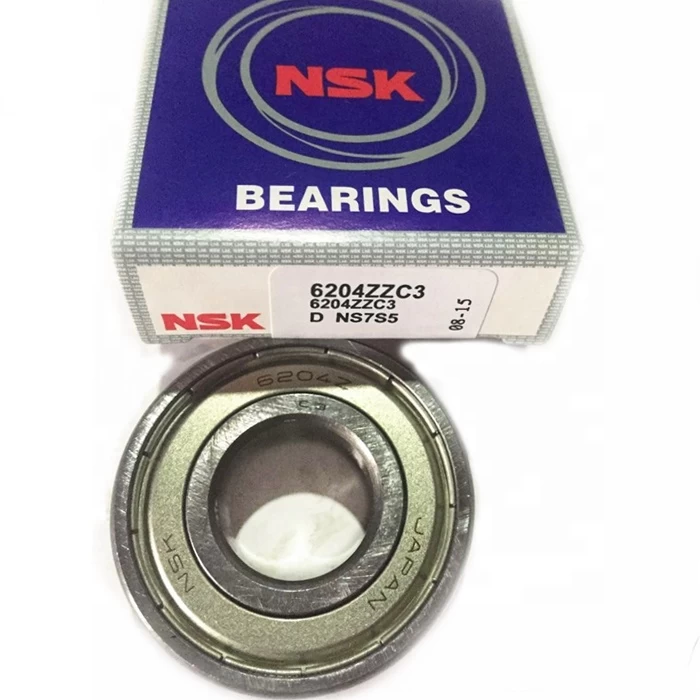

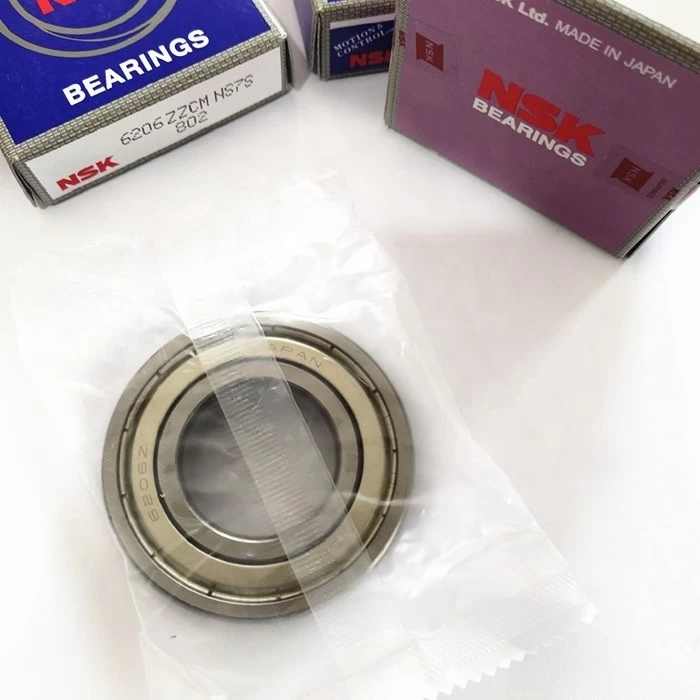

NSK Chrome Steel Bearings 6202DDU 6203DDU 6204DDU

NSK deep groove ball bearings are the most representative and widely used bearing. It can accommodate axial loads in both directions, in addition to radial loads and high speeds.



Bearing Specification:

Bearings  NSK Ball Bearings
Size  Bore size1mm-880mm,Outside diameter 2mm-900mm
Seal  Z,ZZ,2RS,RS,open
Material  Gcr15,chrome steel,bearing steel,carbon steel,stainless steel,ceramic
Sealing  Open, Z, ZZ, DDU
Precision  P0,P6,P5,P2
Clearance  C0,C3,C4
Retainer  Brass cage,steel cage,nylon cage
Delivery Time  1-3 days Usually
Packing  NSK original color box
Application  Auto, tractor ,machine tool, electric machine, water pump,agricultural machinery and textile machinery



Bearing Applications:

With less coefficient of friction, high limiting speed,NSK bearing are widely for skateboard.longboard ,instruments and meters, electric motor, internal combustion engines, transportation vehicles, agricultural machinery Auto, machine tool, electric machine, water pump, machinery etc.

ball bearing application


NSK Ball Bearing Features :


1. High running speed
2.Original NSK brand with long working life.
3. Bearing Factory with Large Stock with fast dispatch
5. OEM & ODM service available
6.Free sample for you all the time


We Can Provide Different NSK Bearings

Below here are some bearing number for your reference :

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1 16 10.3 10000 14000 0.115
6008 40 68 15 1 16.8 11.5 8000 11000 0.19


We can provide other brand bearings such as KOYO ,SKF,NTN,INA etc ,for more informations pls  contact with me free .

Bearing Brand


Working With MKL Bearings Have Below Advantages:

1.Excellent quality and high quality control for you
2.With large stock ,we can provide prompt delivery
3.Factory directly with competitive price
4.Small order accepted for our trail order
5.OEM service provide ,you can send me drawing or your samples
