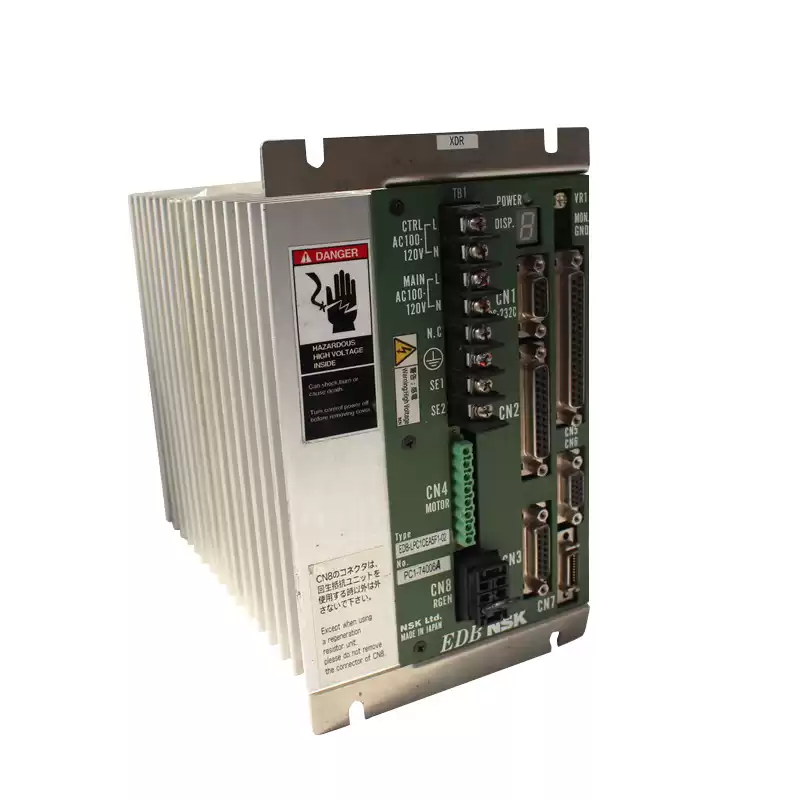

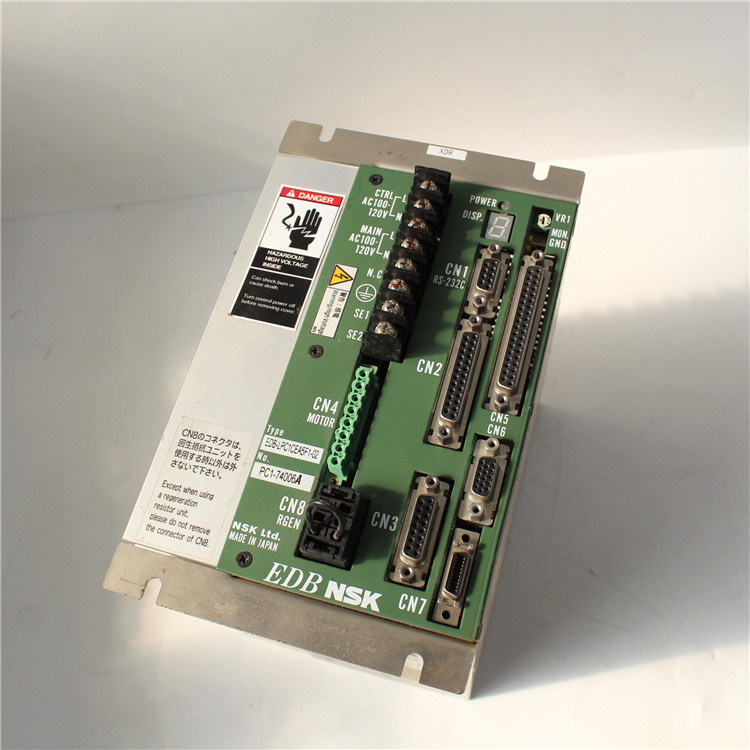

How to Replace EDB Driver Unit:

Danger : Be sure to turn off the power and then follow the procedures described hereunder.

For the Driver Unit with unique specifications, please contact your local NSK representative.

Copy the settings of parameters and position commands of internal channels to the “EDB Parameter •Program Setting List,” that is provided on the end of this manual, prior to replace the Driver Unit.

Especially, be sure to copy the parameters PG, VG, VI, CO, MA, MV and HO, and the data of internal channel.

    After the Driver Unit was replaced, input the settings of parameters and the data of internal channels.

1. Connect the Terminal to the CN1 connector.

2. Turn on the control power only. (2 terminals, that are coded “CONT,” on the top of the Terminal Block.)

If the main power and the control power cannot be separated because of wiring circumstances, disconnect the CN2connector and then turn on the control power.

If the power is turned on without observing the above notes, the Motor may be out of control as the parameters won’t be set correctly. Be sure to observe the above notes.
