OBDSTAR X300 DP PLUS device is a new Android-based vehicle trouble diagnostic device developed for internet applications.With advantage of mobile internet, this device integrates more application and service------- Maintenance Database, remote assistant, One Key Upgrade etc.

Characteristics of the Software
IMMO: EEPROM, Renew Key , Key programming and Remote programming

Characteristics  of the Hardware
1. Built-in VCI box
2. 8-inch touchscreen
3. Charge directly via OBD1 or  OBD2 interface

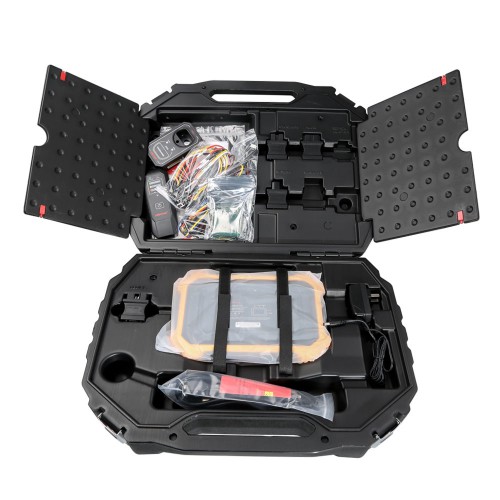

4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design:prop on the steering wheel or stand on the table
7. With 4 T simulation keys (the fifth is coming soon)
8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Add the clip of reading SOP 8 PIN EEPROM
10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Special Functions
TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset

ECU Clone
1. ECU Clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all
data copied into ECU with the same hardware to realize the same ECU function with the
original vehicle.

2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:
A. Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function
(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add“Help" Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
2. Carlist and upgrade announcement, all details are available on the device
3. Customers can look up the features or uniquely support functions on the device
4.  Help notes: built-in help notes for each model or function
5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

APK Optimization

1. Solved the calculation bug
2. Clear login cache

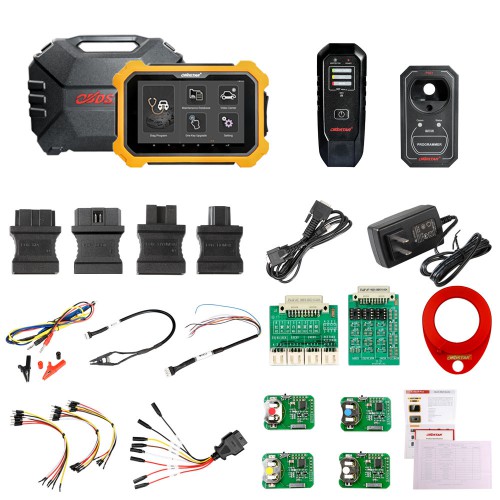

OBDSTAR X300 DP Plus X300 PAD2 B package list
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+T smarkt key Emulator)+others(Ignition coil+Remote tester)
Click for OBDSTAR X300 DP Plus User Manual

Technical Parameters
