Ochiai/Kawasaki KOMATSU Gasoline Engine Tea Leaf Harvesting Machine DL-4C-Z

DL-4C-Z tea harvesting machine use KOMATSU 2 stroke engine, power 0.81kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.


  • Cutting width450, 500, 600 mm
  • Power1.1 kw
  • Stroke2 stroke
  • Displacement25.4 CC
  • Engine typeGasoline
  • Engine modelKOMATSU
  • Rack typeKawasaki, Ochiai

Description:
The handheld tea plucker is mainly used for tea picking in mountain, hilly, plain and other terrain. It is produced with international advanced technology. It has the advantages of low noise, large air volume, stable quality and high production efficiency. It is an ideal machine for tea picking.

We have improved the backrest, widened the shoulder strap, long-term use will not produce fatigue, so that more efficient tea picking.

Parameter:
DL-4C-Z 4 stroke gasoline engine tea leaf harvester spcification:
Model DL-4C-Z
Engine model KOMATSU G26
Cutting width 450mm, 500mm, 600mm
Engine power 0.81kw / 1.1HP
Engine stroke 2 stroke
Displacement 25.4 CC
Cooling type Air cooling
Engine size 32*32*42cm
Knife rack size 105*25*30cm
Here are all of our gasoline type tea plucker machine:

Model Engine Model Stroke Power Displacement
DL-4C-H3 HONDA GX35 4 stroke 1.35 kw 35 CC
DL-4C-H2 HONDA GX25 4 stroke 0.81 kw 25 CC
DL-4C-Z KOMATSU G26LS
stroke 0.81 kw 25.4 CC
DL-4C-T MITSUBISHI TU26
stroke 0.7 kw 25.4 CC
DL-4C-S HUASHENG 1E34F
stroke 0.7 kw 25.4 CC
DL-4C-Y NATIKA 1E34F
stroke 0.7 kw 25.4 CC
DL-4C-S39 HUASHENG 139F
4 stroke 0.7 kw 31 CC
We also have battery type, if you need, please contact us.

Advantage:

Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
High strength gear and gearbox
Advanced backrest design
New patent knife rack
Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
Backpack Type 2 Stroke Srilanka Tea Leaf Harvester Plucking Machine 4C-S
Optimized design of blow pipe
New patent fan and cover
SK5 steel super hard blade

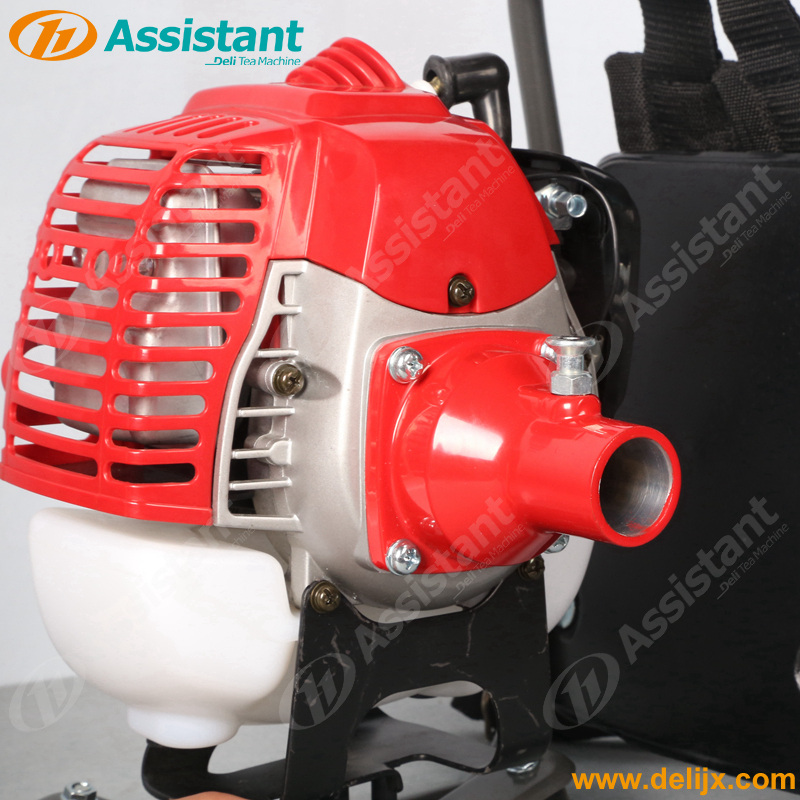

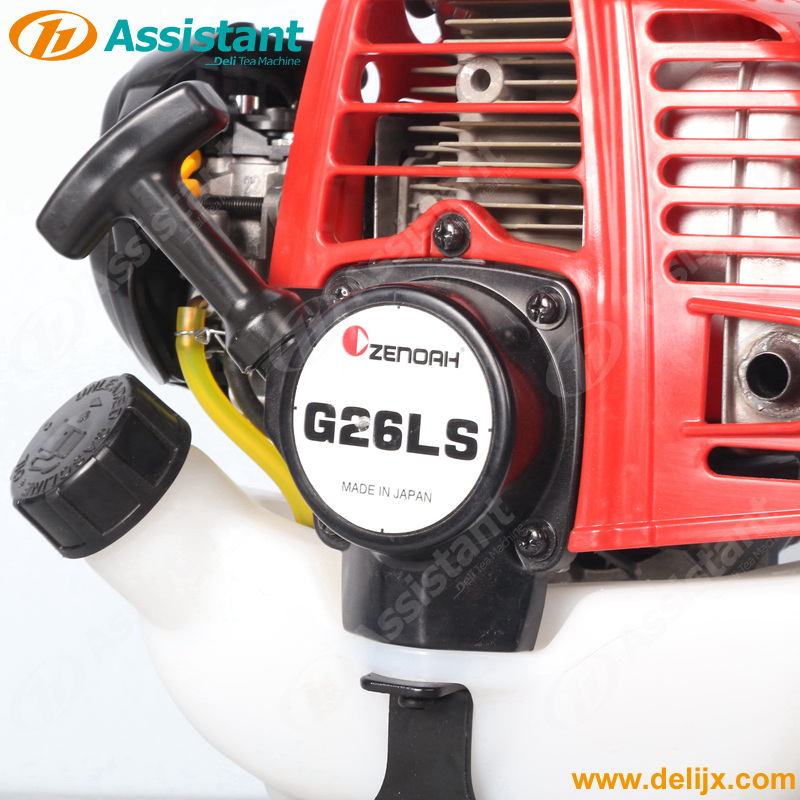

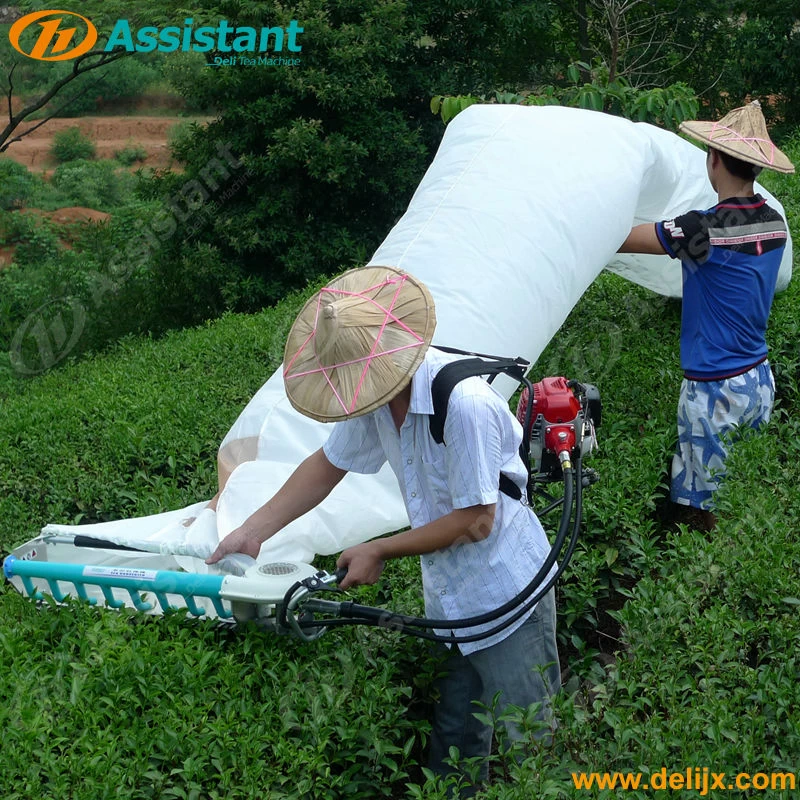

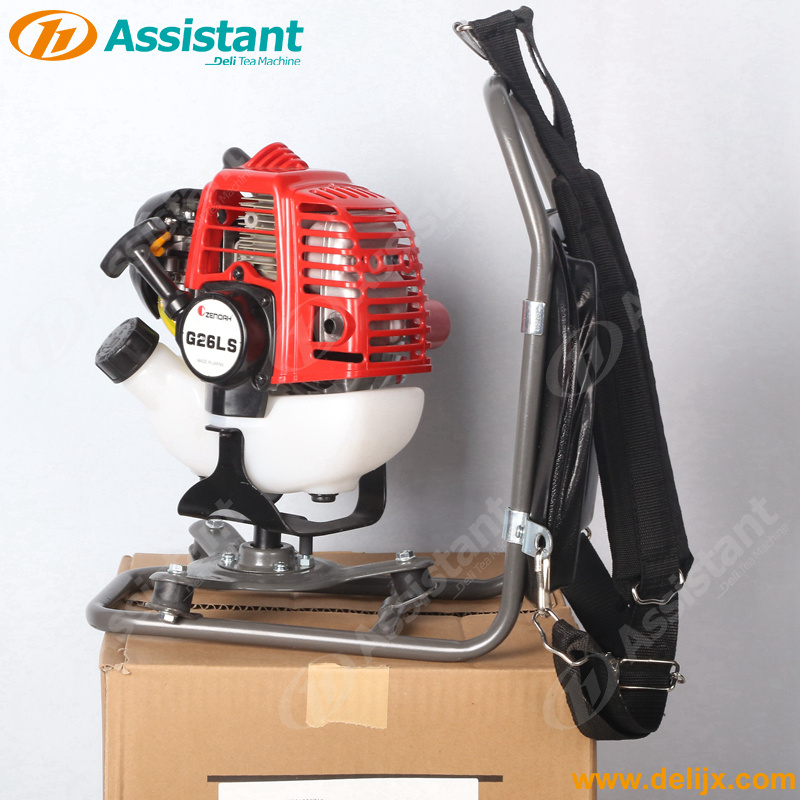

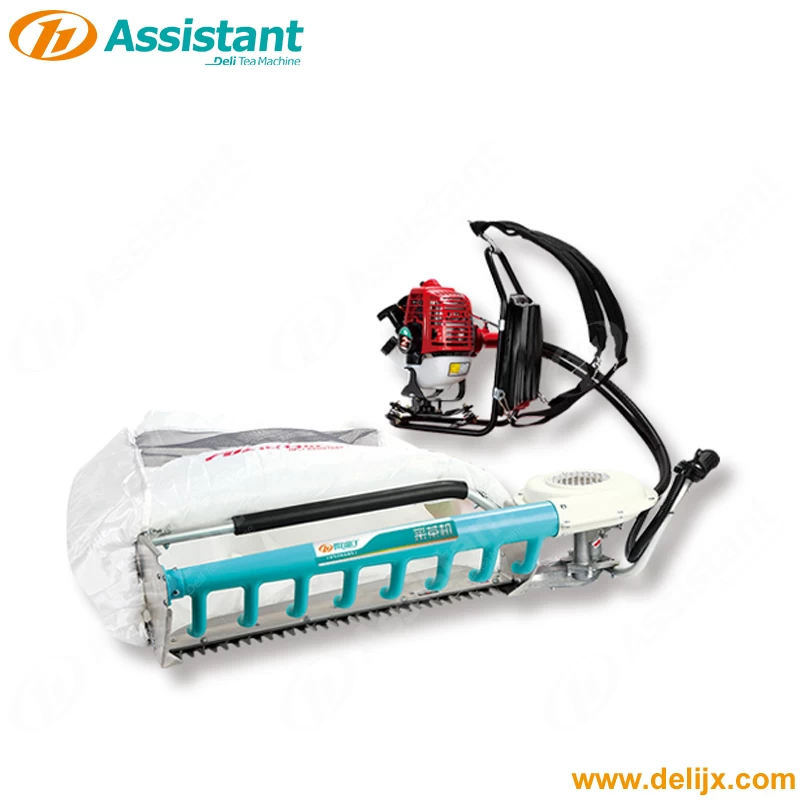

DL-4C-S one man tea leaf harvester plucking machine photos:

Ochiai/Kawasaki KOMATSU Gasoline Engine Tea Leaf Harvesting Machine DL-4C-Z
Ochiai/Kawasaki KOMATSU Gasoline Engine Tea Leaf Harvesting Machine DL-4C-Z
Ochiai/Kawasaki KOMATSU Gasoline Engine Tea Leaf Harvesting Machine DL-4C-Z
