OEM accepted PSU 300W 12V 25A switching power supply single output
Description:
K18N-UP300S series 12V 25A switching power supply cooling by free air convection for 200W and 300W with 20CFM froced air;300W 12Vdc power supply have short circuit and overload protection functions;As a high price-to performance power supply solution for various industrial applications.
Features:
1, High efficiency 300W power supply,low ripple noise;
2, 300W 12VDC power supply built-in PFC function;
3, Wide range of AC input voltage;
4, 12V 25A smps have short circuit, overload, overvoltage protection;
5, Single output power supply,used in stage lighting and sound equipment.
Parameter
|
|
Item NO
|
K18N-UP300S12
|
K18N-UP300S24
|
K18N-UP300S36
|
K18N-UP300S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Range
|
25A
|
12.5A
|
8.3A
|
6.25A
|
|
Current Range (Natural cooling)
|
0-16.7A
|
0-8.3A
|
0-5.6A
|
0-4.2A
|
|
Current Range（20CFM fan cooling)
|
0-25A
|
0-12.5A
|
0-8.3A
|
0-6.25A
|
|
Rated Power (Natural cooling)
|
200.4W
|
199.2W
|
201.6W
|
201.6W
|
|
Rated Power (20CFM fan cooling)
|
300W
|
300W
|
298.8W
|
300W
|
|
Ripple
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage Range
|
90-264V AC
|
|
Input Range
|
1.6A@220V AC
|
|
Input Frequency
|
47-63Hz
|
|
Efficiency
|
＞88%
|
＞88%
|
＞88%
|
＞88%
|
|
Power Factor
|
>0.99@110V;>0.95@220V
|
|
Inrush Current
|
COLD START 20A/115V，40A/230V
|
|
Leakage Current
|
<0.75mA@240V AC
|
|
Protection
|
Over Load
|
110~150%,Hiccup protection, automatic recovery
|
|
Over Voltage
|
15-18V
|
28-33V
|
42-46V
|
55-60V
|
|
Over Temp.,
|
Cover’s temp. >105℃，output closed，automatic recovery
|
|
Function
|
|
|
|
Environment
|
Woking Temp., Humidity
|
-20~50℃，10~90% RH， No condensation
|
|
Storage Temp., Humidity
|
-20~85℃，10~95% RH
|
Temp., Dirft
|
±0.03%/℃(0~50℃)
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safrety & EMC Standards
|
Safety Standards
|
EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:500VAC
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
EMC standards
|
EN55022 CLASS A, EN61000-3-2,EN61000-3-3
|
|
Others
|
Dimension
|
127*82*45mm（L*W*H)
|
|
Weight
|
0.6KG
|
|
Notes
|
1.All parameters 230V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation etc;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor; to 20MHz oscilloscope measured at the load end;
4. Line regulation: high load conditions change in the rated input voltage from low to measured;
5. Load regulation: the measured output load from 20% to 100% load change measured, other load is fixed at 60% load.
|

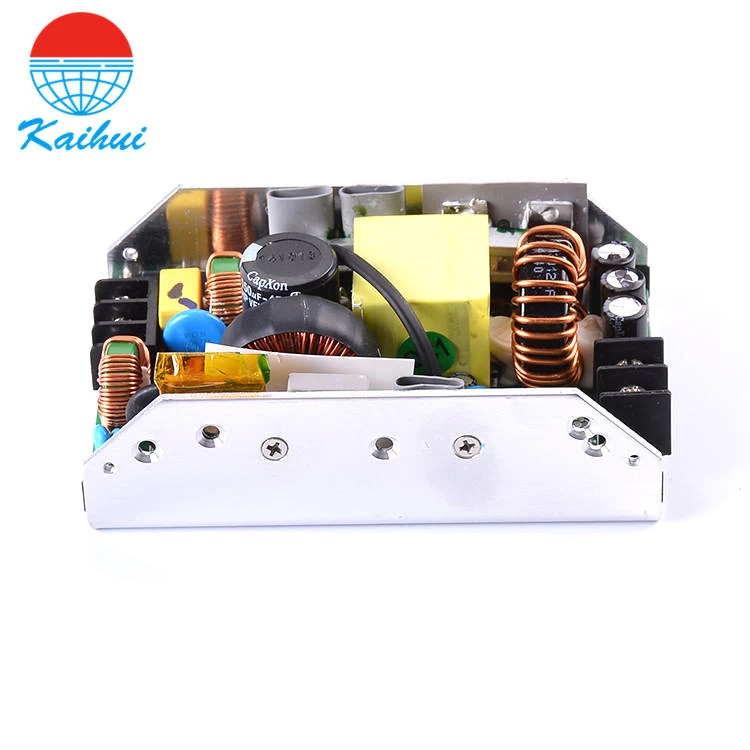

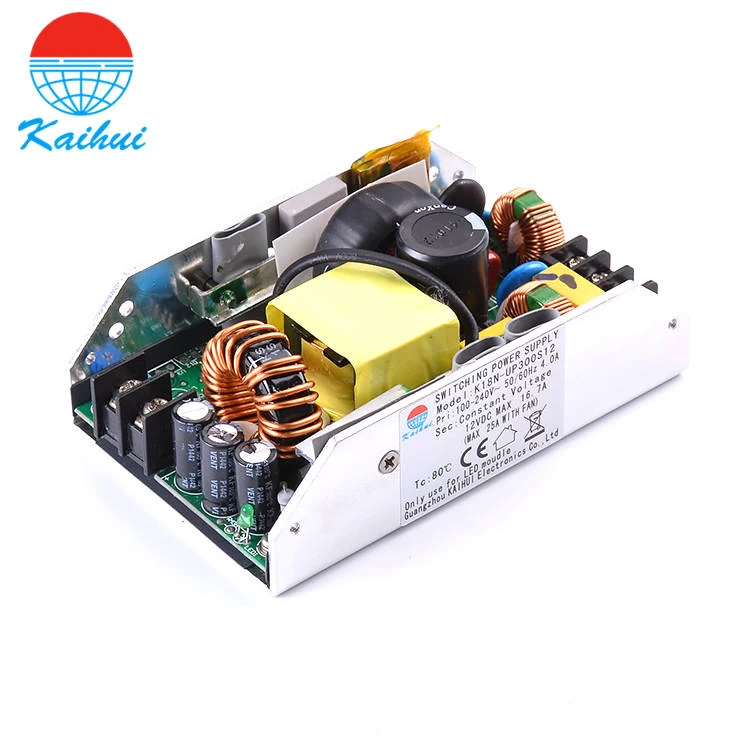

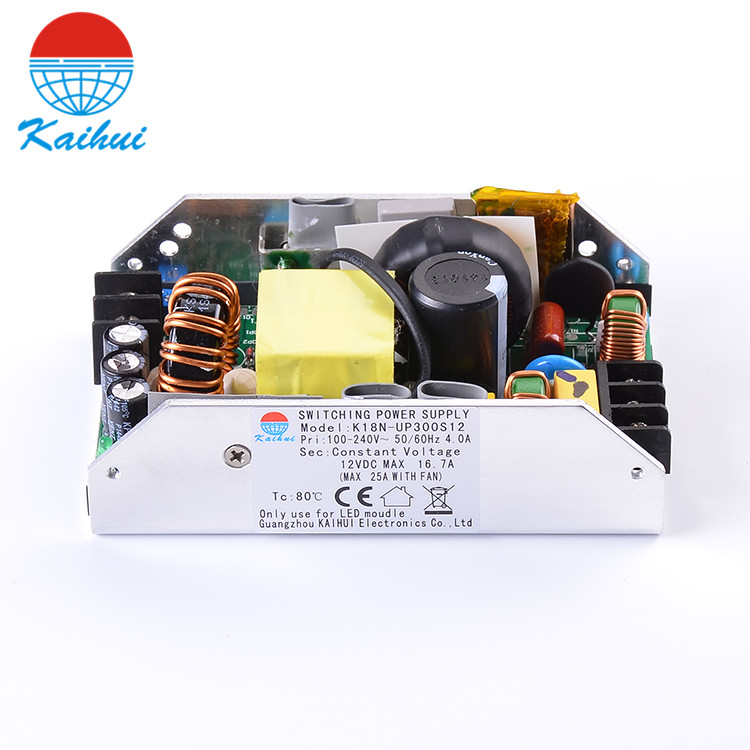

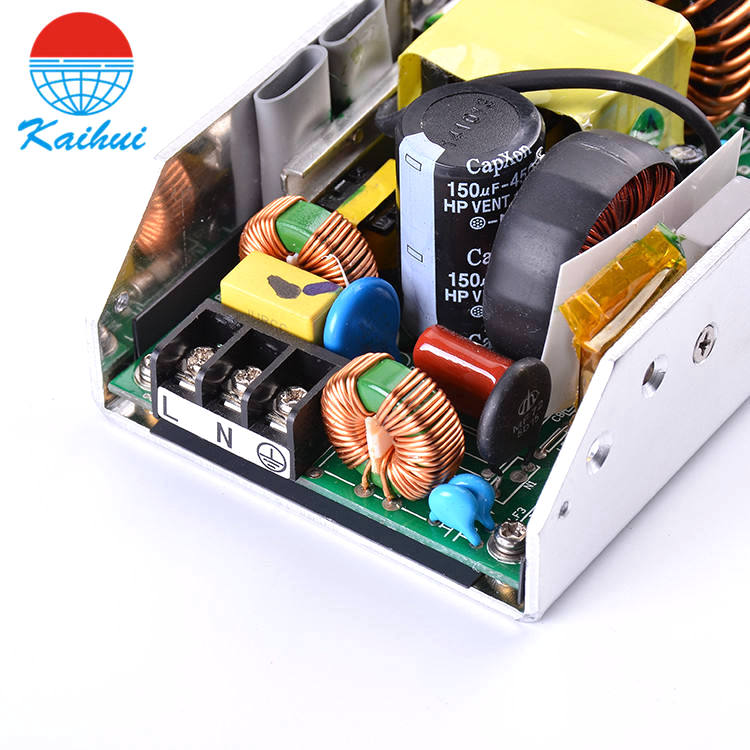

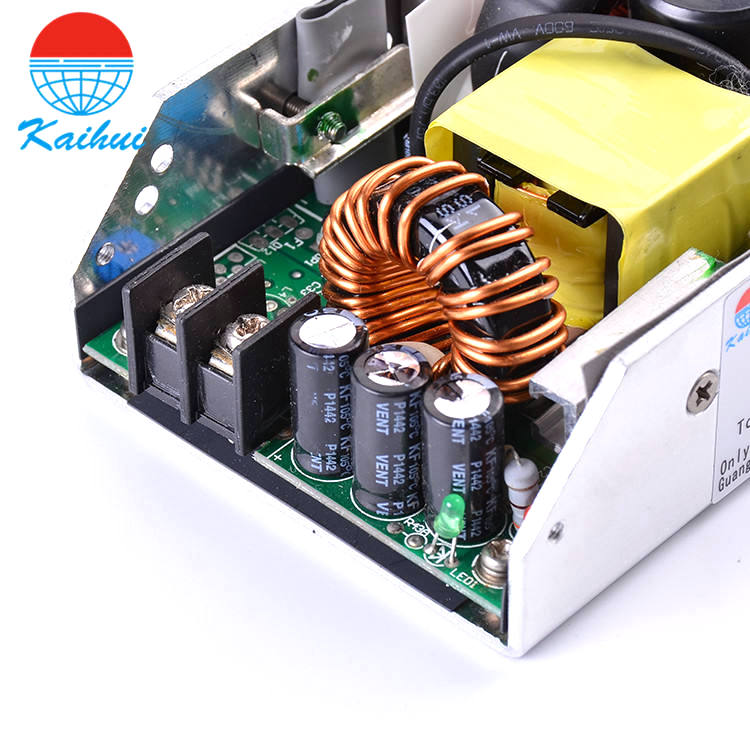

Product picture:
