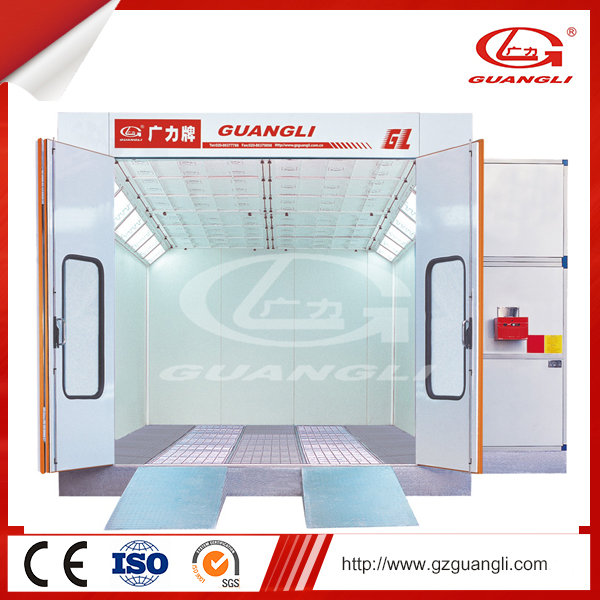

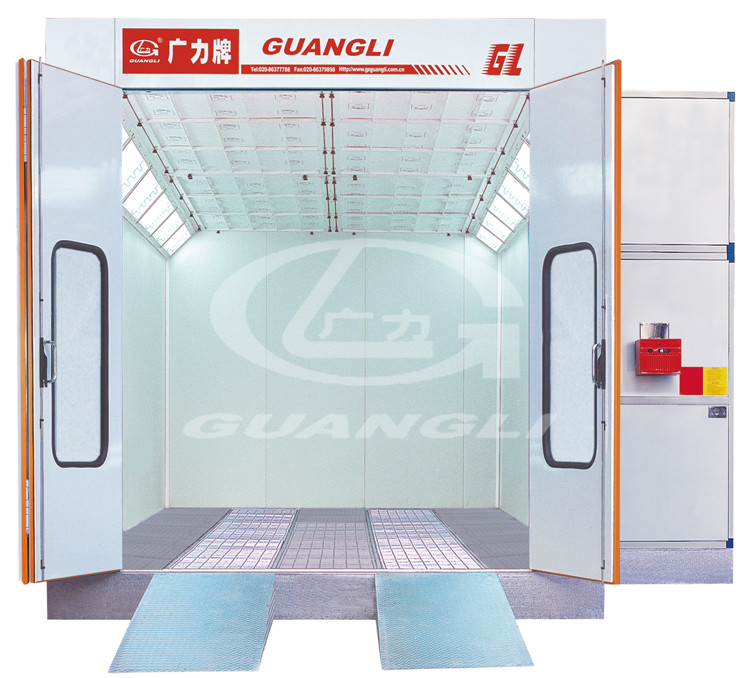

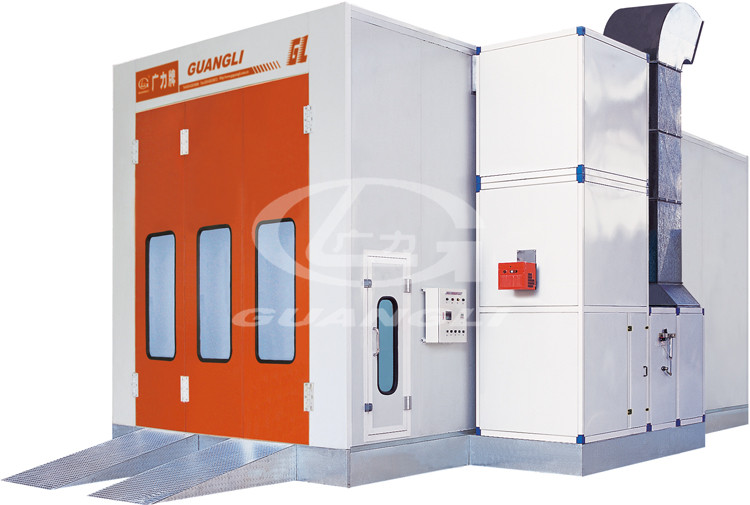

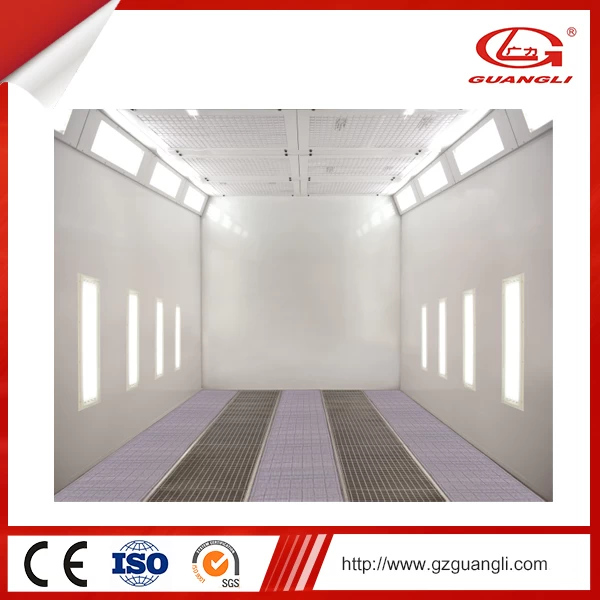

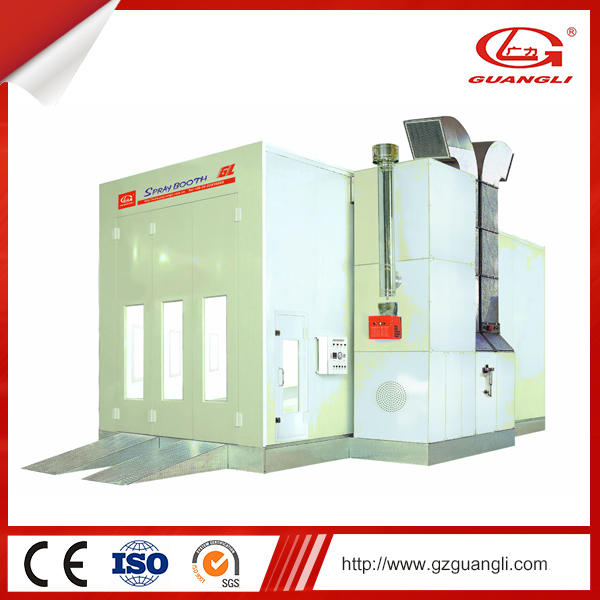

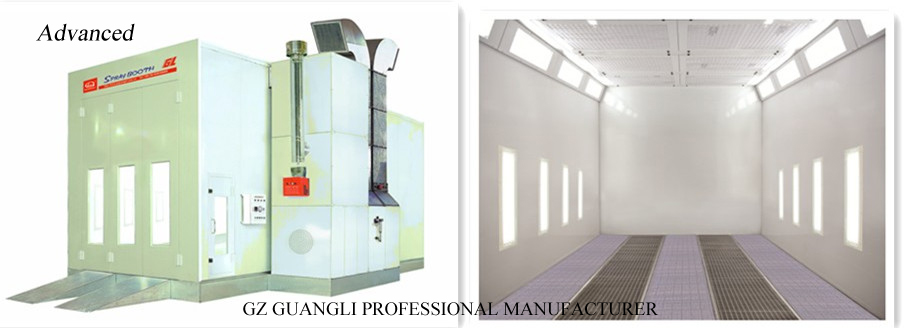

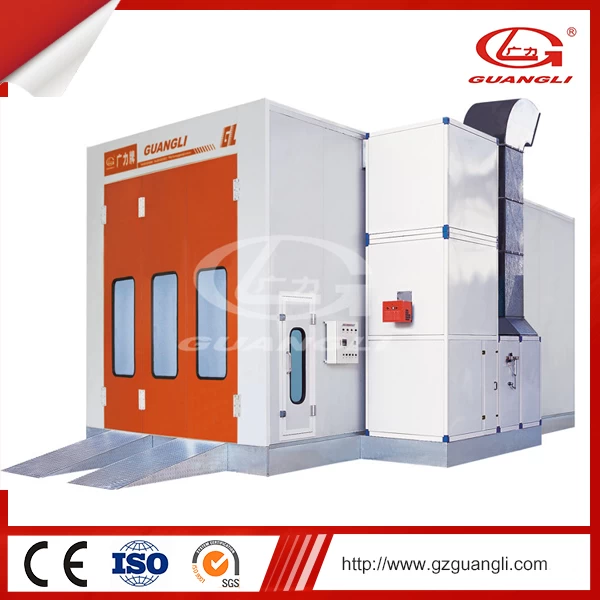

OEM Auto Midsize Spray Paint Booth GL2000-B1

GL2000B1 Spray booth design according Europe standard with high quality and effciency.



OEM Durable Automobile Mid-size Spray Paint Booth Baking Oven for Car Garage



Mid-size Bus Spray Booth


GL2000-B1-CE Spray Booth Feature:


Main body & basement:

  1. Wall panel: Sandwich style, Thickness=50mm, polystyrene, rock wool available as required.
  2. Basement: Steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
  3. Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
  4. Basement: Steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
  5. Ramp: 2 pcs vein board


Fans & ducts:


  1. One 11kw intake fan and one 7.5kw exhaust fan.
  2. 5m straight exhaust ducts, one 90° bend, and one 60° bend. 5m straight chimney and 2 small bends.
  3. Damper changer of painting and drying: Changed automatically with cylinder-link driving.


Burner & filters:

  1. Heat ex-changer: Stainless steel. Riello/ G20S burner.
  2. Roof filter: 5 pcs of filter, mounted above support frame, which is made of steel and powder coated.
  3. 2 pcs of floor filter and 1 pcs of outlet filter.

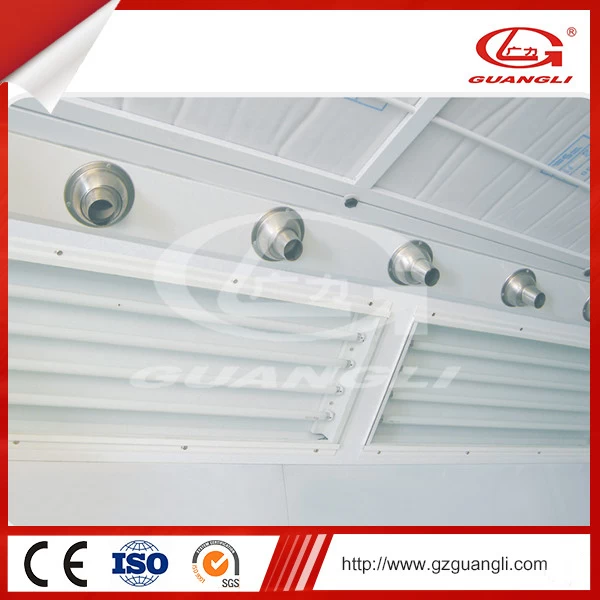

  4. Upper light: 12 sets, 4*18w per set. LED
  5. Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine Y/△ start.
  6. Automatically stop when preset time is up.
  7. Constant temperature spraying.



Model GL2000-B1
External size (m) 8.7x5.63x4.23
Internal size (m) 8.6x4.0x3.4
Entrance Width(m) 3.0
Entrance Height(m) 3.35
Fan capacity(m3 /h) 35000
Air velocity (m/s) 0.25-0.3
Air ventilation (times/h) 332
Drying Temperature 60-80
Water-based paint device As option
Oil consumption (L/unit) 6-8
Power (kw) 20.5
Suitable Automobile Type Mid-size bus



Mid-size Bus Spray Booth
