OEM Carbon Aero Road Direct Mount Rim Brake Frameset

-Type: Aero Road 700C (Rim Brake)
-Size: 460/480/500/525/550/580(C to T)

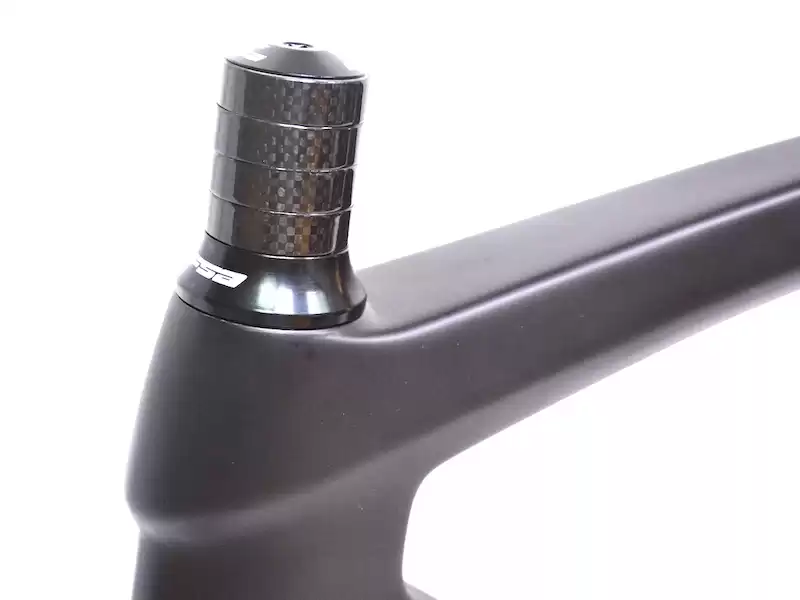

-Head Tube: Tapered 1-1/8’’ - 1-1/2”



Carbon Aero Road Direct Mount Rim Brake Frameset

  • Type: Aero Road 700C (Rim Brake)
  • Size: 460/480/500/525/550/580(C to T)
  • Head Tube: Tapered 1-1/8’’ - 1-1/2”
  • Bottom Bracket: BB86.5
  • Seat Post: TDC-E18
  • Fork model: TDC-F24

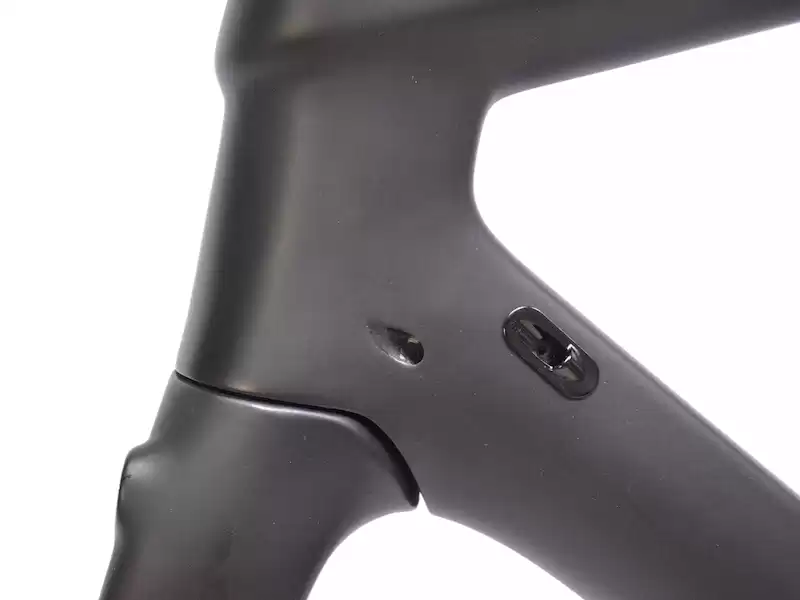

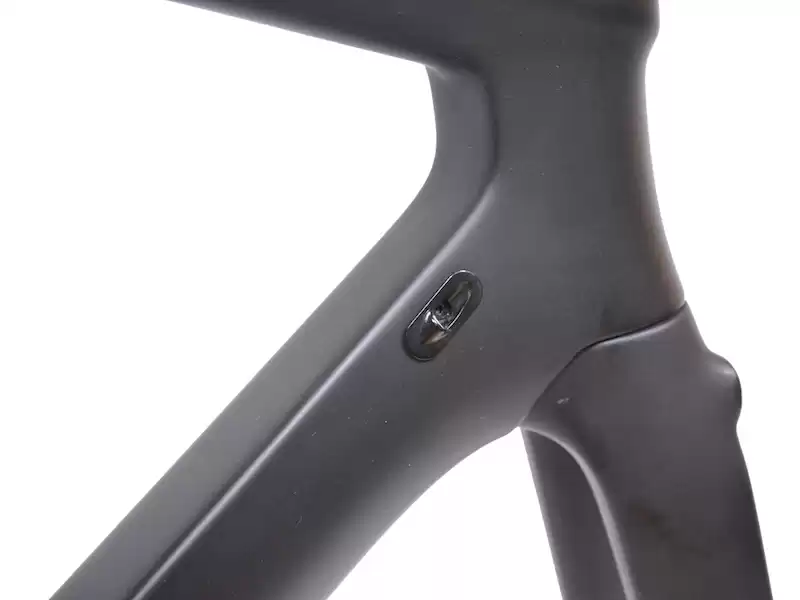

  • Cable Routing: Internal and Di2 compatible
  • Brake type: Direct mount
  • Tire Spec.: 25C
  • Hub Spec.: Front 9*100mm / Rear 9*130mm
  • Weight:1100g+/-35g(M Size)
  • Material : Toray T800 / T700


Carbon Aero Road Frameset

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

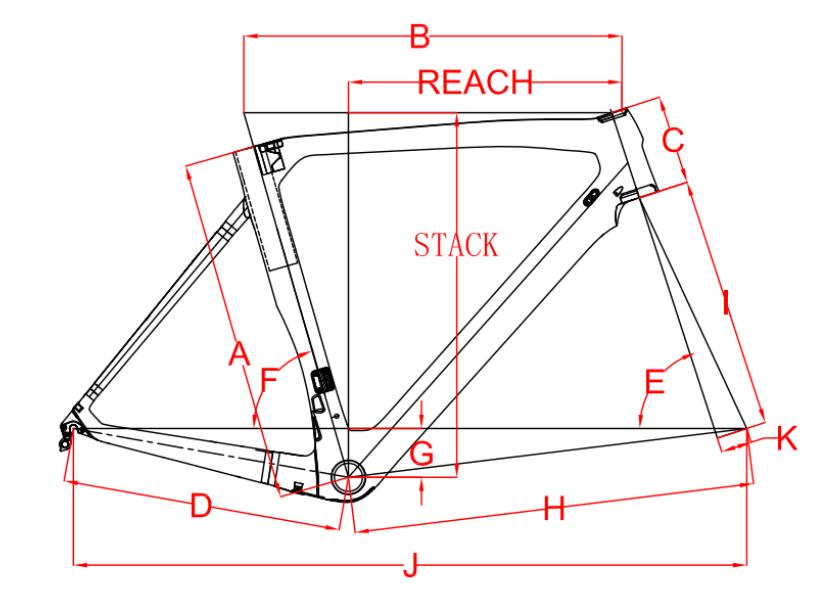

Size 460 480 500 525 550
Stack 500 512 530 549 571
Reach 370 376 383 390 397
Head Tube Angle 70.8 71.4 72 73 73
Head Tube Length 105 115 130 150 170
Seat Tube Angle 75 74.5 74 73.5 73
Seat Tube Length 460 480 500 525 550
Top Tube Length 505 520 535 550 570
BB Drop 73 72 71 70 70
Rear To BB Center 406 406 406 408 408
Fork To BB Center 576 581 583 588 601
Fork Built Height 370 370 370 370 370
Fork Rake 50 50 45 45 45
Wheel Base 969 975 979 985 999

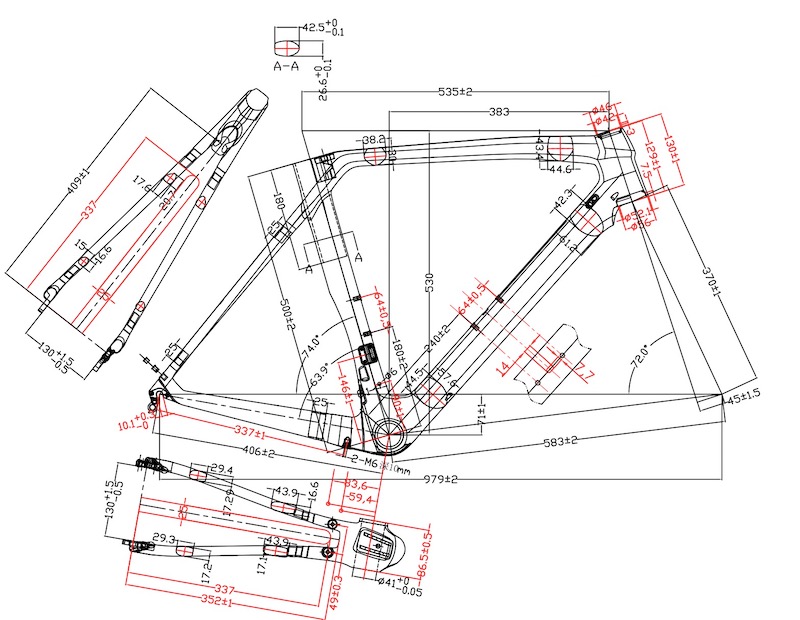

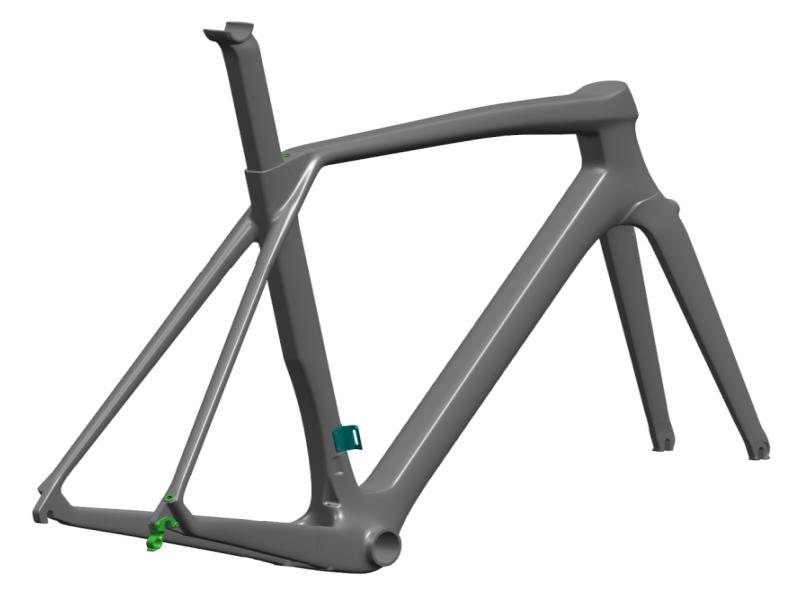

Technical drawings can help customer find the frame detail parameters and structure that they are interested.

Aero Road Direct Mount Frameset



TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:

Q1: What is your MOQ ?

A1:Minimum order quantity of different non-products is different. For specific products, please consult with inquiry.We can supply samples at a cost of twice the selling price. If you place an order, the sample fee will be refunded.


Q2: How long is the sample lead time?

A2: For existing samples, it takes 20 days.


Q3: How long is the production lead time?

A3: Decide the delivery date of the product according to the quantity ordered,About 45-55 days.


Q4: What format of the file do you need if I want my own design?

A4: We have our own designer in house . So you can provide JPG or PDF,etc.We will make 3D drawing for mold or printing screen for your final confirmation based on technique.


Q5: How many colors are available?

A5: Any color can be provided as long as the color palette you need is provided to us.


Q6: Which kinds of certificate would you have?

A6: Product Patent Certificate. Local certificate of safety standards.


Q7: What is your payment term?

A7: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, pls. pay the balance before shipment. Then delivery the goods.
