OEM Furniture Woodworking Engraving Cnc Plywood Cutting Machiners

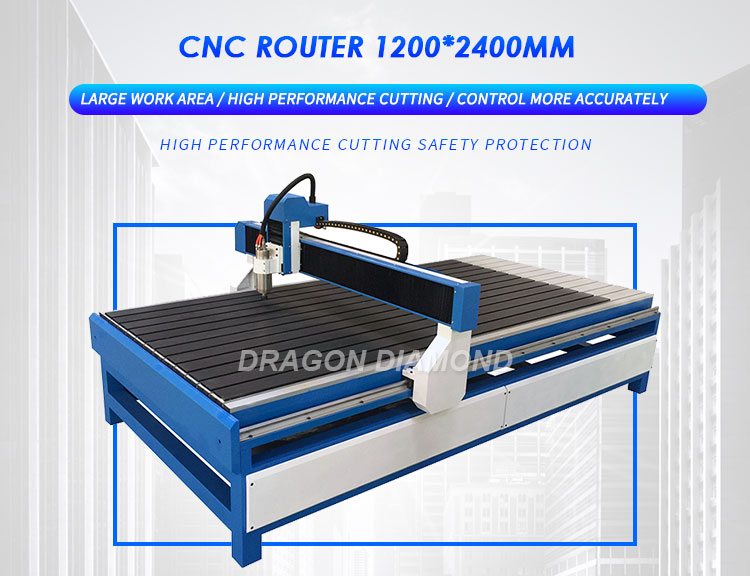

1200*2400mm Large Work Area High Performance CNC Machine.



OEM Furniture Woodworking Engraving Cnc Plywood Cutting Machiners

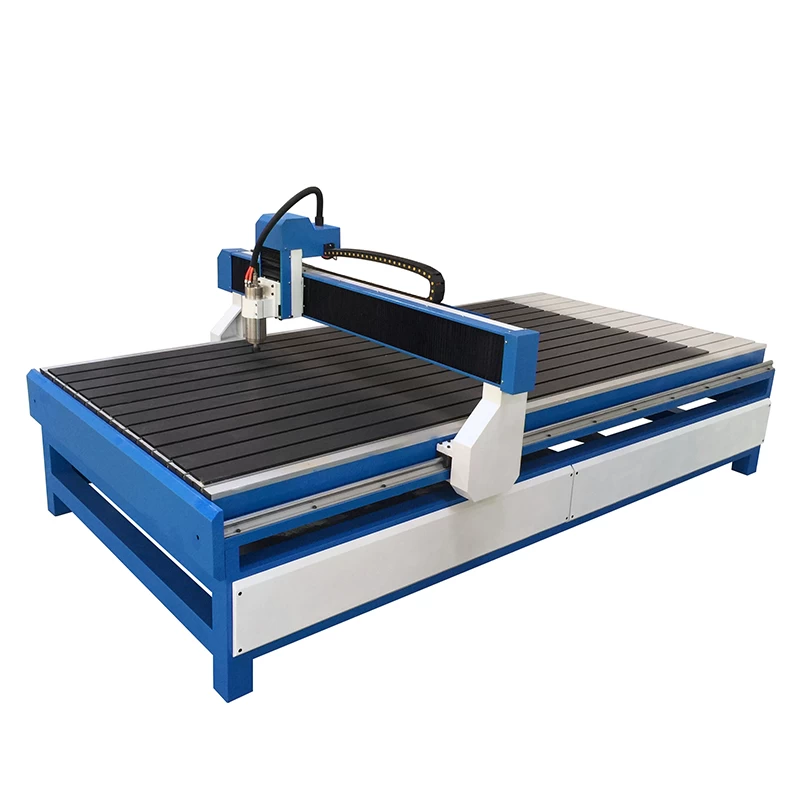

1224 Furniture CNC Machine


PRODUCT PARAMETER

NO.

Model

Lz-1224A

1

Working Area

1200x2400x120mm

2

Packing Size

1830x2880x1680mm

3

Working Table

Aluminum T-Slot

4

Spindle

2.2KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Control System

NC Studio Controller

7

Inverter

Sunfar

8

Transmission

XY gear pinion,Z axis ball screws

9

Guide Rail

Round Rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Stepper motor

12

Machine Structure

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Suitable Software

Artcam, Type3, Ucancam V9, etc

15

Traveling Speed

7200 mm/min

16

Engraving speed

5000 mm/min

17

Reposition Accuracy

0.025mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC 220V±10%, 50/60Hz, Single Phase,

AC 380V±10%, 50/60Hz, Single Phase




2018 Desktop Woodworking Cnc Router 1200x2400 For Advertising Sign Board Marking

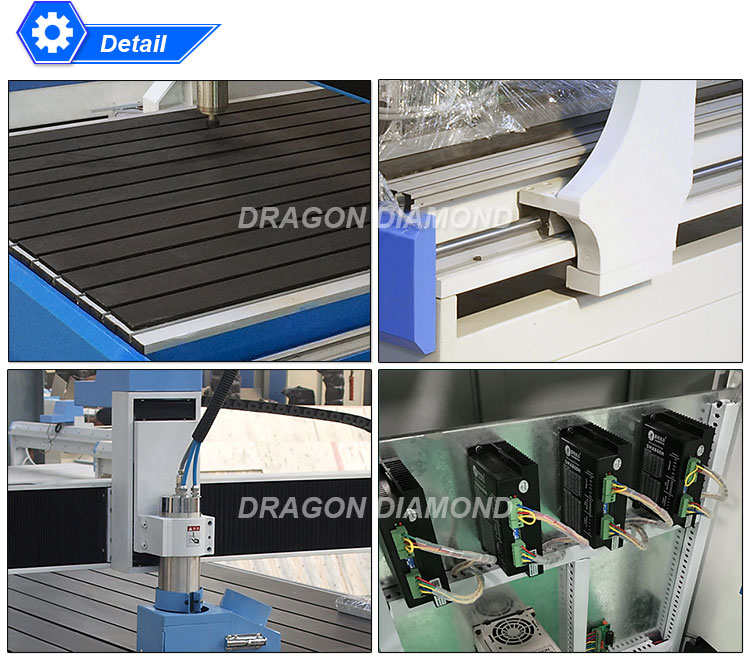

PRODUCT FEATURES

1.Spindle
We use well-know water cooling spindle, which has a longer life time and steady working, easy to start up.


2.Controller
DSP controller system with USB interface,working without connecting with computer during working and easy to control.


3.Linear Guide
High precision Taiwan HIWIN HGH20 linear guide rail and slider block.

4.Inverter
Sunfar inverter.Automatically keep the output voltage when input voltage fluctuating.


5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.


6.Stepper Motor & Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable.

7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.


8.Rack and Screw

TBI Ball Screw for Z axis.High transmission efficiency.Steady moving.High precision Rack and Pinion Drive for X,Y axis.


2018 Desktop Woodworking Cnc Router 1200x2400 For Advertising Sign Board Marking
