OEM Mountain Bike Frameset Hardtail Frame Manufacturer

-Type: MTB 29ER

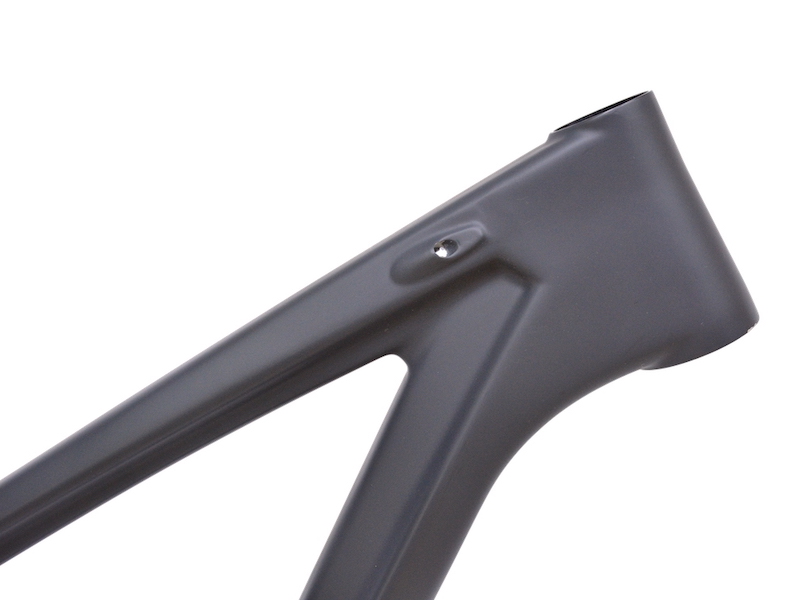

-Head Tube: Tapered 1-1/8’’ - 1-1/2”

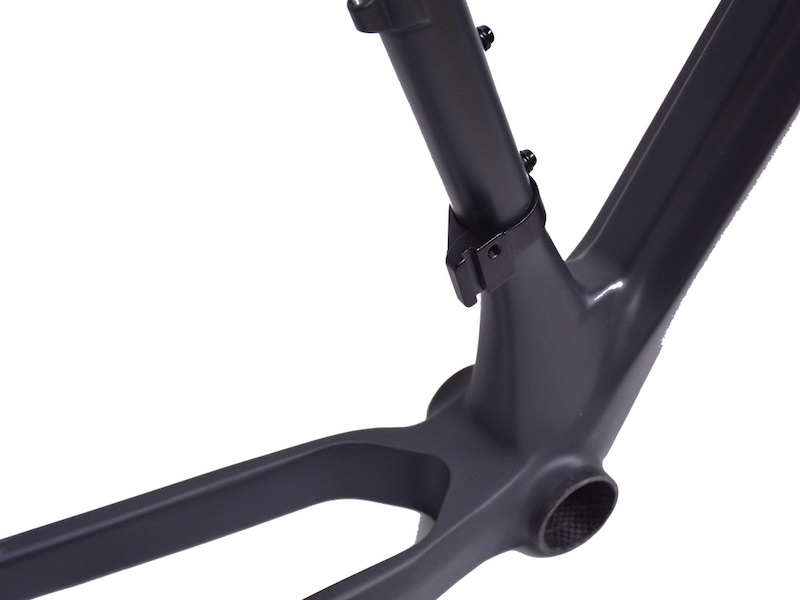

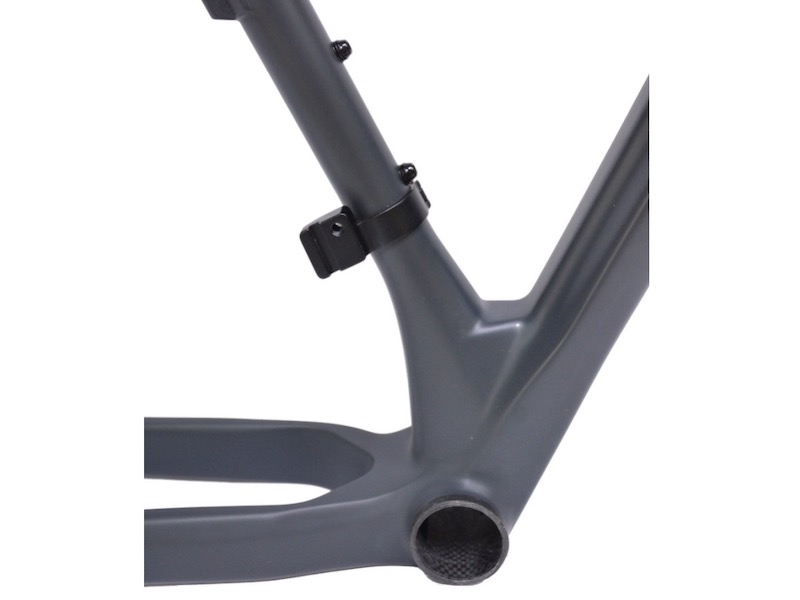

-Bottom Bracket: BB92

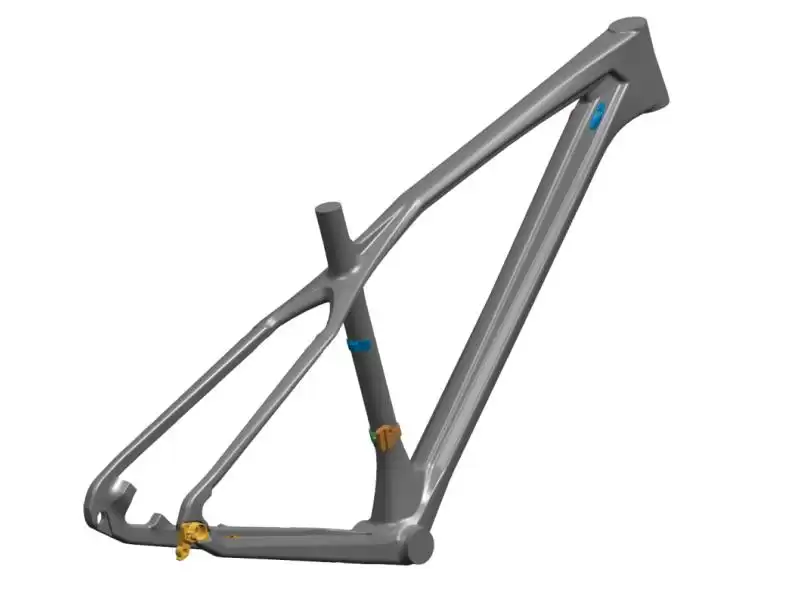

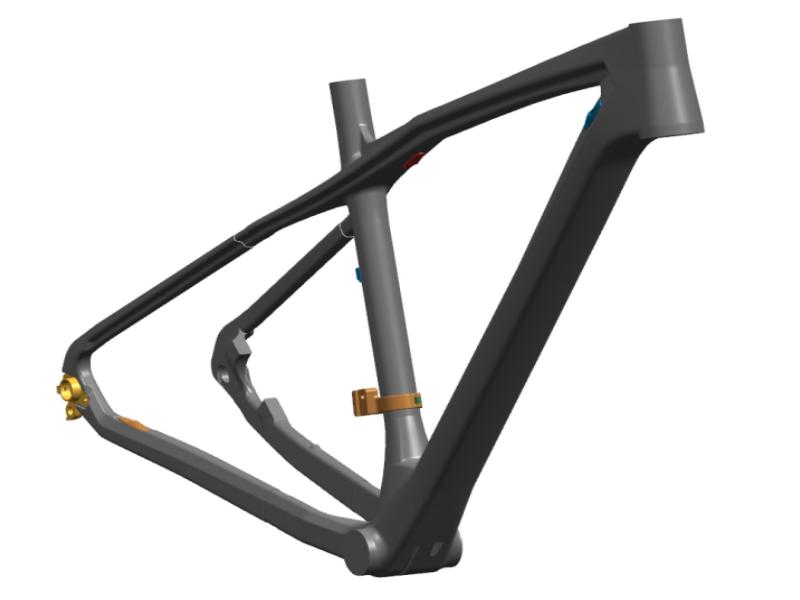

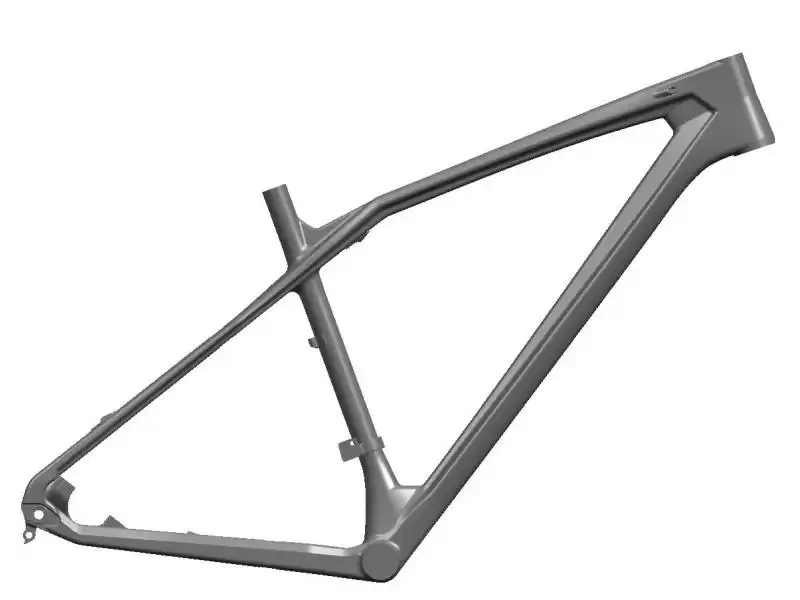

Mountain Bike Frameset Hardtail Frame

  • Type: MTB 29ER
  • Size: 17.5” / 18.5” / 19.5”  (C to T)
  • Head Tube: Tapered 1-1/8’’ - 1-1/2”
  • Bottom Bracket: BB92

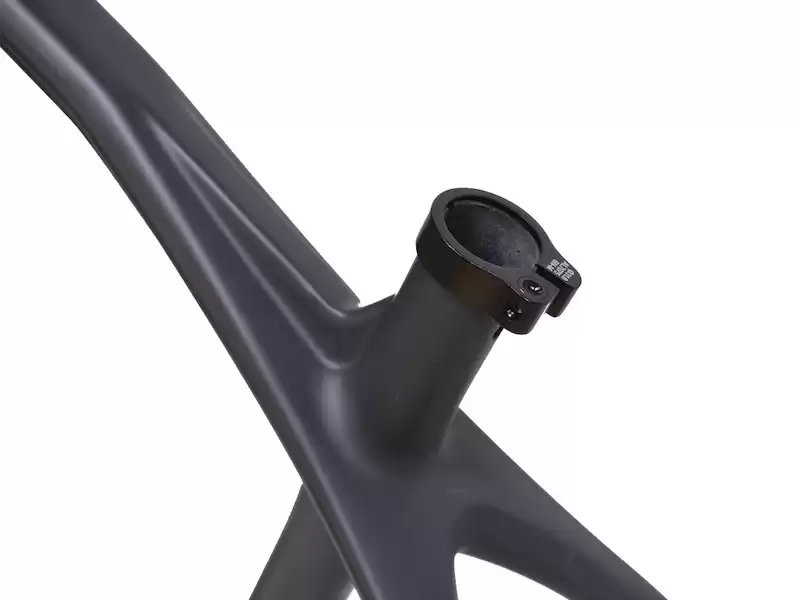

  • Seat Post: 27.2mm
  • Cable Routing: Internal and Mechanical
  • Tire Spec.: 2.25 inch

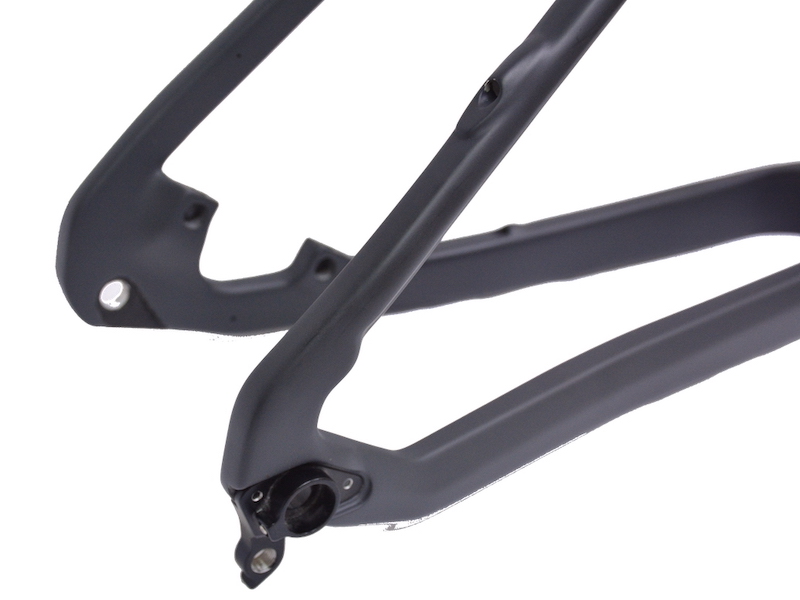

  • Hub Spec.: Thru axle 12*142mm
  • Weight:1100g+/-35g(M Size)
  • Material : Toray  T800 / T700

MTB Hardtail Carbon Bike Frameset


Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Size

17.5"

18.5" 19.5"
Stack 625 644 644
Reach 389 393 439
Head Tube Angle 71.5 71.5 71.5
Head Tub Length 105 118 125
Seat Tube Angle 74.5 74.3 74.3
Seat Tube Length 446 470 495
Top Tube Length 562 590 620
BB Drop 60 66 60
Rear To BB Center 440 440 440
Fork To BB Center 623 631 678
Fork Built Height 504 504 504
Fork Rake 39 39 39
Wheel Base 1055 1063 1111

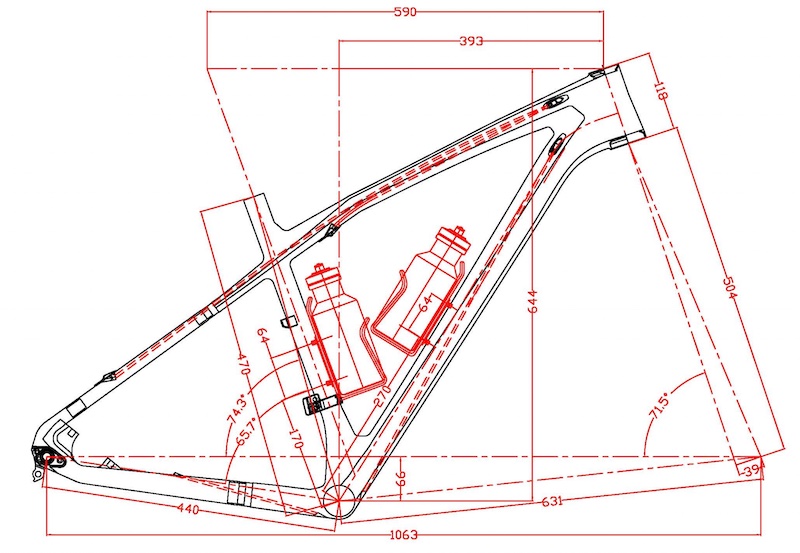

Technical drawings can help customer find the frame detail parameters and structure they are interested.

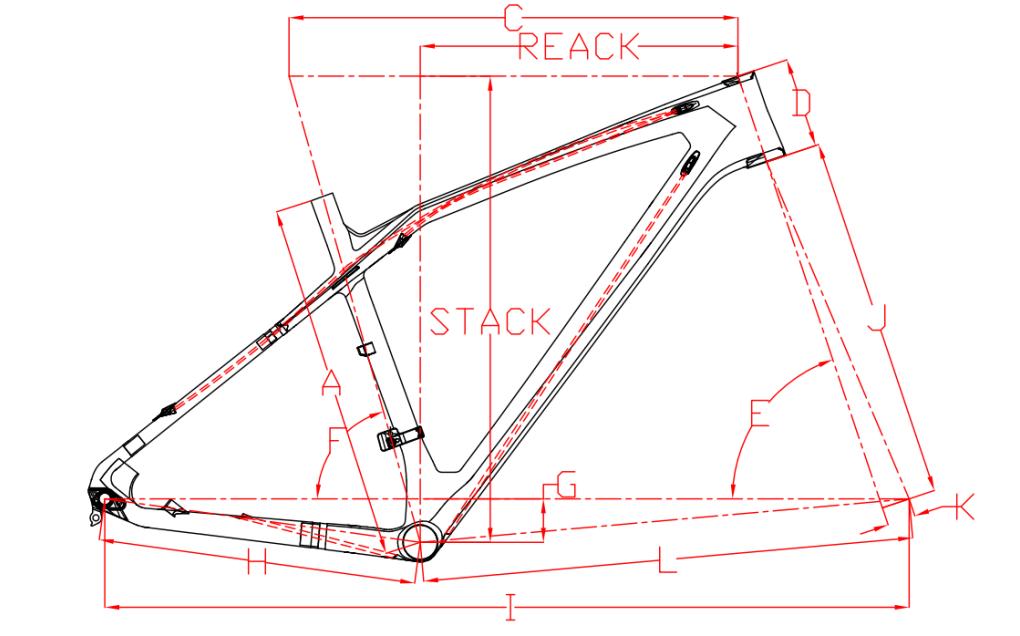

2d drawing hardtail MTB bike frames


TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:


Q1:How tall should you be for a 29 inch bike?

A1:29er model are fit for the height in 5inch-6inch or taller. Riders more than 6' tall can enjoyable: You'll definitely enjoy a more natural riding situation with this size and frame geometry of a 29er.


Q2:What size MTB frame do I need?

A2:The size and height as follows:

      Small 14-16inch 162cm-170cm (5ft 4in-5ft 7in)

      Medium 16-18inch 171cm-178cm (5ft 7in-5ft 10in)

      Large 18-20inch 179cm-185cm (5ft 10in-6ft 1in)


Q3:Is it worth getting a carbon MTB?

A3:If you want the premium look and an exceptional ride quality, a carbon mountain bike is very fit for you. It also can take your skills to the new next level in mountain bike technology, a carbon MTB bike can help you do it all.


Q4:How long do mountain bikes last?

A4:A mountain bike can last over 20 years when you keep proper maintenance . This situation is highly dependent on where you ride and how much you ride. Some items will wear out, tires, chains, brake pads and drivetrains will not last forever. So careful maintenance is very important.


Q5: Can you ride long distances on a mountain bike?

A5:Mountain bike are strong, it can take a beating and are reliable. It might take a bit more effort than road bike.
