Description:

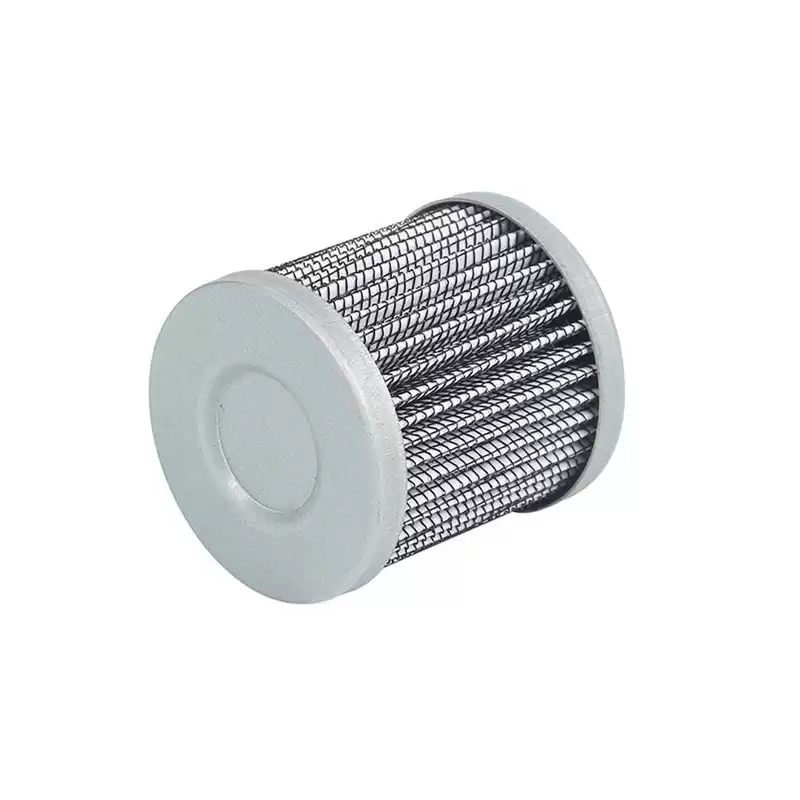

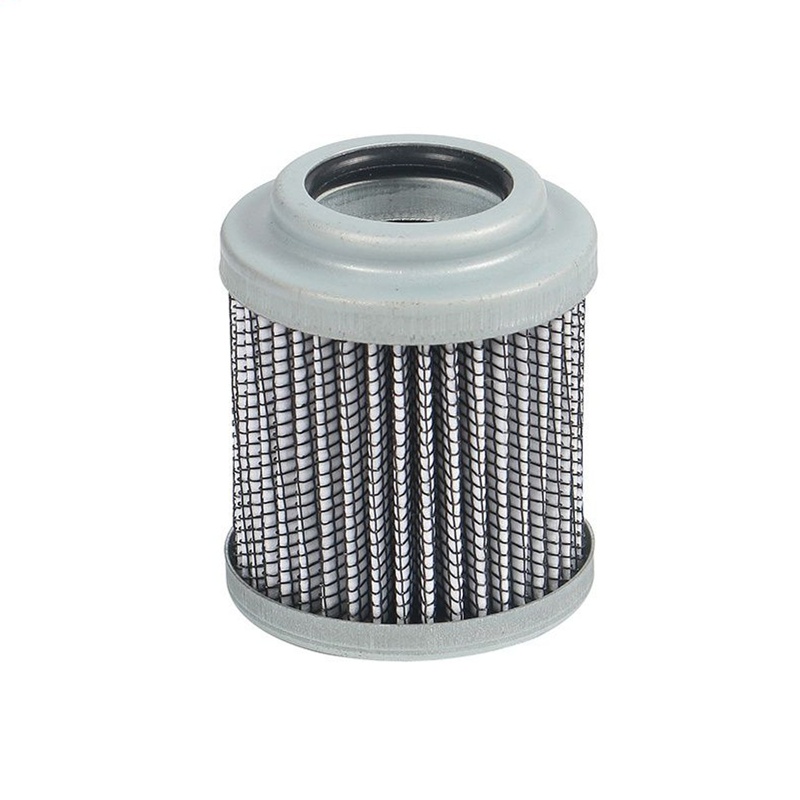

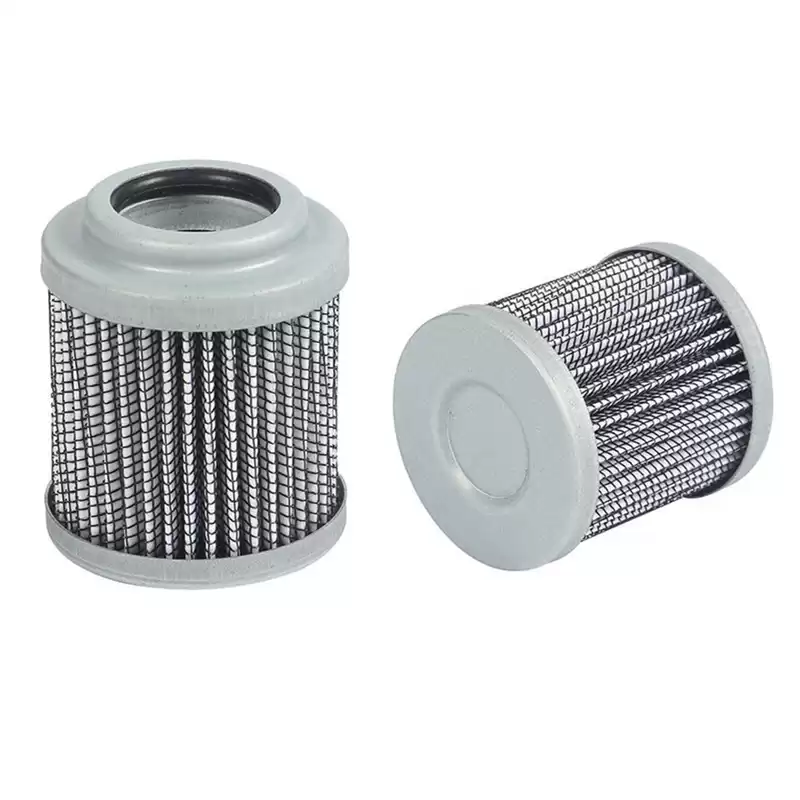

The H-5643 Hydraulic Filter Element is designed to fit standard hydraulic systems, providing effective filtration for hydraulic oil. It features high-quality glass fiber filter media that captures particles down to 10 microns, preventing contaminants from damaging pumps, valves, and other critical components. The filter element has an outer diameter of approximately 60mm, an inner diameter of 25mm, and a length of 120mm, making it compatible with many industrial and construction machines.
This filter supports hydraulic system reliability by maintaining clean oil flow, reducing wear and extending maintenance intervals. It is built with corrosion-resistant end caps and a durable core to withstand high operating pressures up to 25 MPa. Installation is straightforward, designed for easy replacement without modifications to existing housings.
Parameter：
| Model Number |
H-5643 |
| Product Type |
Hydraulic Oil Filter Element |
| Filtration Rating |
10 Microns |
| Outer Diameter |
Approx. 60 mm |
| Inner Diameter |
Approx. 25 mm |
| Length |
Approx. 120 mm |
| Filter Media |
Glass Fiber |
| End Cap Material |
Corrosion-Resistant Metal/Plastic |
| Working Pressure |
Up to 25 MPa |
| Applicable Medium |
Hydraulic Oil / Mineral Oil |
| Operating Temperature |
-25°C to +110°C |
Features:
- High-efficiency filtration using premium glass fiber media with 10-micron rating to ensure clean oil flow.
- Durable construction with corrosion-resistant end caps for extended service life.
- Supports high working pressure environments up to 25 MPa, suitable for heavy-duty hydraulic systems.
- Standardized dimensions for easy replacement in most hydraulic filter housings without modification.
- Compact and user-friendly design allows for quick installation and reduces maintenance downtime.
Applications：
Construction Machinery: Suitable for excavators, loaders, bulldozers, and other heavy equipment hydraulic systems.
Industrial Equipment: Used in hydraulic presses, injection molding machines, and automated production lines.
Agricultural Machinery: Fits tractors, harvesters, and other outdoor hydraulic equipment.
Material Handling Equipment: Ideal for forklifts, cranes, and warehouse hydraulic systems.
Maintenance and Repair: Recommended for routine filter replacement to maintain hydraulic system performance and prevent failure.
Our Service
 |
 |
 |
 |
|
Sample Delivery: 3-15 days.
|
Order Delivery: 20-30 working days, depending on quantity.
|
Shipping: Available by sea, air, or express.
|
Test the products upon receipt and contact us if there are any issues. |
