Off-center weighing load cell low capacity sensor NA196

NA196 is an off-center single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This electronic weighing load cell is available for 3, 6, 10, 20, 35kg.



  • Protection ClassPI66
  • Rated Output2.0mV/V
  • Dimension100*24*22mm
  • MaterialAluminum Alloy
  • Capacities3-35kg

Low capacity single point Load Cell NA196

NA196 is an off-center single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This electronic weighing load cell is available for 3, 6, 10, 20, 35kg.

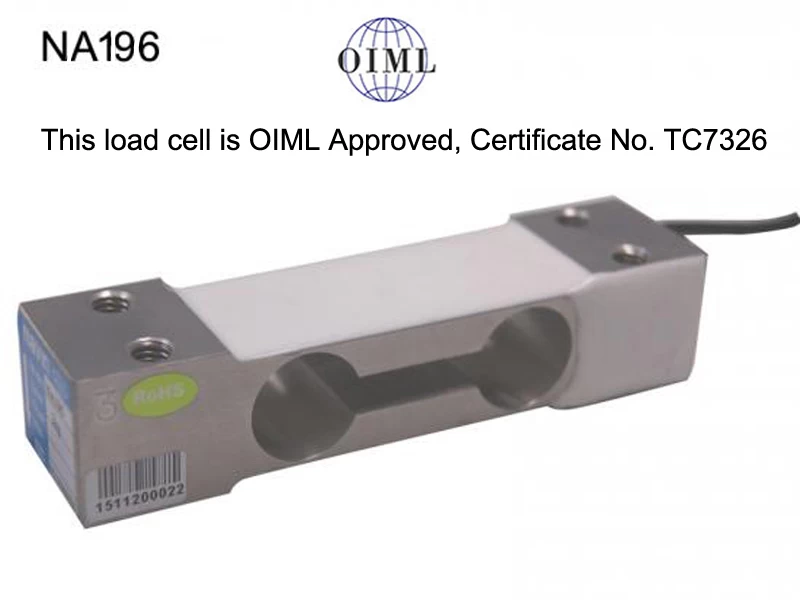

This load cell is OIML Approved with Certificate No. TC7326.


Key Features

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install


Usage & Applications

price computing scales
counting scales
weighing scales
retail scales

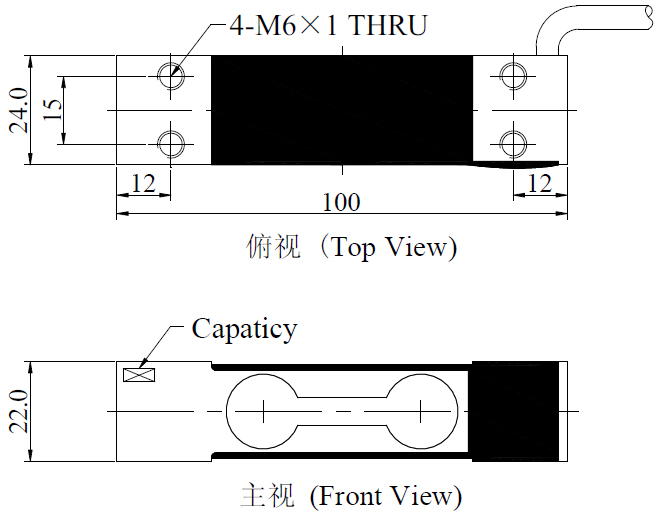

Dimensionoff center load cell NA196


NA196 Specification

Rated Capacities

36102035kg

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ3×0.5m

Recommended Platform Size

300×300 mm

Mode of Connection

RedEXC+,BlackEXC-,
GreenSIG+,WhiteSIG-
