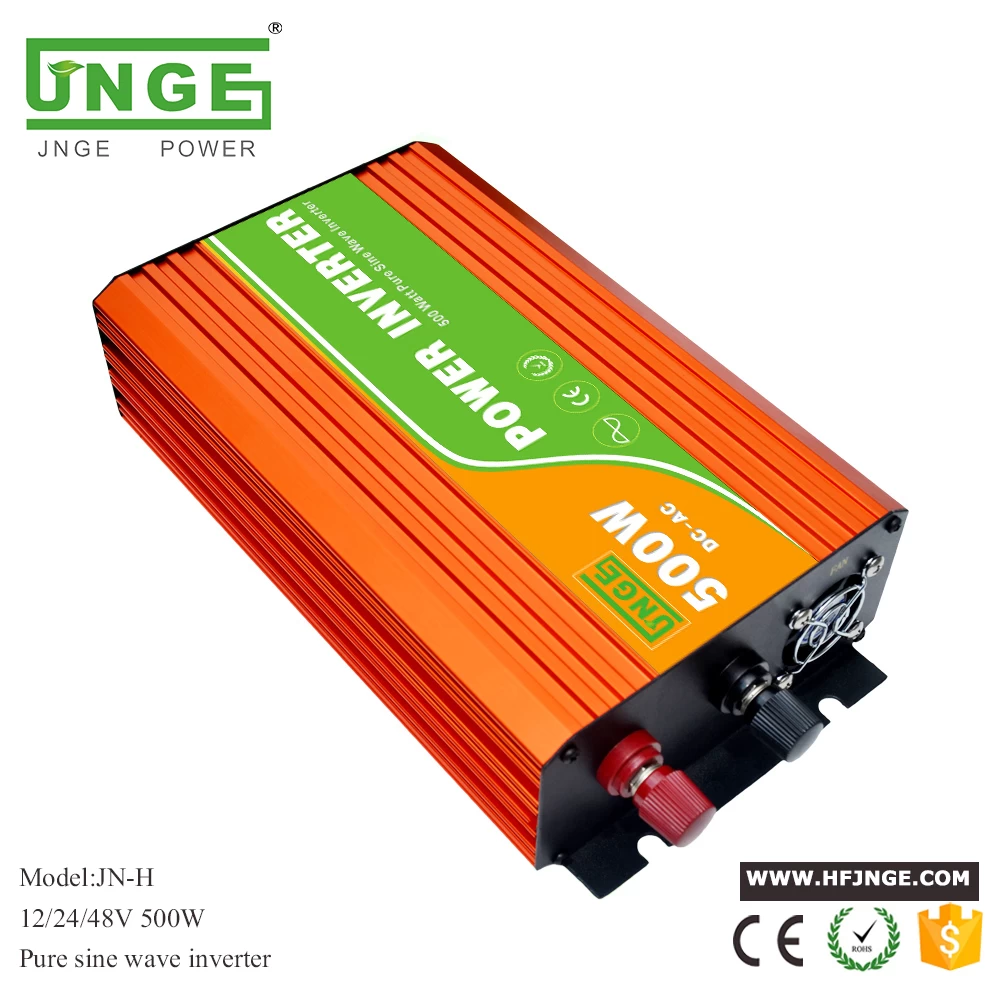

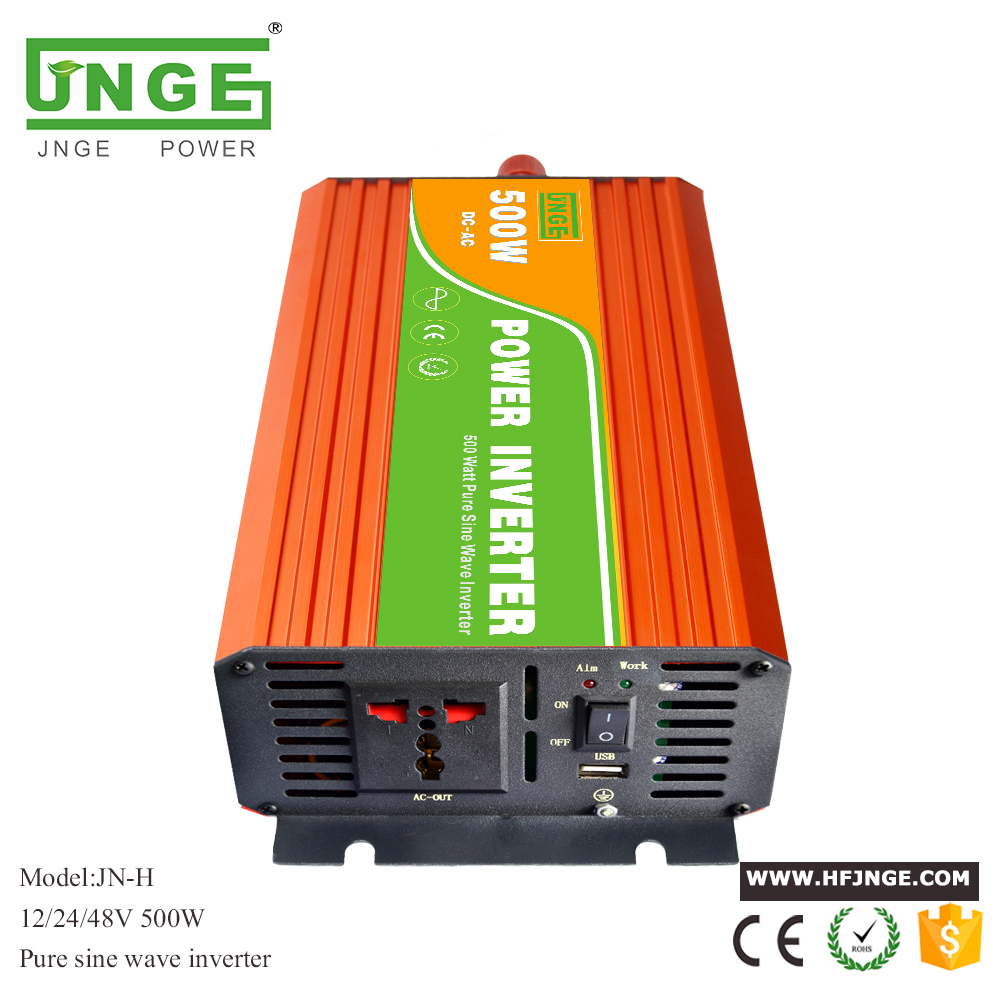

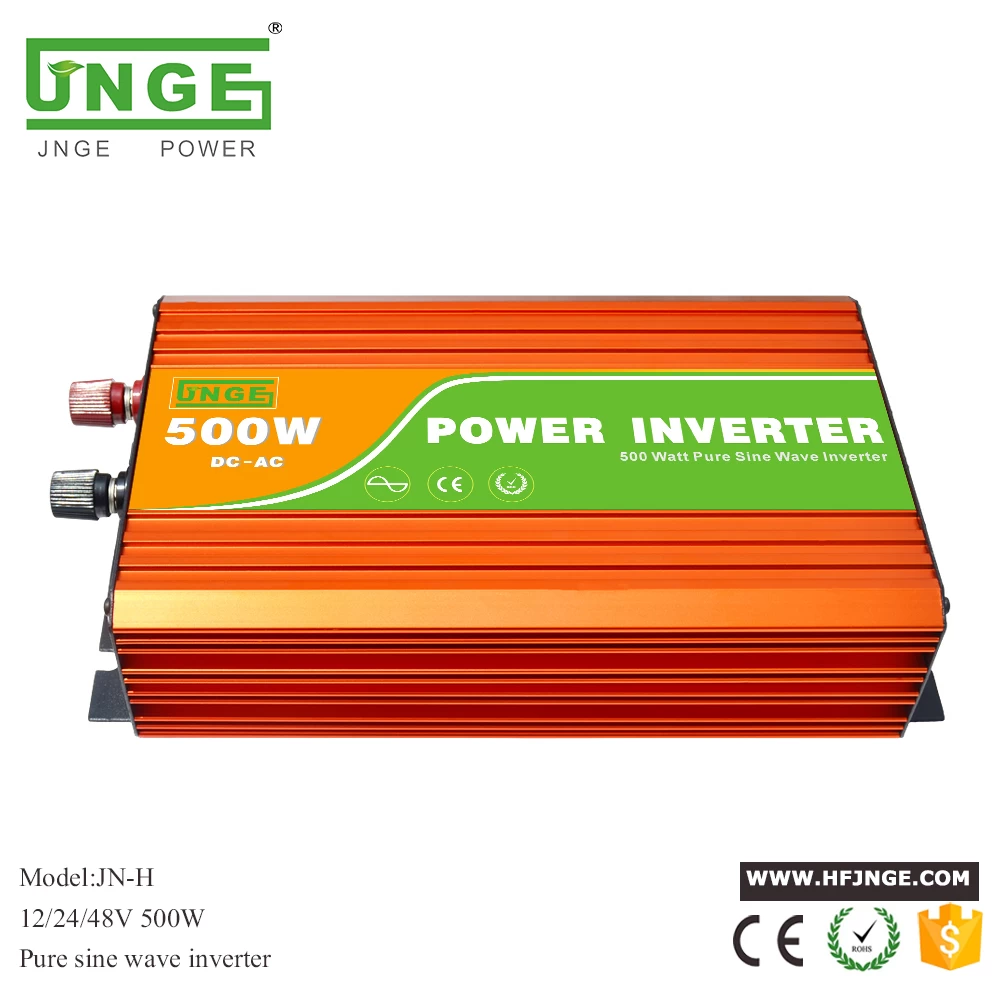

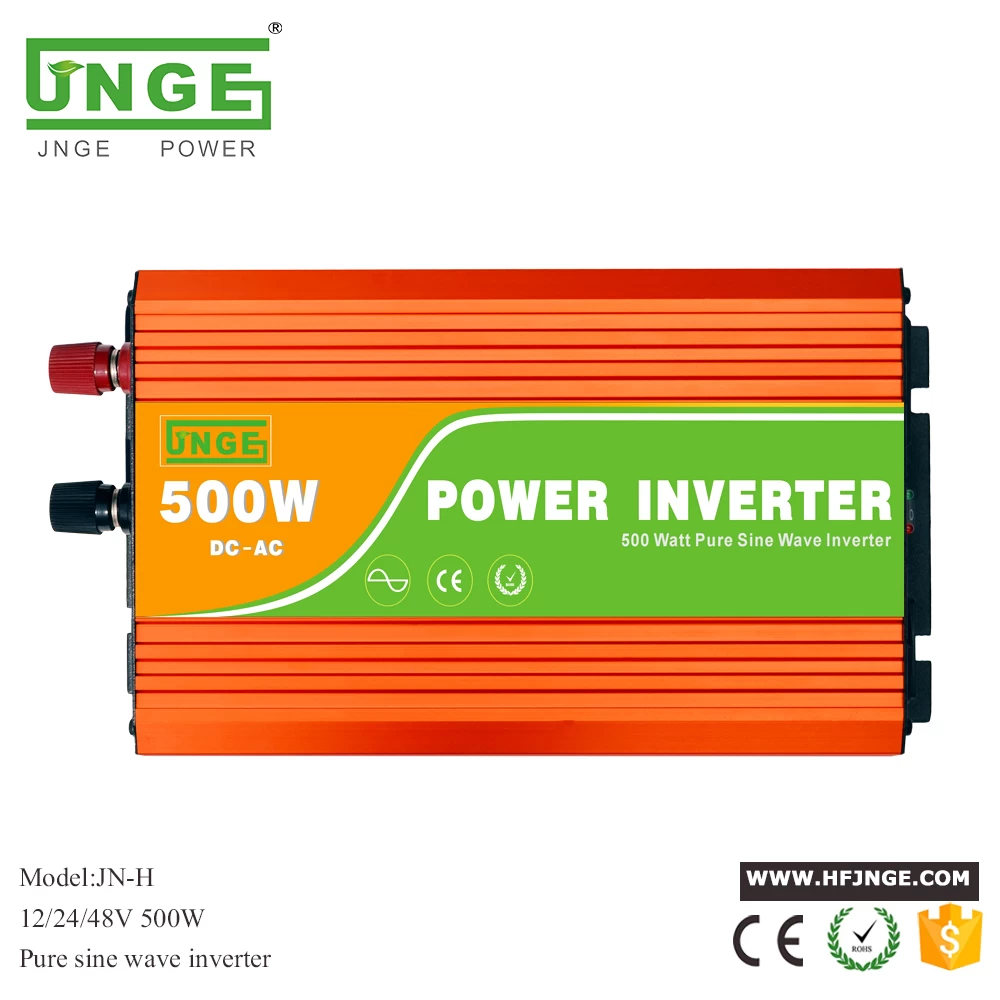

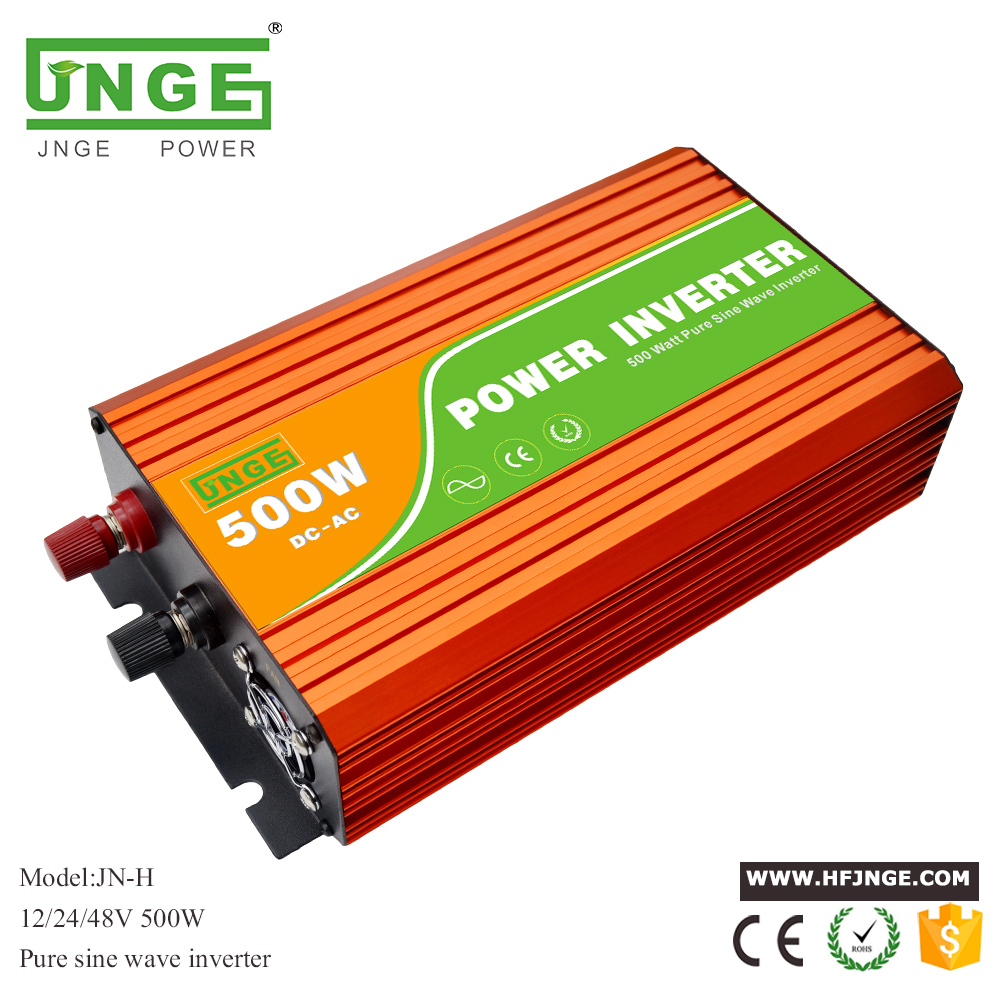

Off grid 500w pure sine wave power inverter

Pure sine wave inverter

·Small, light and artistic, benefited from adopting the SMD pastern technology.

·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.



This is a 12V 24V 48V 500W pure sine wave power inverter which can generate 500W of continuous power and up to 1000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.

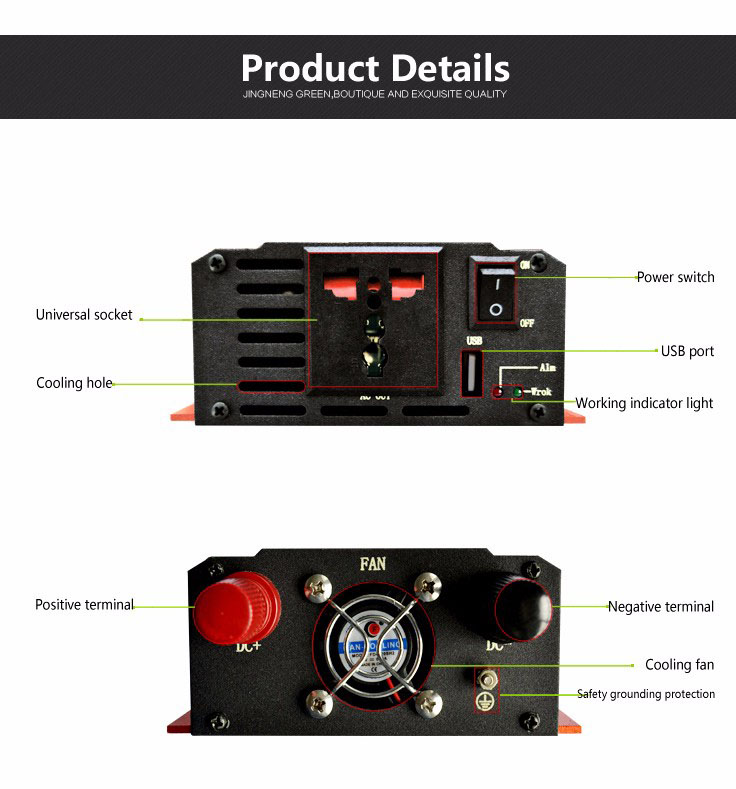

The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads


Product parameters:

OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 500W
SURGE POWER 1000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
   Non-load  Consumption <7W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC     21-30V      40-60V     50-75V      60-90V
PROTECTION WORKING INPUT 12VDC          24VDC      48VDC     60VDC      72VDC
FUSE 35A                20A            15A          35A           35A
Low battery alarm 10.5+0.3V    21+0.5V      42+0.5V   52.5+0.3V  63+0.3V
Low battery shut down 10+0.5V       20+0.5V   40+0.5V     50+0.5V      60+0.5V
Over voltage shut down 15.5+0.5V    30.5+0.5v  60+0.5v    77.5+0.5V
Over load shut down 600W OVER 10 SECOND
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  235*146*66mm
INNER BOX DIMENSION  300*180*115mm
CARTON DIMENSION  580*305*380mm
NET WEIGHT 1.85±0.2KG
GROSS WEIGHT 20±1KG
PACKING 10PCS/CTN
