Total electrical independence starts here.
Sunpal Power's Residential Off Grid Solar Pv Kits are the most cost effective and easy Pv solutions available for home use. They are ideally suited for any household that is looking to reduce energy costs using, it is an efficient and clean energy system.
Sunpal Power's Off Grid System, it is a new type off grid solution. You can use solar energy in the day directly, meanwhile, solar can charge batteries. At night, run backup batteries. If solar isn't enough at night or rain days, you can use state grid as well.
Off grid sysetm is popular in Africa, Southeast Asia, and the Caribbean, it is mature technology and widely used.
Product Benefits
-
Reduce your power bill
-
Enjoy clean energy everyday
-
Reduce your carbon footprint
Common Application
-
Locations where liquid fuel costs are expensive or difficult to maintain
-
Those looking to be completely independent from the grid
-
Those who cannot afford to lose power or have power outages

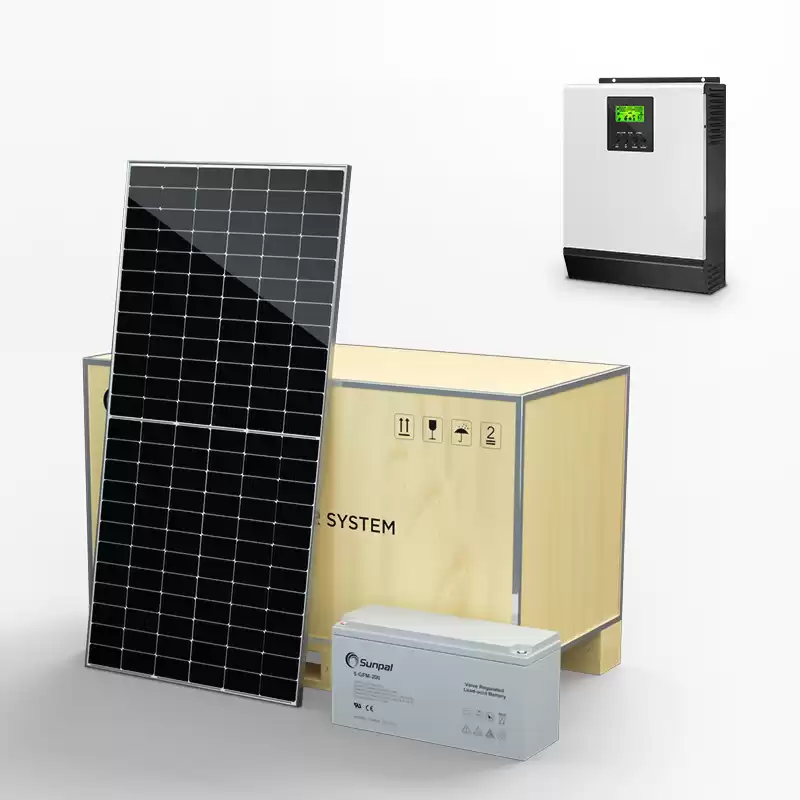

What is in sunpal off grid package:
Mono Solar Panels
Peak Power Watts: 340W (SP340M-60H)
Maximum Power Voltage: 34.2V
Maximum Power Current: 9.94A
Open Circuit Voltage: 41.1V
Short Circuit Current: 10.6A
Dimensions:1698×1004×35 mm (66.85×39.53×1.38 inches)
Weight:18.7 kg (40.8 lb)

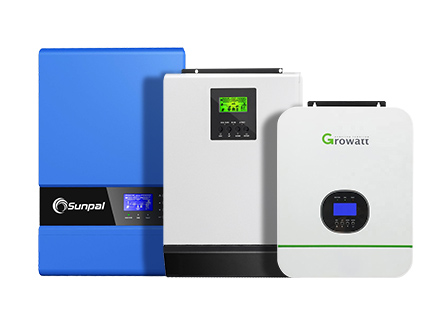

Off Grid Inverter
The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.

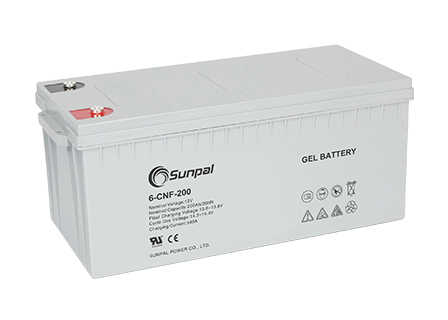

Gel Battery
GEL battery is a popular solution for residential off grid solar system, it have many advantages, such as maintenance free, safety and no leakage, excellent recharge and discharge performance etc.
Solar Panel Mounting Structure
We are committed to providing customers with stable, reliable and cost-effective solutions of roof mounting system, ground mounting system, and construction of various solar power stations for civil and commercial use, government departments, power stations projects etc.
PV Combiner Box
Combiner box is a wiring device to ensure the orderly connection and confluence function of solar panels in the solar power system. Meanwhile, it can provide protection in the whole system.
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
Off grid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
