Product Advantages:
. Bypass charging function,AC charge available When the unit off.90-280V AC Widely input voltage.
· Grid electricity and battery power priority is optional.
· Higher charge current and adjustable
· Communicate with our MPPT charge controller.
· Intelligent protection, higher class of security.
Date Sheet
|

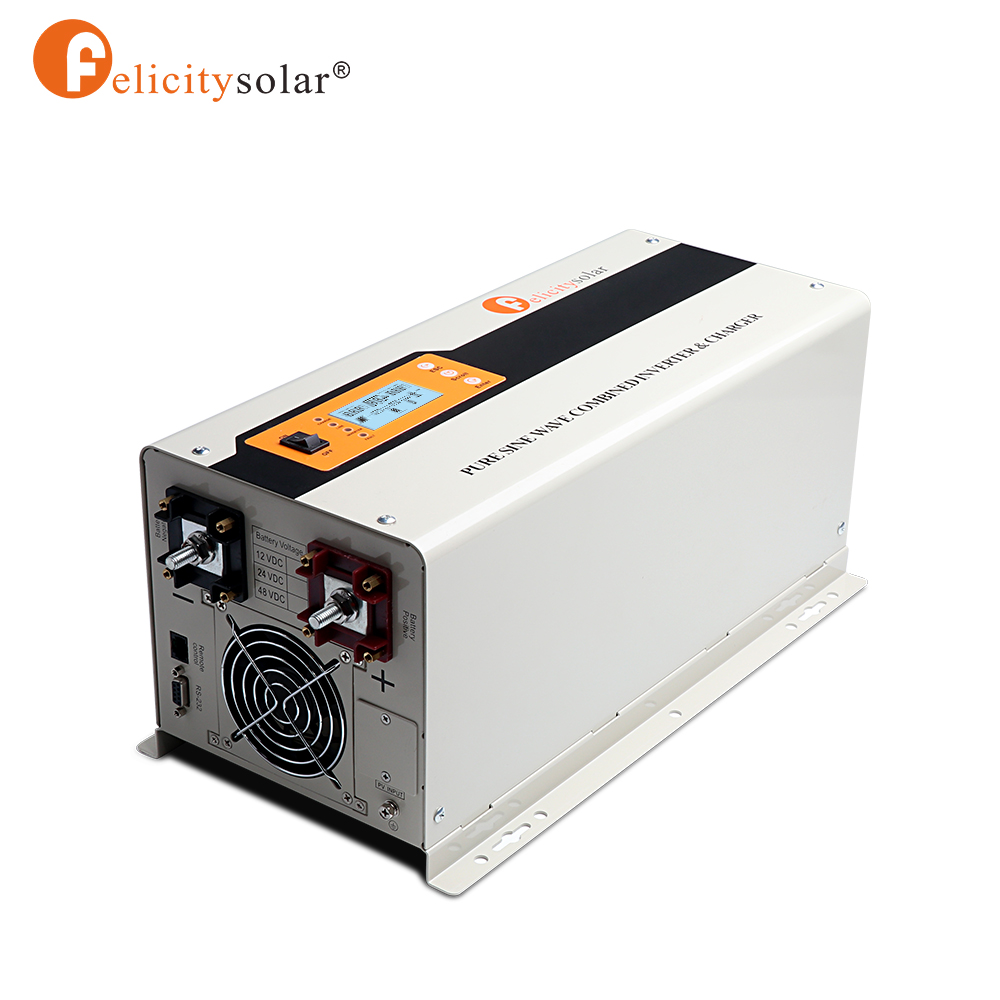

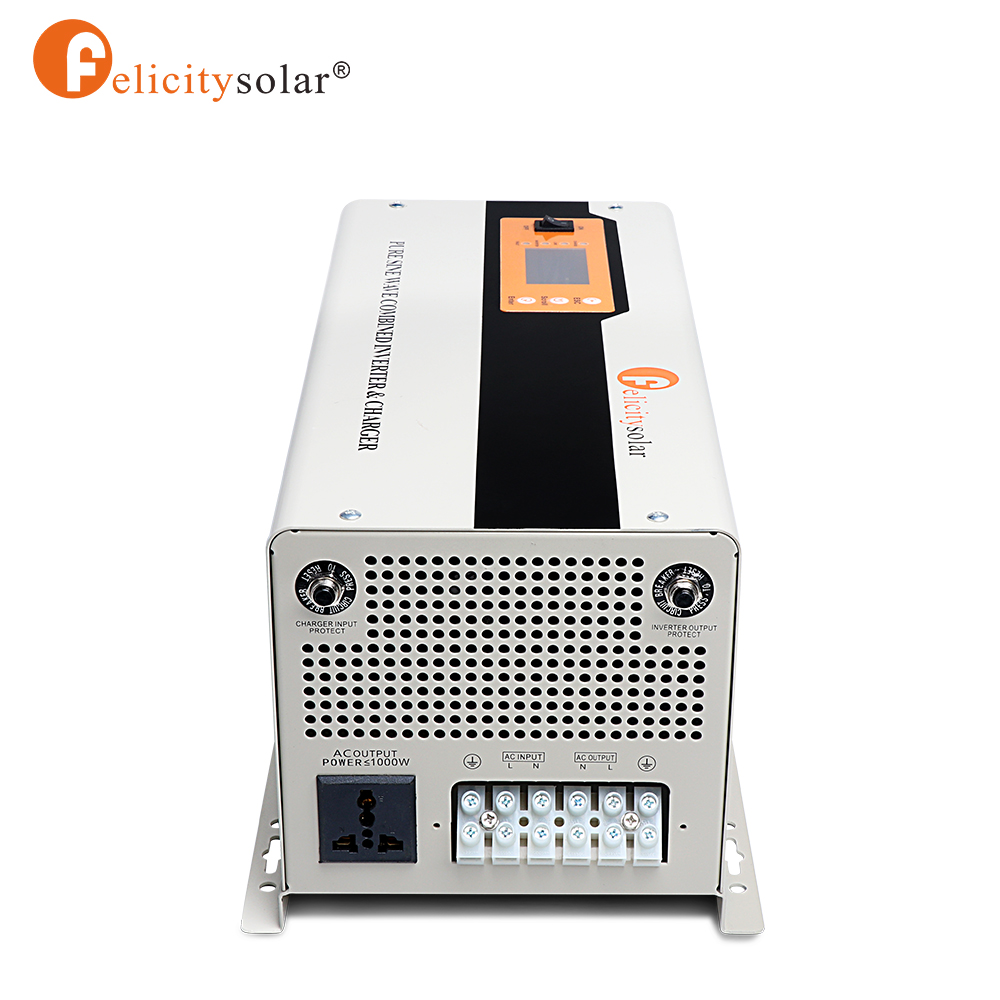

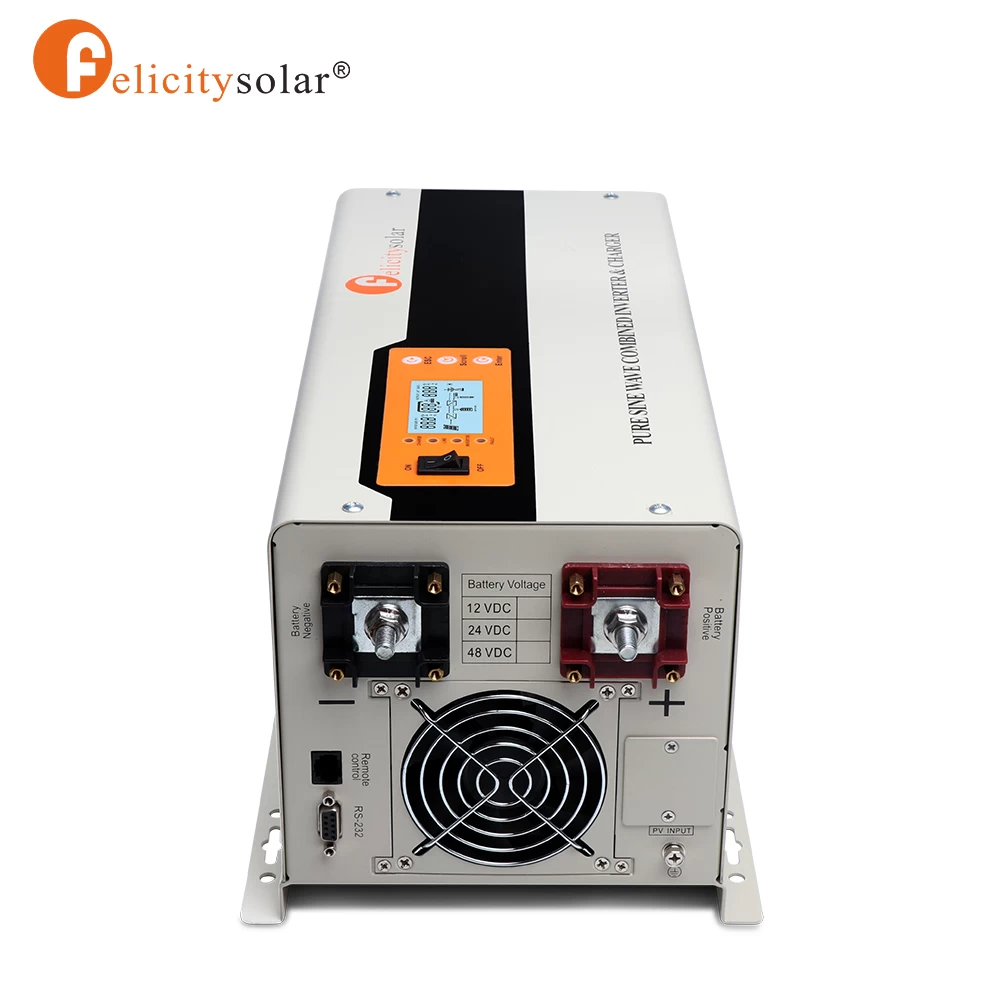

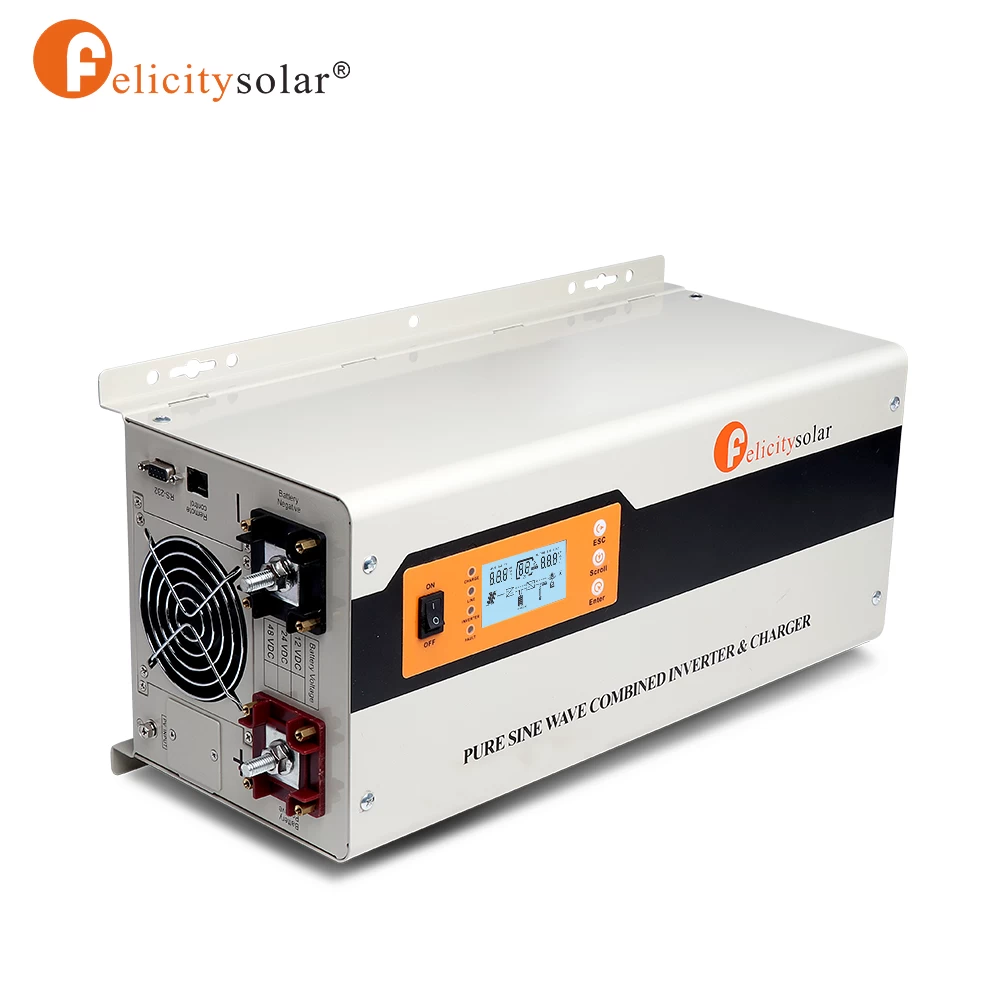

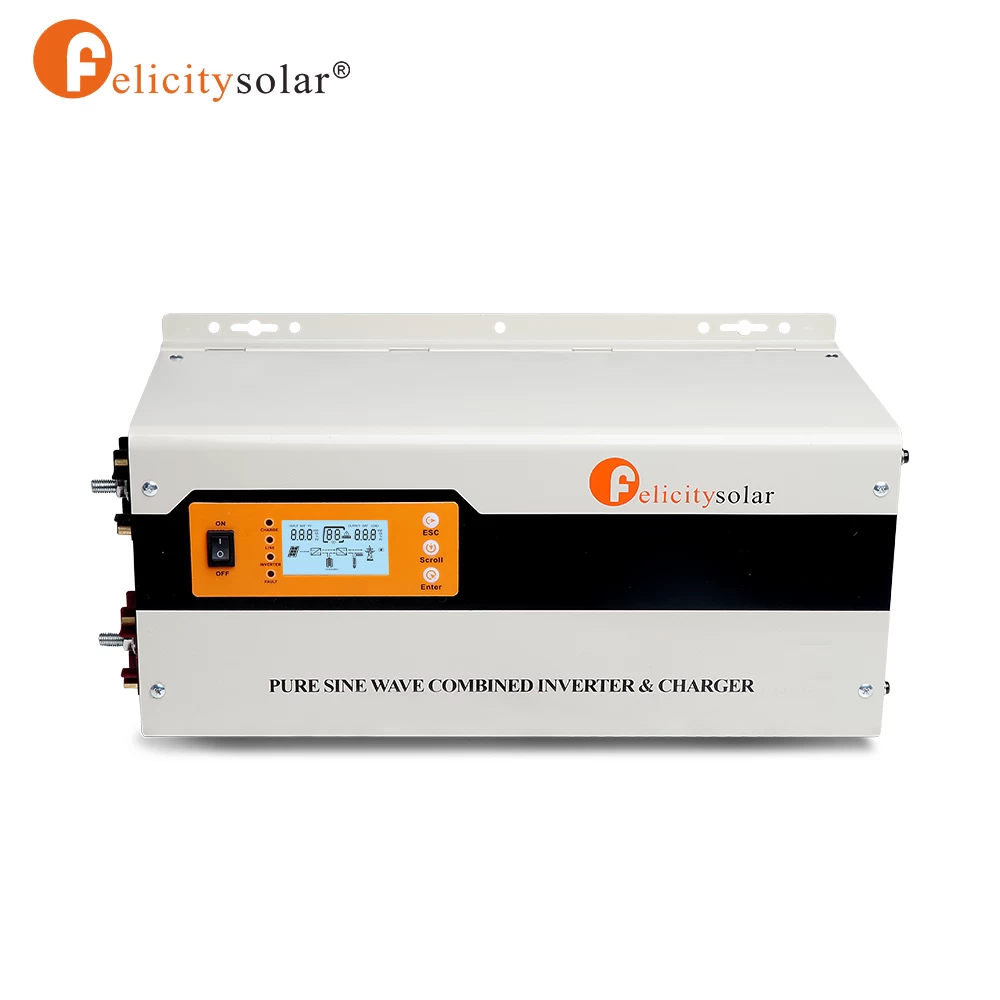

Solar Inverter IVPL
|
|
Model
|
2512
|
|
|
2500VA
|
|
RatedOutputPower(W)
|
2500va/2000w
|
|
Norminal DC Input Voltage
|
12v
|
|
Charge & Line Mode Specification
|
|
Norminal Input Voltage
|
220Vac
|
|
Low Line Disconnect
|
90Vac±7Vac
|
|
Low Line Re-connect AC Input Range
|
100Vac±7Vac
|
|
High Line Disconnect
|
280Vac±7Vac
|
|
High Line Re-connect
|
270Vac±7Vac
|
|
Output Voltage Waveform
|
As same as input waveform
|
|
Efficiency(Line mode)
|
≥95%(Rated R load, and battery is full charged)
|
|
Transfer switch Rating
|
AC 30A
|
|
Transfer time(AC to DC)
|
15ms(typocal)
|
|
Transfer time(DC to AC)
|
15ms(typocal)
|
|
Pass Through Without Battery
|
Yes
|
|
Input Overload Current
|
AC 30A
|
|
Norminal Output Voltage
|
Dependent on battery type
|
|
Max Charge Voltage
|
DC 40A
|
|
Charge Current Regulation
|
Charge current adjustable:0A,10A,20A,30A,40A
|
|
Breaker Size
|
Dependent on battery type or Self-defined
|
|
Over Charge protection
|
Yes
|
|
Algorithm
|
AGM
|
|
|
Flood
|
|
|
Self
|
|
Inverter Mode Specification
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Power Factory
|
1
|
|
Nominal Output Voltage
|
220Vac±5%
|
|
Nominal Output Frequency(Hz)
|
50±0.3Hz/60±0.3Hz(adjustable)
|
|
Over-load Protection(SMPS)
|
60s@≥150% load; 120s@105%-150% load
|
|
Surge Rating
|
2*rated power for 5 seconds
|
|
Capable of starting electric
|
Yes
|
|
Output Short Circuit Protection
|
Yes
|
|
Output overlaod current
|
AC 30A
|
|
Nominal DC Input Voltage
|
12Vdc
|
|
Low Battery Alarm
|
11.5V/23V/46Vdc@load<50%;11V/22V/44Vdc@load>=50%
|
|
Low battery Recovery
|
11.75V/23.5V/47Vdc@load<50%;11.5V/23V/46Vdc@load>=50%
|
|
Low DC Input Shut-down
|
10.75V/21.5V/43Vdc@load<50%;10.5V/21V/42Vdc@load>=50%
|
|
High DC Input Alarm& Fault
|
15.75Vdc±0.4/31.50Vdc±0.4V/63Vdc±0.4V
|
|
High DC Input Recovery
|
15.5Vdc±0.4/31.0Vdc±0.4V/62Vdc±0.4V
|
|
Oprating Temperate
|
0℃ to 40℃
|
|
Range Storage temperate
|
-15℃-60℃
|
|
Dimension(mm)
|
570*315*300mm
|

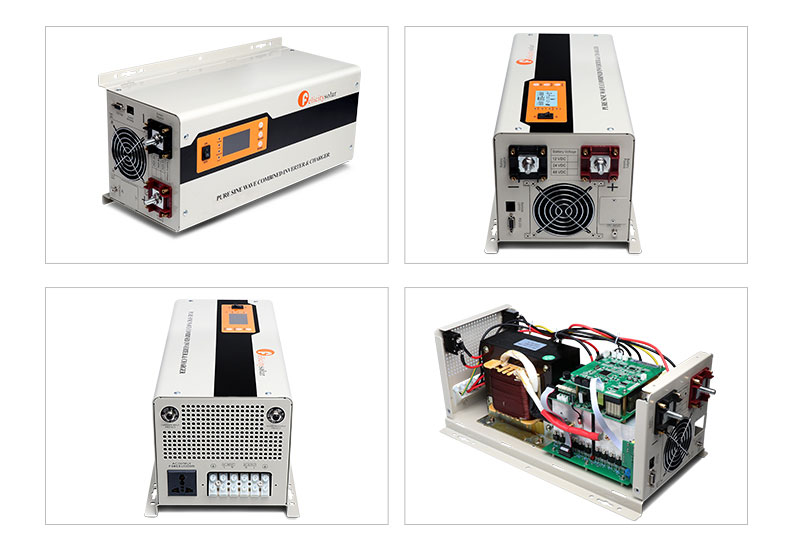

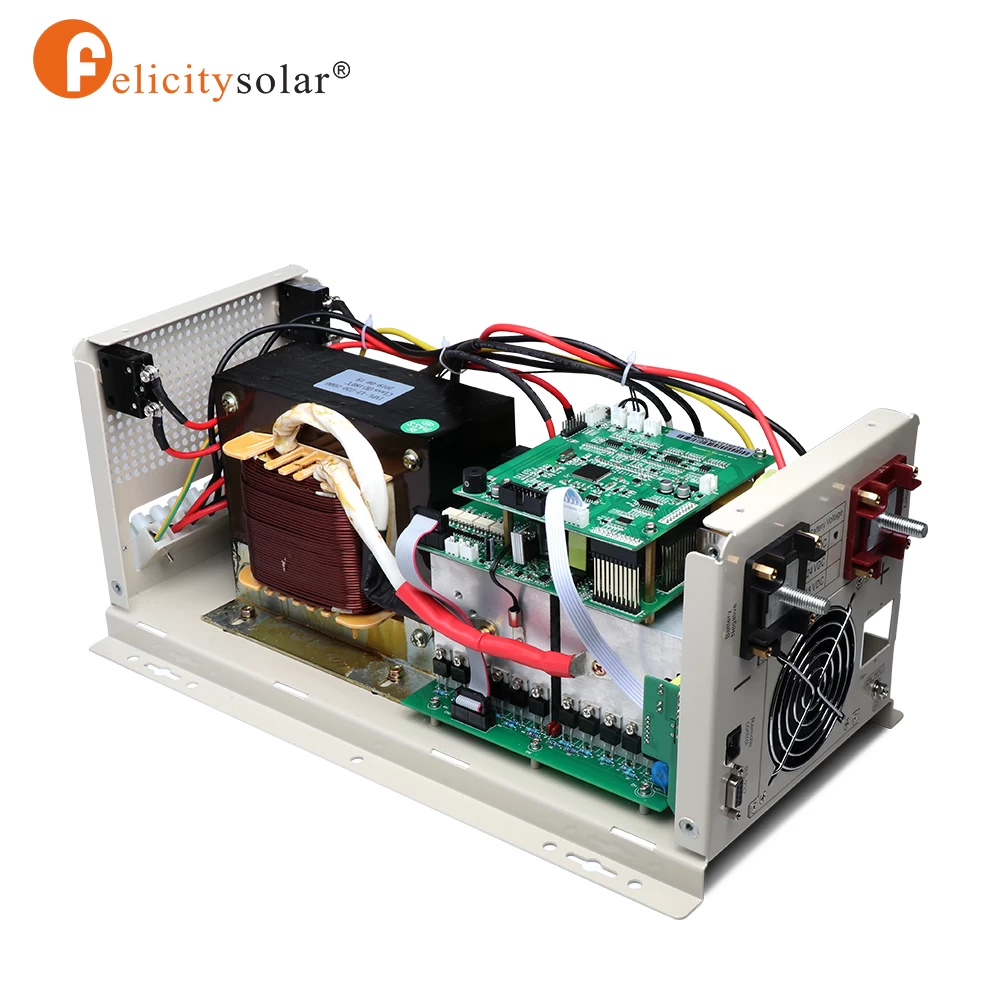

Product Detail

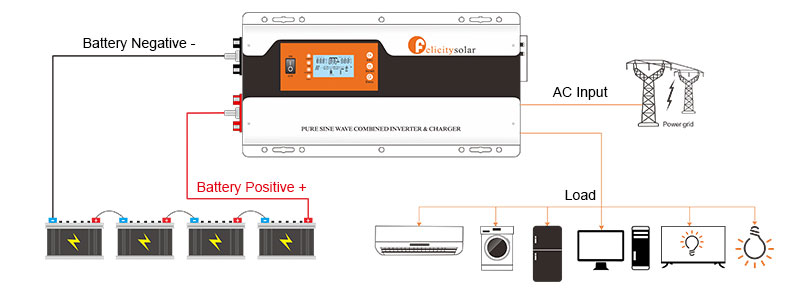

SYSTEM DIAGRAM :
Used in utility power or solar system

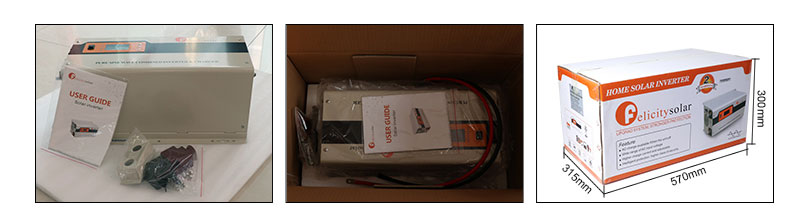

Packaging

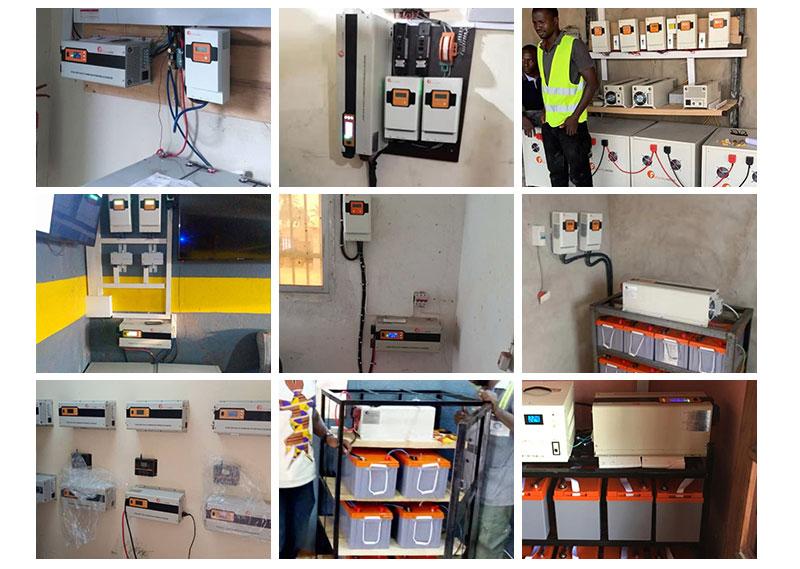

PRODUCTION CASE:
Industrial solar power system is more and more popular because it is an effective solution to supply
continuous power for unstable power area in a envrionmental-friendly way. By now, we have installed
power plant in various countries, such as Mali, Nigeria, Columbia and Panama, etc.

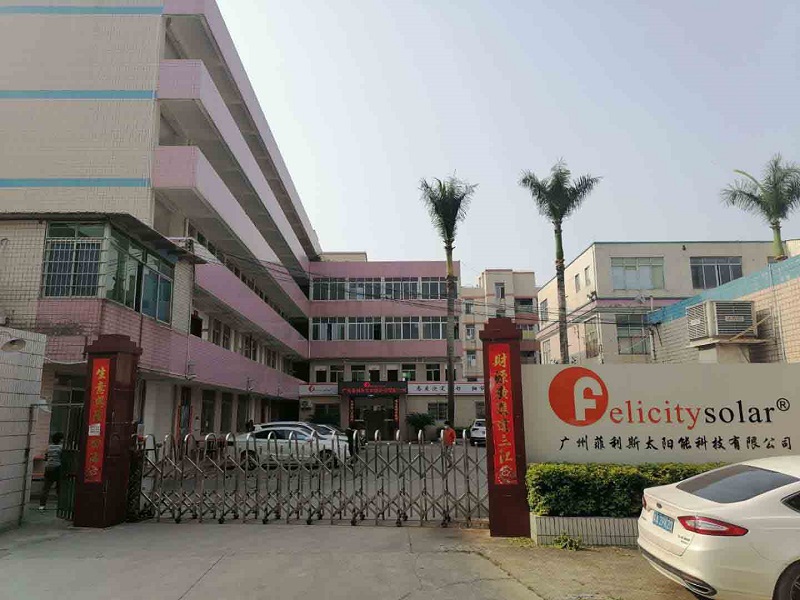

Company Information
