Solar power system for off grid from 300w to 10kw,whole system with solar panel,battery banks,pure sine wave solar inverter and solar charger controller
what is solar power system：

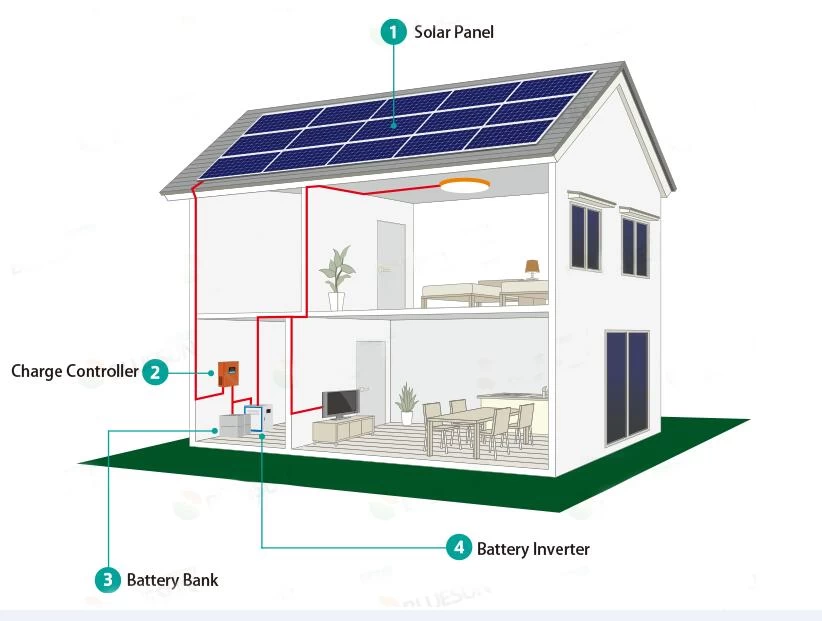

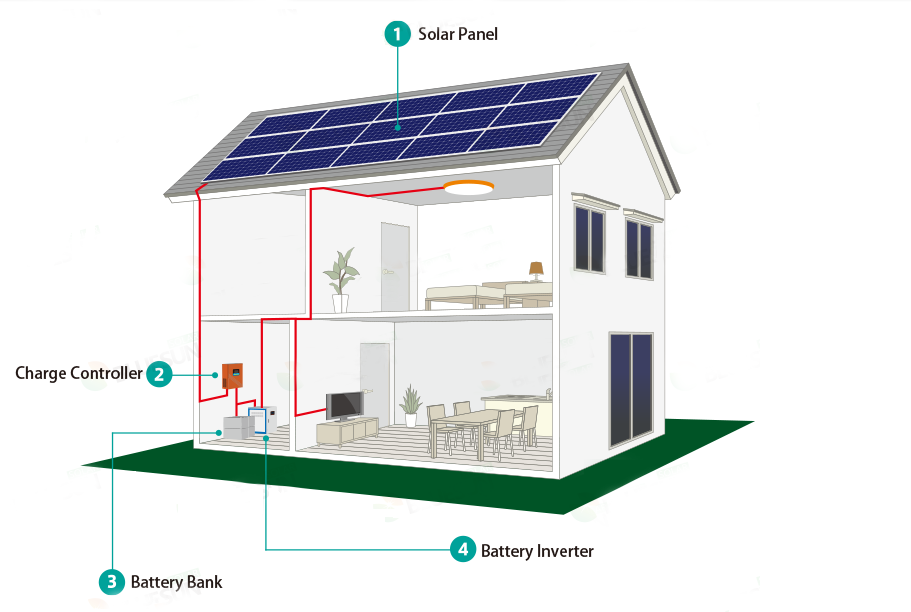

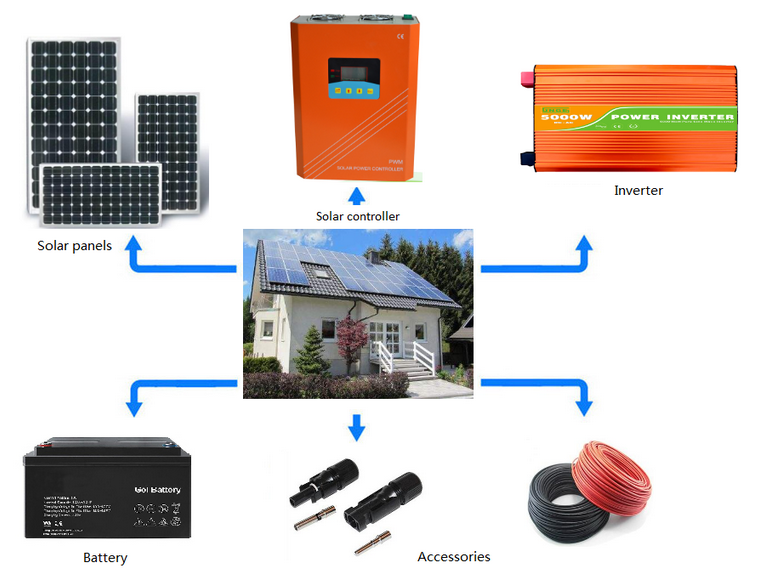

The off grid solar energy power generation system is integrated with solar panels, batteries,charge
controllers, inverters and so on. It adopts solar controller to manage and
control the battery charging, automatic management of battery discharge. System uses microcomputer chip, non-contact control technology, with
intelligent discharge ABM-type advanced battery management system technology. It
has many kinds of protection functions as overcharge, over discharge, short
circuit, over current, overload, overvoltage and a series of perfect
protection, with energy efficient, safe and reliable, to adapt to harsh working
environment and many other advantages. Can be widely used for household, shed,agricultural irrigationand other fields.
Off-grid solar power system details
solar power system kits:
Different system solutions,can be customized or DIY.
A.System solution for 300w mini solar system
|
300W off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-150P
|
Poly
150w solar panel
|
2pcs
|
|
2
|
JN-K
12V 30A
|
12V
30A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
100Ah ,Gel or Leadacid
|
1pc
|
|
4
|
JN-H
300W
|
12VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
50m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
B.System solution for 500w solar pv household system
|
500W off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-250P
|
Poly
250w solar panel
|
2pcs
|
|
2
|
JN-S
24V 20A
|
24V
20A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
100Ah ,Gel or Leadacid
|
2pcs
|
|
4
|
JN-H
500W
|
24VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
50m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
C.System solution for 1000 watt solar power system
|
1KW off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-250P
|
Poly
250w solar panel
|
4pcs
|
|
2
|
JN-R
24V 50A
|
24V
50A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
250Ah ,Gel or Leadacid
|
2pcs
|
|
4
|
JN-H
1KW
|
24VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
50m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
D.System solution for 2kw solar power system
|
2KW
off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-250P
|
Poly
250w solar panel
|
8pcs
|
|
2
|
JN-R
48V 50A
|
48V
50A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
250Ah ,Gel or Leadacid
|
4pcs
|
|
4
|
JN-H
2KW
|
48VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
100m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
E.System solution for 3KW solar system with battery
|
3KW
off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-250P
|
Poly
250w solar panel
|
12pcs
|
|
2
|
JN-R
48V 60A
|
48V
60A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
200Ah ,Gel or Leadacid
|
8pcs
|
|
4
|
JN-H
3KW
|
48VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
100m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
E.System solution for 4kw solar system
|
4KW off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-250P
|
Poly 250w solar panel
|
16pcs
|
|
2
|
JND-X 96V 50A
|
96V 50A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V 250Ah ,Gel or Leadacid
|
8sets
|
|
4
|
JN-H 4KW
|
96VDC/220V AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting Structure
|
Whole set mounting structure for solar panel
|
1set
|
|
6
|
PV Cables
|
4mm2
|
100m
|
|
7
|
MC4 connector
|
Rated Voltage:1000V
|
accordingly
|
F. System solution for 50000 watt solar off grid system ,5kw off grid solar system
|
5KW
off grid solar system Equipment List
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-320P
|
Poly
320w solar panel
|
16PCS
|
|
2
|
JND-X
96V 50A
|
96V
50A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
250AH,Gel or Leadacid
|
8pcs
|
|
4
|
JN-H
5KW
|
96V
DC/220V AC 50/60H Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
200m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
G. System solution for 10kw solar system off grid
|
10KW
off grid solar system Equipment list
|
|
Item
|
Module
|
Description
|
Quantity
|
|
1
|
JN-320P
|
Poly
320w solar panel
|
32pcs
|
|
2
|
JND-X
192V 50A
|
192V
50A Solar Charge Controller
|
1set
|
|
3
|
Battery
|
12V
250Ah ,Gel or Leadacid
|
16pcs
|
|
4
|
JN-H
10KW
|
192VDC/220V
AC 60Hz Off Grid Inverter
|
1pc
|
|
5
|
Mounting
Structure
|
Whole
set mounting structure for solar panel
|
1set
|
|
6
|
PV
Cables
|
4mm2
|
300m
|
|
7
|
MC4
connector
|
Rated
Voltage:1000V
|
accordingly
|
If you are interested,pls leave a message below and we will get in touch with in within 24hours.Thank you!
Why Choose JNGE and our products?
1. Powerfactory Directly Sell,Over 60 different kinds of solar system kits for choose ,Price is good ,Quality can be controlled.
2. We have CE ,ROHS,TUV,ISO ect. with serval self-patents.
3. We are now OEM for famous brand in Europe. We have pass strict factory inspection Audit by third party institution and client auditor. During the cooperation with famous brand client, we know what customer want and we know how to make 100% quality control.
4. We can customize specification like output pow,wokring hours,current ,voltage ,max input voltage etc as client request ,to supply some certain function and place.
5. NO MOQ , 1 set sample is also OK for us.
6. Fast Delivery , within 3-10 days for samples.
7. Trade assurance supplier , quality and on time shipment guaranteed.
