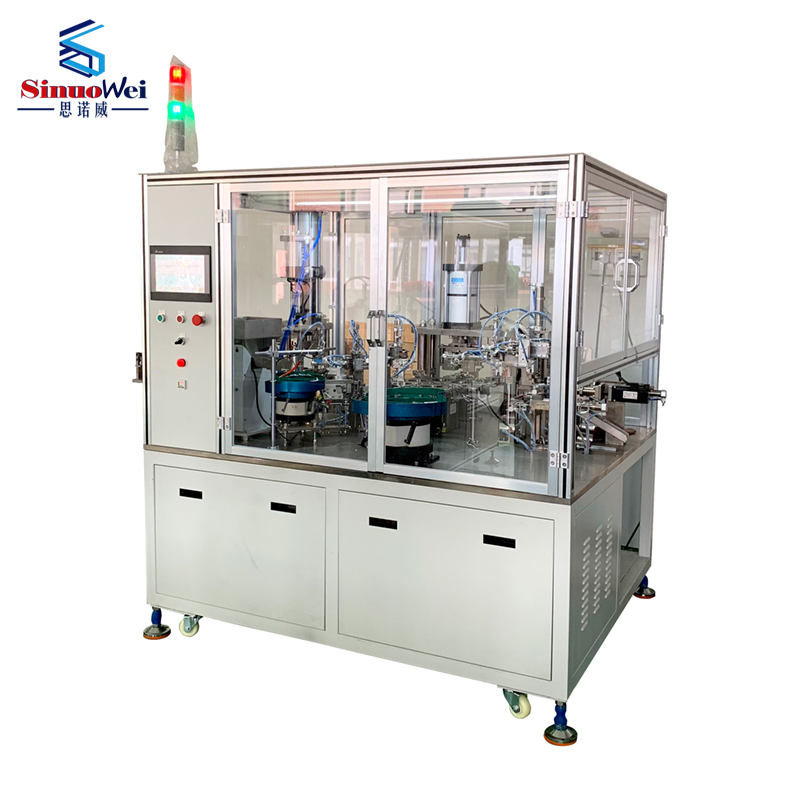

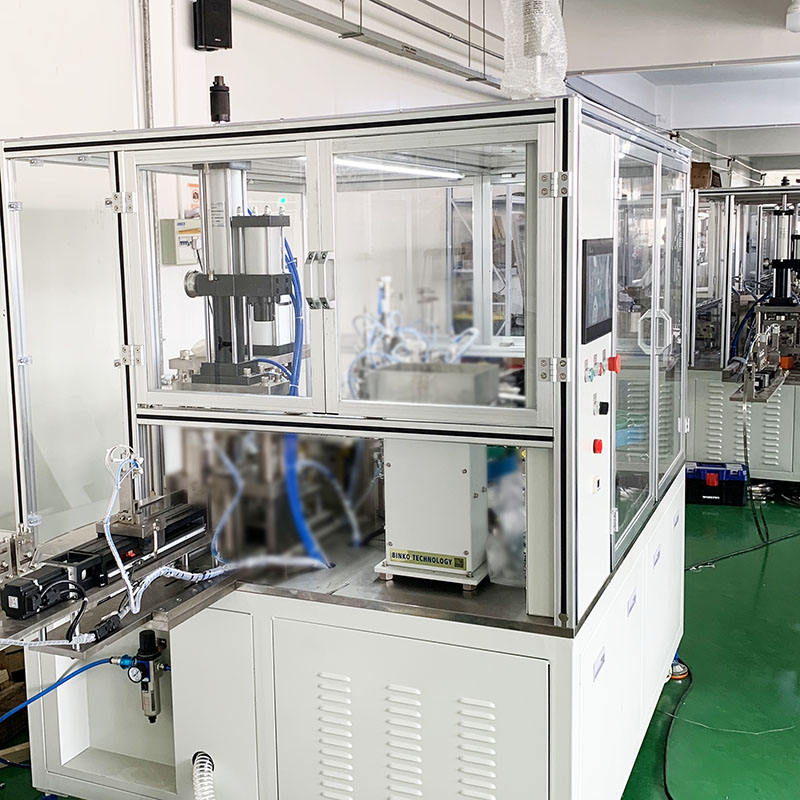

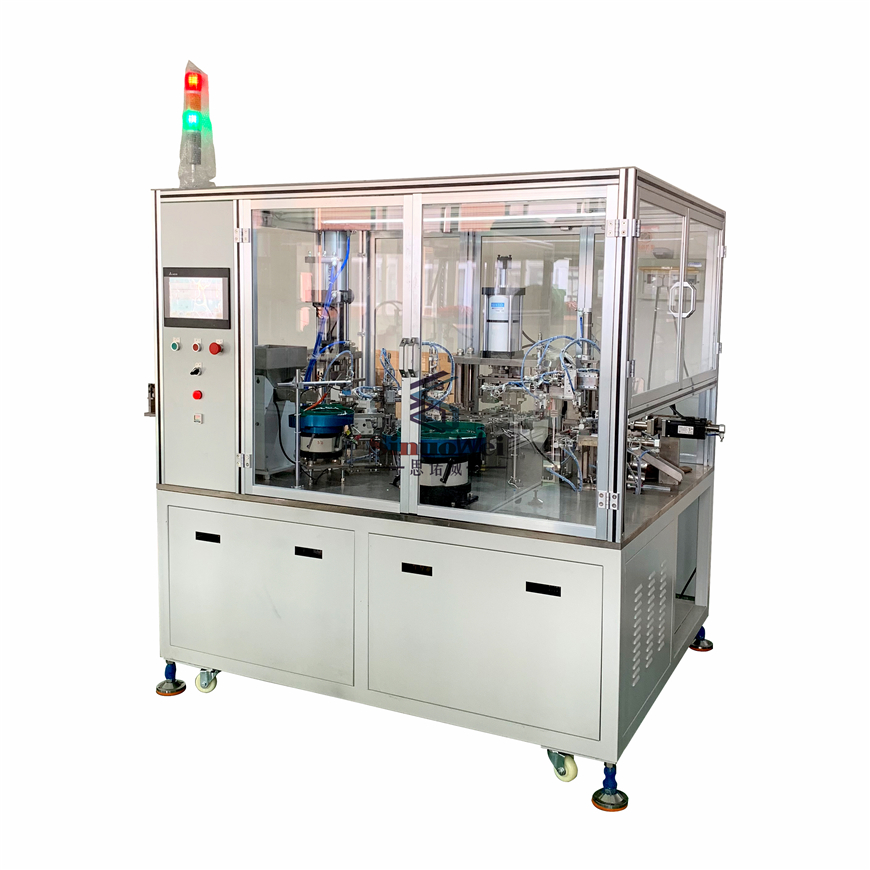

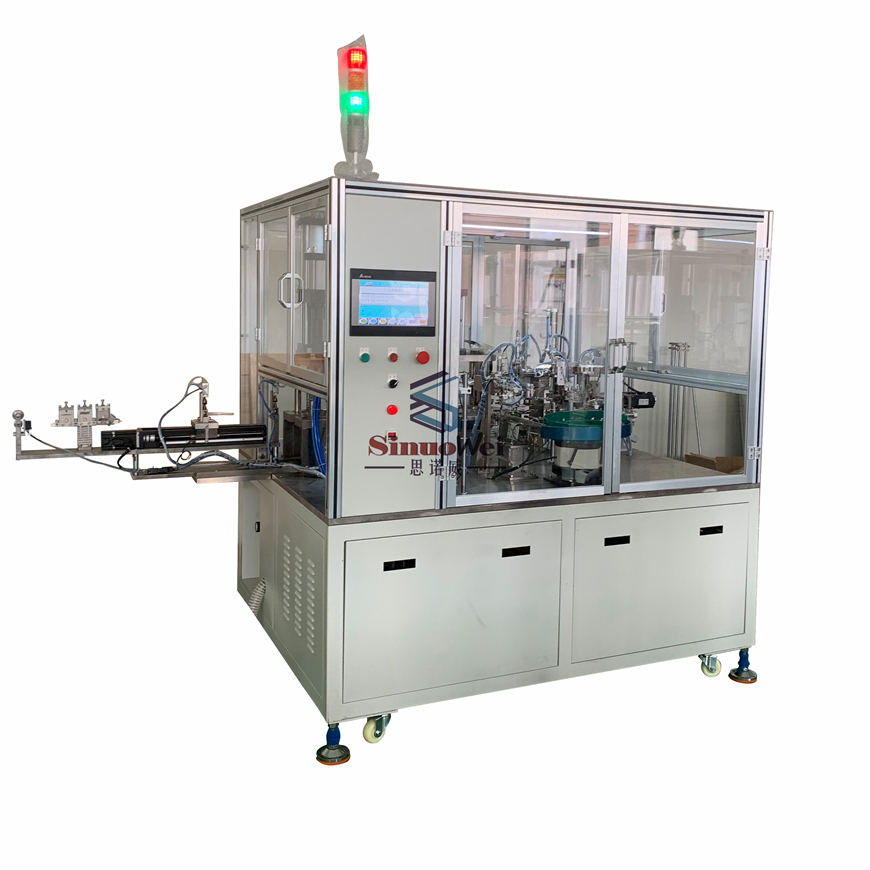

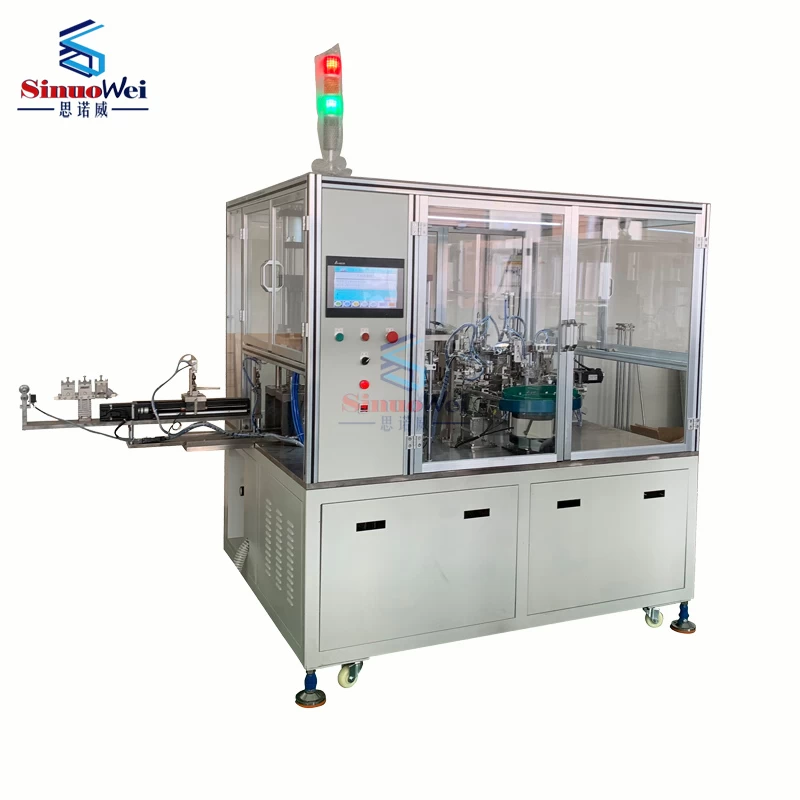

offset hosing hose clamp machine automatic assembly machine

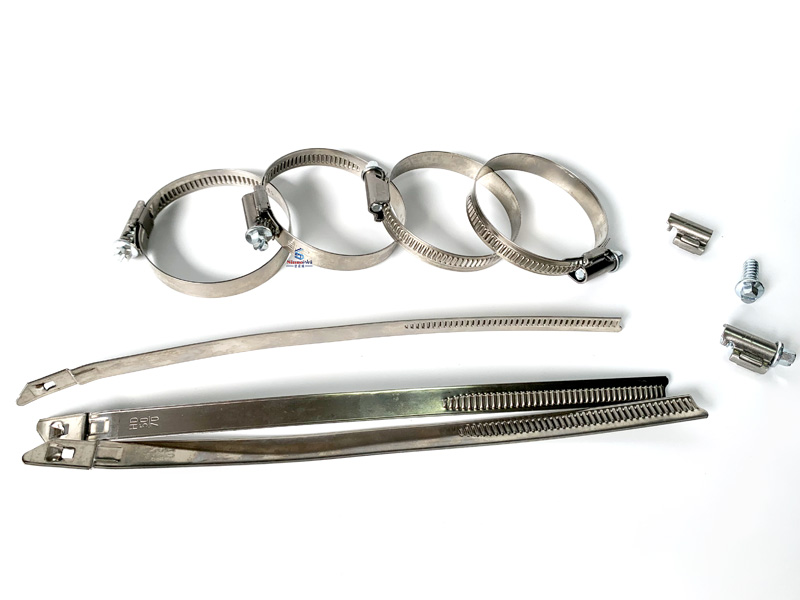

This kind of Offset German type hose clamp machine can assemble hose clamp full-automatically through straight lines and turntables, all the parts such as, screws, coupling strip, clip and hosing will be assembled of rolling and locking forming by machine. Machine and process control system of Sinuowei is new patent design with the technologies of full automation cutting and stamping, welding and smart tooling solutions. Our hose clamp machine not only improves the production efficiency and quality in maximum but also lower a lot of the cost for hose clamp manufacturers. The machine is advanced, high level of automation, stable performance, wide adjustment range, high efficiency and good effect.
|
Product name
|
hose clamp machine
|
|
Size
|
2600mm(L)*1200mm(W)*1800mm(H)
|
|
Weight
|
1 Ton
|
|
Work Area
|
5000mm(L)*3000mm(W)
|
|
Power
|
Single-phase power 115v，60Hz （ANSI electric standards）
|
|
Presure
|
0.5Mpa-0.7Mpa （72.5-101.5 PSI）
|
|
Free Twisting Force
|
0.8-1.3N/M (7.08-11.505 in/ibs)
|
|
Destructive Twisting Force
|
more than 13.56N/M (120 in/ibs)
|
Equipment Failure Rate
|
less than 0.5%
|
|
Effciency
|
1000pcs/hour
|
|
Warranty Period
|
one year
|
|
Additional Serves
|
Profesional technology training
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.
|
|
1. We have sold hundreds of machines already at home and abroad and they are working very well so far. As time went by, our
machine become even more sophisticated with higher efficiency and greater
stability.
|
|
2. We are professional in design and manufacture
automatic assembly hose clamp machine with 10 years of experience. Our
technology of automatic assembly hose clamp machine is mature and reliable.
|
|
3. The production efficiency is 1000pcs/hour more or less and working accuracy are all much higher than handmade, therefore satisfying the production requirements of new generation manufactures of hose clamp.
|
|
|
4. An automatic assembly hose clamp making machine can be designed as Multi-size according to client's requirement. Maybe two or four different sizes in one machine is available if the structure of clients' hose clamp allowed.
|
|
5. The same as another many parameters of machine, Free torque and broke torque of hose clamp can be customized. Our flexibility customization design to ensure all customer's requirements are met.
|
|
6. Compared with the traditional manual control
manner, this machine has many advantages such as stable and simple operation. Working
content is only adding semi-finished product material on bin every 4 hours.
|
7. The production is
controlled by PLC microcomputer which will records all data and it equipped
with human-computer interface to make sure most all the technical parameters
can be set on the touch screen.
|
How to order an automatic machine for your product?
-
Share us the picture in different angles of your product.
-
Share us the drawing and the main handmade process video of your product.
-
You will get the automatic quotation with price,delivery time,efficiency etc.
