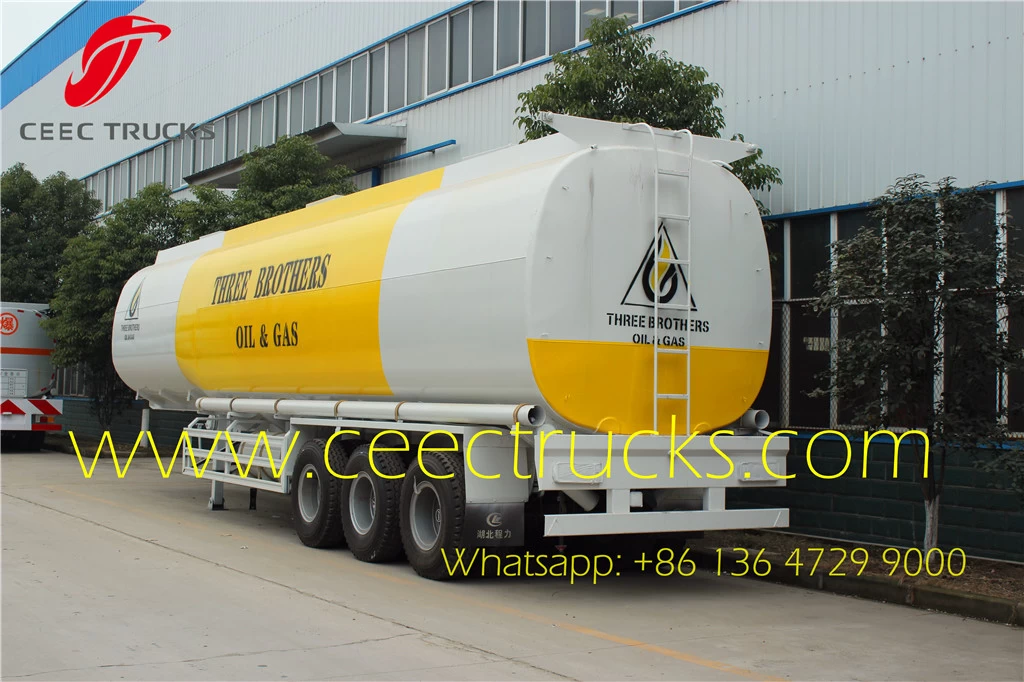

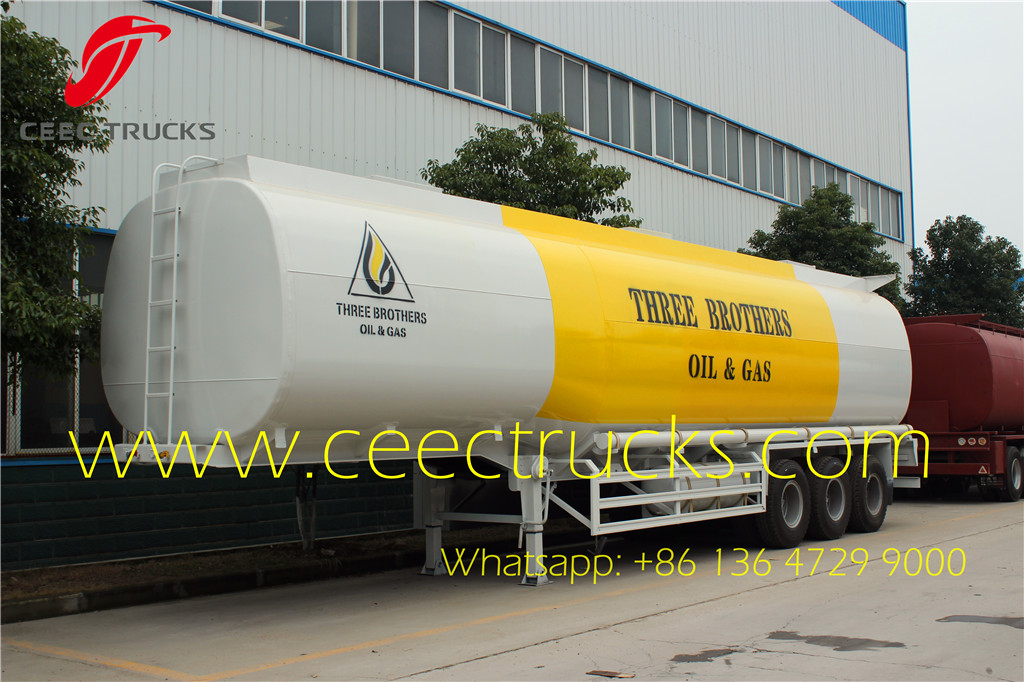

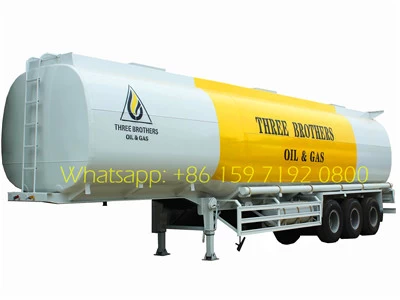

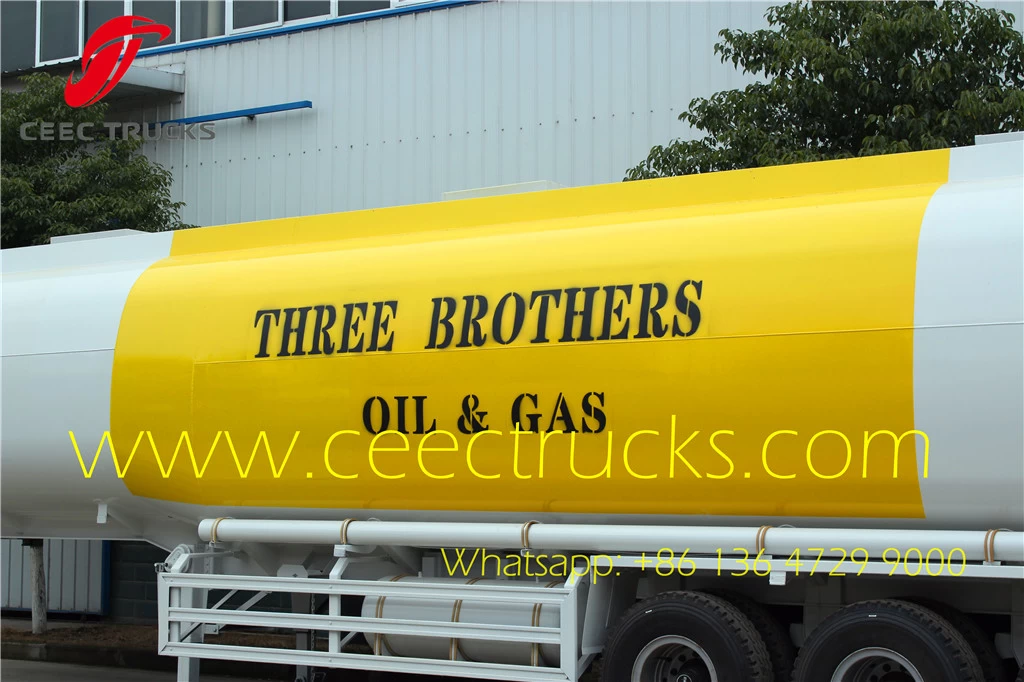

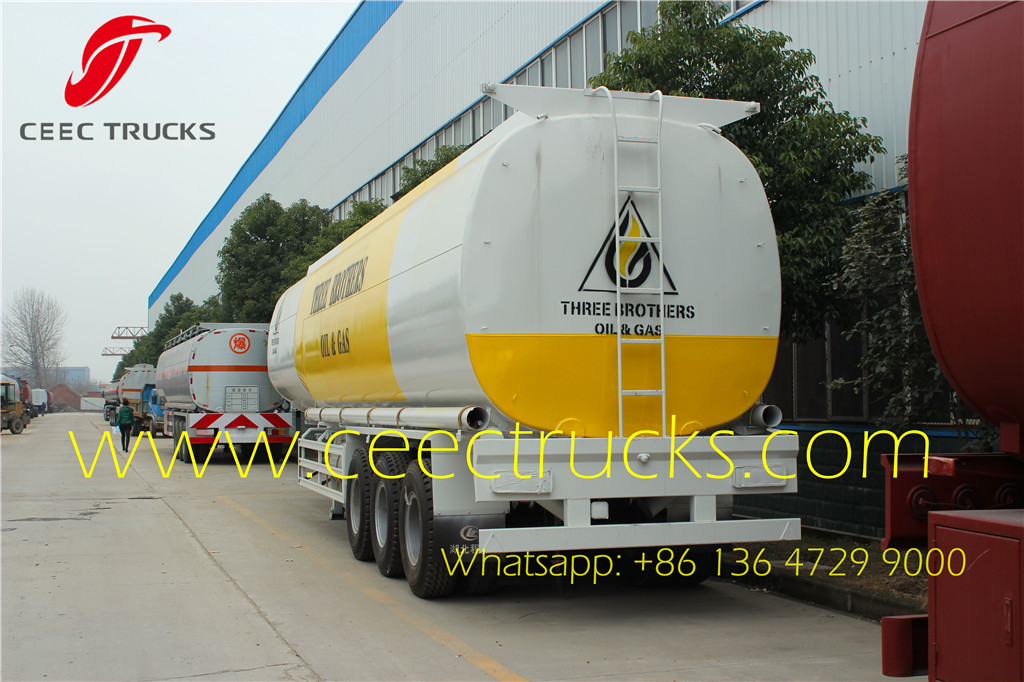

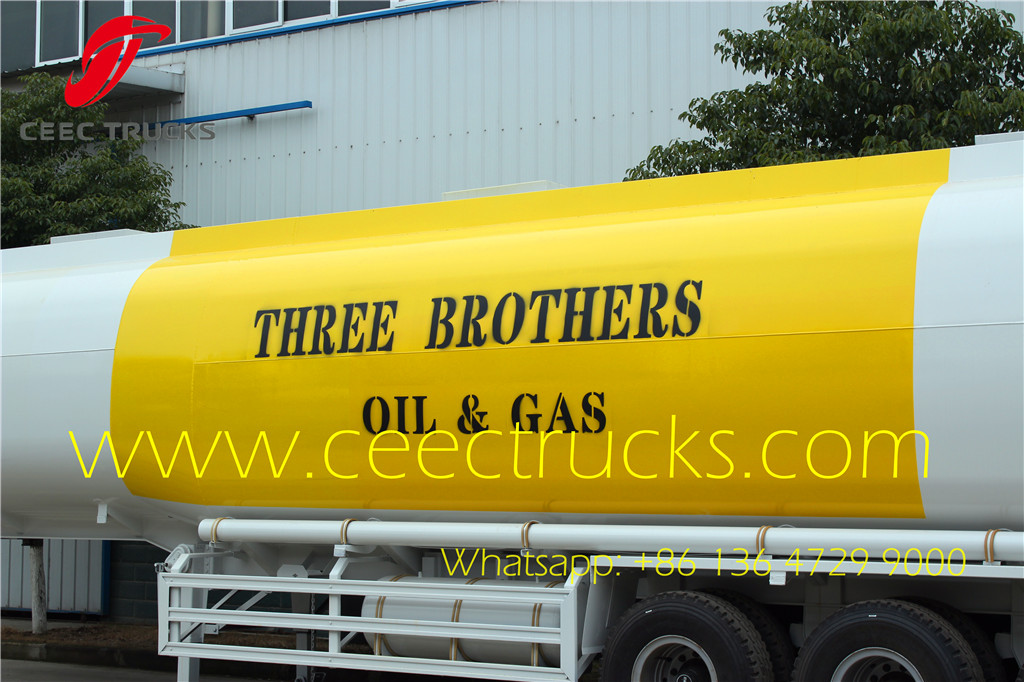

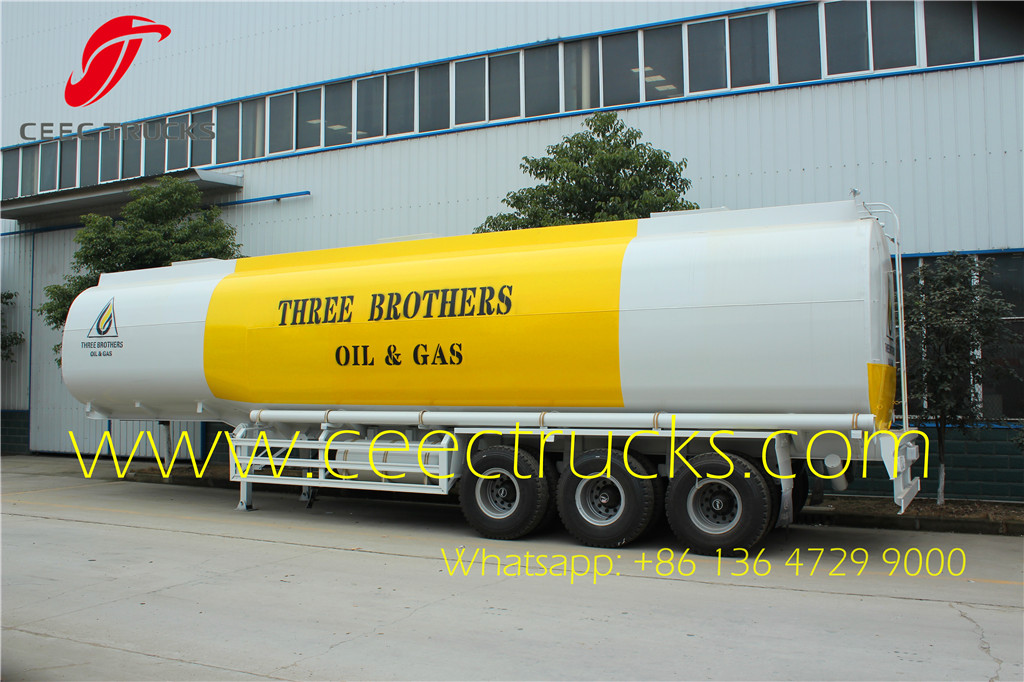

Africa 40 CBM fuel / diesel tank semi trailer
Africa customer choose fuel tank semitrailer from China CEEC TRUCKS：
** Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.
CEEC TRUCKS produced 2 axle / 3 axle fuel tank semi trailers are widely export to Africa countries including kenya, Congo, Algeria, Nigeria, Tanzania, Cameroon, etc. also Asia countries Afganistan, Dubai, etc. Mainly used for fuel / diesel / gasoline transportation.
Similar Key Words: 40 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, 40 CBM stainless steel oil tanker trailer, carbon steel trailer tank fuel
| 3 Axle 40 CBM diesel tanker semitrailer Main Dimensions
|
| Tank Body
|
| Shape
|
Optional ( Round or Suare)
|
| Dimension
|
10000mm*2490mm*3690mm ( Exact size depends on the final design)
|
| Tare weight
|
About 9000KGS
|
| Total Volume（m3）
|
36 m3
|
| Tanker Body Material
|
5mm Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|
| Manhole Cover
|
Cabon steel or Aluminum alloy API manhole cover, ∮500mm
|
| Bottom Valve
|
Aluminum API Pneumatic Bottom Valve
|
| Discharging Valve
|
Diameter is 3 or 4 inch
|
| Compartments
|
Optional
|
| Discharging Pipe
|
4” rubber hose, 2 pcs, 6m/each
|
| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Weldding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
|
| Axle
|
3 axles, FUWA/HUAJING brand
|
| Landing Gear
|
JOST (D200T）
|

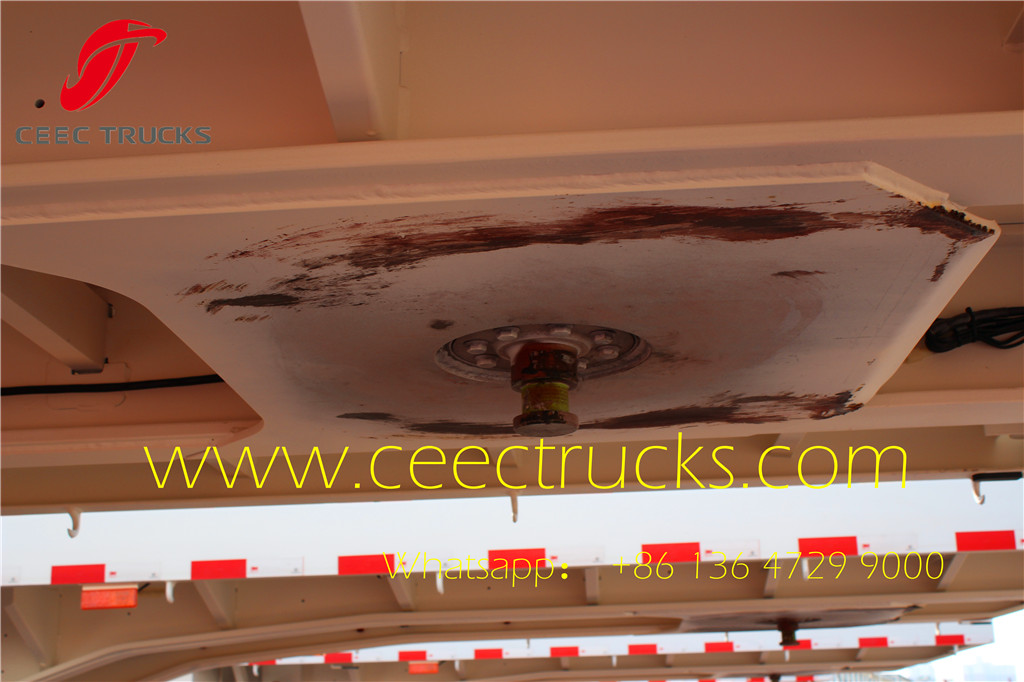

| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension
|
| Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer
|
| Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.
|

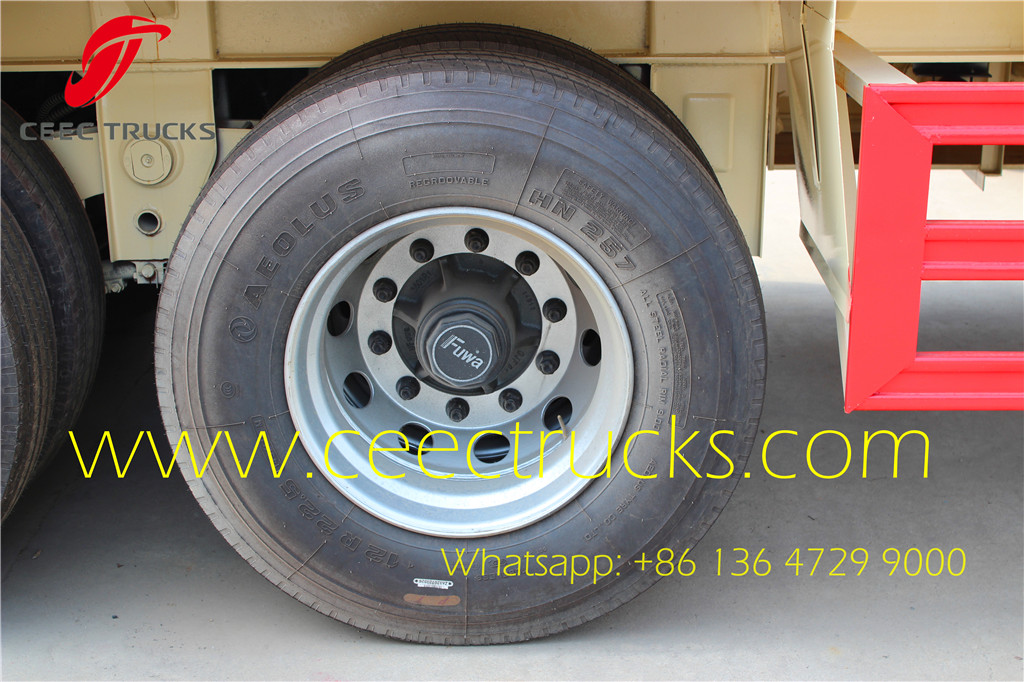

| Rim
|
9.00-22.5
|
| Tire
|
12.00R22.5
|
| ABS
|
Optional
|
| Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By Bulk Cargo ,RORO or 40HQ Containers
|
