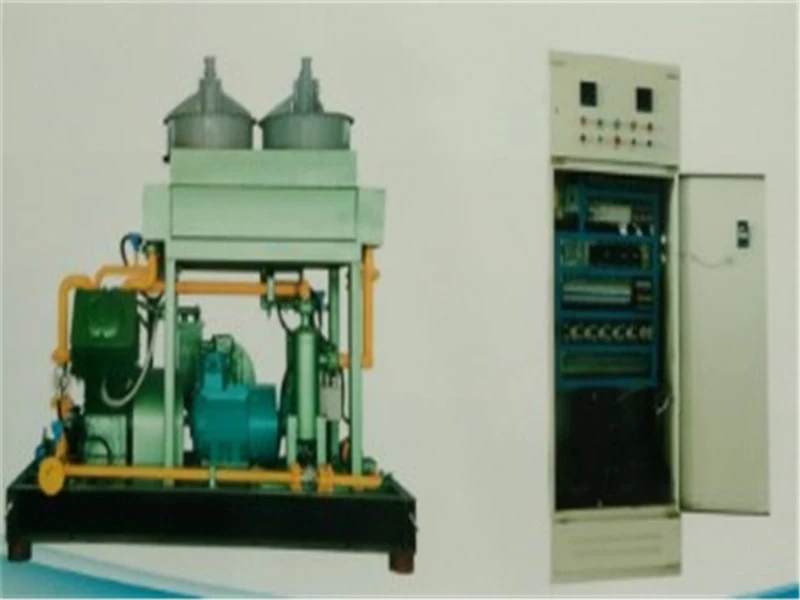

Oil field big tank gas recovery system

Large tank gas recovery system is a kind of oil tank gas recovery equipment specially provided for oil fields.



Oil field big tank gas recovery system

Oil field big tank gas recovery system


Product usage and features:


     Large tank gas recovery system is a kind of oil tank gas recovery equipment specially provided for oil fields. The recovery of natural gas to the pipeline after pressurization can improve the safety of oil and gas gathering and transportation, reduce the loss of oil and gas, avoid environmental pollution caused by discharge and the danger of transportation and storage, and the economic benefits of natural gas recovery are very significant. In order to achieve safety, economic and environmental protection.


Enterprise information:

      Bengbu longhua has a complete range of products with strong design, production, manufacturing and marketing strength. The products can be used in CNG gas station series compressors, oil and gas field series compressors, medium-high pressure series compressors, special gas series compressors, chemical process series compressors and power series compressors. Product parameters: exhaust volume from 0.05-200m3/min, exhaust pressure from 0.1-50mpa, compressible air, nitrogen, liquefied petroleum gas, gas, natural gas, carbon dioxide, propane, hydrogen, helium, ethylene, ammonia and other different media. Widely used in natural gas filling stations, urban construction, gas fields, petroleum, national defense, coal, geology, chemical industry, metallurgy, machinery manufacturing, medicine, food, beverage and other fields.


Parameter

Model

Medium

Exhaust volume (m3 /min)

Suction pressure (MPa)

Suction pressure (MPa)

Motor power (Kw)

Overall dimension (mm)

VW-9/10

Gas

9

Atmospheric pressure

1

55

1850 × 1490 × 1550

VW-10/(0-0.12)-8

Gas

10

0-0.012

0.8

90

2200 × 1550 × 1550

2VW-34/13

Gas

34

Atmospheric pressure

1.3

250

4750 × 1950 × 1780

VW-3/2-30

Carbon dioxide

3

0.2

3

75

2300 × 1650 × 1850

2VW-30/25

Carbon dioxide

30

Atmospheric pressure

2.5

280

4400 × 1600 × 1600

2VW-3/17-48

Carbon dioxide

3

1.7

4.8

132

4000 × 1500 × 1750

ZW-1.125/1-19

Carbon dioxide

1.125

0.1

1.9

15

1470 × 1196 × 940

VW-20/0.1-8.5

Methyl chloride

20

0.01

0.85

160

4300 × 1650 × 1650

VW-3.5/10

Methyl chloride

3.5

Atmospheric pressure

1

22

2050 × 1850 × 1600

ZW-2.5/3

Methylene chloride

2.5

Atmospheric pressure

0.3

15

1500 × 650 × 1550

ZW-1.5/2.5

Methylene chloride

1.5

Atmospheric pressure

0.25

7.5

1500 × 650 × 1550

ZW-0.2/1-16

Freon

0.2

0.1

1.6

3

1305 × 700 × 900

DW-2/0.2-16

Freon

2

0.02

1.6

22

1890 × 1690 × 980

VW-7/16

Methylene fluoride

7

Atmospheric pressure

1.6

55

2300 × 1950 × 1750

VW-20/8

Methylene fluoride

20

Atmospheric pressure

0.8

110

2150 × 1800 × 1650

2VW-23.5/2.2-8.8

Methyl chloride

23.5

0.22

0.88

230

4200 × 2160 × 1850

VW-12.5/7

Vinyl chloride

12.5

Atmospheric pressure

0.7

75

2100 × 1900 × 1400

VW-19/8

Vinyl chloride

9

Atmospheric pressure

0.8

132

2700 × 1900 × 1760

DW-2/15

Five fluorine ethane

2

Atmospheric pressure

1.5

22

1650 × 2000 × 1300

VW-4.5/16

Five fluorine ethane

4.5

Atmospheric pressure

1.6

37

2300 × 1750 × 1650

2VW-30/10

Biogas

30

Atmospheric pressure

1

185

4200 × 1580 × 1550

VF-1.12/1.5-5

Casing

1.12

0.15

0.5

7.5

1360 × 748 × 1145

VW-6/0.02-4

Casing

6

0.002

0.4

30

2000 × 1670 × 1600

2VW-40/0.02-2.5

Casing

40

0.02

0.25

160

3900 × 1800 × 1600

VW-4/0.1-22

Ammonia

4

0.01

2.2

37

2100 × 1500 × 1750

ZW-0.5/16-24

Ammonia

0.5

1.6

2.4

11

1305 × 700 × 900

2VW-10/1-25

Propylene

10

0.1

2.5

132

4100 × 1550 × 1550

VW-8/1-25

Propylene

8

0.1

2.5

110

2400 × 1600 × 1750

ZW-0.22/3-16

Propylene

0.22

0.3

1.6

110

2150 × 1850 × 760

VW-5.7/13.45-19.45

Ethane

5.7

1.345

1.945

90

2400 × 1550 × 1550

VW-12/16

Ethane

12

Atmospheric pressure

1.6

90

2150 × 1850 × 1500

2VW-24/1.01-17.5

Propane

24

0.101

1.75

250

3500 × 1800 × 1600





Dear customers, please provide detailed technical data, we provide you with the correct compressor selection program

Compression medium

Required delivery

(Nm3/h)

Inlet pressure

(Mpa)

Outlet pressure

(Mpa)

Inlet temperature

(℃)

Outlet temperature

(℃)


Other
