Oil Separator Replacement DB2012 17203391 21203391 KV210-019 for Screw Compressor Wholesale

Hot selling high quality oil separator CF20017435T DB2012 17203391 21203391 KV210-019.
Coolworks filters can customize air compressor fittings to your needs.
Trust in Coolworks reliable products to keep your air compressor running smoothly.

Oil Separator Replacement DB2012 17203391 21203391 KV210-019 for Screw Compressor Wholesale

Oil separator standard specification
Air flow(m³/min)	OD d1(mm)	Flange d2(mm)	ID d3(mm)	Height h(mm)
35	135	170	75	160
4.5	135	170	75	200
6.8	135	170	75	305
5.0	170	200	109	180
6.5	170	200	109	230
9.0	170	200	109	305
12	170	200	109	400
9.0	220	273	157	230
12	220	272	157	305
16	220	288	157	400
25	220	272	157	612
15	275	328	209	305
20	275	328	209	400
25.5	275	328	209	500
16	300	355	220	305
22	300	355	220	400
28	300	355	220	500
32	300	355	220	540
34	300	355	220	600
40	300	355	220	700
40	350	430	265	550
39	400	434	314	520
43	400	439	314	600
46.5	400	434	314	620

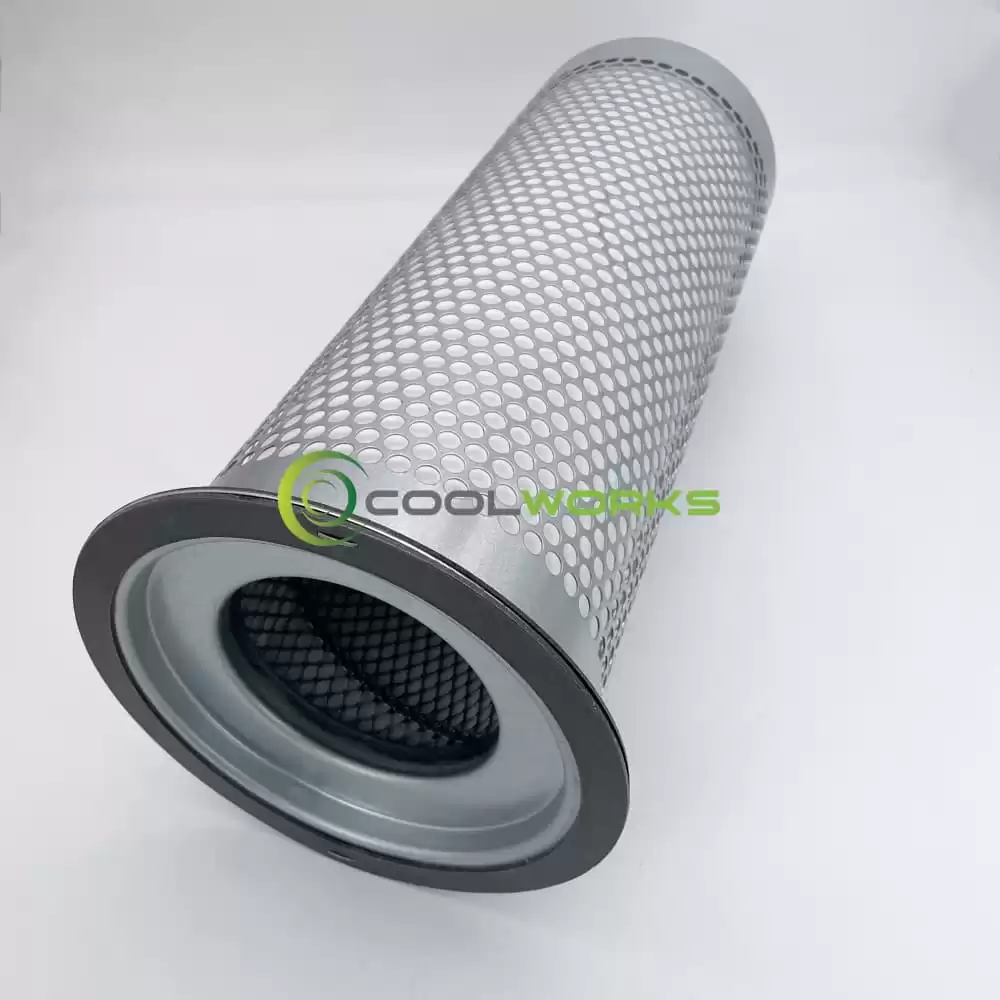

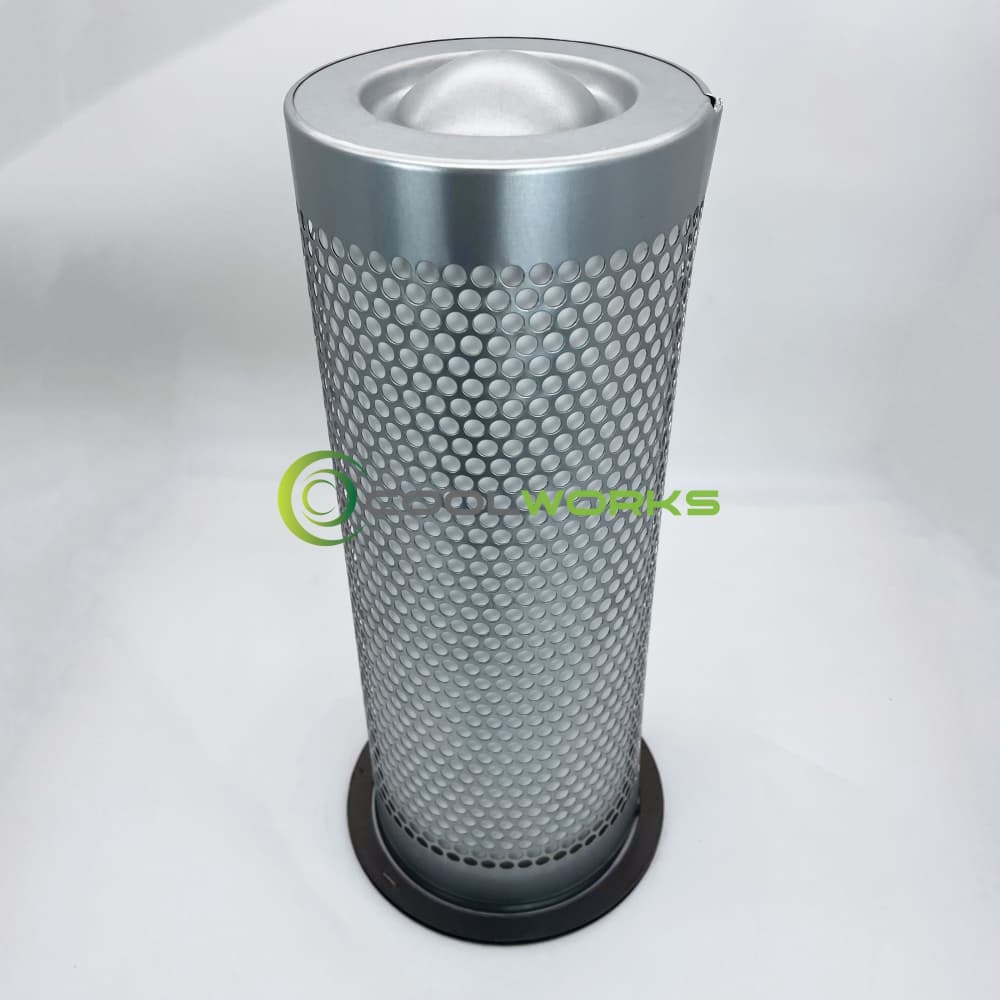

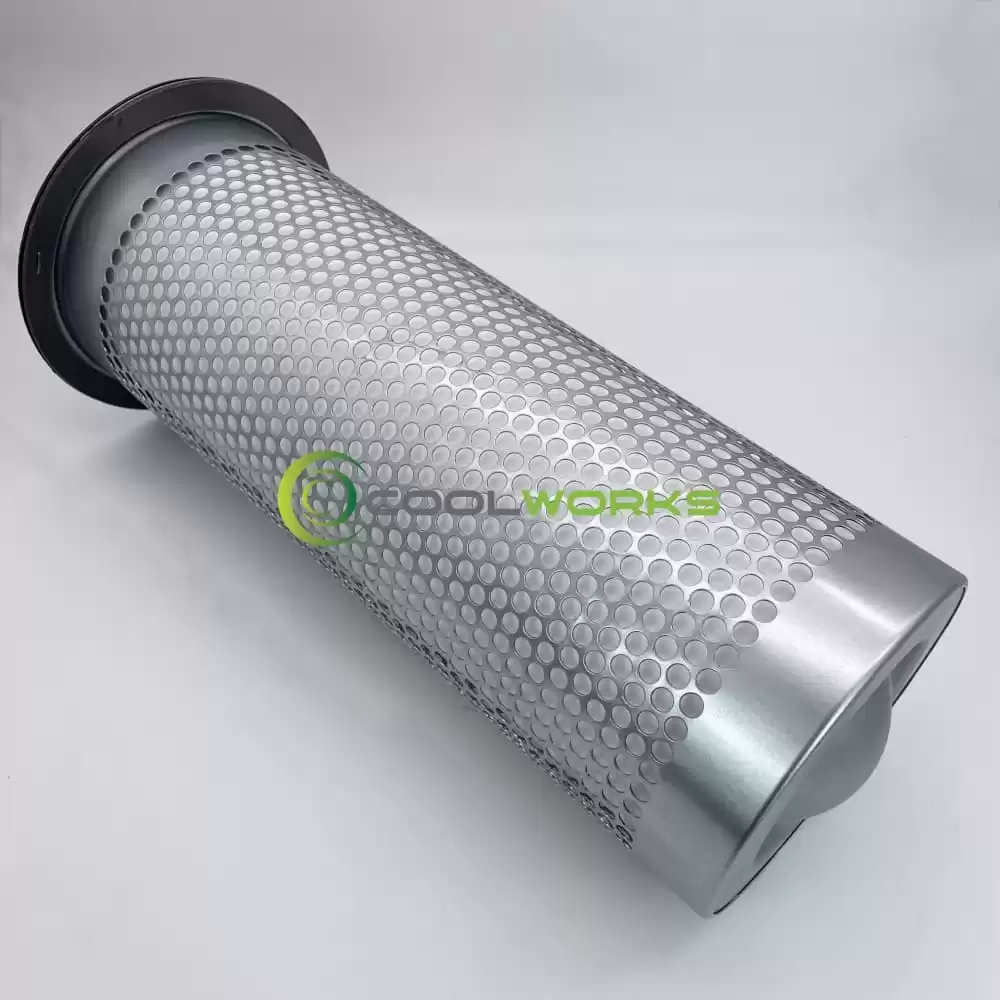

Coolworks screw air compressor oil separator.
Usually made of high-quality materials such as multi-layer stainless steel or special composite materials, it can operate stably in high pressure and high temperature environments.
Its design also focuses on energy saving and environmental protection, reducing energy consumption and operating costs by reducing oil emissions and optimizing air flow.
Coolworks oil separators provide high separation capacity, high temperature and corrosion resistance.

Air Compressor Oil Separator Manufacturer

Coolworks filter is a professional manufacturer of air compressor filers with rich experience.
Mainly supplying:Replacement and customized filters of air compressors; Air compressor parts; line filters; Vacuum Pump Filters: Hydraulic Filters.

Product filtration efficiency up to 99.9%
Thickened galvanized steel plate for the framework and the end cover, HV glass fiber from Germany, to ensure the quality of the filter.
We offer customizable products service with cost-effective price and quality.

Air Compressor Oil Separator Packing

Air Compressor Oil Separator Certification

Product Tags filter cartridge DB2012 17203391 21203391 KV210-019 cartridge filter oil separator filter cartridge screen filter cartridge filter element products
