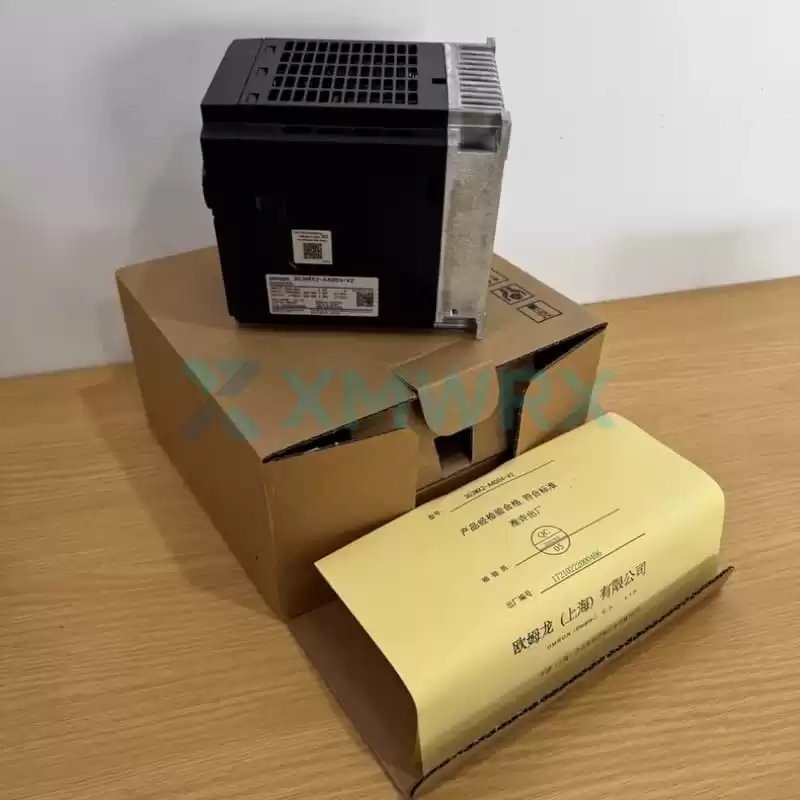

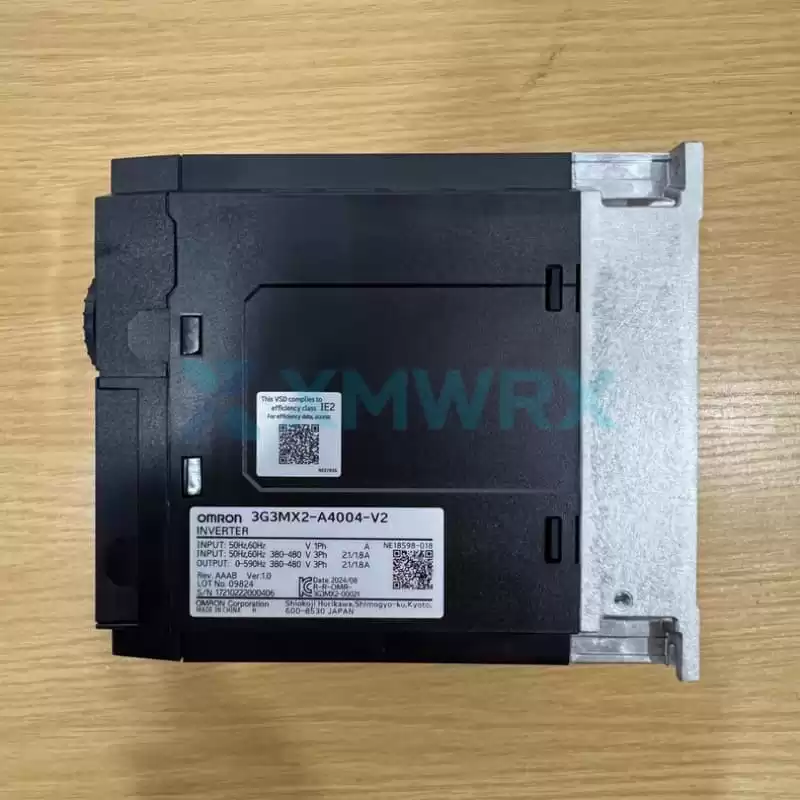

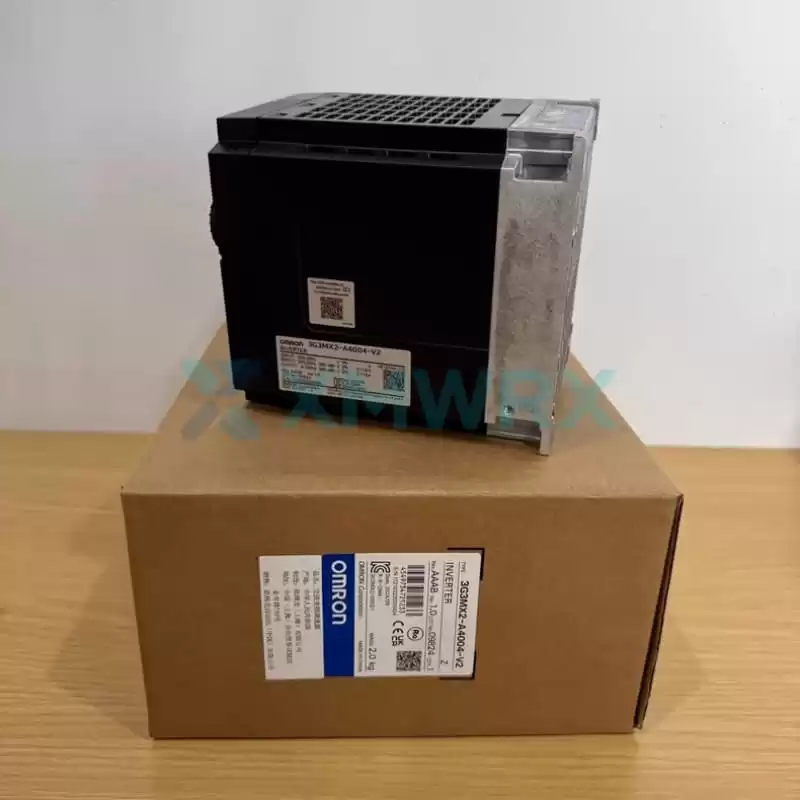

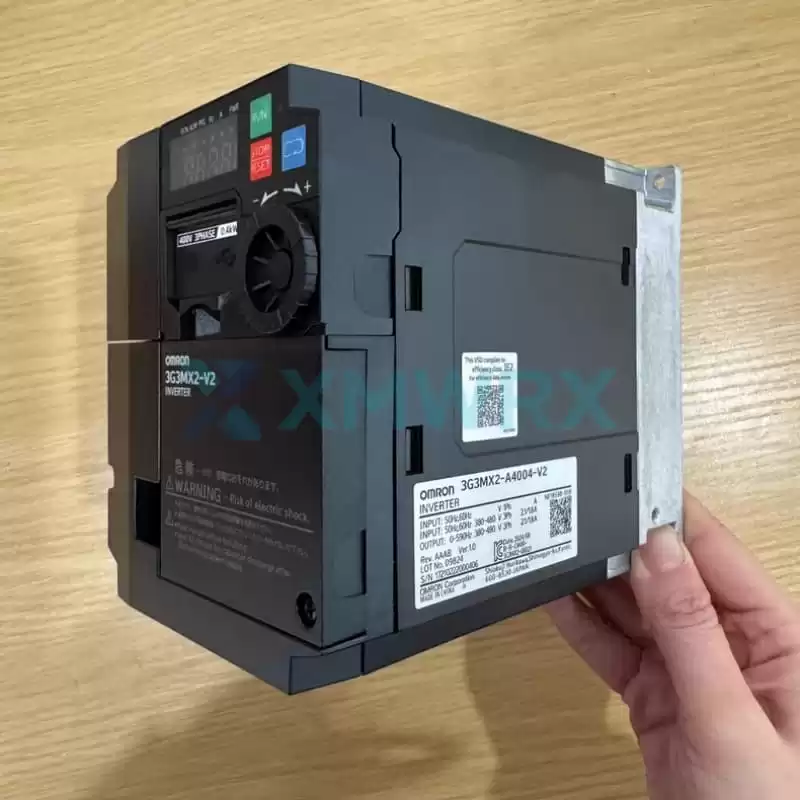

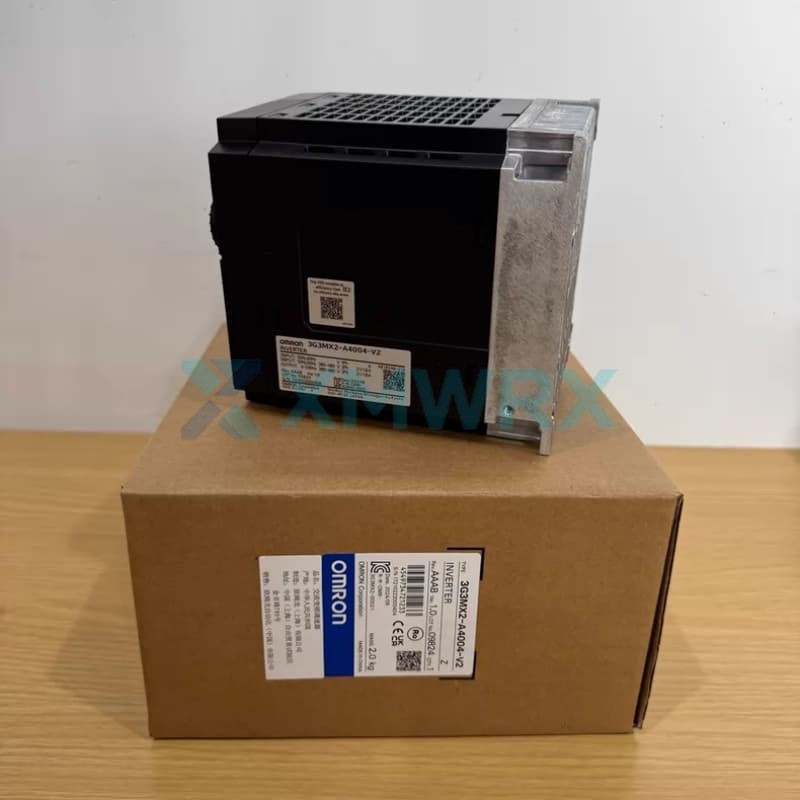

OMRON 3G3MX2-A4004-V2 Compact Multi-Function Variable Frequency Drive (VFD)

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original OMRON Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

3G3MX2-A4004-V2
Product Type Compact Multi-Function Variable Frequency Drive (VFD)
Product Origin China
Shipping Port Xiamen
Weight 3.3 lbs



Facebook Twitter Pinterest LinkedIn 分享

The 3G3MX2-A4004-V2 is a compact, multi-functional variable frequency drive (VFD) from Omron's MX2 series.

It is suitable for three-phase 380-480V power supplies, has a rated power of 0.4 kW, an output current of 1.8A, and is designed for base mounting. This drive supports sensorless vector control and V/f control, provides an output frequency up to 590 Hz, and features built-in Modbus communication and Safe Torque Off (STO) functionality.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  High-performance motor control: Sensorless vector control achieves 200% high starting torque at 0.5 Hz and supports permanent magnet (PM) motor control.
  • ✓  Built-in positioning and logic: Built-in simple positioning function and ladder logic programming enable basic sequential control without the need for an additional controller.
  • ✓  Integrated safety functions: Standard STO (Safe Torque Off) function, compliant with EN ISO 13849-1 Cat.3 PLe standard, enhancing equipment safety.
  • ✓  Flexible communication and I/O: Built-in RS485 Modbus communication, with optional EtherCAT communication unit. Equipped with 10 digital inputs, 4 analog inputs, and 3 relay outputs.

Technical Specifications

Brand

OMRON
Model / Part Number 3G3MX2-A4004-V2
Power Supply Phase/Voltage Three-phase 380 ~ 480V AC
Applicable Motor Power 0.4 kW (Heavy Load) / 0.75 kW (Light Load)
Rated Output Current 1.8 A (Heavy Load) / 2.1 A (Light Load)
Maximum Output Frequency 590 Hz
Control Method Sensorless Vector Control, V/f Control
Overload Capacity 150% for 60 seconds (Heavy Load), 120% for 60 seconds (Light Load)
Communication Interface RS485 (Modbus), EtherCAT (Optional Unit)
Safety Function STO (Safe Torque Off)
Installation Method Base Mount (Wall Mount)
Protection Rating IP20
Dimensions 108 (W) × 128 (H) × 146.5 (D) mm
Mounting Method DIN rail mounting
Operating Temperature -10°C to 50°C

Frequently Asked Questions

Q: What equipment is the 3G3MX2-A4004-V2 mainly used in?

A: It is suitable for applications requiring high-performance open-loop control, such as small conveyors, mixers, fans, pumps, elevators, and simple positioning applications. Its compact size and high starting torque are particularly suitable for packaging machinery and material handling equipment.

Q: What programming and setting methods does this inverter support?

A: It can be set locally via the built-in digital operation panel, or managed and programmed via computer using Omron CX-Drive or CX-One software through USB/RS485.

Q: Is an external braking resistor required? What optional accessories are available?

A: An external braking resistor is required (sold separately, model AX-REM00K1400-IE) to achieve rapid deceleration. Common optional accessories also include: LED remote operator (3G3AX-OP01), EtherCAT communication unit (3G3AX-MX2-ECT), input/output reactors, and DC reactors.
