Q: What equipment can the E6B2-CWZ6C be used in?
A: Widely used in industrial automation scenarios requiring precise position and speed feedback, such as motor feedback systems (servo/stepper motor closed-loop control), CNC machine tools, packaging machinery, printing equipment, conveyor systems, robot joint angle detection, and conveyor belt speed monitoring.
Q: What should I do if I encounter interference problems when using the encoder and frequency converter together?
A: We recommend the following measures: ① Separate the encoder signal line from the power cable; ② Use shielded cables and reliably ground the shielding layer (note that single-point grounding should be used to avoid ground loops); ③ Reduce the frequency converter's carrier frequency; ④ If necessary, install filters and reactors at the frequency converter's input/output terminals.

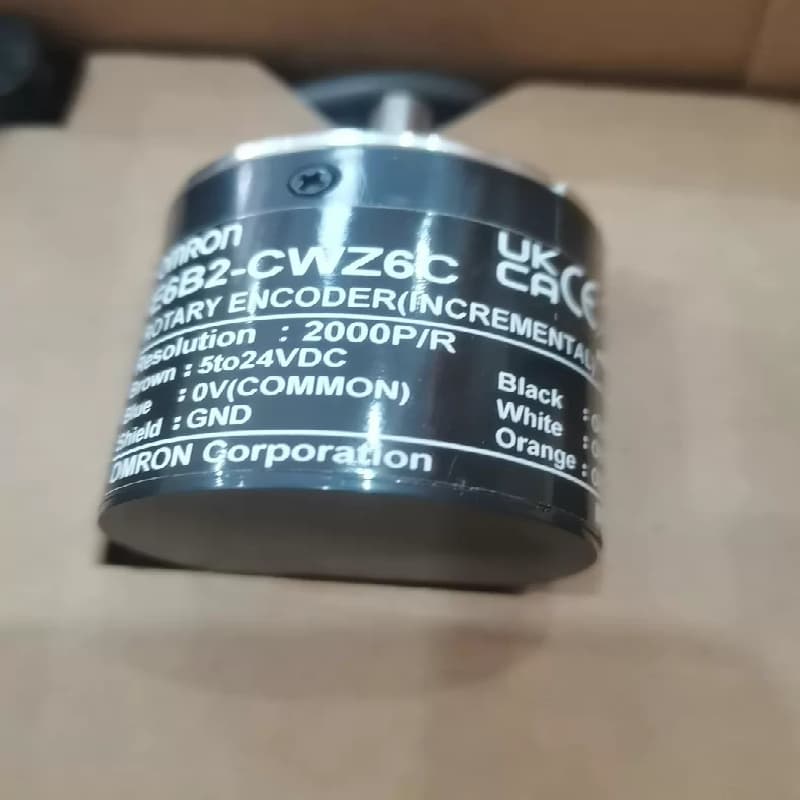

Q: How do I wire the E6B2-CWZ6C to a PLC (such as the CJ1W-CT021 high-speed counting unit)?
A: Wiring method is as follows:
Brown wire → Positive power supply (DC24V)
Blue wire → Negative power supply (GND)
Black wire (Phase A) → Terminal A8
White wire (Phase B) → Terminal A10
Orange wire (Phase Z) → Terminal A12
Terminals B9, B11, and B13 → Connect to positive power supply
