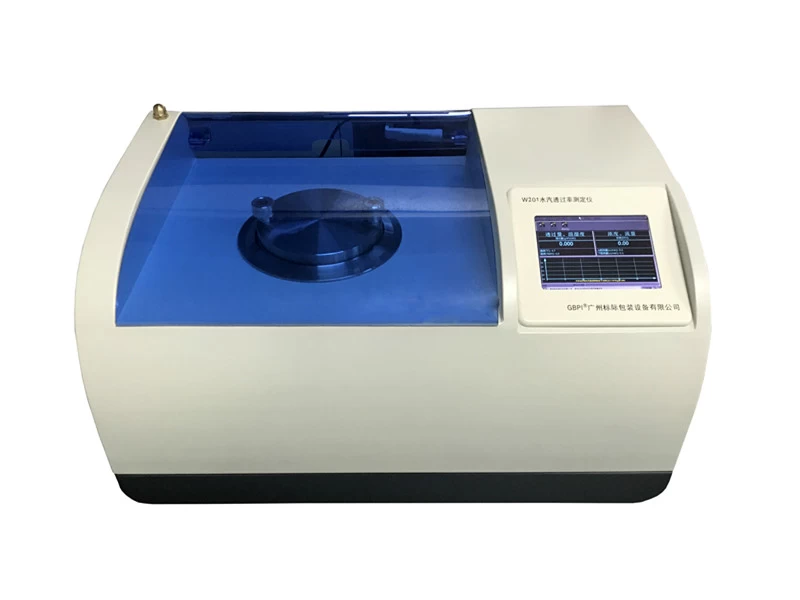

One test chamber water vapor permeability analyzer for flexible barrier sheet materials test

Water vapor permeability analyzer is used to test water vapor transmission rate (WVTR) of films or sheets materials for flexible packaging.



Application:

1) Packaging materials of plastic film, composite film, aluminum foil, aluminized film, Sheet, panel, rubber, ceramics etc

3) Packaging containers, such as: glass, bottle, cans, boxes

4) Other applications: solar panel, LCD film, medical patch, etc.

Widely used in quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry, electronics industry.


Specifications

Item

Technical Parameters

Test range

0.001~50 g/(m2·24h)(film and sheet)

Test precision

0.001 g/(m2·24h)(film and sheet)

Temperature range

15~45℃(5~55℃ optional)

Temperature accuracy

±0.1℃

Humidity range

30~90%RH,100%RH,

Humidity accuracy

±1%RH

Test area

50.24 cm2

Sample size

Φ100 mm

Sample thickness

≤3mm

Number of test sample

1 piece

Carrier gas

99.999% N2(user provide)

Carrier gas pressure

≥0.1MPa

Carrier gas flow

0~100 mL/min

Gas supply port

1/8 inch metal pipe

Instrument size

610×520×400mm

Weight

80kg

Power

500W

Power supply

AC 220V,50Hz


Standard: GB/T 21529-2008, YBB 00092003-2015, BS EN ISO 15106-3-2005,  ASTM E398-2013, DIN 53122-2


Features

1. Accurate and reliable data


  • WithThe State Certificate for Gradation of the certified Reference Materialsand Licence for Manufacturing Measuring Instruments of the state Reference Materials(GBW(E)130543/4)of Water Vapor Permeability Analyzer approvedand issuedby General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C. Adopting state reference materials to calibrate and verify the instruments, data reliability up to 100%, with universal temperature and humidity calibration interface and test repeatedly, the dispersion of the same sample test data are less than 10%. Ensure the accuracy, universality and authority of test data.



2. Simple operation


  • Professional software with simple interface, easy to use and convenient to set test process.
  • Fully-autooperation,one-button test,judge and stop automatically.
  • Programmed auto-control, the experiment status display in real time.
  • Real time curves display of transmission,water vapor concentration, temperature and humidity. The curves with conceal function, support query function for background data.
  • Configure with color touch screen, can observe temperature, humidity and transmission without external computer.
  • Professional test report; can be exported as PDF.



3. Advanced technology


  • Temperature control: International advanced electromagnetic technology, program controlled,auto heating and cooling;and no need of external accessories. Precision: 0.1℃.
  • Humidity control: Dual gas flow method(dry gas and humid gas), high precision (1%RH) and stable flow.
  • Carrying cutting-edge ARM controlling system,can run independently without computer.



4. High efficiency


  • With three different test modes of high, medium and lower barriers, can test films with different barrier property.
  • Measurement precise up to0.001 g/m2·24h, can test high barrier materials, such as aluminum foil.
  • By adding adaptive accessory, can test water vapor transmission of various containers such as bag, bottle, can and bowl.



5. Calibration & Certification


  • The instrument supports two methods of reference materials and standard gas to calibrate and certificate; operation is simple, user only need use certified reference materials for normal testing, and then input the test result into the instrument interface.



6. Reliable and easy-maintenance


  • Imported Electrolyticdetectionsensor, with high precise and good performance, can work for a long time.
  • Sensor over-range auto protection.
  • Function modularization, easy to maintain.
