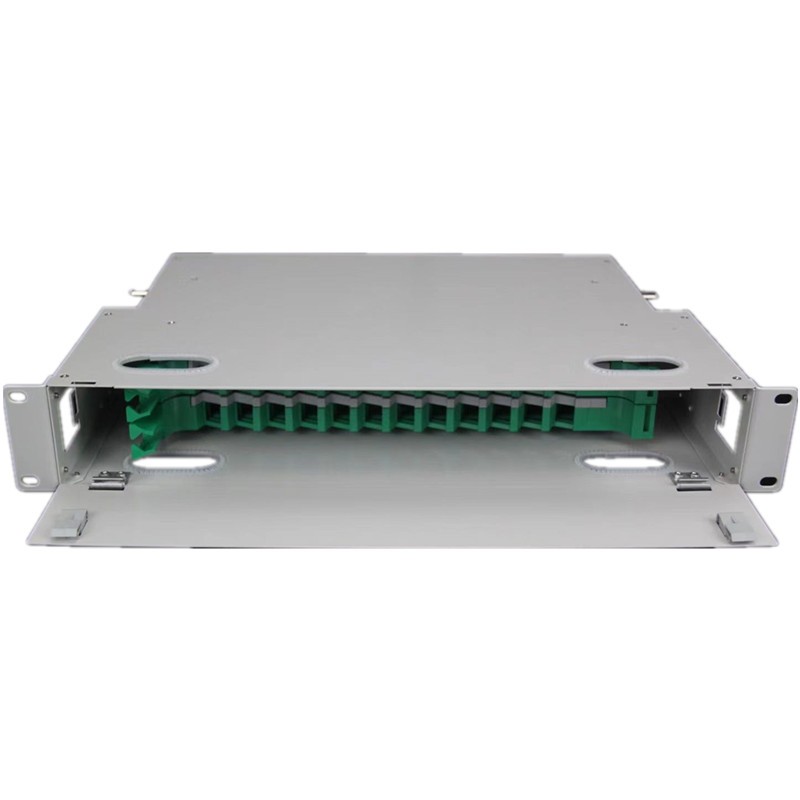

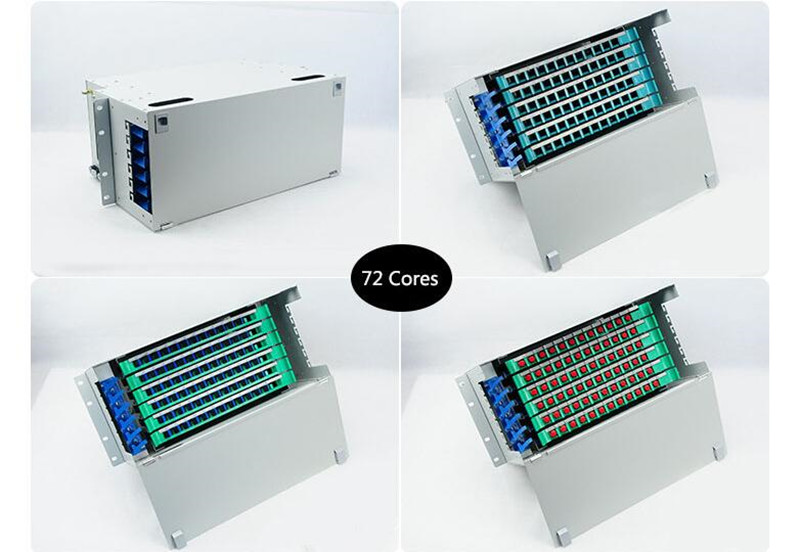

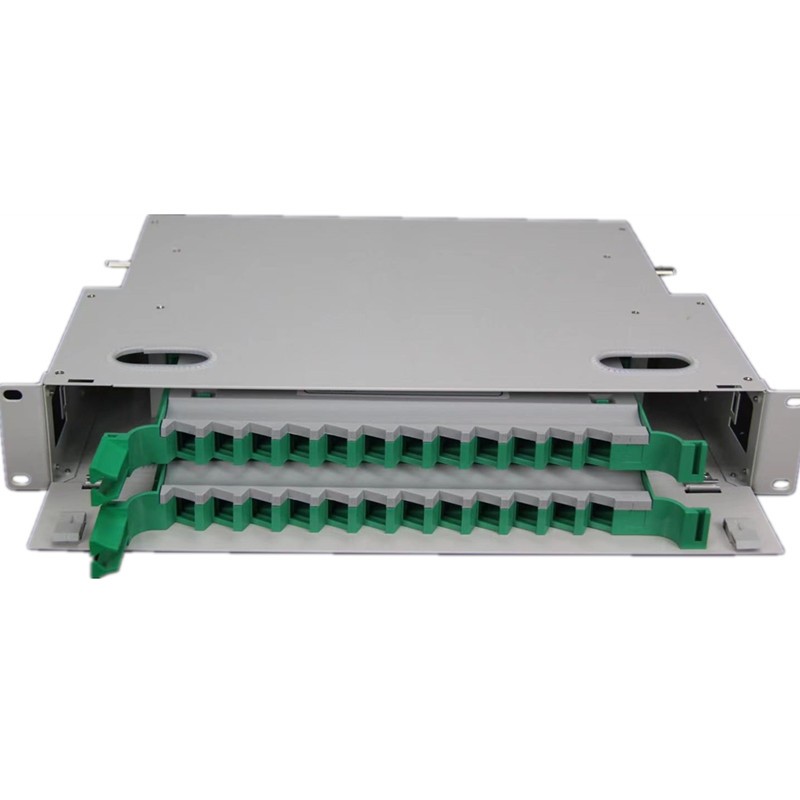

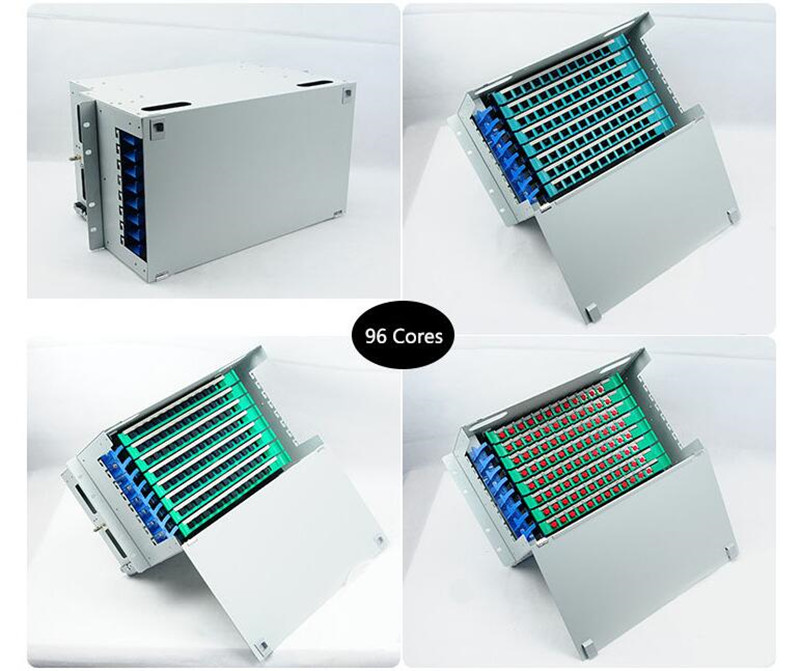

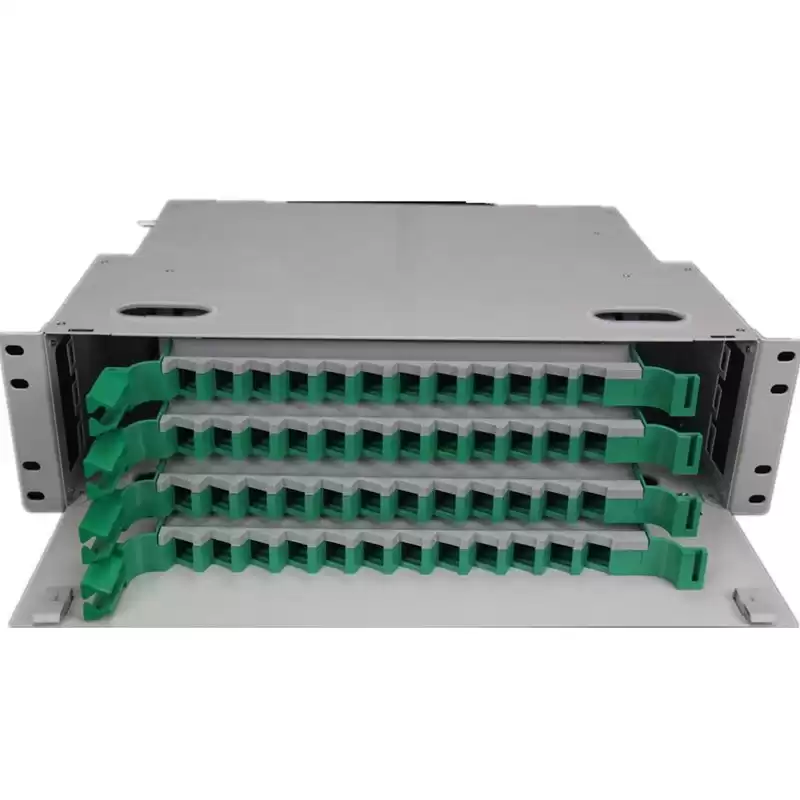

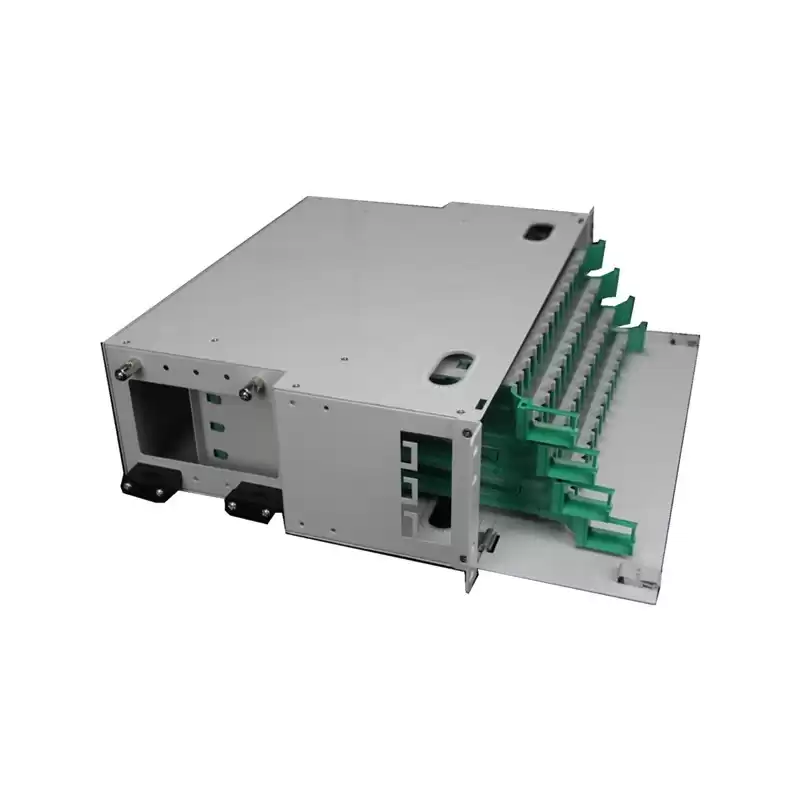

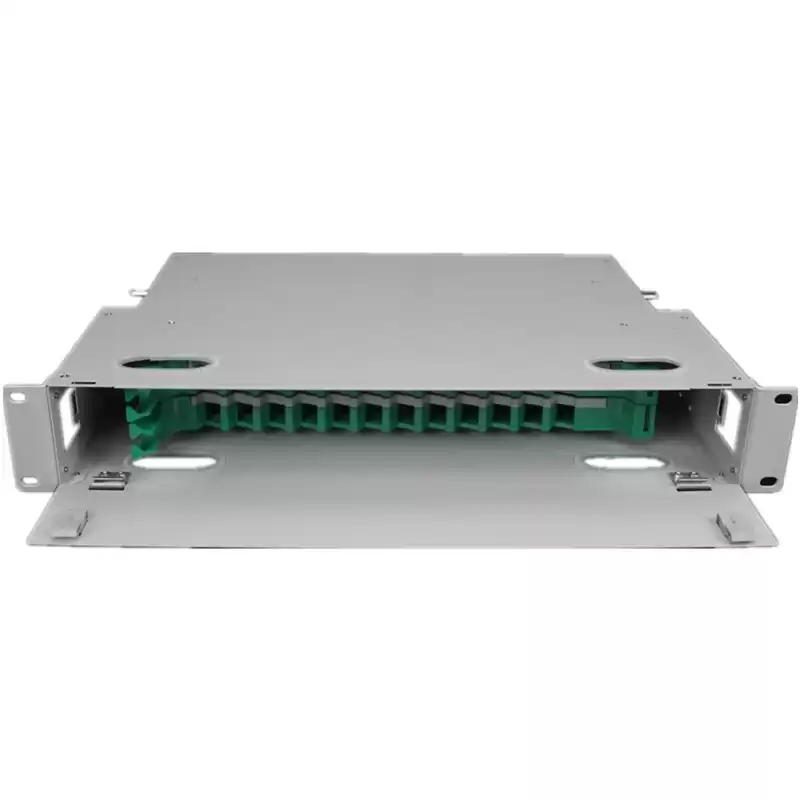

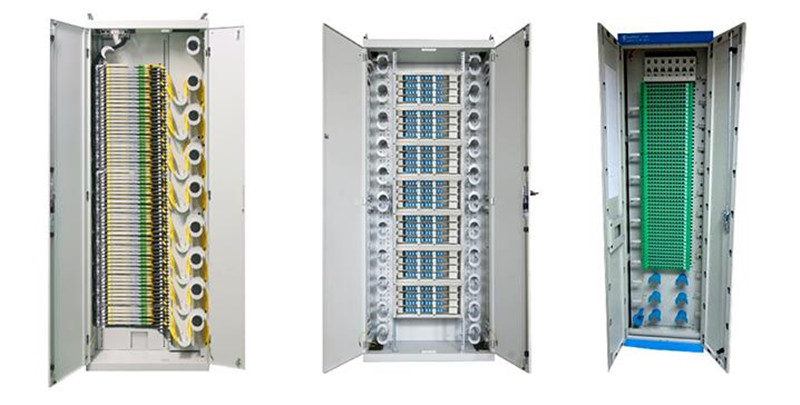

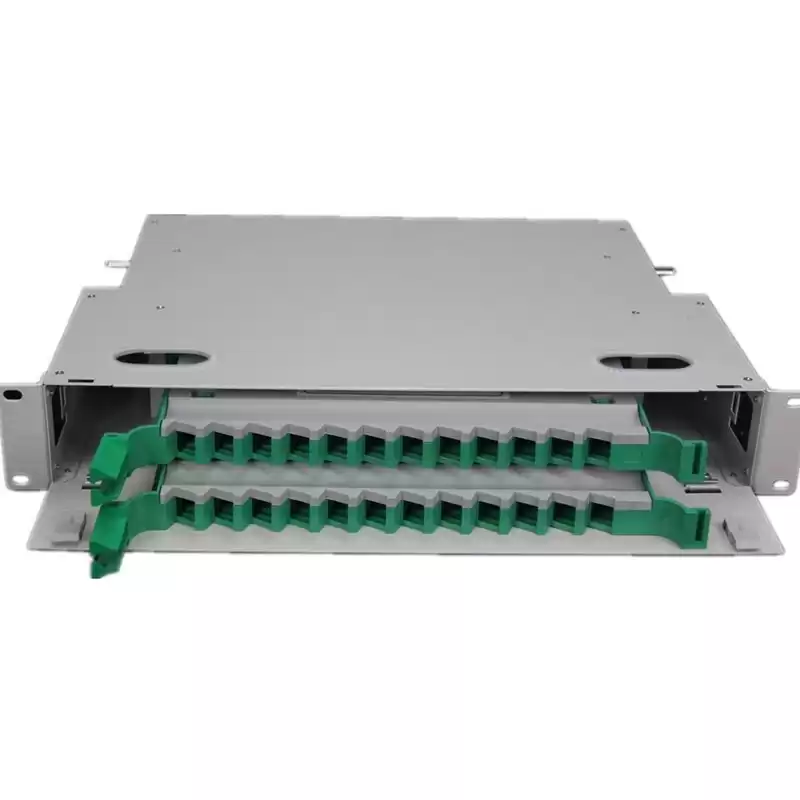

Optical Fiber Distribution Frame ODF Rack Mount 12 24 48 96 144 core
SZOPT’s ODF
unit boxes feature functions of fixing and protecting fiber cables, fiber cable
termination and cabling management. It can be installed as a fiber distribution
frame alone, also can be with the digital distribution unit and audio
distribution unit in a cabinet/rack which forms a comprehensive distribution
frame. The ODF patch panel is flexible in configuration, simple in
installation, easy to maintain, and is an indispensable device for fiber optic
communication cable network terminals or relay nodes for splicing fiber cables
and pigtails.Please reach us for details.
Features:
Standard 19"
rack mounting;
Smooth electrostatic
powder spraying cold rolled sheet/aluminum alloy;
Suitable for SC/FC/LC/ST/MPO/MTP
etc.different interfaces;

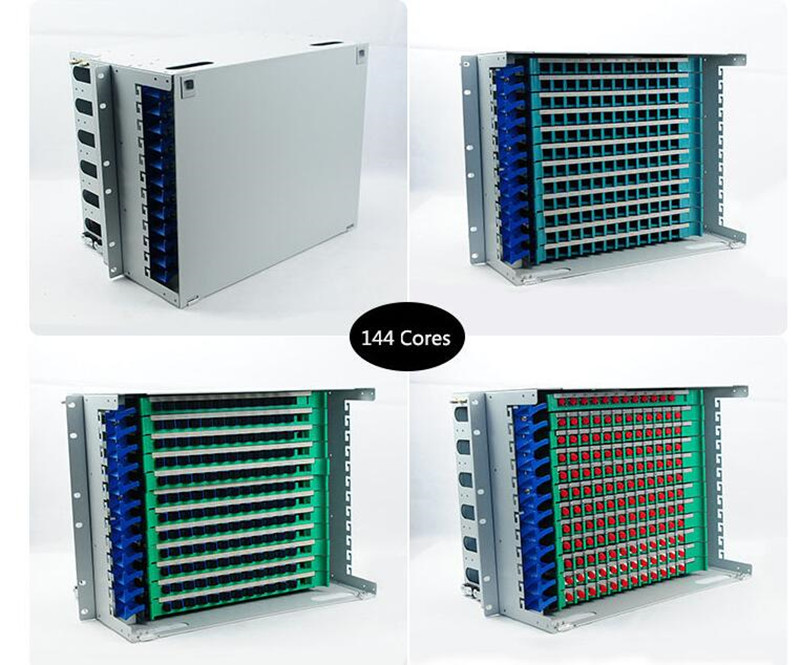

Capacity:up to 144
fibers;
Applications:
Telecommunications Equipments
LAN/WAN
CATV
FTTx
Specification:
Operating temperature: -25 ~ +40
Storage temperature: -25 ~ +40
Relative humidity: <85%
Air pressure: 70Kpa ~ 106Kpa
Package:
Each set in an inner carton box,then put in an outer carton box,well protection.
